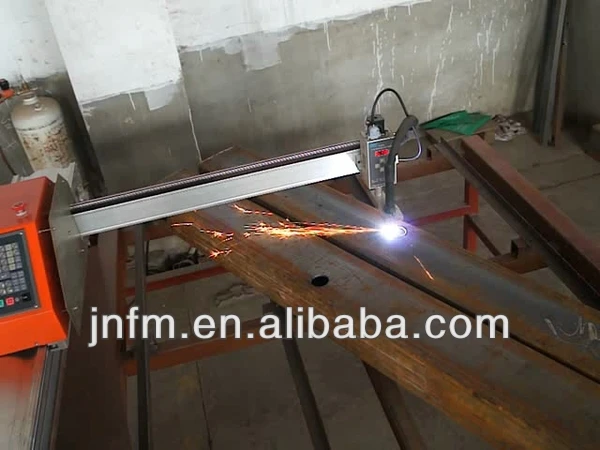

High Definition Plasma Cutting Machine /Adopt START system/read Auto and CAD format file directly

Product Overview

Description





Prameter:



Model	FY-BX1525/1530/1515HD   H:stands for flame  D:stands for plasma
Cutting Method	plasma or flame or both
Effecitve Cutting Width and Length	1.5m*2.5m or 1.5m*3m or 1.5m*1.5m
Cutting torch lifting stroke	≤100mm
Cutting Speed	0-15000 mm/min
Maximum idle speed	18000mm/min
Running accuracy	≤0.005mm
Cutting thickness	According to the selected plasma Power Huayuan Brand or USA Hypertherm Plasma Source for Choice
Way of adjustable height	Plamsa:Arc pressure automatically adjustable height Flame:Capacity Type automatic height-adjustment
Air pressure	Plasma:Ordinary plasma power set as 0.4-0.5Mpa Flame:0.1Mpa (gas) ;1.0Mpa (O2)
Power	220V/380V
Allowed Torches	plasma cutting torch or Flame or Both
Support software	Type3/Artcut6/Caxa/Auto CAD/Art CAM etc.

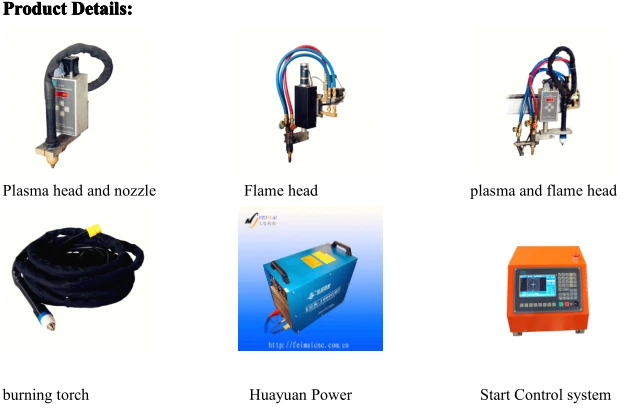

Product Details

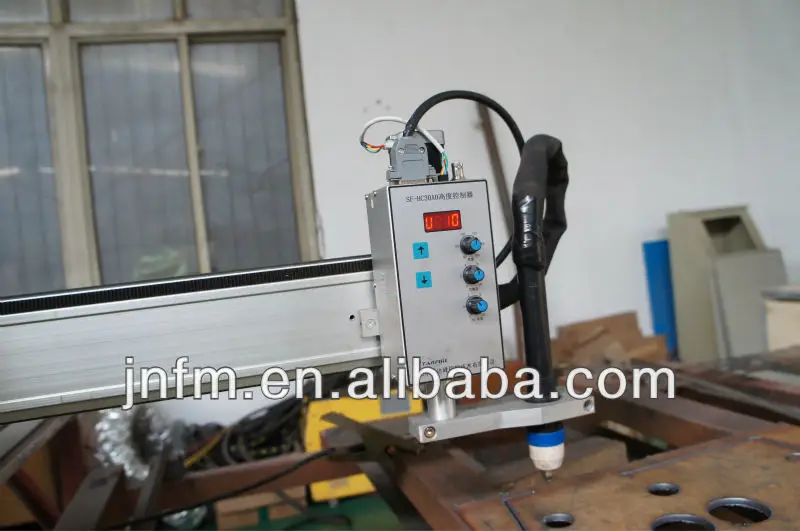

                                      Plasma Cutting Head

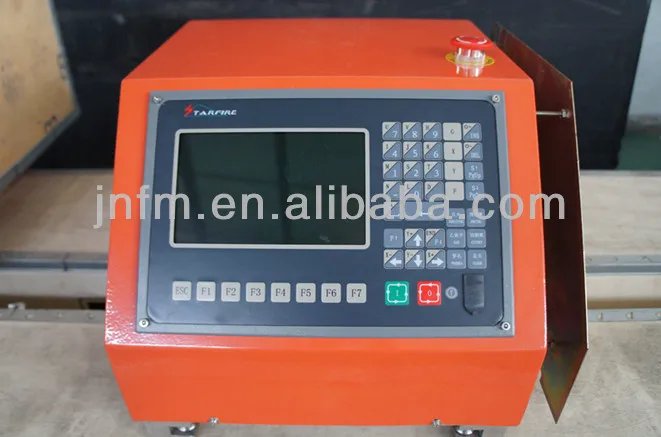

                                          High Quality CNC Control System for Plasma or Flame or Both





Opotion Configurations



1.Plasma source,plasma torch,cables etc.

   Plasma power:63A/100A/120A/160A/200A/300A

   Hypertherm plasma power: 45A/65A/85A/200A

Cutting Samples













 Applied Range

 The machine is suitable for iron plate, galvanized sheet,

Titanium plate and mild steel  carbon steel etc.

Video link: //www.feimaicnc.com.cn/vedioplay.aspx?id=21

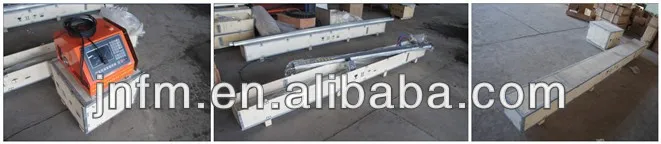

 Packing





Portable ,Table,Big Gantry type CNC  Cutting Machines are also provided.

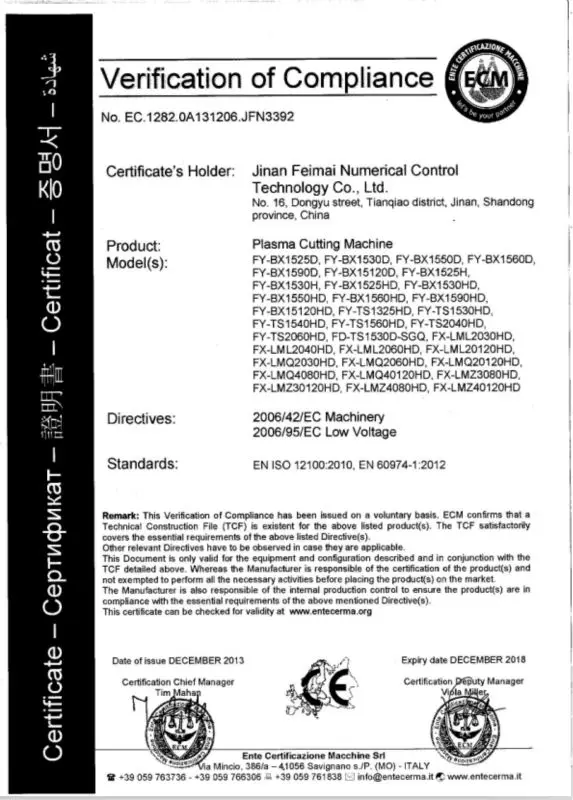

CE Certification











Transaction

MOQ:1 SET Payment Terms: T/T 100%
Delivery Time:15 days after receipt payment on time
We are near Qingdao Port,Shandong Province. Or you can choose Shanghai Port or other loading ports.
You can assign your forwarder or ask us to transport the machine for you.
