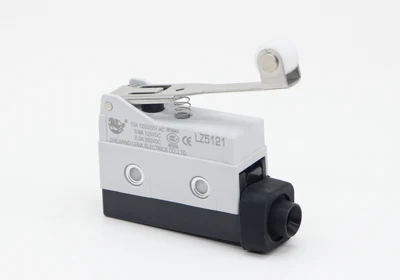

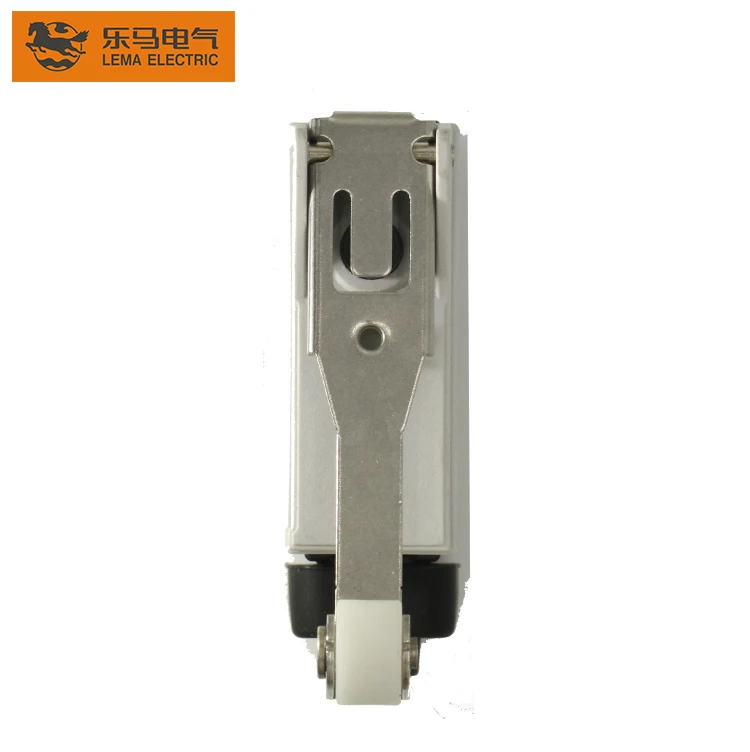

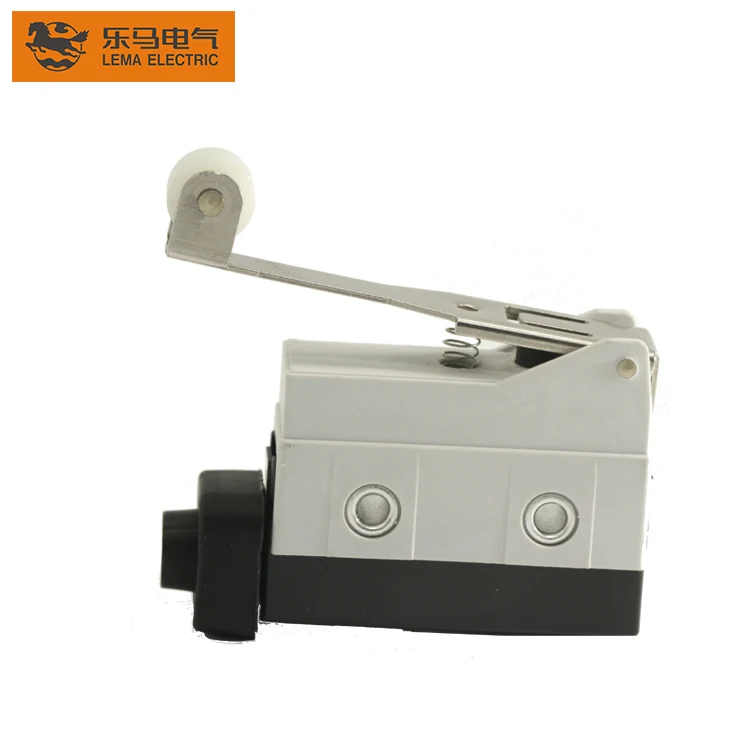

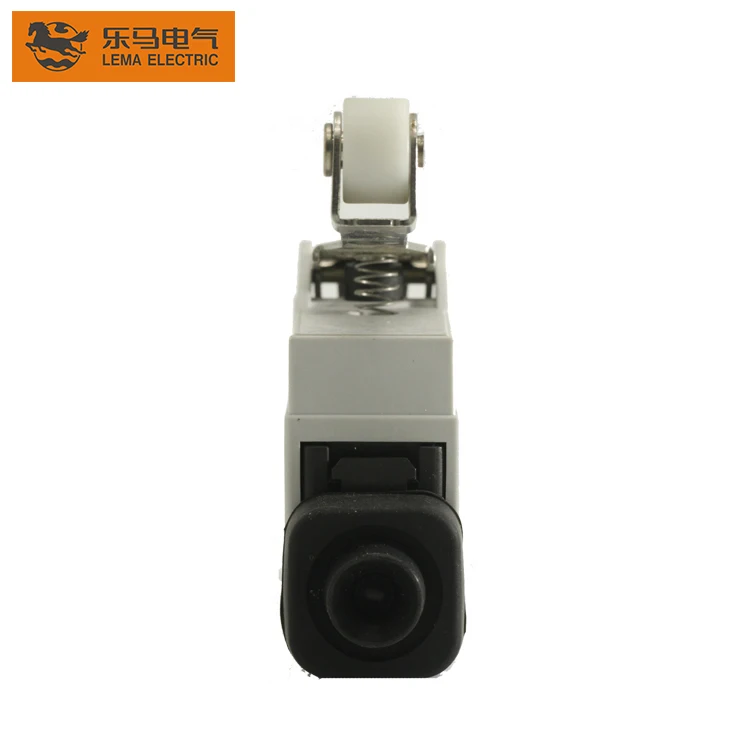

Lema LZ5121 D4MC2020 Short Roller Lever D4MC Approved Limit Switch Elevator
- Category: Limit Switches >>>
- Supplier: Zhejiang Lema Electrics Co. Ltd.
Share on (1836077433):
Product Overview
Description
Product Description
Lema LZ5121 D4MC2020 Short Roller Lever D4MC Approved Limit Switch Elevator
 | ||
 | ||
| Brands | LEMA | |
| Model | LZ5121 | |
| Voltage: | 250VAC | |
| Electric current: | 10 A | |
| Protection level: | Ip65 | |
| Contact form: | SPDT | |
| Package: | CARTON | |
| Size: | 55mm*22.1mm*43.6mm | |
| Certified: | CCC CE | |
| Operating speed | 0.01mm-50cm/s | |
| Operating frequency | Mechanical:120 operations/min | |
| Electrical:30 operations/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Max.shock resistance | Destruction: 1000m/s2 Malfunction: 300m/s2 | |
