FX500 High Recovery Hydrocyclone Sand Separator For Sale

Product Overview

Description



FX500 High Recovery Hydrocyclone Sand Separator For Sale



1.Description of Hydrocyclone Sand Separator:

Hydrocyclone Sand Separator was widely applied in mine chosen technique in various metal  mines as the following works:

1). Classification for section I closed circuit grinding

2). Classification for section II closed circuit grinding

3). Regrinding for fine mine classification

4). Mud-removing before selection and after selection

5). Dam and backfill for gangue



In closed circuit grinding system, it features high classification efficiency and fine overfall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader.  It benefits for  enhancing grader utilizing coefficient.

Adopt PU, steel hull lining PU, steel hull lining TG-NM wearable material, steel hull lining high Aluminum porcelain in cyclone.



2.Working Principle of Hydrocyclone Sand Separator:

A typical hydrocyclone consists of a conically shaped vessel, open at its apex, or underflow, joined to a cylindrical section, which has a tangential feed inlet.

The top of the cylindrical section is closed with a plate through which passes an axially mounted overflow pipe.

The light granules will be pulled out by a pump through the overflow pipe, while the heavy particles will be discharged with the pulp through the underflow discharge.











3. Features of  Hydrocyclone Sand Separator:

• Simple structure, light and flexible, no moving parts;
• low equipment cost, easy disassembly, maintenance, less the cost of infrastructure
• Large handling capacity, Can handle the small particle size to about 10μm
• High efficient Classification.
• Slurry in the cyclone retention volume and time very small, easy to deal with when the machine stops.

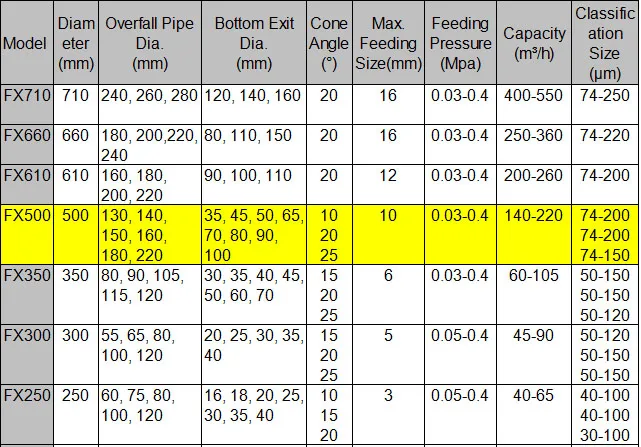

4.Technical Specification  of  Hydrocyclone Sand Separator:





5.Applications of  Hydrocyclone Sand Separator:

Hydrocyclone Sand Separator is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

It is a high efficient grading and de-sliming equipment of fine -particle material. It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.



6. A schematic diagram of closed grinding circuit by applying the hydrocyclone sand separator:









7.Packing  of Hydrocyclone Sand Separator:



LCL: The mine machinery hydrocyclone be packed in steel frame inside and polywood box outside.

FCL: The mine machinery hydrocyclone be fixed in the container directly; the spare parts will be packed in wooden box.
