10000L Swimming Pool Heating Solar Collector, Vacuum Tube Solar Panel

Product Overview

Description



We are a professional Manufacturer of solar vacuum tube collector, solar water heaters, solar hot water heater, domestic solar water heater, solar thermal panel for hot water, split pressurized solar water heater in China for many years and export to over 40 countries.



Primary Competitive Advantages:
Long Guarantee/Warranty

Competitive Price

Prompt Delivery

Excellent After Sales Service

OEM and ODM
International Approvals
Quality Approvals
Reputation
Small Orders Accepted

Product information:

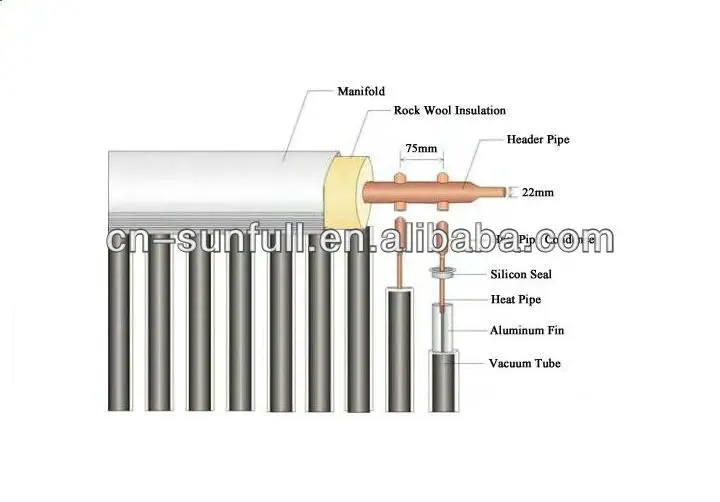

Solar Heat Pipe Collectors are always connected with existing heating supply device. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapor which rises to the condenser. The heat then passes through the heat exchanger and the vapor becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.



Solar collector specification:
1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2.0 mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1800mm

4. Insulation layer: 45mm thickness glass firber /polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: AlN-Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy



Solar power system applications:

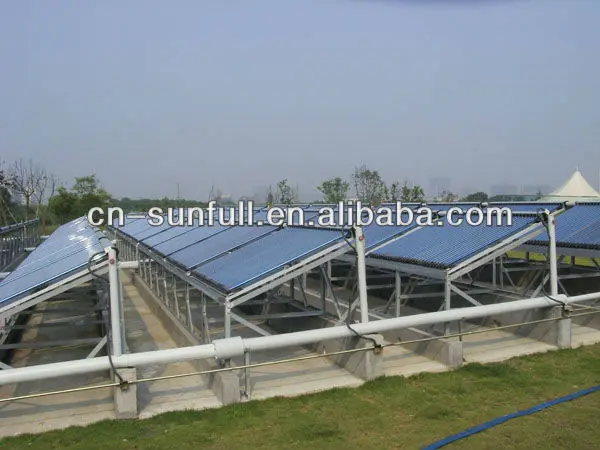

1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
