ScopeMeter Test Tool Fluke 190 204

Product Overview

Description



ScopeMeter  Test Tool   Fluke 190-204  :

 As the first four-channel portable scope safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter® 190-204 combines an unprecedented level of performance, ruggedness, and portability with 200 MHz bandwidth and real-time sampling rates up to 2.5GS/s and 200 ps resolution to capture noise and other disturbances. This model feature deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.



•




  The Fluke ScopeMeter® 190-204 combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter® test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.




  The 190-204 ScopeMeter® is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:






  • Two electrically isolated inputs


  • CAT III 1000V / CAT IV 600V safety rated


  • 200 MHz bandwidth model


  • 2.5 GS/s


  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details


  • Dedicated 5000 Count digital multimeter


  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering


  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours


  • TrendPlot, trend measurement readings for up to 22 days


  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)


  • IP-51 rated for dust and drip proof to withstand harsh environments


  • Isolated USB ports for memory devices and PC connectivity


  • Li-Ion battery for extended operating timespanEasy-access battery door to make it easy to swap batteries



    • Up to 7 hour (BP291 included standard)


    • Charge spare battery using optional external battery charger EBC290








  • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock








•


  Three-dimensional testing for industrial systems »





  Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:





  • Circuit voltage/current overloading


  • Signal timing measurements and synchronization issues


  • Attenuation/input impedance mismatch


  • Signal fluctuation/drift










  Three-phase testing for diagnosing VSD, power inverters, and converters »





  • Test for harmonics, transients and loads at the three-phase power input


  • Troubleshoot dc to ac converters for faulty IGBT gates or filter circuits


  • Test PWM output for reflections and transients or voltage unbalance







 -------------------------------------------------------------------

Specifications:



bandwidth	200 MHz
Number of channels	200 MHz: 4 channels
Real-time sample rate	2.5 GS/s
Inputs	4 scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range	2 ns - 2 min/div
Input sensitivity	2 mV-100 V/div
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source	Any scope input channel
Glitch capture	8 ns
Scope measurements	Cursor: 7
	Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts
	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare	Waveform reference with automatic Pass/Fail testing
Environmental Specifications:
Operating temperature	0 °C to 40 °C Including Batteries
	0 °C to 50 °C Excluding Batteries
Storage temperature	-20 °C to +60 °C
Operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
	Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Safety Specifications:
Electrical safety	1,000V CAT III/600V CAT IV (EN61010-1)
Mechanical and general specifications:
Size	270 x 190 x 70 mm
Weight	2.2 kg
Warranty	3-years on main instrument, 1-year on accessories
Li-Ion battery	BP291 4800 mAh battery up to 7 hours included standard

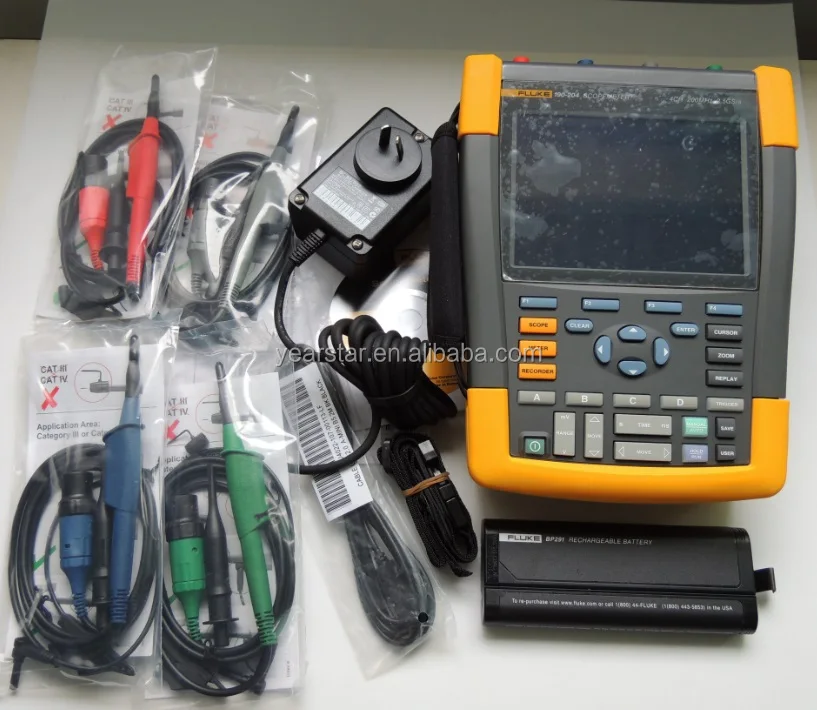

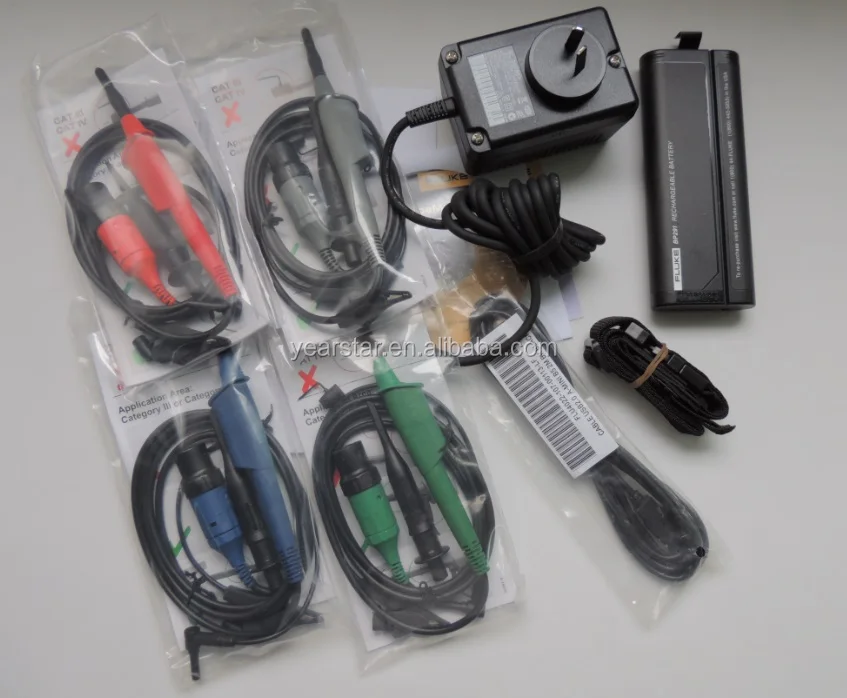

Included Sccessories:
	VPS410 Voltage Probe Sets (one red, one blue, one grey, one green)
	BC190 Battery Charger/mains Adapter
	BP291 4800 mAh high capacity Li-ion Battery
	Handstrap (affixed to instrument)
	Hangstrap
	Multi-Language User Manuals on CD-Rom
	FlukeView ScopeMeter® demo package (restricted functionality)
	USB Interface Cable
Warranty	Three years on main instrument, one year on accessories





 -------------------------------------------------------------------



















--------------------------------------------------
