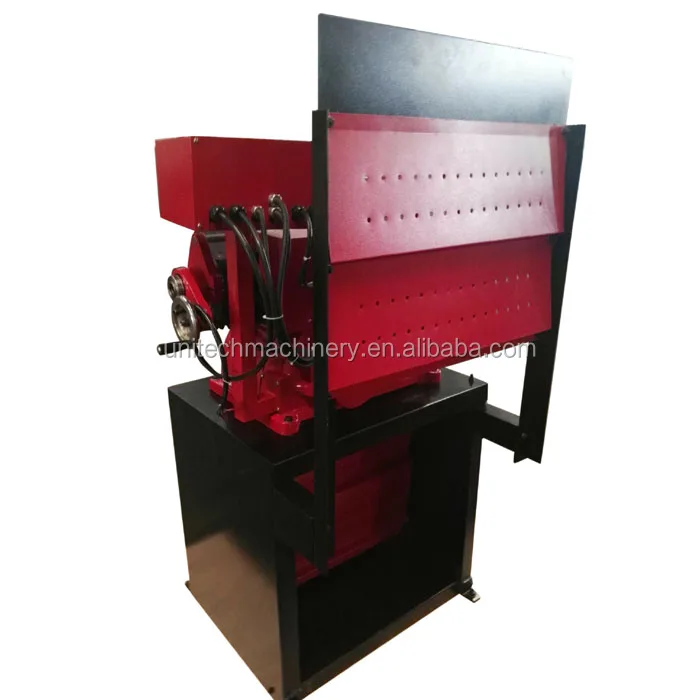

brake disc lathe machine C9350

Product Overview

Description

rotor cutting lathe machine  C9350



Features:

1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be  increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.

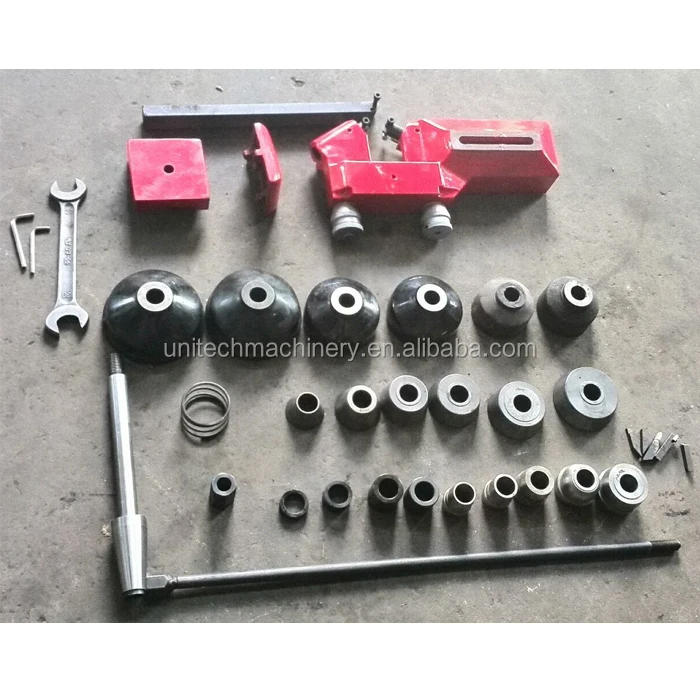

8. Fully equipped with adapter package.



Model		C9350
Range of processing	brake drum	Φ152-Φ500mm
	Brake plate	Φ180-Φ330mm
Max depth of processing brake drum		175mm
Rotor thickness		1-7/8” (48mm)
Spindle Speed		70,80,115r/min
Spindle feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Cross feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Max processing depth		0.5mm
Machine Power		0.75kw
Motor		110V/220V/380V,50/60HZ
Gross weight		290 kg
Dimension (L×W×H)		970×920×1140mm
