field assembly cable to cable waterproof 6 pin connector 20Amp

Product Overview

Description







field assembly cable to cable waterproof 6 pin connector 20Amp

* IP68 protection degree
* CCC, CE,ROHS certificated
* OEM desing service

* 6*20A,  500V

* High quality with 12 months waranty



How to purchase our connectors ?

1. Confirm to us the pin number, 2 pin, 3 pin, 4 pin or...

2. Confirm to us what the OD (outside diameter) of cable you use;

3. Confirm to us the rated Current & Voltage when your appliance works;



Applications

♦ PV inverter

♦ Electric vehicle

♦ Medical equipment

♦ Interactive Smart Grid

♦ Automation machine

♦ Industrial PC

♦ Marine device

♦ Outdoor LED display

♦ Outdoor LED lighting



field assembly cable to cable waterproof 6 pin connector 20Amp
1	Model No.	LLT-M25C06
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	6x20A
6		Voltage Rating	500V
7		Contact Resistance	<5mΩ
8		Insulation Resistance	1000MΩ at DC 500V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-45°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP68
13		Cable Max. Diameter	13 mm
14		Pins Range	2, 3, 4, 5, 6, 16, 19, 20, 24, 3+8, 3+9
15	Certificate	CCC; CE; ROSH

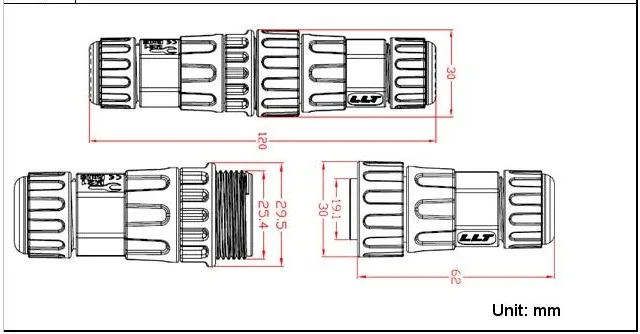

16	Dimension









1.plastic bag  2.carton  3.wooden box  4. as client's requirement



DHL/ FedEx/ UPS/ TNT/ ARAMEX for small orders/ bulk goods,  competive shipping charge;

Air transporting or ocean shipping for Mass Order,  One-stop logistics service







If any of our products ineterests you, please don't hesitate to contact us anytime!
