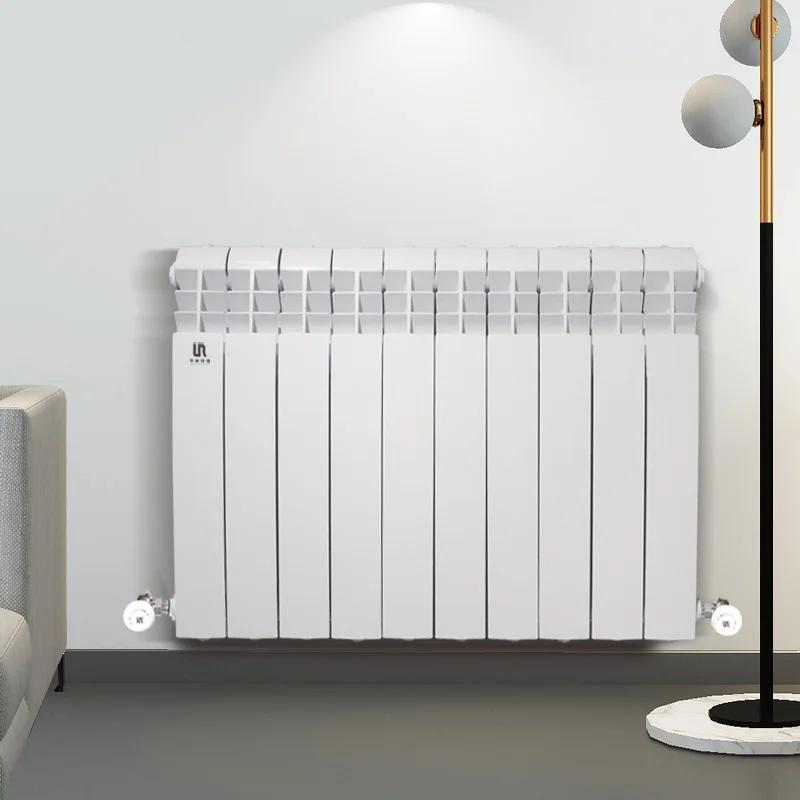

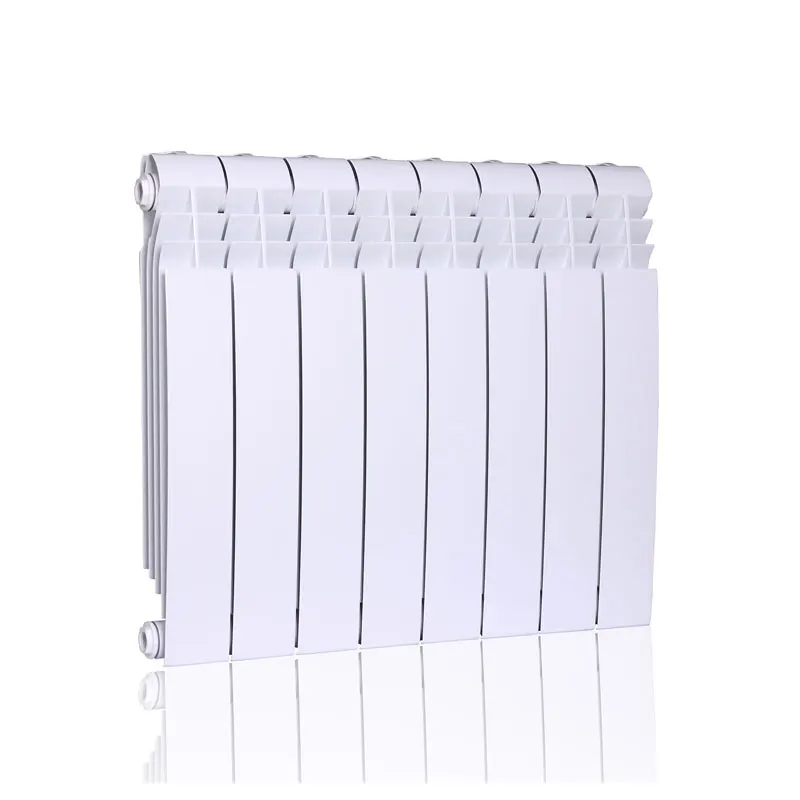

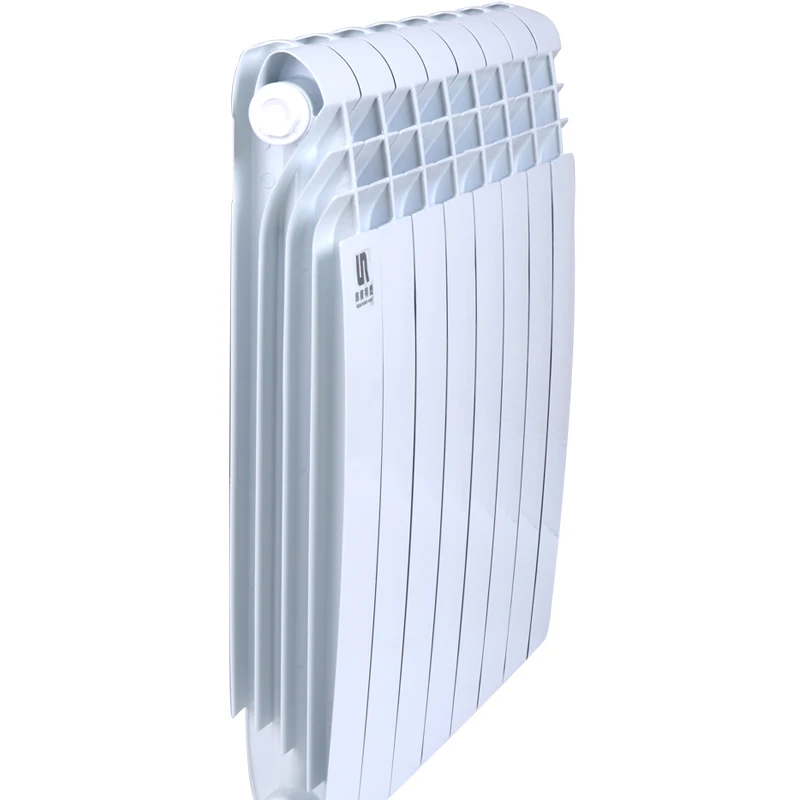

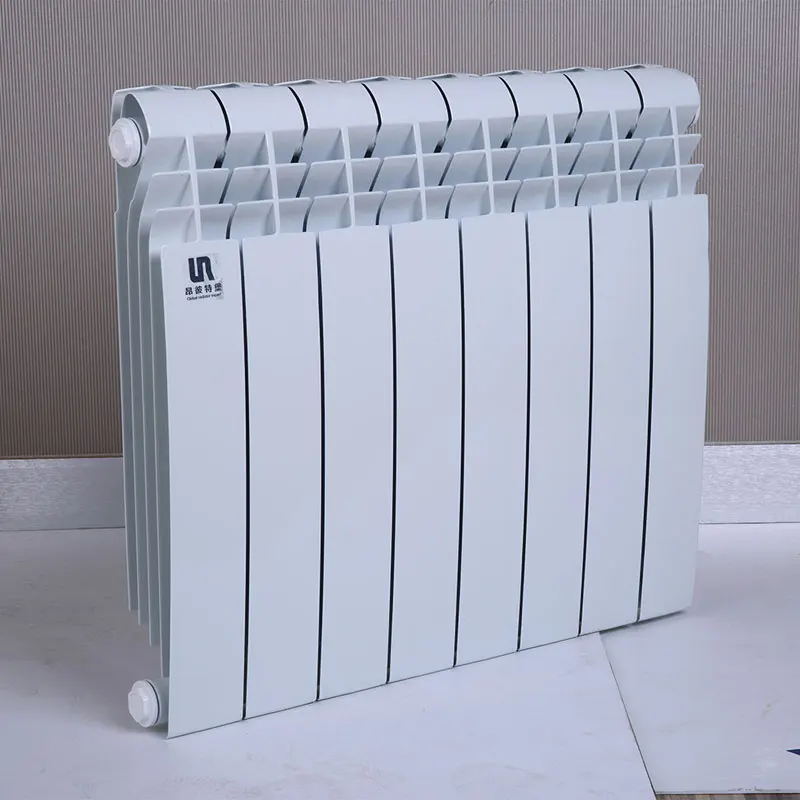

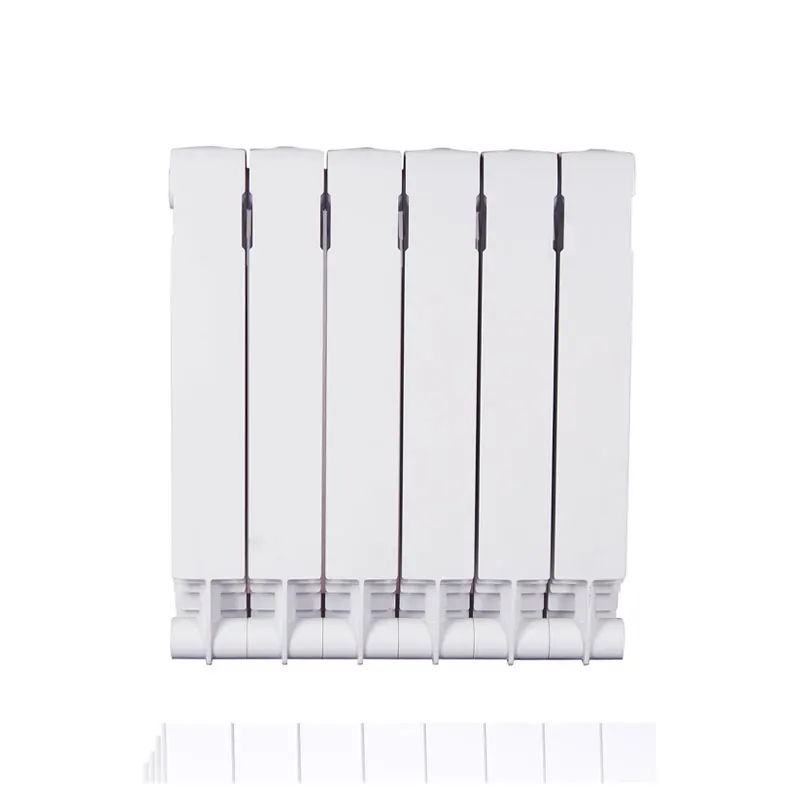

Room radiator aluminum die casting heater curved type italian high quality

Product Overview

Description



Room Radiator Aluminum Die Cast Heater :

Model	Height (mm)	Width (mm)	Depth (mm)	Central distance (mm)	Water capatical (L)	Thermal output Δt=64.5°c (w)	Weight (kg)	Available Area(m²)	Q''ty(pcs) /20'FT
UR1011-350	435	80	87	350	0.31	158	1.02	1.8	8000
UR1011-500	585	80	87	500	0.36	196	1.29	2.3	5800



Feature of our Aluminum radiators:



1. International standard raw material ADC12, 800T die casting machine gives radiator outstanding

performance with good conductivity, anti-corrosion and stability.



2. Three times pressure test at 2.4MPa ensures no leakage.



3. 300-metre international automatic electrophoresis painting line, E-coat imported from Germany BASF,

global top level technology.



4. Powder spraying : degreasing and passivation liquid is from Germany Henkel.



5. Hidden water channel prevents children from being hurt.



6. Easy to adjust the element quantity for different room size and temperature request.



7. Thanks to automatic pretreatment procedure and electrophoresis painting line, color on surface is prefect.



8. Efficient heating and high thermal output helps energy saving and environmental protection.

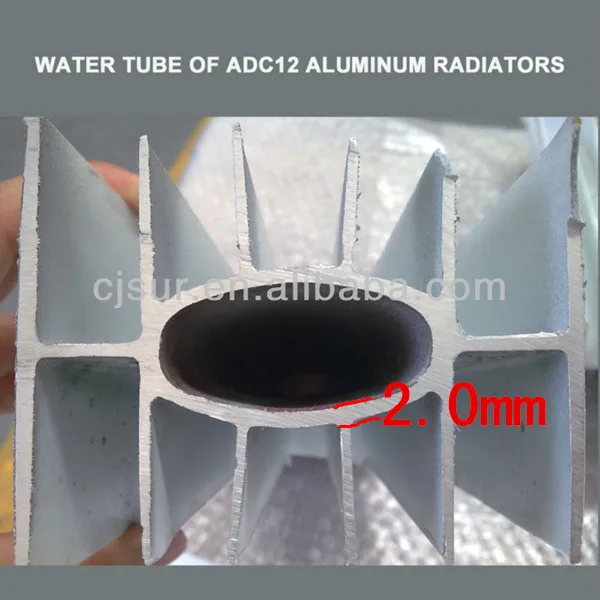

A. Section of aluminum radiator UR1011:





B. Our Certificate and Glory:



C. Electophoresis painting line:

  The radiators are immersed in solution in an electrified tank containing the paint. It is draw to the parts,

where the addition or subtraction of electrons change the paint from ions in solution to soild particles

adhering to the parts in a manner. The coatings cover every nook and cranny because as the high sports

become electro coated, analagous to electro planting of metals. Through the procedure, this painting

application, offers an excellent corrosion protection and great absorption to the surgace.





D. 5-layer corrugated boxes of radiators:

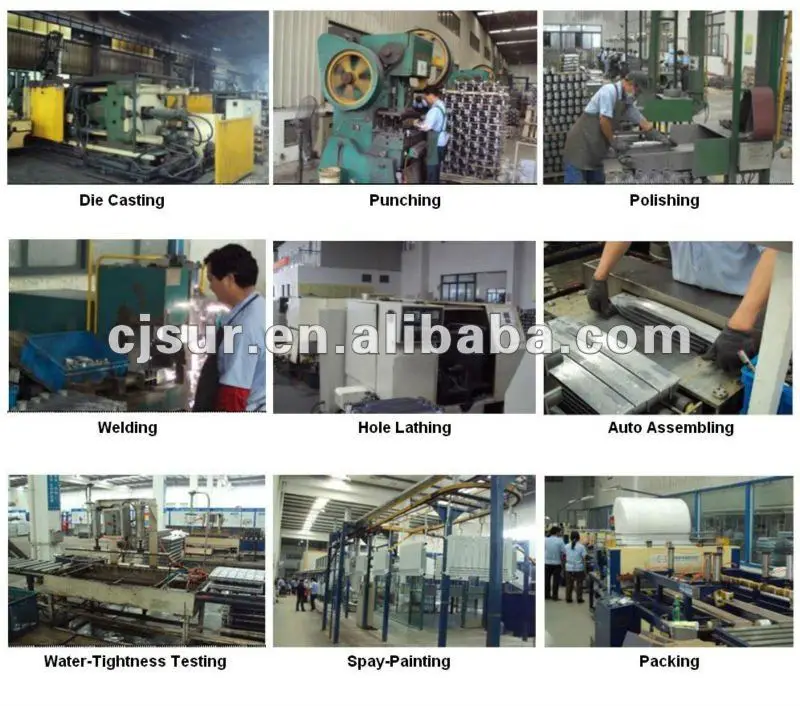

E. Process of production:

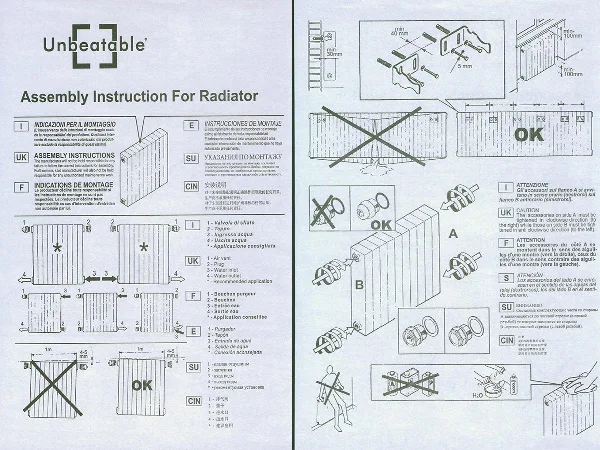

F. Assembly instruction for radiators:



G. Our factory:



H. Our service:

1) Warranty: 5 years

2) PICC in world

3) Commit in stric QC system which from each link of production to the loading in container.

4) In the whole process of the after-sale tracking service





I. Our main products:

1. Die casting aluminum radiators

2. Bimetal radiators

3. Water heating towel rails

4. Electric towel rails

5. Electric radiators

6. Accessories for water system
