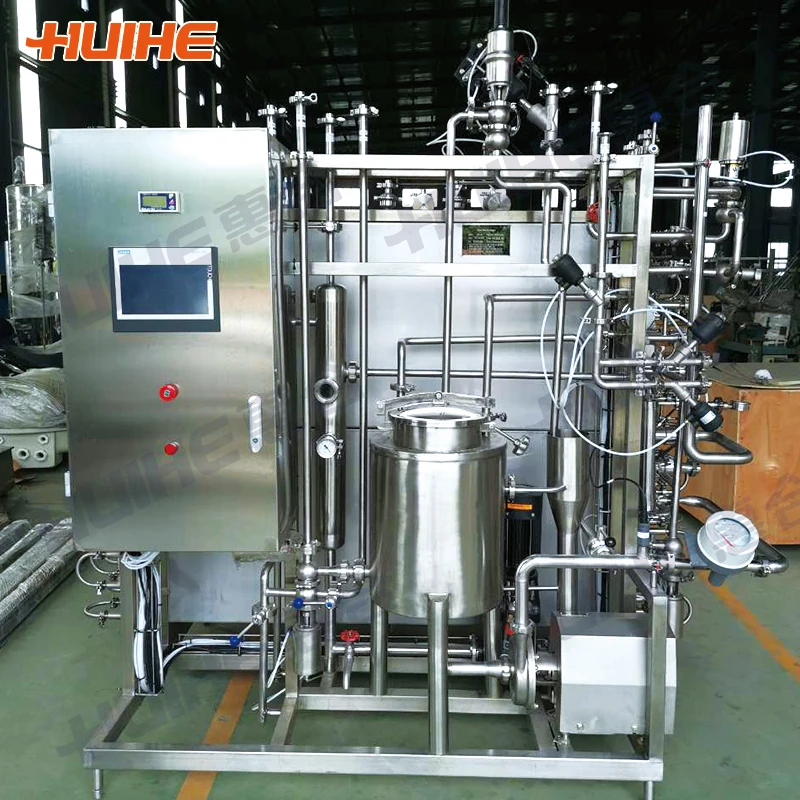

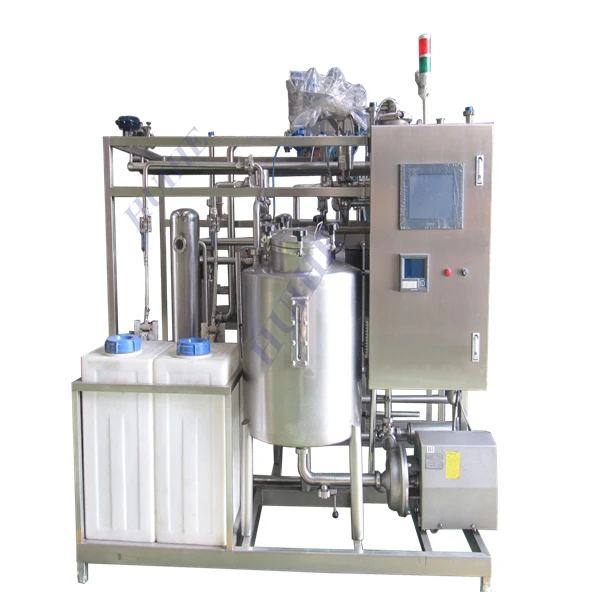

Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine
Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine

Skid mounted calf milk pasteurizer machine flash milk dairy online pasteurization machine

Share on (1843179442):


Price:

Quantity:


Product Overview

Description














Skid mounted Flash Pasteurization Sterilizer 's Suitable Material

Plate Type UHT Sterilizer is suitable for liquid materials such as fresh milk, juice, beverage, alcohol, soybean milk and fluid medicines,etc.


.jpg










Skid mounted Flash UHT Sterilizer ’s Characteristics


1. The material and the heating medium are in their own sealing system, ensure materials sanitary;

2. Short sterilization time, maintain the nutrition;

3. Good heat transfer effect, high heat recovery, less energy consumption;

4. The main control components, valve parts and accessories are imported parts, with long life;

5. Adopting PLC control, may automaticly control the heating temperature, hot water temperature, the steam flow adjusting. And is equipped with the material automatic backflow system, ensure 100%  sterilization effect;

6. Simple structure, easy to clean, convenient operation, low cost of maintenance.

9












Milk Tube Sterilization 's Material
The Skid mounted Flash  UHT Sterilizer material from Hangzhou Huihe Machine Facture Co., Ltd usually is SUS304 or SUS316L if the customer has no special requirements.

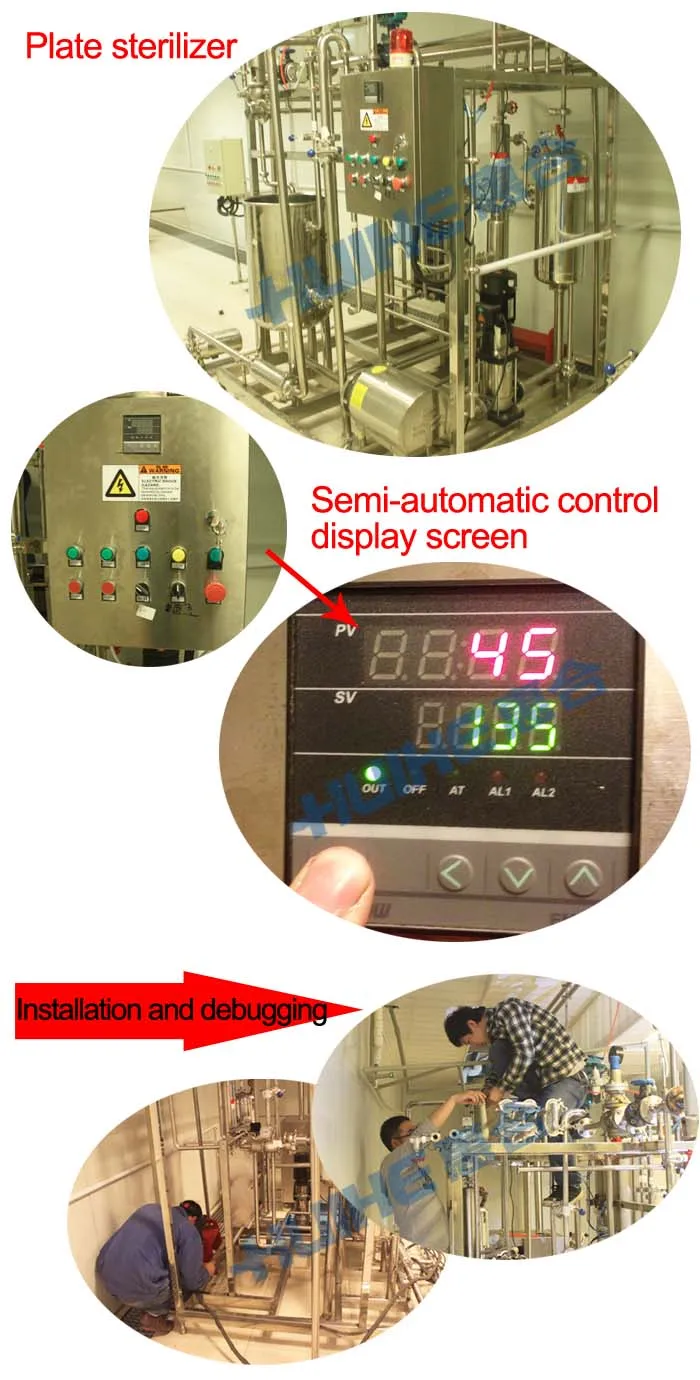

Skid mounted Flash UHT Sterilizer ’s Detailed Picture of project
.jpg










Skid mounted Flash Plate Type UHT Sterilizer ’s Technical Parameter


Process parameters: 65 °C homogeneous  to 120 °C (30 S)-5 °C

Cooling water 25 °C


































































































































Model


Capacity

(t/h)


Steam consumption

(kg/h)


Steam prssure

(bar)


Electric power

(kw)


Weight

(kg)


Tube diameter(Φ)


material


steam


medium


HE-BR0.1-GCH-1


1


120


6.0


2.8


460


25


DN25


25


HE-BR0.1-GCH-2


2


240


6.0


3.0


460


25


DN25


25


HE-BR0.25-GCH-3


3


390


6.0


4.0


460


38


DN32


38


HE-BR0.25-GCH-4


4


520


6.0


4.0


500


38


DN40


38


HE-BR0.25-GCH-5


5


650


6.0


5.5


560


38


DN40


38


HE-BR0.25-GCH-6


6


780


6.0


5.5


600


51


DN40


51


HE-BR0.25-GCH-8


8


1040


6.0


5.5


720


51


DN50


51


HE-BR0.25-GCH-10


10


1300


6.0


7.8


820


51


DN65


51


HE-BR0.4-GCH-15


15


1950


6.0


10.5


1620


63


DN80


63


HE-BR0.6-GCH-20


20


2400


6.0


15.0


2400


63


DN100


63





Notes:

1. The parameters in the chart are standard configuration. Any specific requirements, please let us know.



2. These process parameters need provided :material properties, sterilization process, capacity, specific requirements, etc.

3. Auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

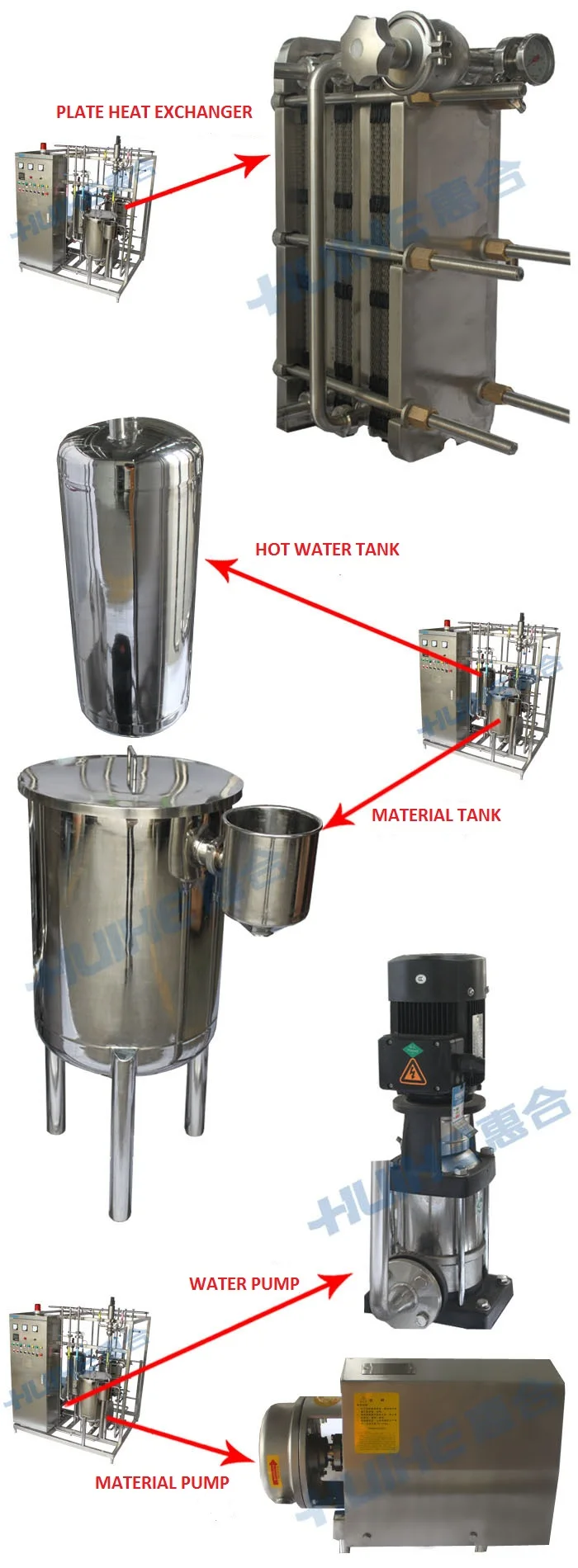

Skid mounted Flash pasteurizer machine detail view

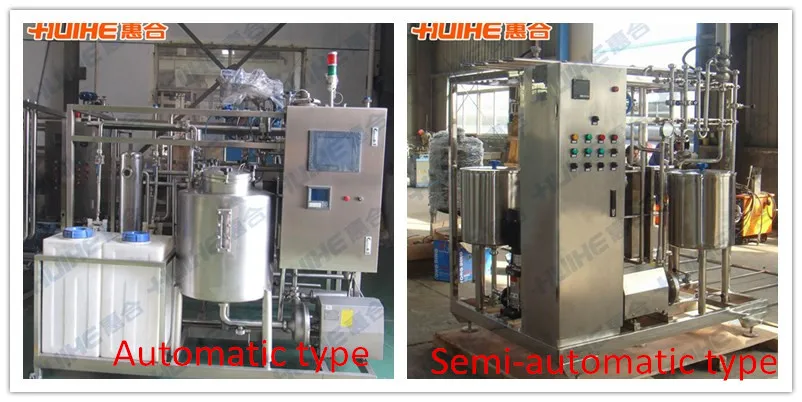

The Difference of auto and semi-auto sterlizer:

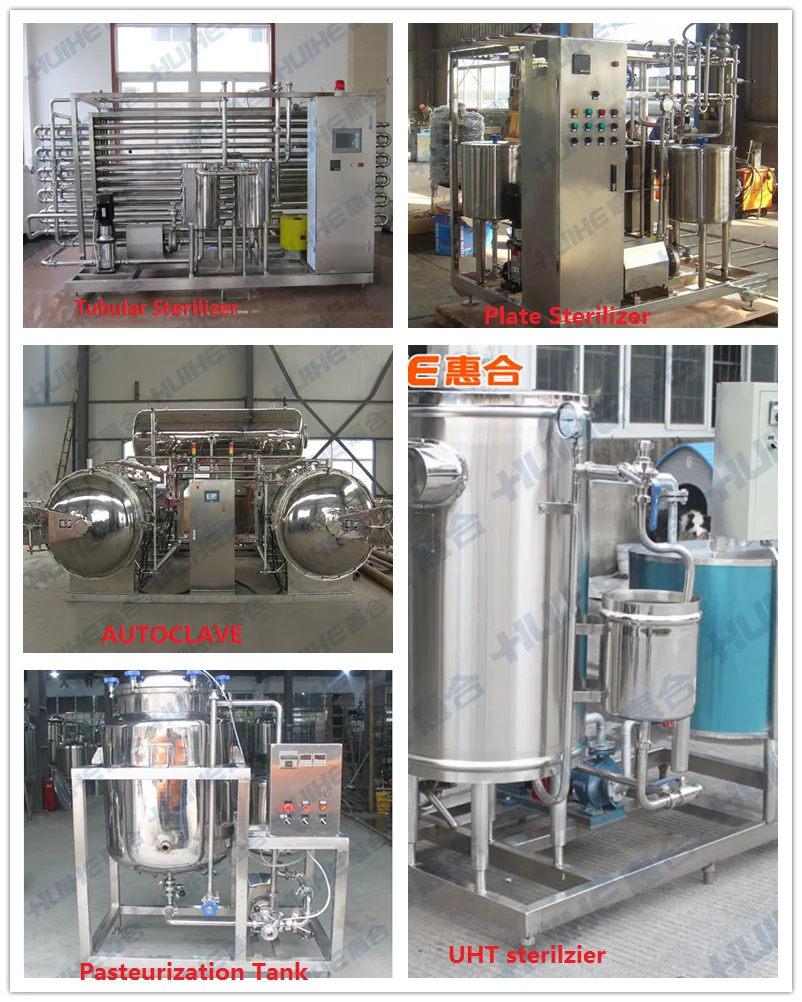

The other steilization machine:





Zizu















Why Choosing Our Skid mounted Flash UHT Sterilizer

The six reasons to choose Huihe










Skid mounted Flash UHT Sterilizer ’s Packing Before Delivery











Authentication certificate and strength show


CE
