25mm Geared stepper motor for Valve Control
- Category: Stepper Motor >>>
- Supplier: Changzhou,Goot,Motor-Tech,Co.,Ltd.,[Jianfsu,China]Changzhou
Share on:
Product Overview
Description
Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:
1. PM Stepper Motor:
| Diameter | 8mm | 10mm | 15mm | 20mm | 25mm | 35mm | 42mm | 55mm |
| Model No. | PM8S-020 | PM10S-020 | PM15S-020 | PM20S(L)-020 | PM25S(L)-048(024) | PM35S(L)-048(024) | PM42S(L)-048 | PM55L-048 |
2. PM Stepper Motor with gearbox(with different gear ratio):
| Diameter | 10mm | 15mm | 20mm | 24mm | 25mm | 28mm | 35mm | 42mm |
| Model No. | PG10S-020 | PG15S-020 | 20BYJ46 | 24BYJ48 | 25BYJ; PG25S-048 | 28BYJ48 | 35BYJ46; PG35L-048 | PG42L-048 |
3. PM Linear stepper motor(with lead screw):
| Diameter | 8mm | 10mm | 25mm |
| Model No. | PL8S-020 | PL10S-020 | PL25S-048(024) |

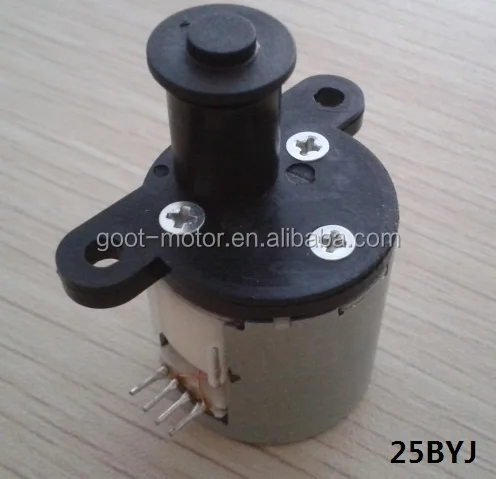

25mm gear actuator
Application :
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
Highlights :
Excellent open loop control - No encoders necessary
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - motor is brushless
Winding possibilities - Bipolar
Customization On Call
Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.
Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors, End of motion detection sensors.
Wire Harness - connectors, pins, lead length, shrink tubing.
