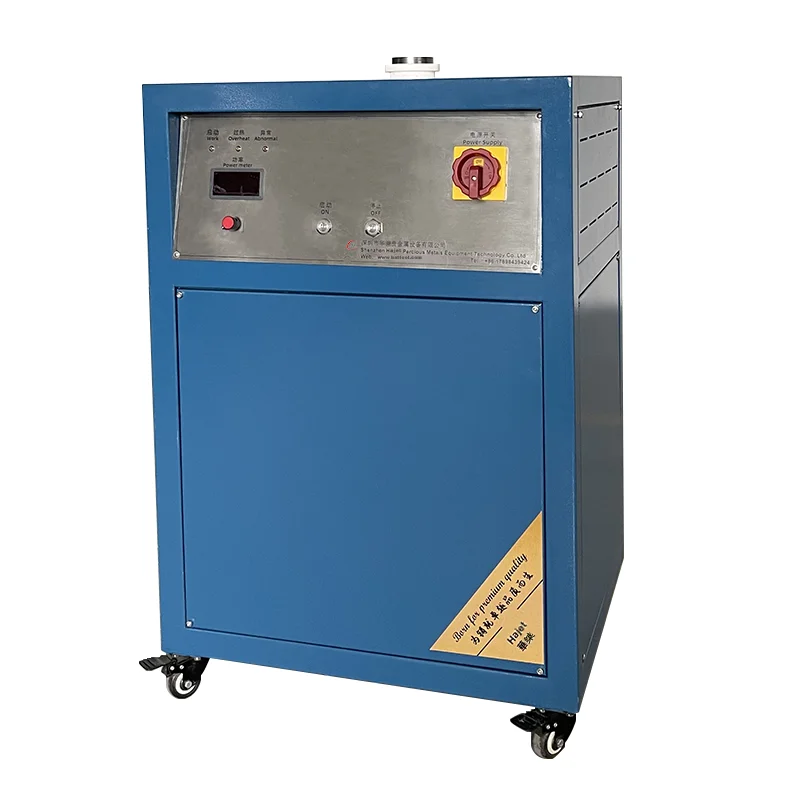

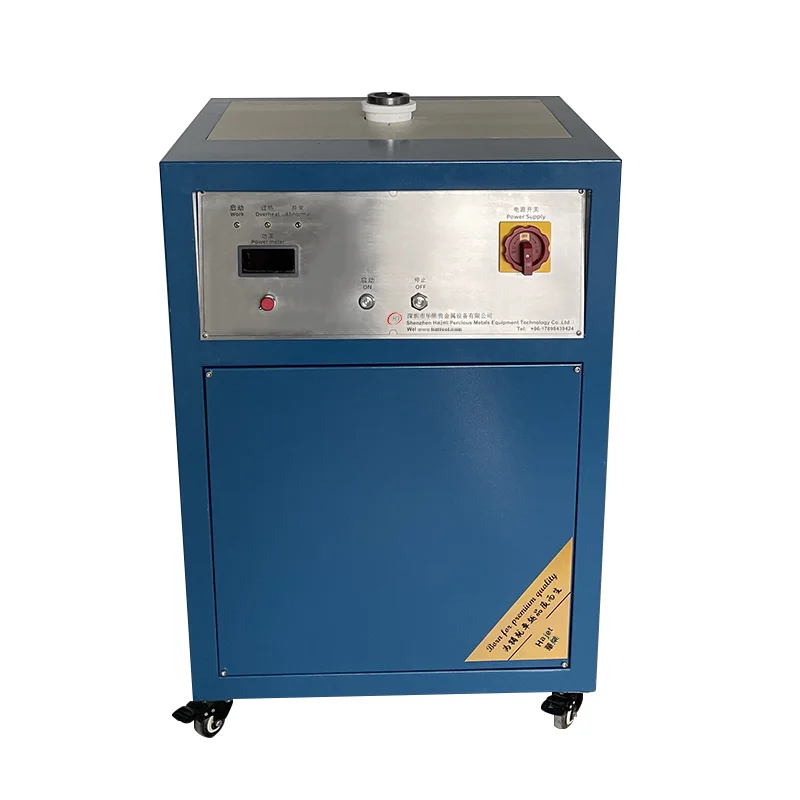

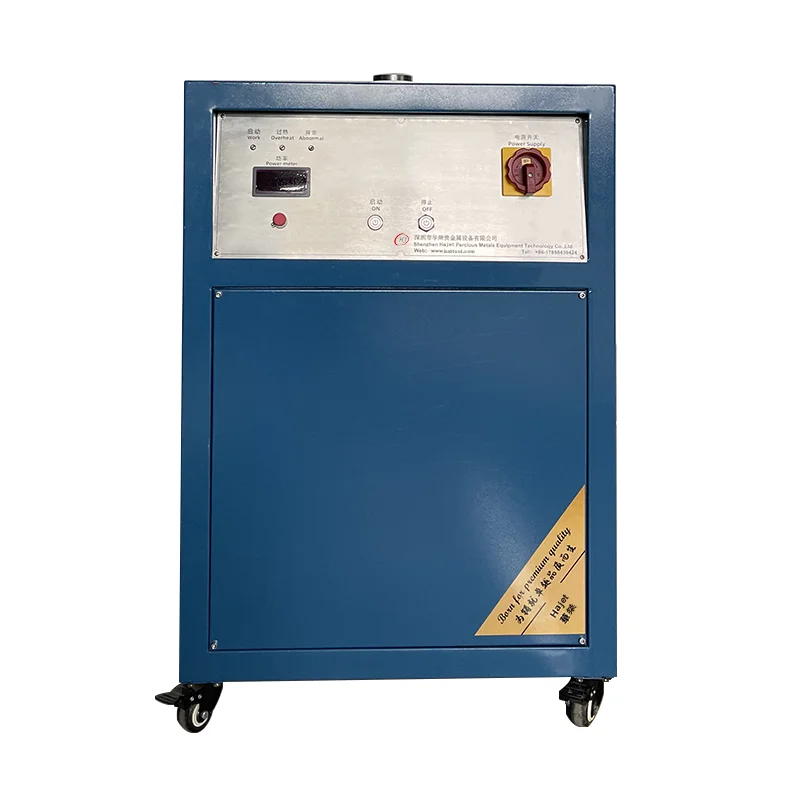

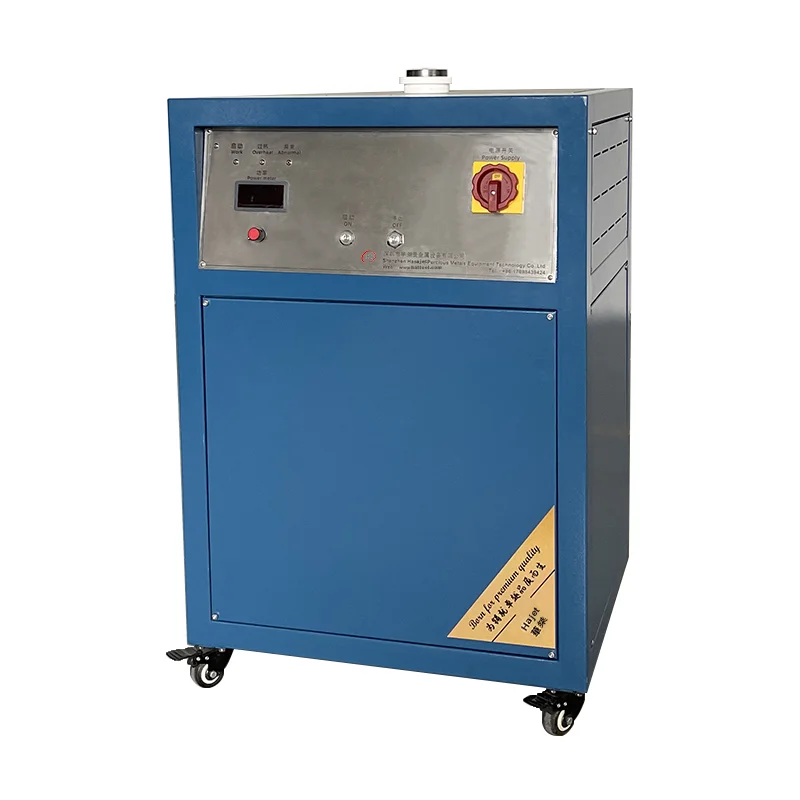

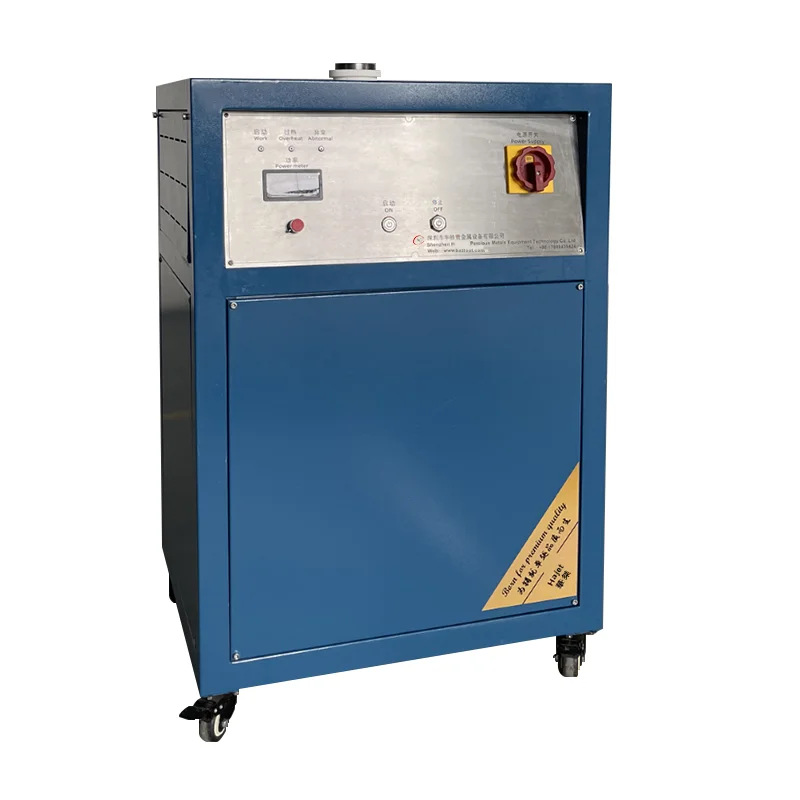

Jewellery factory Making Equipment 15KW 8kg Electric Silver and Gold Melting Furnace Induction Melting Furnace

Product Overview

Description



Apply big power high frequency induction heating system to melt  gold, K-gold, silver, brass, etc.  High frequency power not only provides fast melting but also electromagnetic mixing function which helps making highly even metal liquid.



I. Operation:

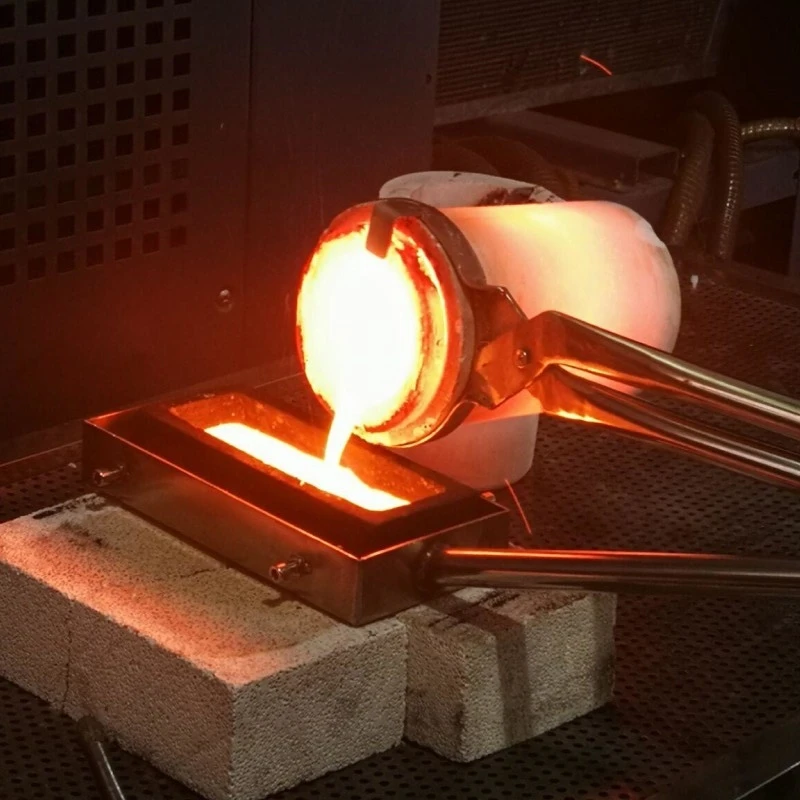

Power on →open water faucet → put ceramic crucible in the machine→put metal in the crucible→press heating switch→press stop switch→tongs the crucible and pour the metal liquid.

II . Attention:

1. Can’t be water-break during using the machine. If happens by accident, it needs to pick up the crucible at once, or the copper ring will be burnt out.

2. Don’t press the heating switch without crucible.

3. Press stop switch first, then pouring the liquid after the metal melted.

4. If the work is finished everyday, please take away the crucible then shut off power.

5. When water flow indicator light is shut off,  it stands for out of water or low water pressure. And now the machine will  start the function of  protection,  the machine will stop heating.



III. Technical Parameters:

HJ-1106A
Power supply	380V / three phases
Output power	8 KW (adjustable)
Melting metal	gold, K-gold, silver, brass, etc
Capacity	4 kg (gold)
Maximum temperature	1200-1800 °C
Melting time	2-5 minutes
Cooling water	water / water-cooled machine
Crucible Inner Size	5.5x12.5cm
Crucible Outer Size	7.5x13.5cm
Dimensions	400 × 400 × 900mm
Weight	about 75kg



HJ-1106B
Power supply	380V / three phases
Output power	10 KW (adjustable)
Melting metal	gold, K-gold, silver, brass, etc
Capacity	6 kg (gold)
Maximum temperature	1200-1800 °C
Melting time	2-5 minutes
Cooling water	water / water-cooled machine
Crucible Inner Size	7.3x14.5cm
Crucible Outer Size	9.3x15.5cm
Dimensions	400 × 400 × 900mm
Weight: about	75kg

HJ-1106C
Power supply	380V / three phases
Output power	12 KW (adjustable)
Melting metal	gold, K-gold, silver, brass, etc
Capacity	8 kg (gold)
Maximum temperature	1200-1800 °C
Melting time	2-5 minutes
Cooling water	water / water-cooled machine
Crucible Inner Size	8x16cm
Crucible Outer Size	10x18cm
Dimensions	400 × 400 × 900mm
Weight	about 75kg



HJ-1106D
Power supply	380V / three phases
Output power	15 KW (adjustable)
Melting metal	gold, K-gold, silver, copper, stainless steel, etc
Capacity	10 kg (gold)
Maximum temperature	1800 °C
Melting time	1-2 minutes
Cooling water	water / water-cooled machine
Dimensions	400 × 400 × 900mm
Weight:	about 80kg

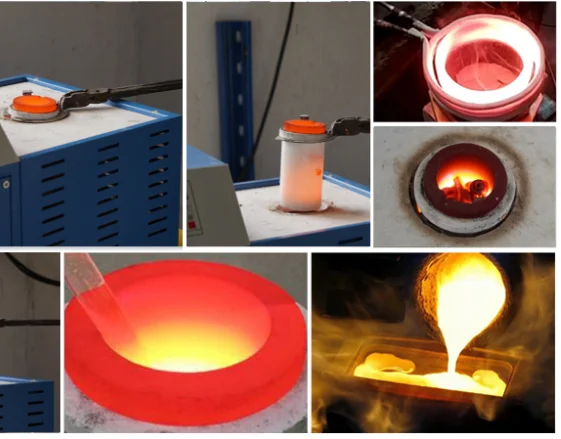

Product Pictures



Payment Method:

L/C, T/T, Western Union, Moneygram,SMT and Cash are available for us. We have HSBC bank account for T/T bank transfer which is easy and fast for  payments arrived. Available for USD, GBP, CAD, AUD, JPY, NZD, EUR, NZD, SGD, CHF, THB and RMB total 11 currencies.

Customers can pay by Credit Card, Debit Card, Visa through our Aliexpress store or Alibaba escrow.



1. Multiple purchases saving plan: Please make sure single payment for each item you won. We will combine the shipping when you make multiple purchases.

2. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT, EMS. For a large quantity of goods, we usually ship by sea or by air.



We warmly welcome any of our customers to talk with us by Skype or MSN. If any queries/inquiries or interests on our products, please feel free to contact us by email sales (at) hajattool (dot) com. Your any of inquiries will be at our soonest attention and response.



All our equipment will enjoy one year warranty.
