SY3158 S10/100MBit Netwok POE SPD,RJ45 Surge Protector SPD

Product Overview

Description

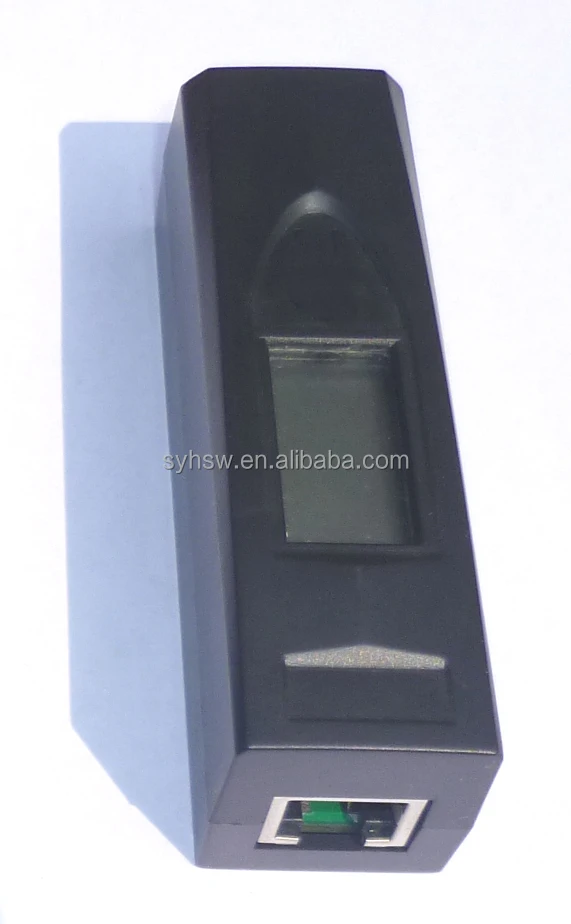

 SY3158 S10/100MBit Netwok POE SPD,RJ45 Surge Protector SPD

1.Specification details



Surge protector with POE

Ethernet, RJ-45 Cat6

Data Rate 10/100 Mb/s

Line Voltage data and POE 5Vdc

Maximum Continuous Operating Voltage data and POE 75V

Protected all Pins

Maximum surge discharge current: 1.5KA (8 to 20us)

Two ways for the Ground(Grounding Clip,Ground terminal)

Other Features: Din, Rack or Wall Mount

Shell material:ABS or aluminium

Weight 55g/ABS shell or 79g/aluminium shell

Dimensions 26mm x 26mm x 95mm

set Package inch 40mm*27mm*105mm

200 sets package inch   55cm*30cm*20cm

2. Dimensions

 3.Main feature:

 --ABS material profile shell, attractive and durable, good shielding effect;

--RJ 45 convenient to use, reliable connection;

--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

4. Package

Surge protector x 1

Grounding terminal/ Grounding clip x 1

Manuals/ Instructions x 1

5.Certificates

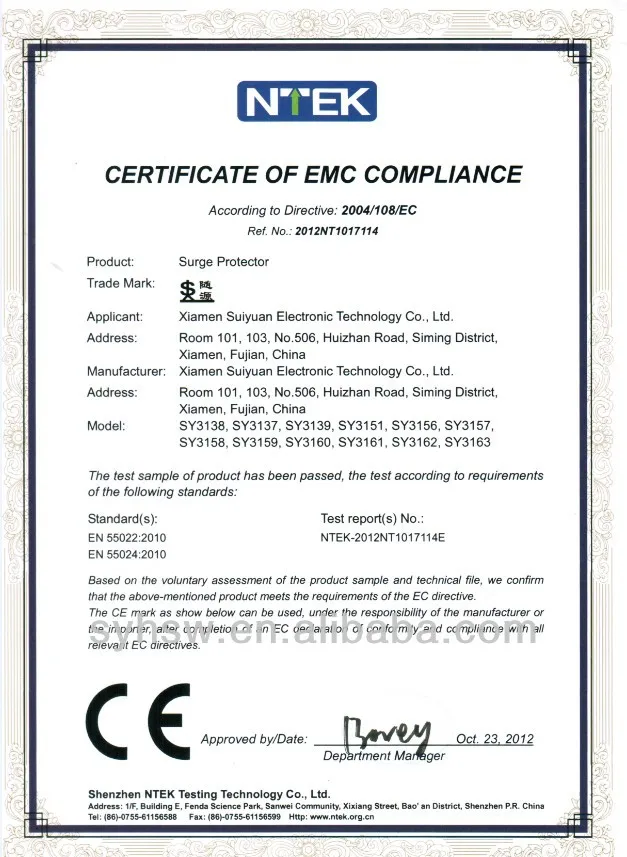

  CE certificate

  Compliant to ROHS

  Lead-free



Welcome your inquiry, we will do our best to support you!
