Manufacturer CNC Band Sawing Machine for H beam

Product Overview

Description

    High Precision TBS SERIES CNC BAND SAWING MACHINE  made in China



1, About  Our Company- We always do the best !



JINAN SUNRISE CNC MACHINE CO., LTD. is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, for example, drilling machine, punching machine, band sawing machine, shearing machine, bending, beveling, chamfering, milling, welding machines and other optical-electro-mechanical integration equipments, which mainly used for processing angle steel, metal plate, H-beam, channel steel, box steel, round steel, flange plate and etc in power tower, transmission tower, telecom tower, steel structure, central air-conditioner, automobile, household appliance, petrochemical, construction industries.





2. PRODUCT FEATURE:



1. Double column design equipped with strong lathe bed, with fine function of absorbing vibration during

   high speed sawing.

2. Can rotate itself and no need to rotate for longer work piece when beveling for 0~45, can keep the

    continuity of production

3. Saw blade driving with greater motor power and good transmission. Used for the specialized processing

    of various section steel of steel structure industry.

4. Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation

    and can extend life of saw blade.

5. Small aperture, high precision, and greatly reduce material consumption.

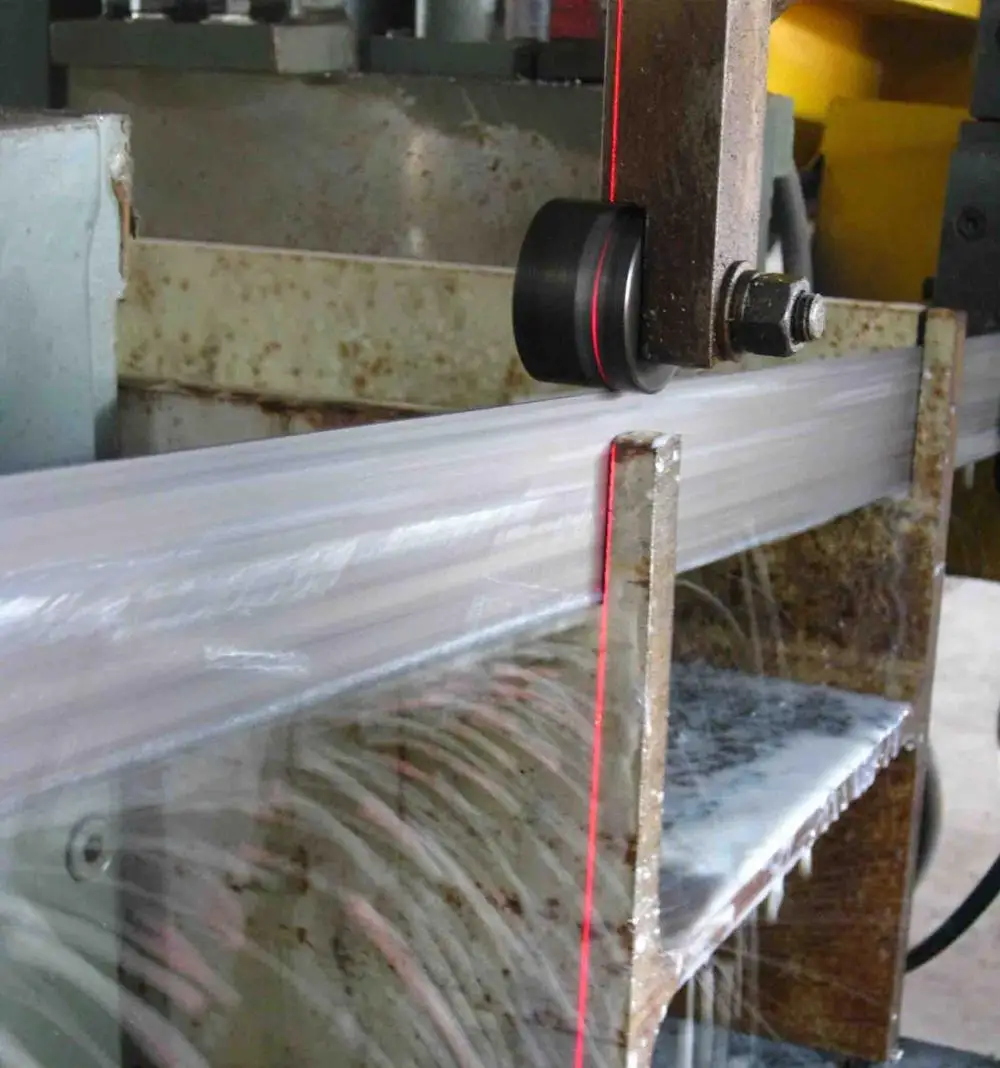

6. Laser alignment function and advanced and retreated structure slightly adjusted with hand, convenient

    for cutting accurately.

7. Automatic coolant compatible with blade could make blade lubricant and reduce the temperature of blade.

8. PCL control, sawing linear velocity can be adjusted by transducer motor and sawing feeding speed also

    can be adjusted by hydraulic stepless adjustment. This greatly promotes production efficiency.

9. Key machine, hydraulic pressure and electric components are chosen famous products domestic and

    abroad.



3, Details of products:



Specifications:





Model		TBS1250	TBS1000		TBS1000A	TBS750	TBS500
Sawing capacity (mm)	Round steel	Φ660	Φ660		Φ660	Φ550	Φ320
	Square steel	630×630	550×550		550×550	480×480	300×300
	H-beam	1250×600	1000×500		1000×500	750×450	500×300
Saw blade size(mm)		T:1.6;W:54; L:8300	T:1.6;W:54; L:7600		T:1.6;W:54; L:7600	T:1.3;W:41; L:6650	T:1.3;W:41; L:5790
Saw blade lineal speed (m/min)		20~80
Table height (mm)		800
Feeding speed		Stepless feeding			Programmable control	Stepless feeding
Rotation angle		0°~ 45°					0°
Host motor power (kW)		11	7.5				5.5
Hydraulic motor power(kW)		2.2
Motor power for cooling  pump (kW)		0.12
Main clamp hydraulic motor (ml/r)(ml/r)		160						80
Front clamp hydraulic motor (ml/r)		160						80
Motor power for rotation table (kW)		0.04				Hydraulic drive		---
Overall dimensions (LxWxH) (mm)		4225×2565 ×2725		3800×2600×2600		3500×2500 ×2600		3500×2238 ×1985
Machine weight (kg)		6800		6000		5500		4800

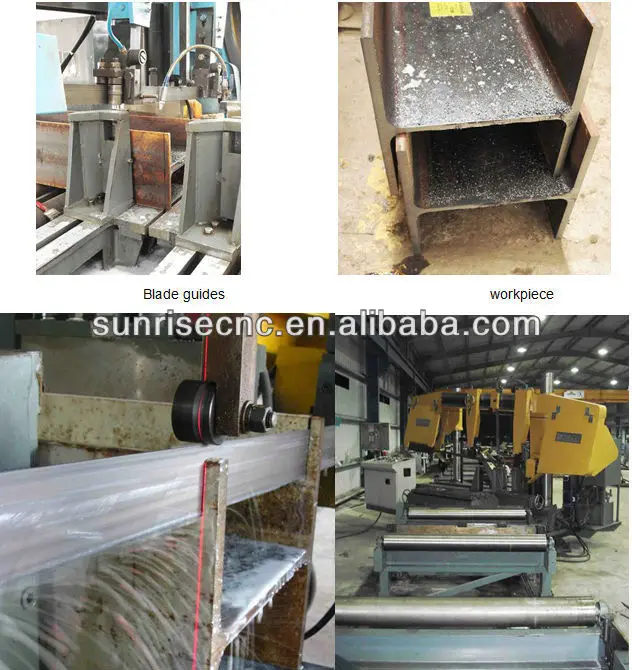

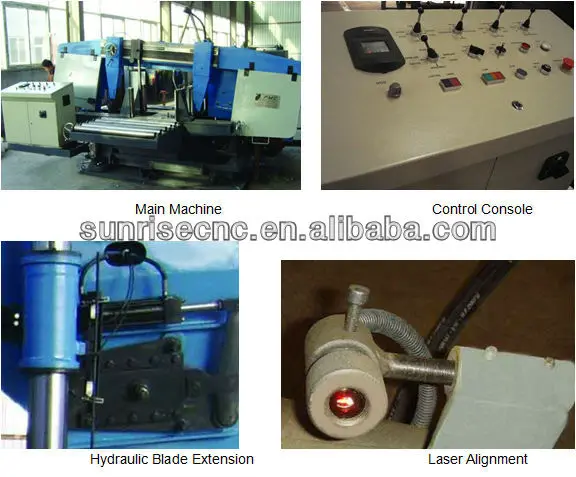

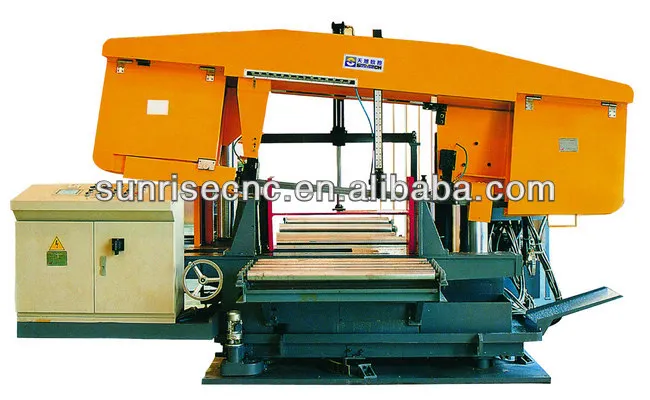

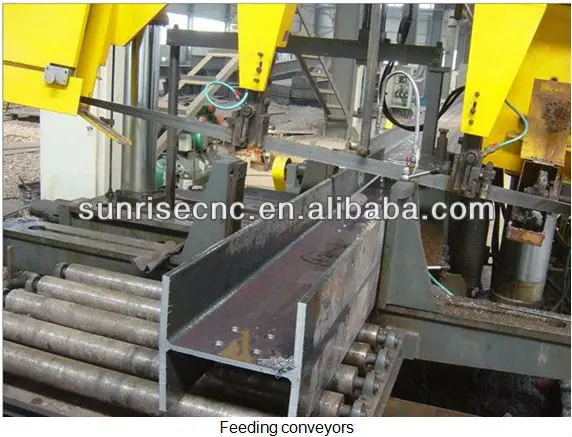

4,Pictures  Of  Products:
