BM 500 Film packing manufacturer thermo shrink tunnel oven for bottles
- Category: >>>
- Supplier: Shanghai Qcpack Machinery Co. Ltd.
Share on (1845203470):
Product Overview
Description

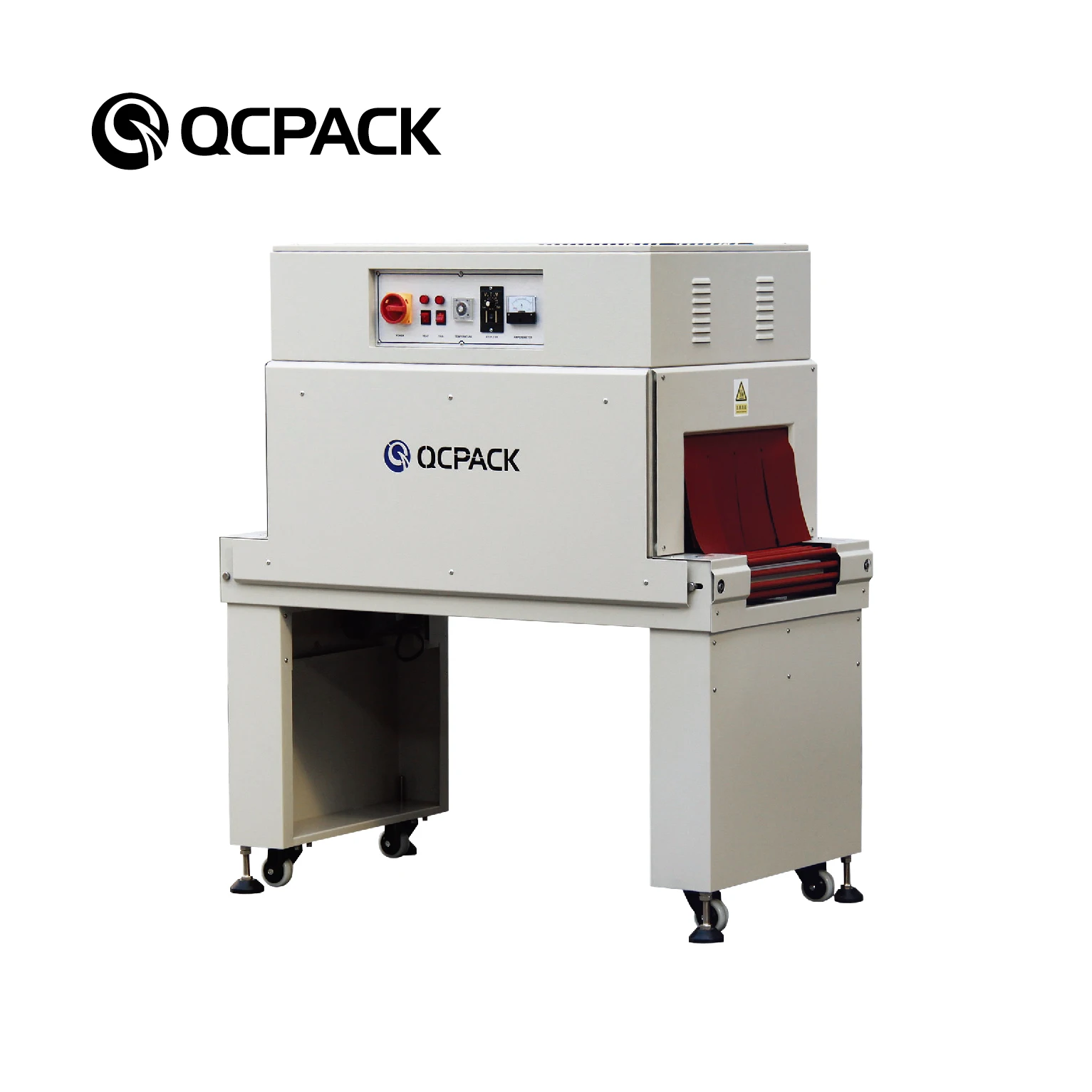

BM-500 Film-packing manufacturer thermo shrink tunnel oven for cigarettes
Product Description
1.Machine
thermo shrink tunnel oven
Performance Characteristics:

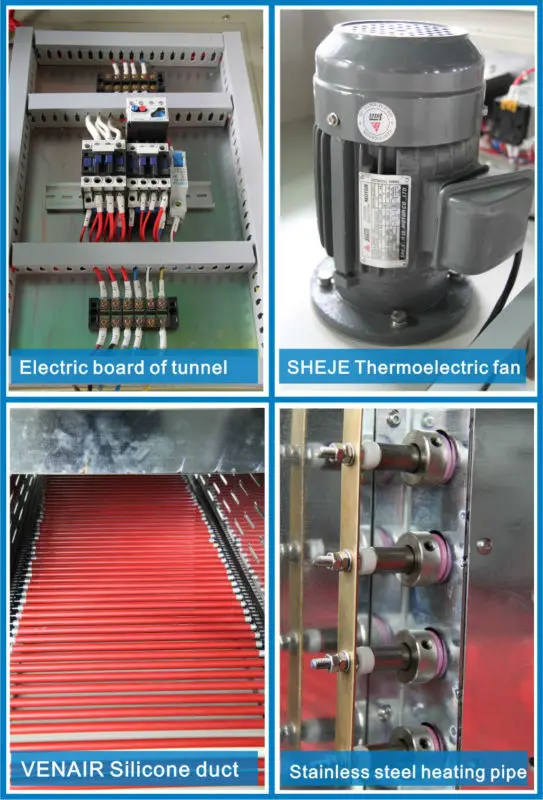

1.Introduced into the international advanced technology; using high speed fan motor and lead wind adjustable blowing system to expedite heating up. According to the product's size and output, it can adjust the speed of conveyor belt, flowing volume and temperature.
2. Unique wind adjustable device which can adjust the flowing volume to fit for product's dimension and packing speed.
3. Advanced and special model to heat up centralized.
4. Accelerates the heating time to reduce the power wasting.

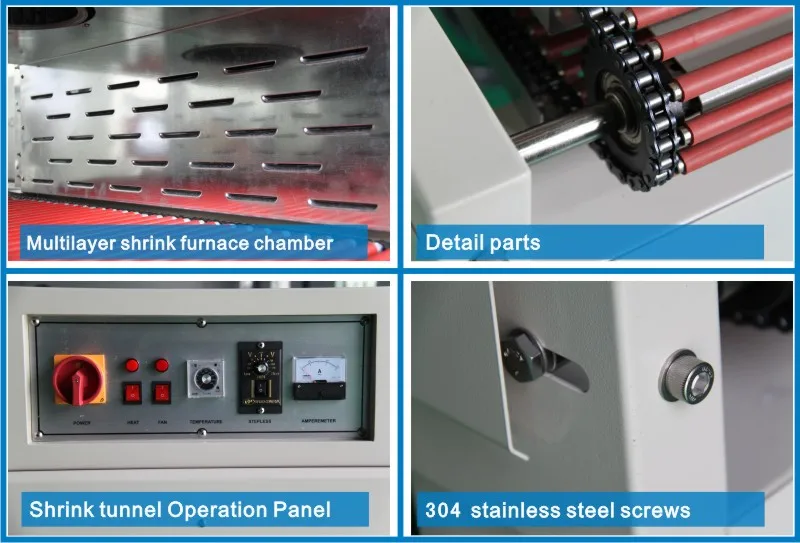

5. Hot-wind cycle channel, the structure of which inside tunnel is designed by recycled style to remain the hot-wind circulated in the channel, to prevent energy wasting from the hot-wind leaked out.
2.Details
High quality promotional price packaging Box&Bottle heat shrink oven
3.Details
thermo shrink tunnel oven
4.Main Technical Parameters
Model | BM-500 |
Max Packing Size | (L)700×(W)450×(H)250mm |
Max sealing Size | (L)1200×(W)500×(H)300mm |
Packing Speed | 30~50 packs/min |
Electric Supply & Power | 380V/50Hz 12kw |
Air Pressure | / |
Weight | 220kg |
Overall Dimensions | (L)1350×(W)750×(H)1500mm |
5.Spare parts
6.Spare parts
thermo shrink tunnel oven
7.Spare Parts
thermo shrink tunnel oven
8.Spare Parts List
No. | Item | Brand | Qty |

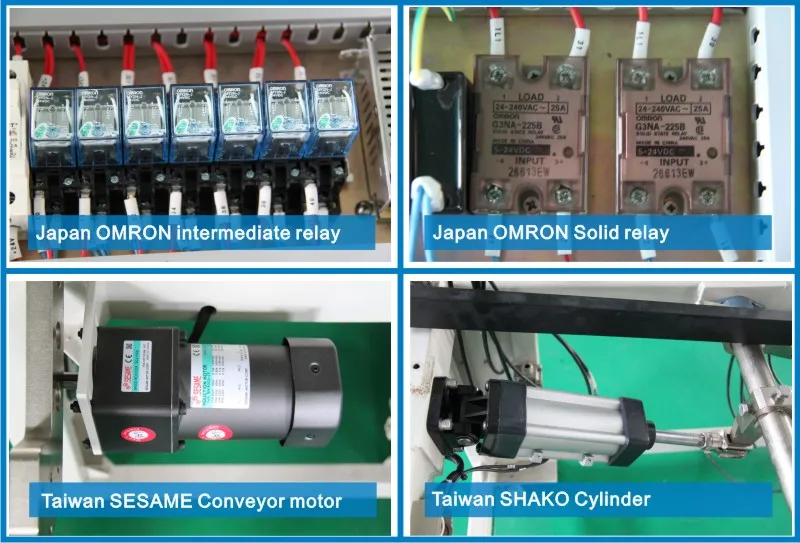

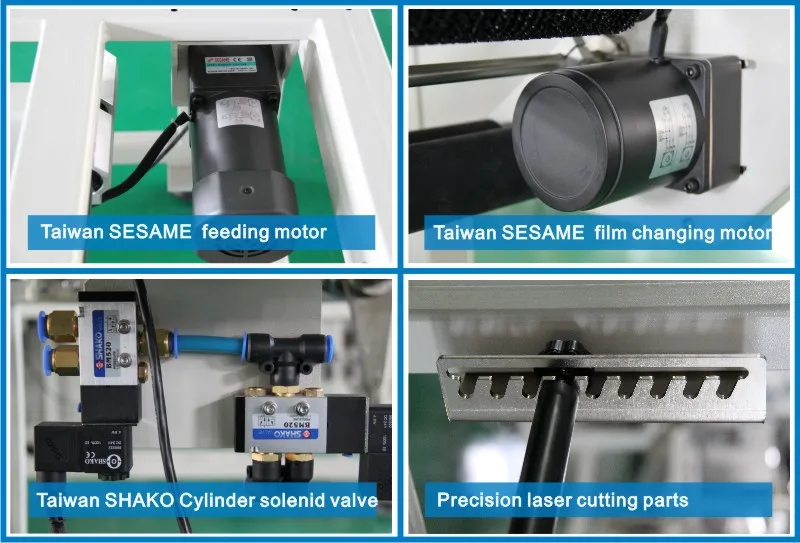

1 | Product feeding motor | SESAME(Taiwan) | 1 |
2 | discharged motor | SESAME(Taiwan) | 1 |
3 | Film unwind motor | SESAME(Taiwan) | 1 |
4 | Film pulling motor | SESAME(Taiwan) | 1 |
5 | waste film recycling motor | SESAME(Taiwan) | 1 |
6 | Cutting cylinder | SHAKO(Taiwan) | 1 |
7 | conveyor kissing cylinder | SHAKO(Taiwan) | 1 |

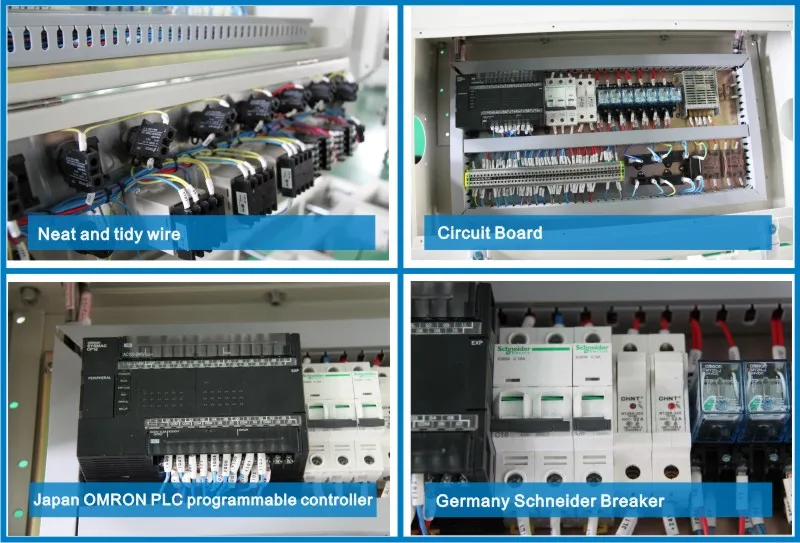

8 | Breaker | Schneider(France) | 2 |
9 | PLC | OMRON (Japan) | 1 |
10 | Temperature controller | OMRON (Japan) | 2 |
