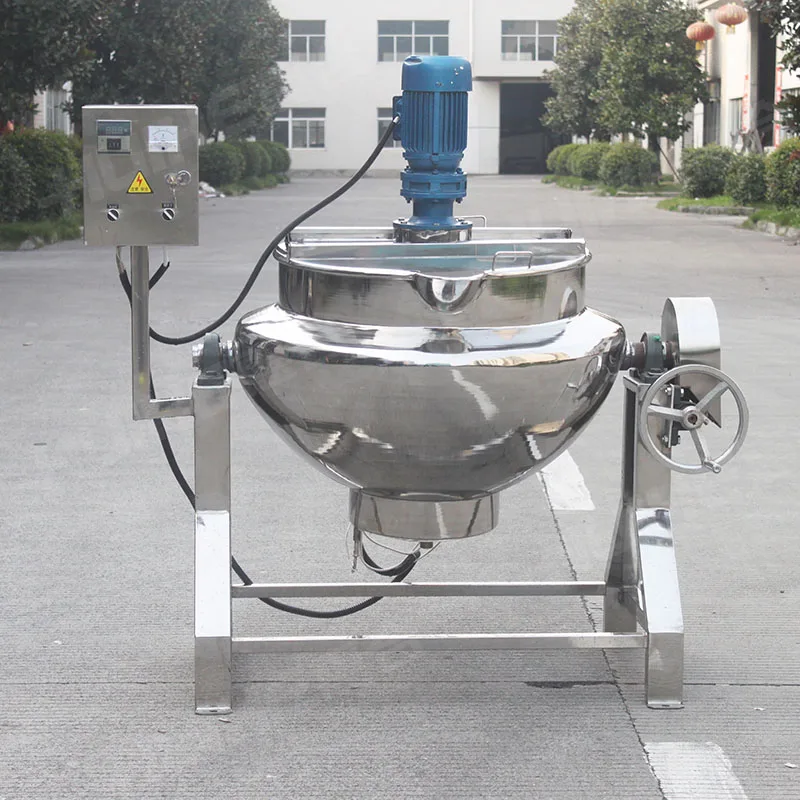

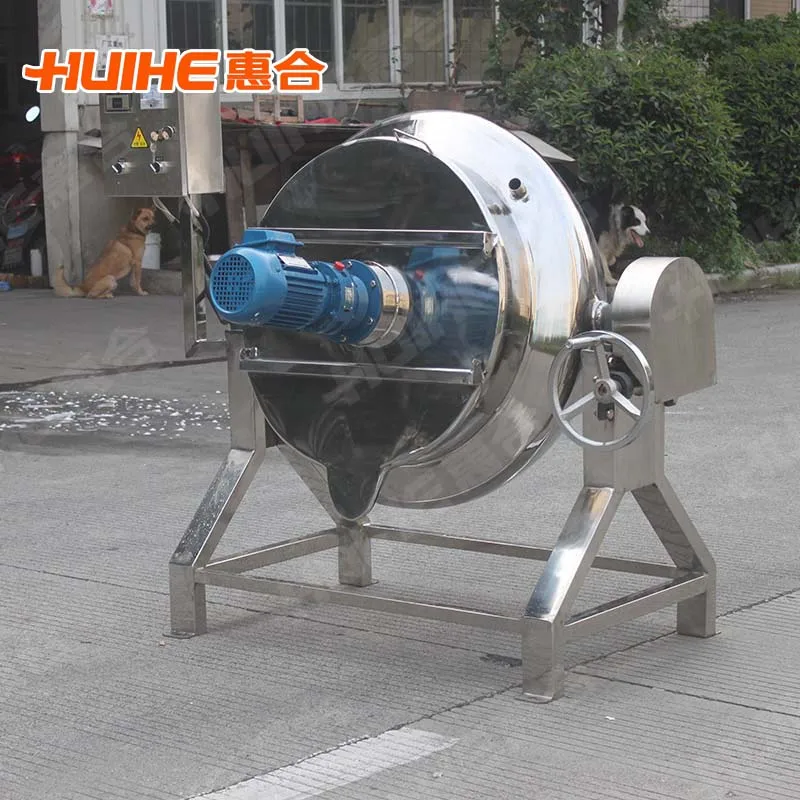

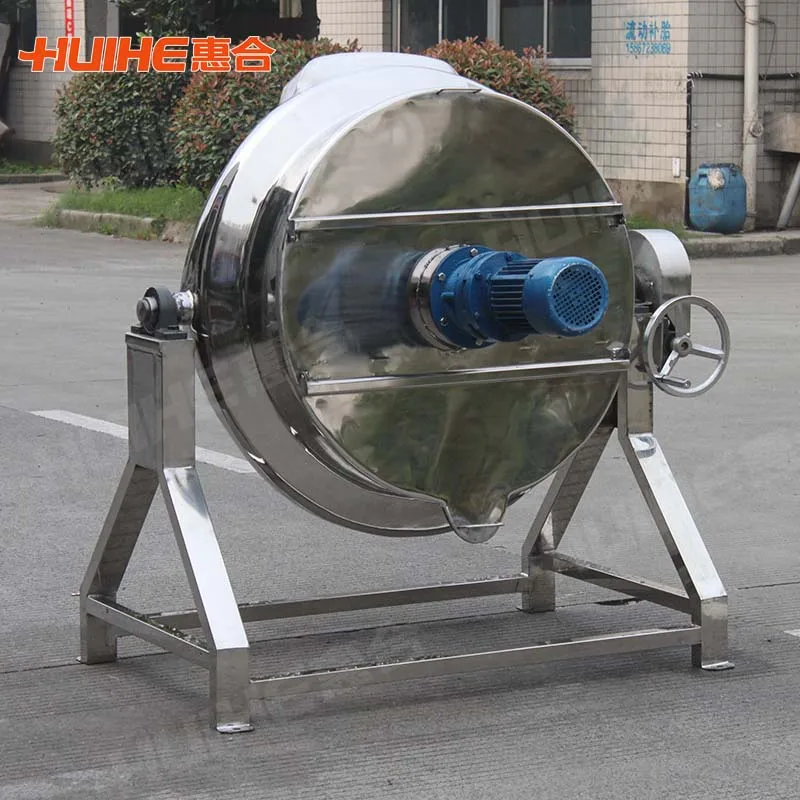

500 Liter Industrial Pressure Cooker

Share on (1845670012):


Price:$1,580.00 - $2,999.00

Quantity:


Product Overview

Description











500 Liter Industrial Pressure Cooker  suitable material
The   500 Liter Industrial Pressure Cooker is widely used for boiling water, firing dish, cooking porridge, boiling soup, cooking rice, sugaring, gluing, boiling oil, cooking noodles, firing fillings (such as bean-paste, lotus paste, moon cake, mung bean paste), cooking dried bamboo shoot, cooking braised food (such as dried bean curd, meat product, green, etc.), braised food (such as chicken feet, chicken wing, spiced eggs, duck feet, duck neck, pig ear, etc.), soybean sauce and other food industries.











500 Liter Industrial Pressure Cooker ’s Characteristics
1. Big heating area;

2. High heating effective;

3. Uniform heating;

4. Fast heating speed, short liquid material boiling time;

5. Safe to use, convenient to operate, widely to use;

6. It has many heating types, discharge types (vertical and tilting) and stirring device to choose;

7. Carbon steel jacketed kettle cost is lower than stainless steel jacketed kettle;

8.  Steam Heating Insulation Jacket  has stainless steel jacketed kettle and carbon steel jacketed kettle, the stainless steel jacketed kettle inner pot, outer pot and support are all made of SUS304 or SUS316L (accord with national health standards); the carbon steel inner pot is using SUS304 or SUS316L to make, other parts are all made of carbon steel (it’s using for health level is not high);











500 Liter Industrial Pressure Cooker 's Material and Structure
The 500 Liter Industrial Pressure Cooker 's material from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.













500 Liter Industrial Pressure Cooker 's Technical Parameter



































































































































































Name/Model


JYL-50


JYL-100


JYL-200


JYL-300


JYL-400


JYL-500


JYL-600


JYL-800


JYL-1000


Jacketed Kettle


Caliber(mm)


Φ600


Φ700


Φ800


Φ900


Φ1000


Φ1100


Φ1200


Φ1300


Φ1400


Depth of kettle(mm)


450


500


550


600


650


700


750


850


950


Total volume(L)


50


100


200


300


400


500


600


800


1000


Connector size


Steam pipe


3/4”


1”


2”


Condensate water pipe


3/4”


1”


Motor power(kw)


0.75


1.1


1.5


2.2


Boiling time(min)Filling 80%


~5


~8


~11


~14


~18


~22


~25


~34


~40


Heat transfer area(m2)


0.45


0.58


1.12


1.42


1.75


2


2.3


3.2


3.9


Steam consumption kg/period/(cycle)


3.25


6.5


13


19.5


26


32.5


39


52


65


Design temperature(°C)


147(can be adjusted according to customer requirement)


Highest working temperature(°C)


135(can be adjusted according to customer requirement)


Design pressure(MPa)


0.35(can be adjusted according to customer requirement)


Highest working pressure(MPa)


0.3 (can be adjusted according to customer requirement)


Overall size


length(mm)


650


750


850


950


1050


1150


1250


1450


1550


width(mm)


650


750


850


950


1050


1150


1250


1450


1550


height(mm)


1350


1400


1450


1500


1550


1700


1800


1900


2000




Notes:



1. The  500 Liter Industrial Pressure Cooker technical parameters on the chart is standard parameters, if customers have other requirements, please put forward, we will make a case according to your requirements and actual situation



2. The jacket layer work pressure of  Steam Heating Mix Ketchup/Cooker is ≤0.09Mpa, it also can be made according to customers requirement.

3. The process parameters need to provid when choosing  Steam Heating Mix Ketchup/Cooker : the nature of material, working pressure, working temperature, specific requirements, etc.











Why choosing our  500 Liter Industrial Pressure Cooker

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5.  15 years of industry experience, industry leader;

6. Factory, office site visit.

The six reasons to choose Huihe










500 Liter Industrial Pressure Cooker ’s Packing Before Delivery










Authentication certificate and strength show


Hangzhou Huihe Machine Facture committed to design and manufacture of all kinds of stainless steel container.We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc . The equipments conform to the sanitary standards, thus effectively guarantee the people's health.





Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.


Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.


CE


Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
