Автоматическая машина для намотки нити FRP GRP

Product Overview

Description

Automatic FRP GRP Tank Filament Winding Machine



The automatic frp grp tank filament winding machine is popular for site work, It is controlled by PLC. After input/preset the parameter, the computor can calculate and design the product data automatically, then control the rotating speed of moulds and moving of dolly to achieve loop winding, across winding and spiral winding.

I Main technical data of the automatic frp grp tank filament winding machine

Total capacity	3kw
Product diameter range	50-300mm
Product length	Max.6000mm
Max fiberglass26nbsp;feeding speed	120m/min
Max. Fiberglass sheet width	200mm



II Main configuration of the automatic frp grp tank filament winding machine

1- Winding working table 6m long, include decelerator, motor and chain, one set

2- Winding driving head, include decelerator, gear/chain,motor, encoder, one set

3- Movable tank body, supporting26nbsp;rack, one set

4- Winding dolly, one set

5- Comb type glue dipping machine with glue control system, one set

6- Tensile fiberglass rack, one set

7- Computer[touch screen] and main control box, one set.

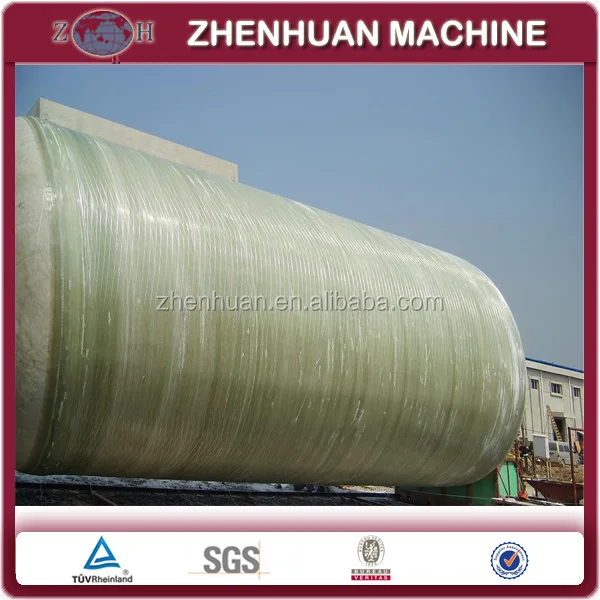

III  Photos of the automatic frp grp tank filament winding machine working

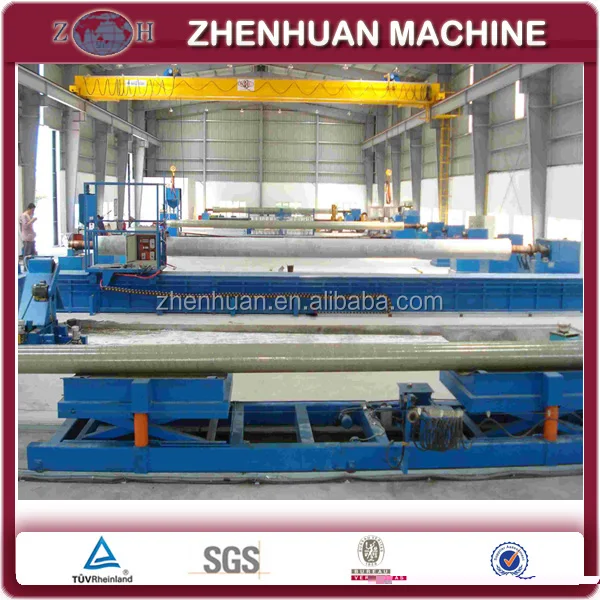

IV Photos of the automatic frp grp tank filament winding machine

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 10 years. We can provide you good quality automatic frp grp tank filament winding machine as well as good services.
