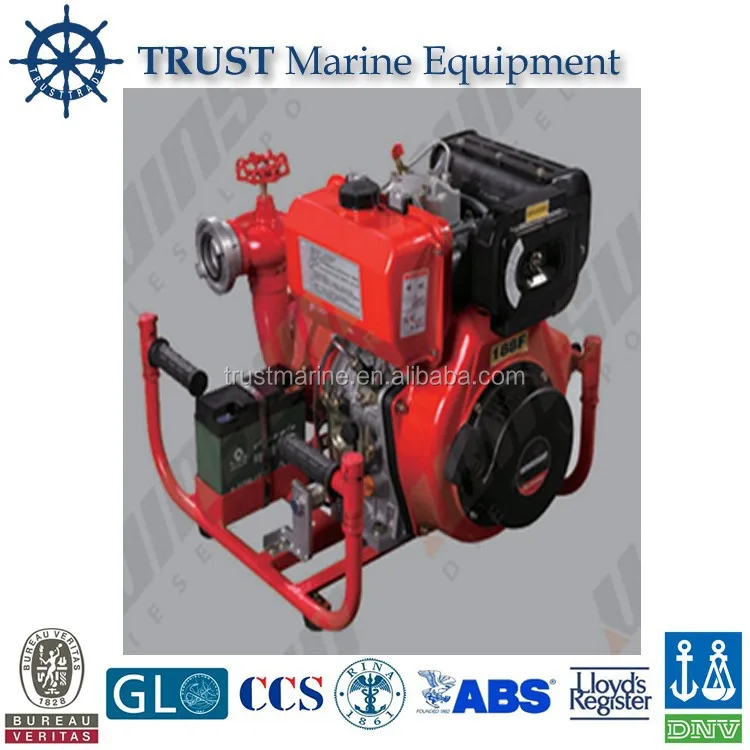

Diesel engine driven fire pump, Fire fighting pump, high pressure diesel engine fire pump

Product Overview

Description



Diesel engine driven fire pump, Fire fighting pump, high pressure diesel engine fire pump



    Marine Diesel Engine Fire Pump  is mainly applied in emergency fire protection for vessels, and, additionally, in industrial and mining enterprises, ports and docks, warehouse or freight yard etc. The pump integrates widely acclaimed features such as light weight, small size, flexibility in moving, rapid starting, rapid discharge, large capacity of fuel tank, anti-corrosion, reliability and ease of maintenance etc. The diesel engine may be vertical, single-cylinder, 4-stroke and air cooled.







---Gig flow,high pressure,one/two gun use

---Corrosion-proofed,suitable to fresh/sea water

---Light weight,low fuel cunsumption,safety

---short priming time

---Certificates: CCS, BV, ABS, DNV, NKK, GL, LR, etc.







Model	BJD18
Water pump inlet	joint type	screw type
	joint caliber	80mm
Water pump outlet	joint type	tooth type
	joint caliber	65mm
Rated flow   L/min	≥1000
Max. flow   L/min	≥1400
Outlet pressure   Mpa	0.65
Max. pressure   Mpa	0.75
Priming time  s	≤25
Max. vacuum   Mpa	≥0.085
Starting way	electric/recoil
Max. depth of sucking  m	7
Finished pump mass  kg	≤105
Outer size (L x W x H)  mm	650x610x650
Engine model	R2V870
