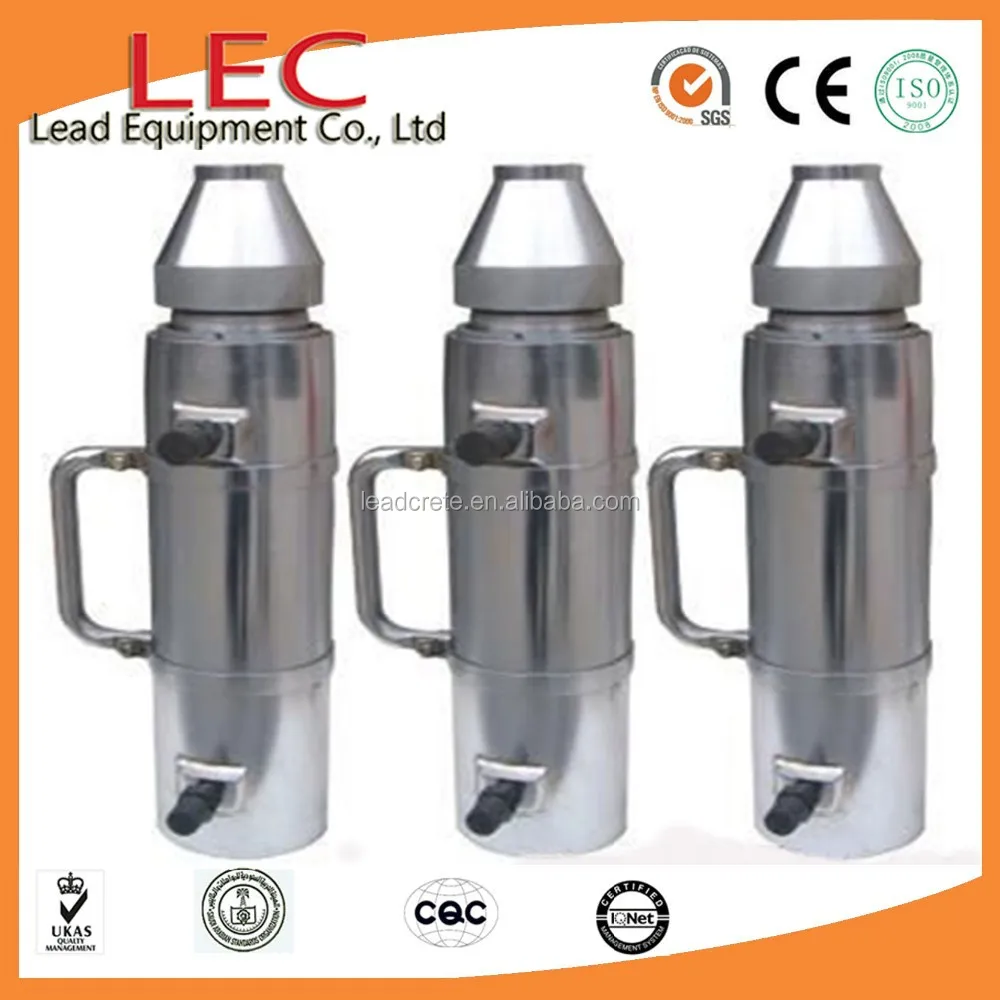

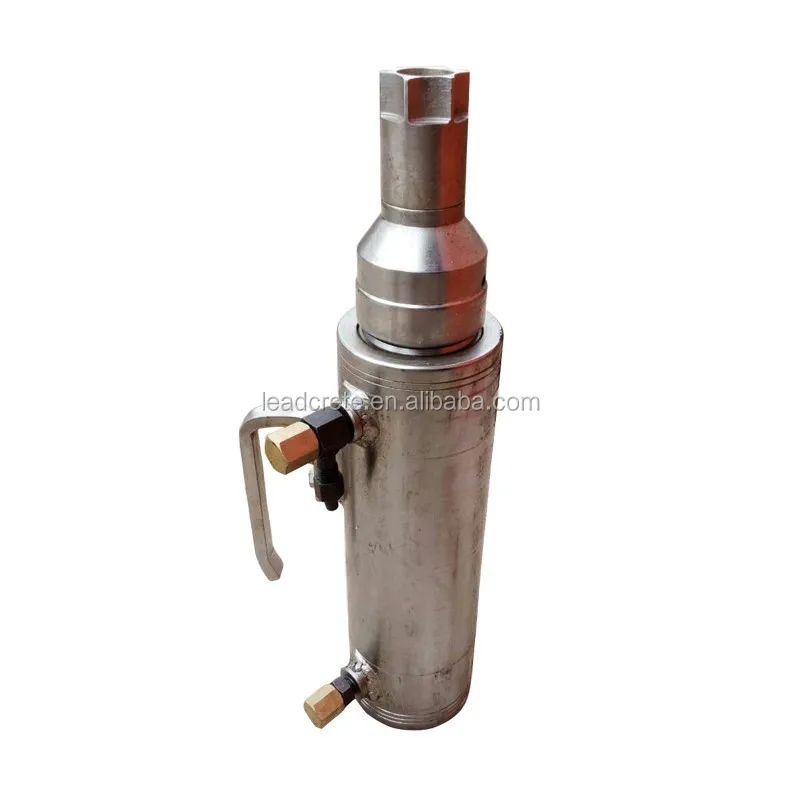

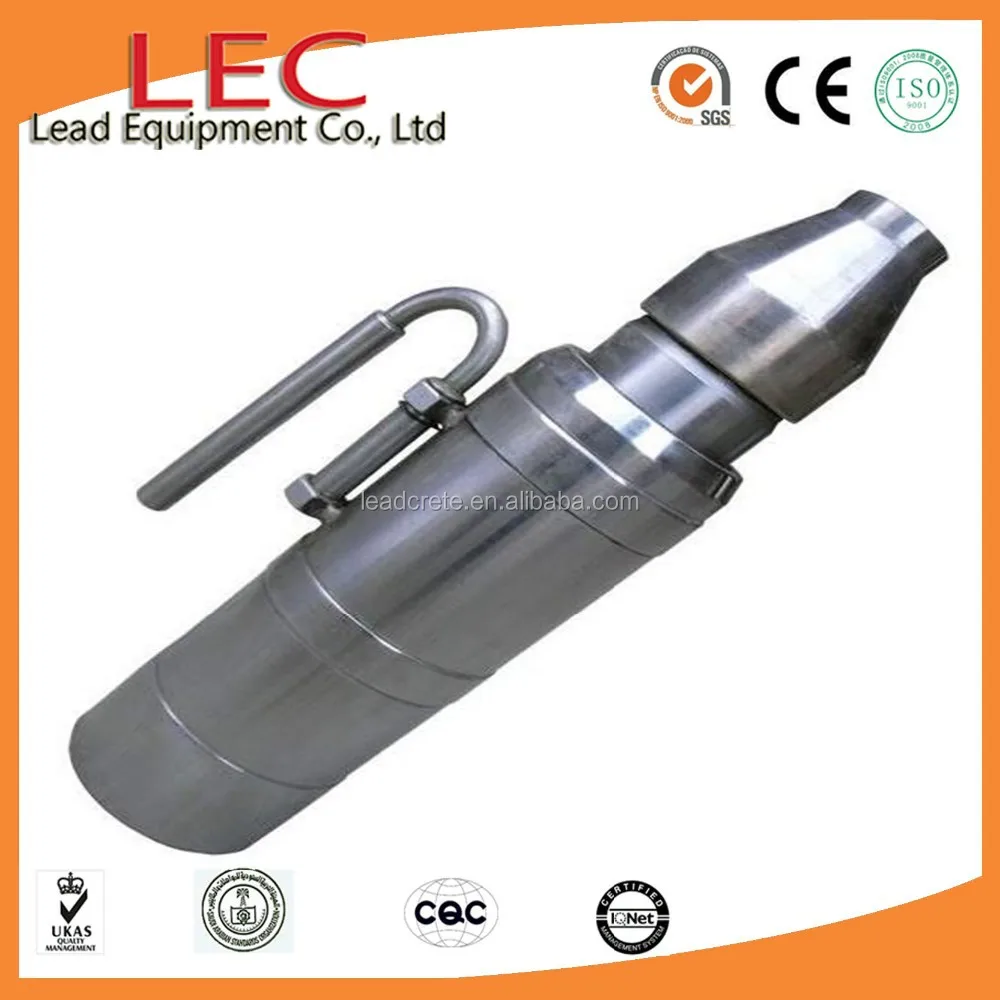

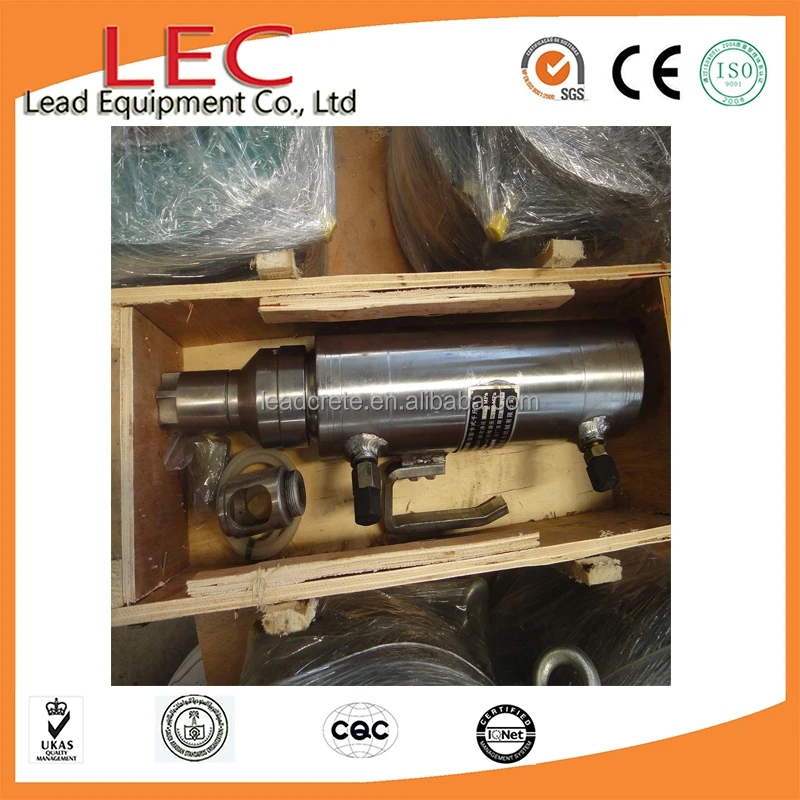

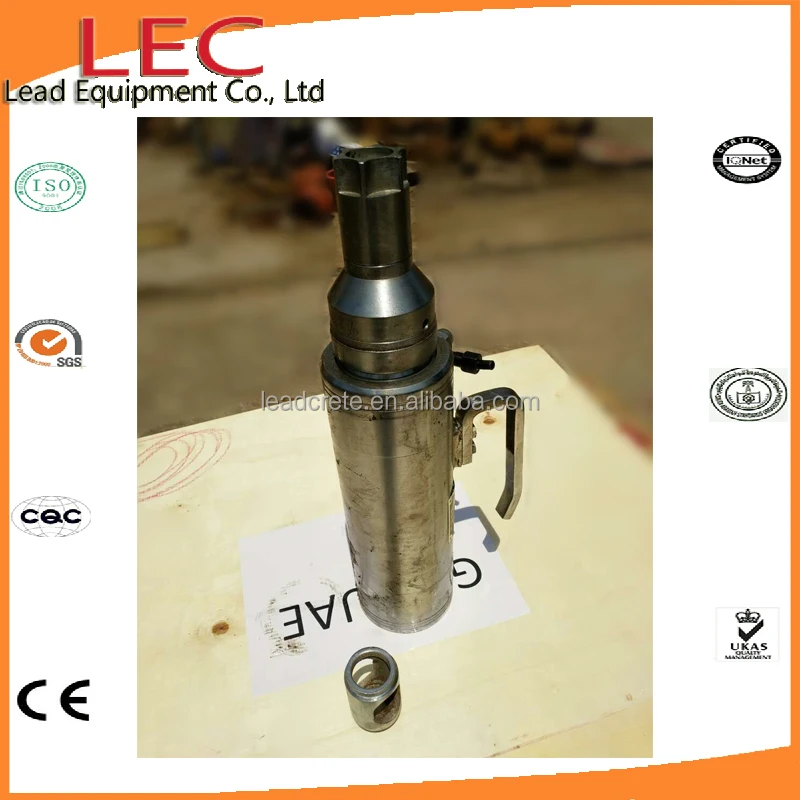

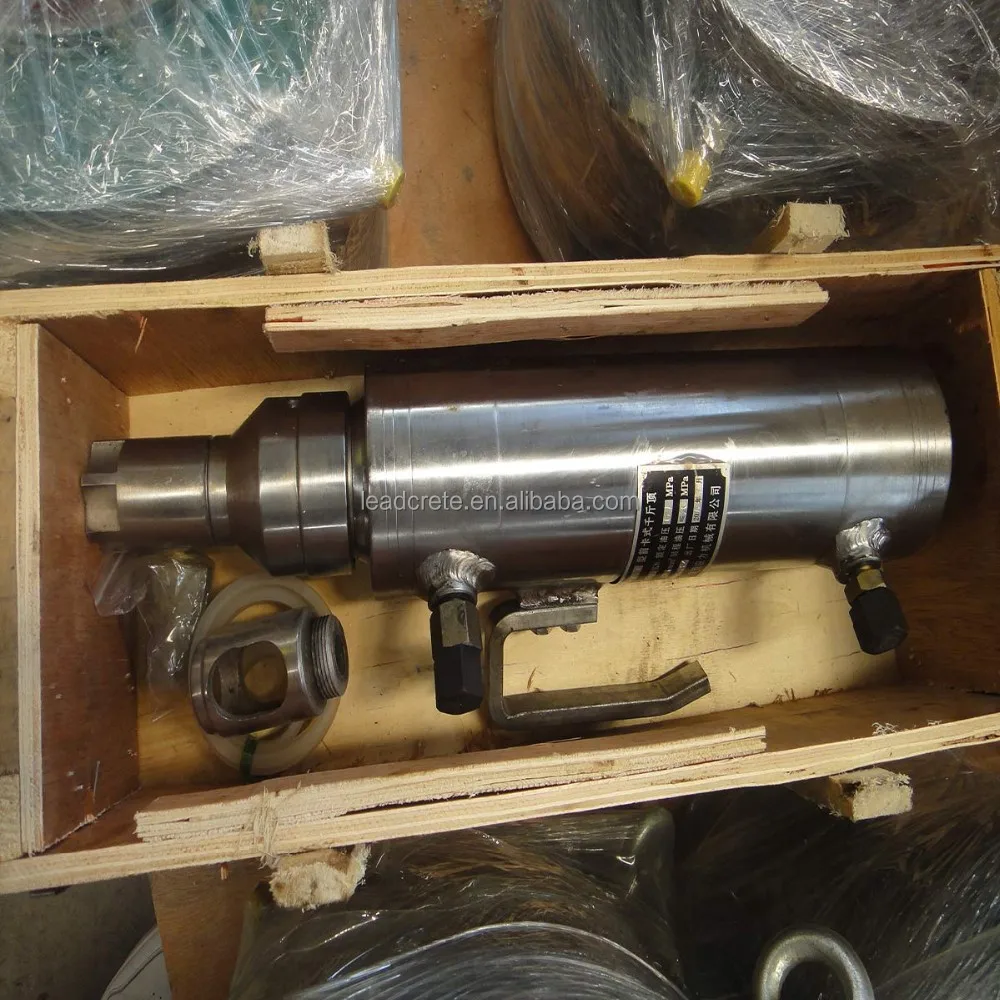

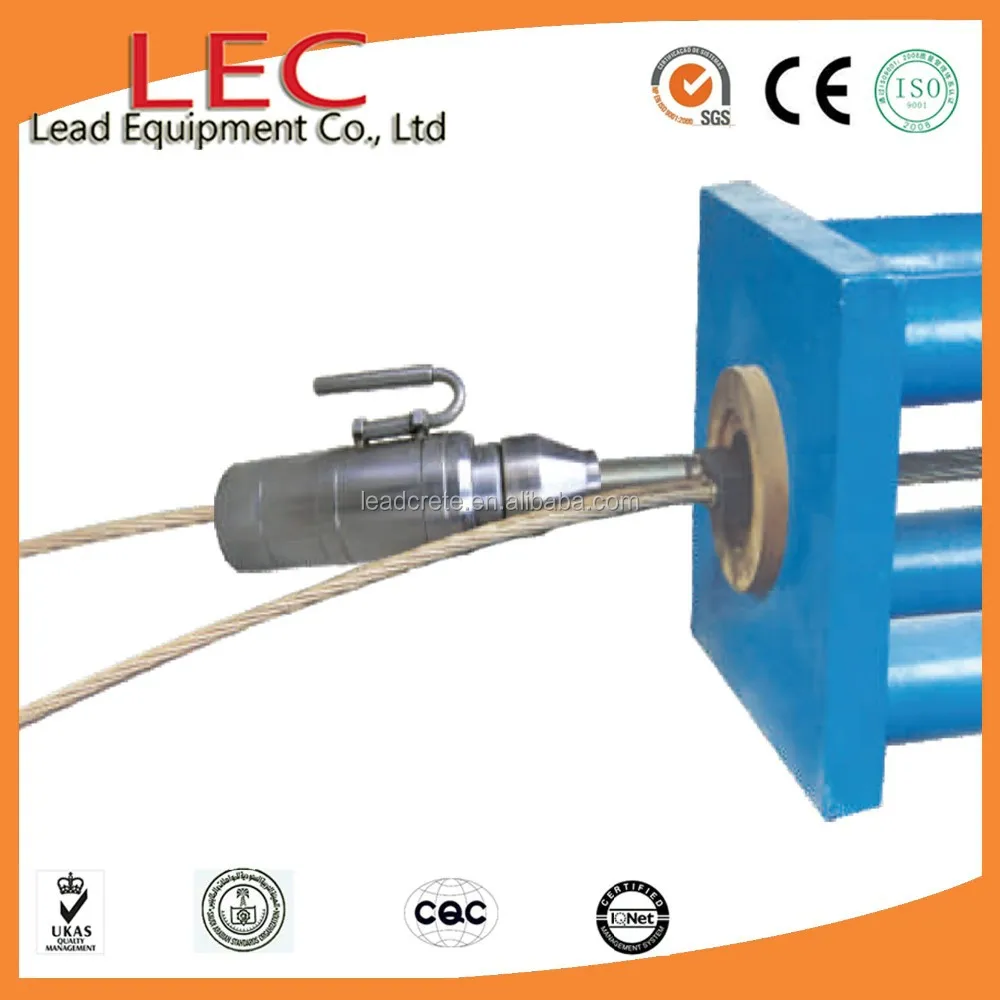

QYC Prestressing Construction Mono Stressing Jack

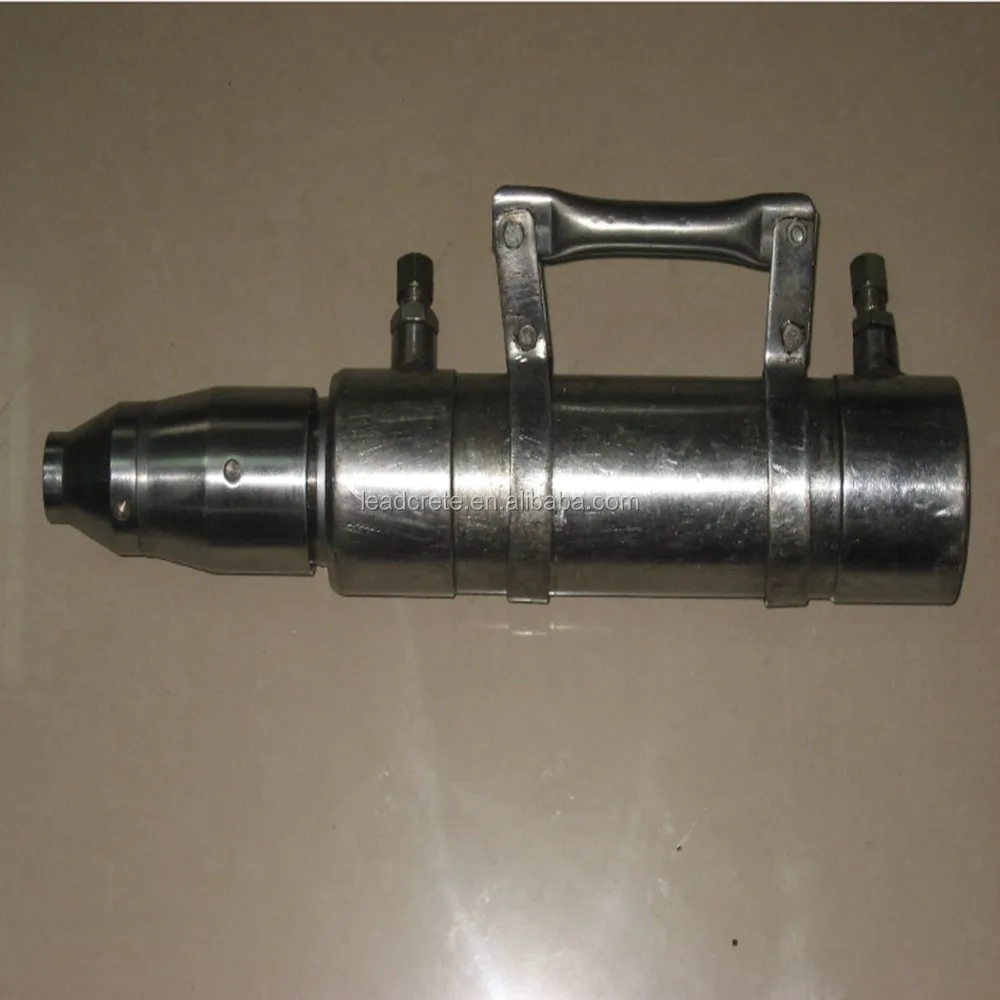

front end fixed mono strand stressing jack

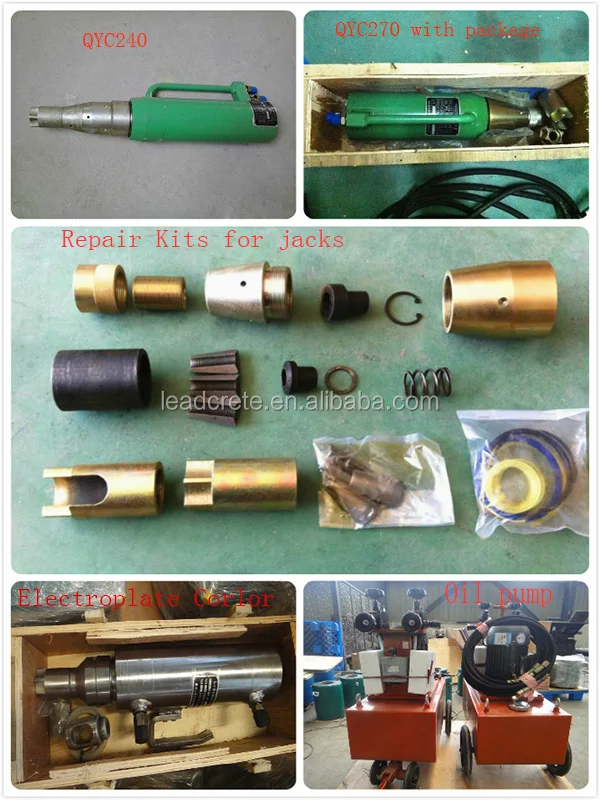

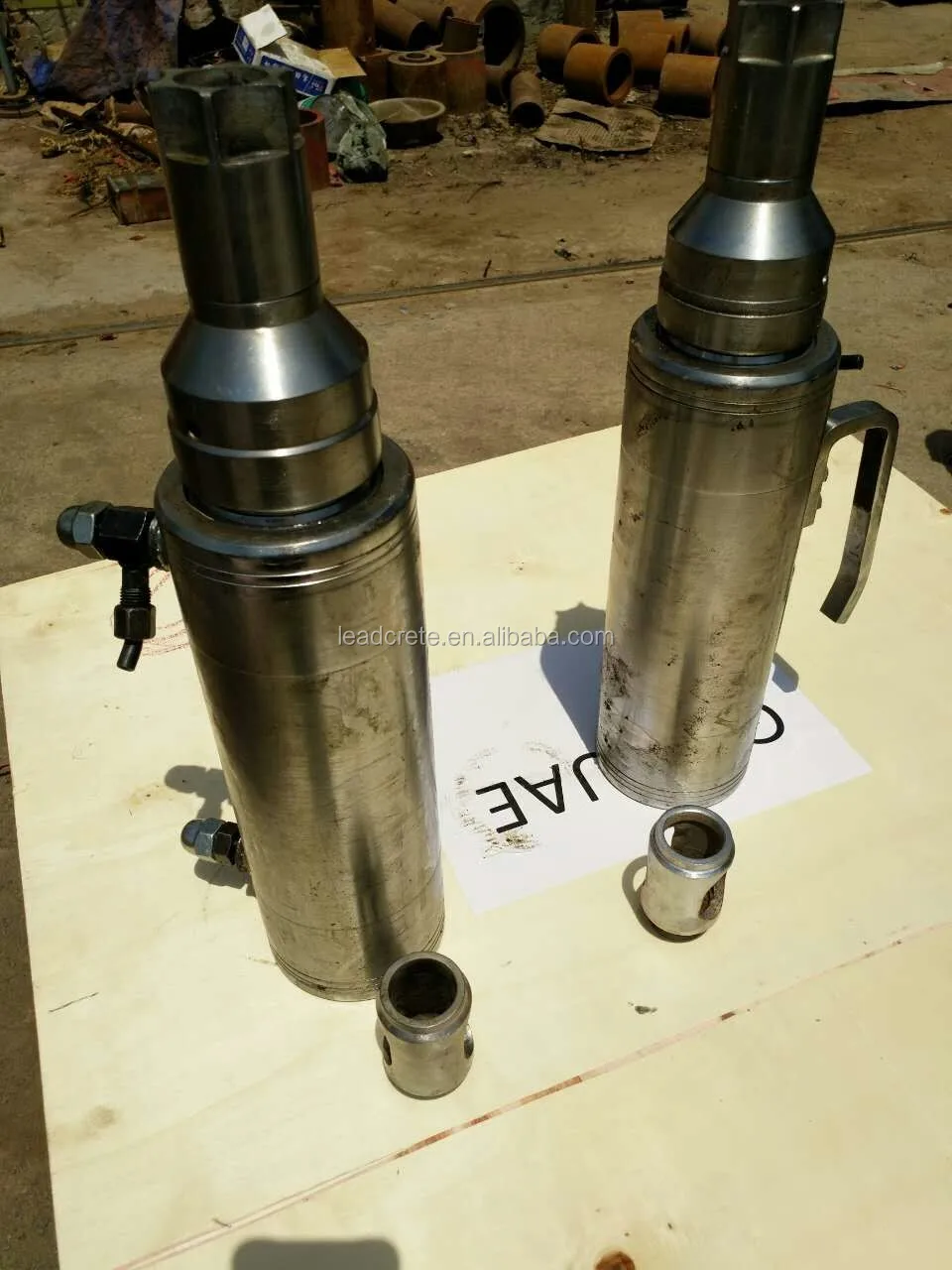

1. Model: QYC270(27 tons), QYC240(24 tons)

2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Cross Core Diameter: 18mm, Tension Cylinnder Area:  44.5cm²,

3.  Usage: To tension single strand or flat anchor system

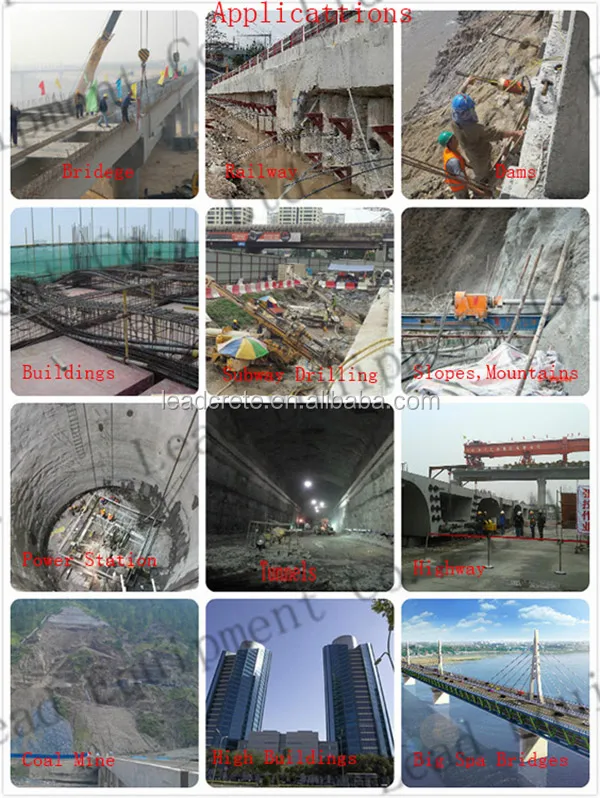

4. Application:  bridges, high buildings, coal  mine , railway and subway,  water conservancy and hydropower engineering .

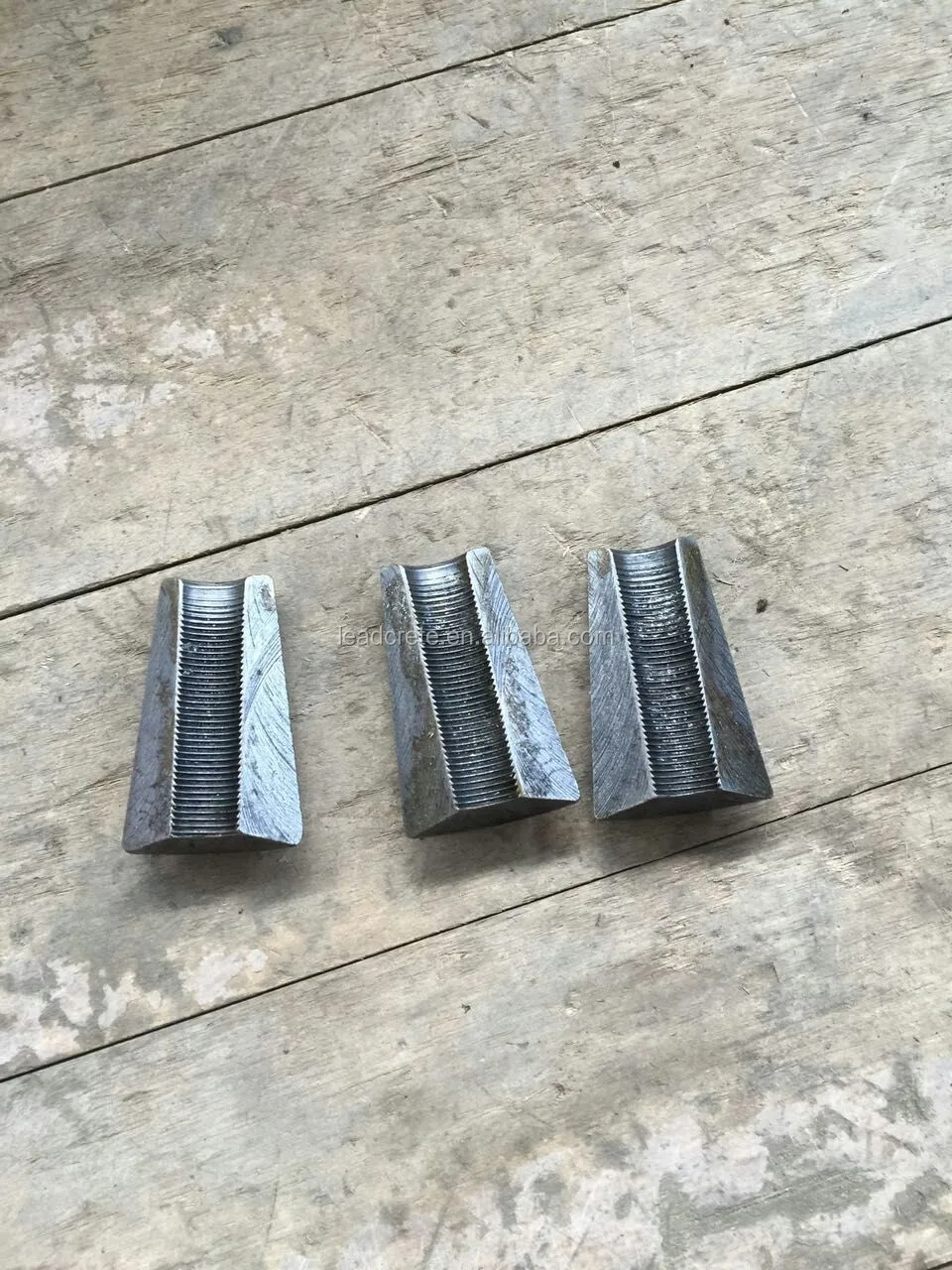

5.Features:It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.

A:  It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.

B:  It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.

C: It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.

6. Competitive price: USD450-550 pert set FOB price, if you order much the price will be more lower.

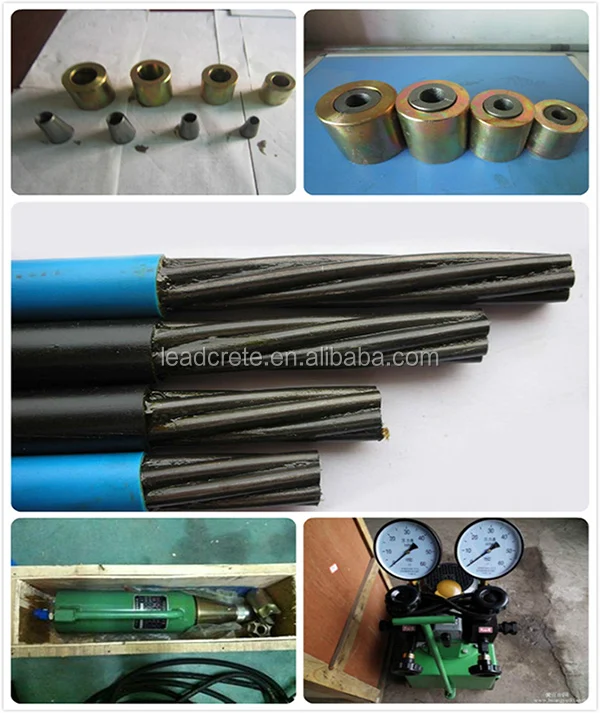

7. We supply full complete set anchor system and equipment for construction, please see following:

A:  Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

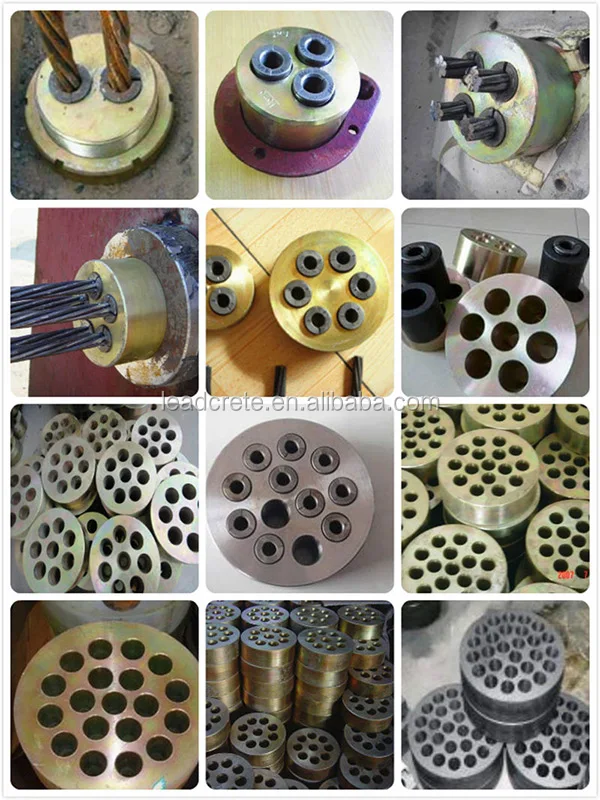

B:  Multi strand anchor system:   9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm  anchors for pc strand.

C:   Steel rear anchor system:     16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

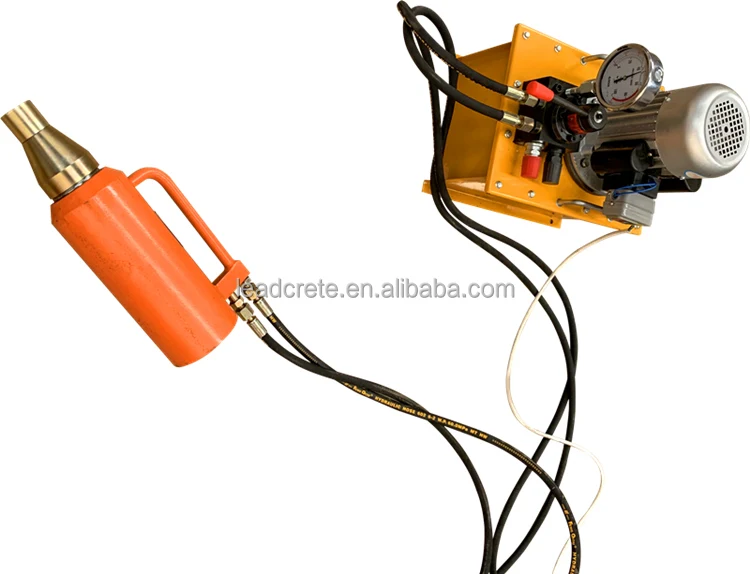

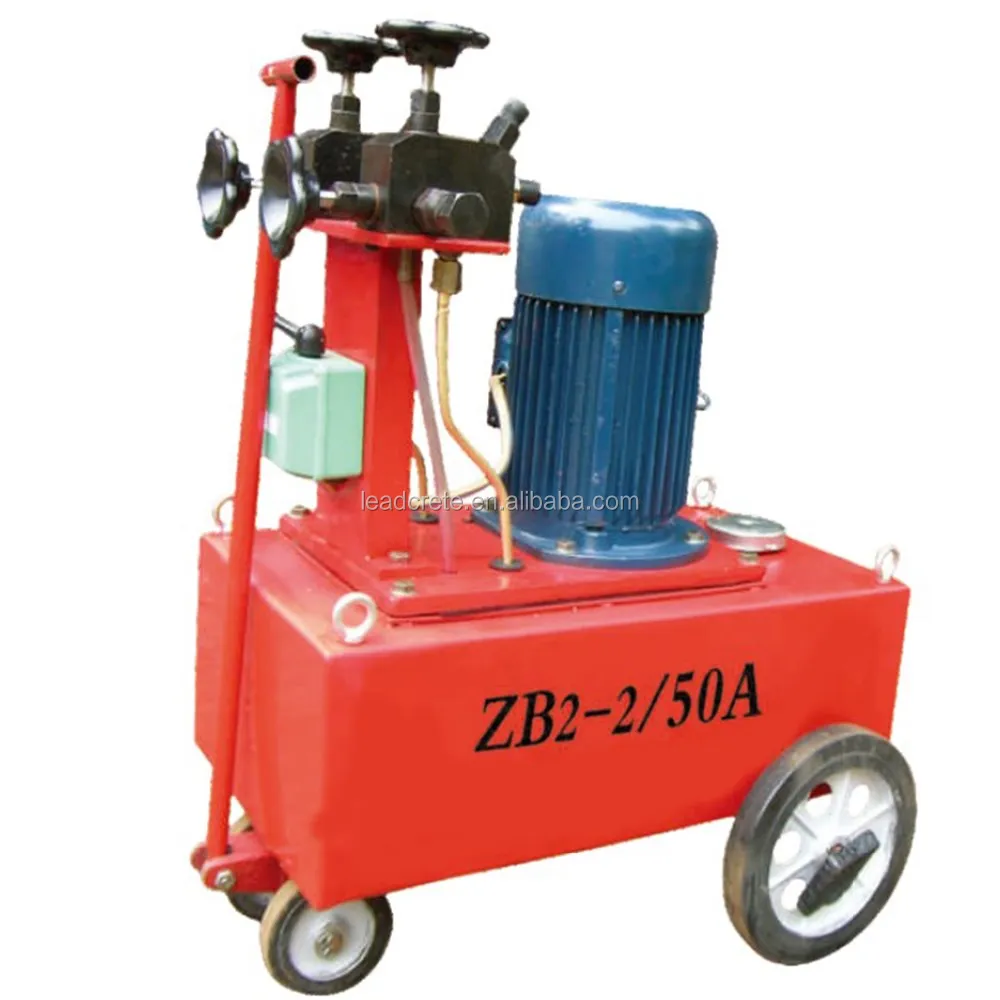

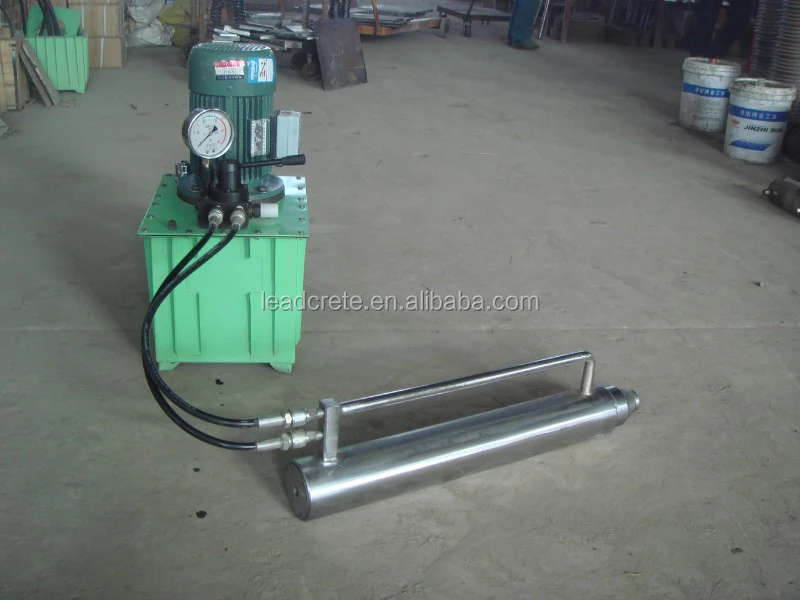

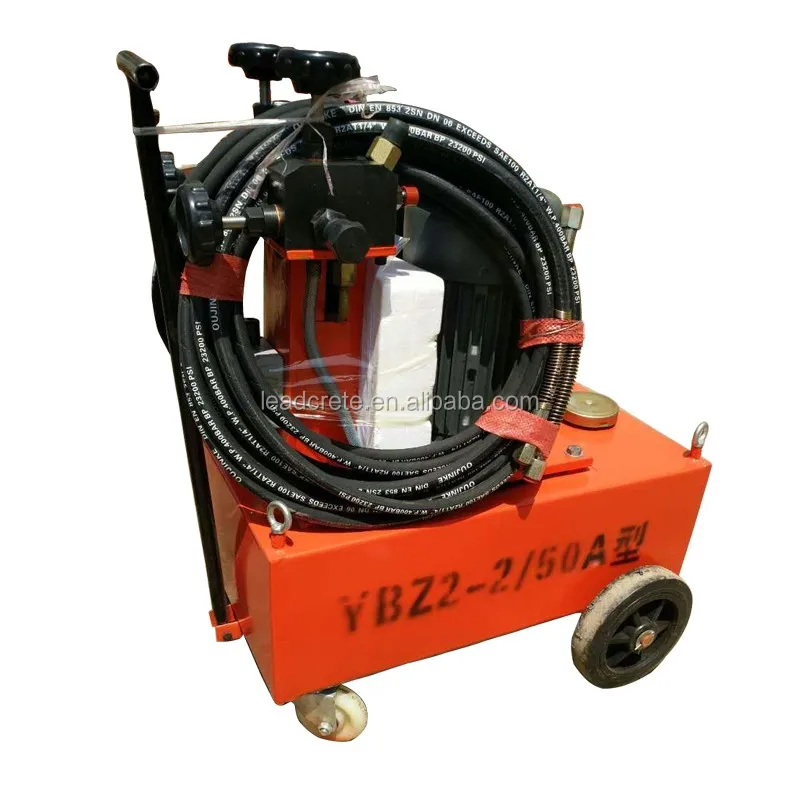

D: Equipemnt:                               hydraulic jack, oiln pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
