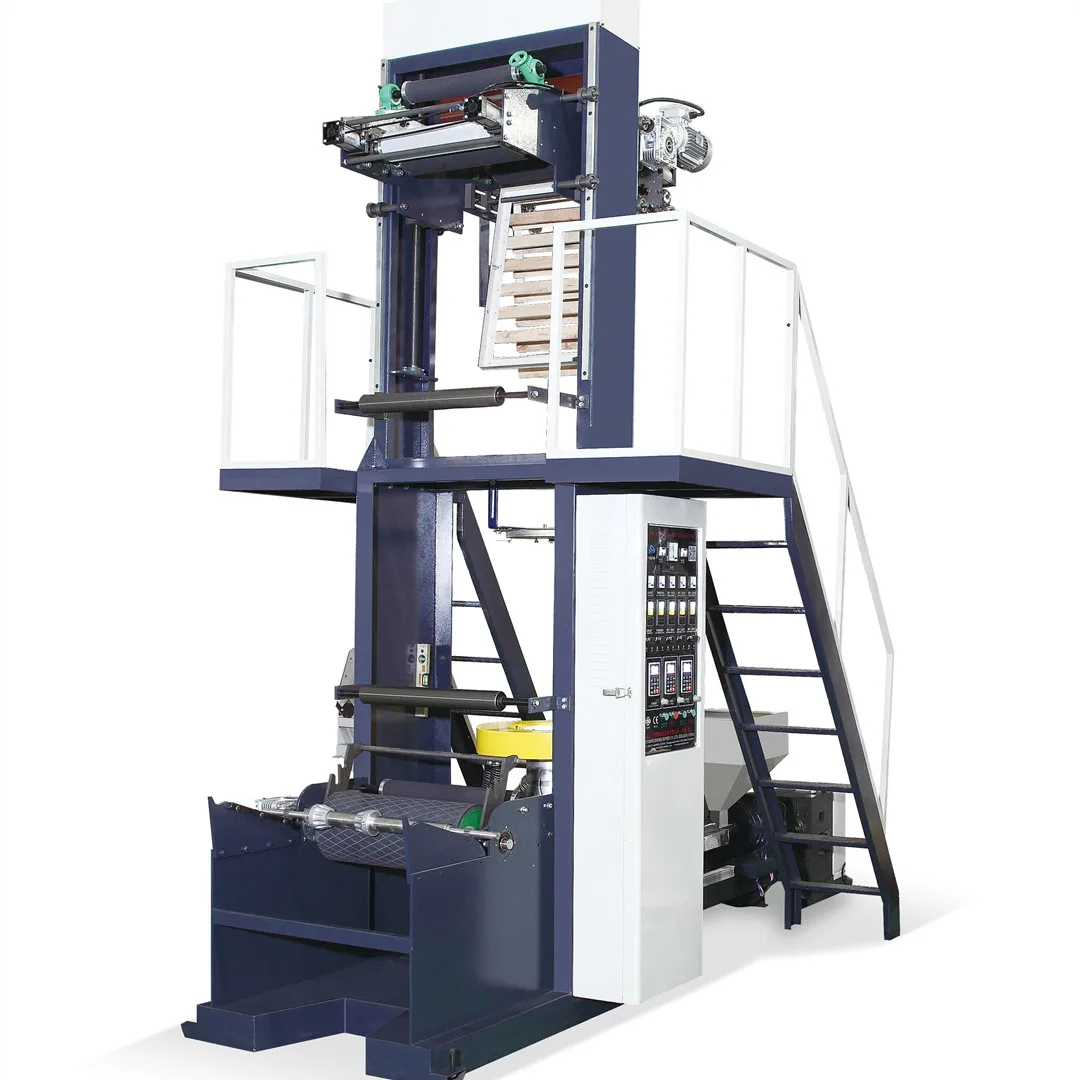

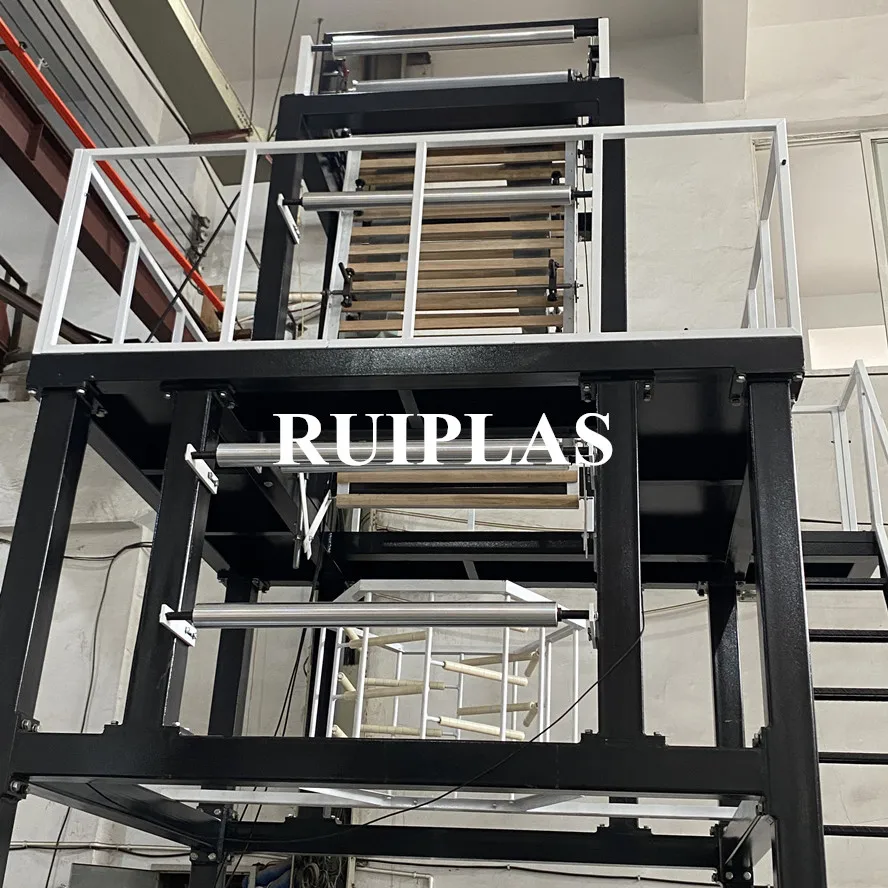

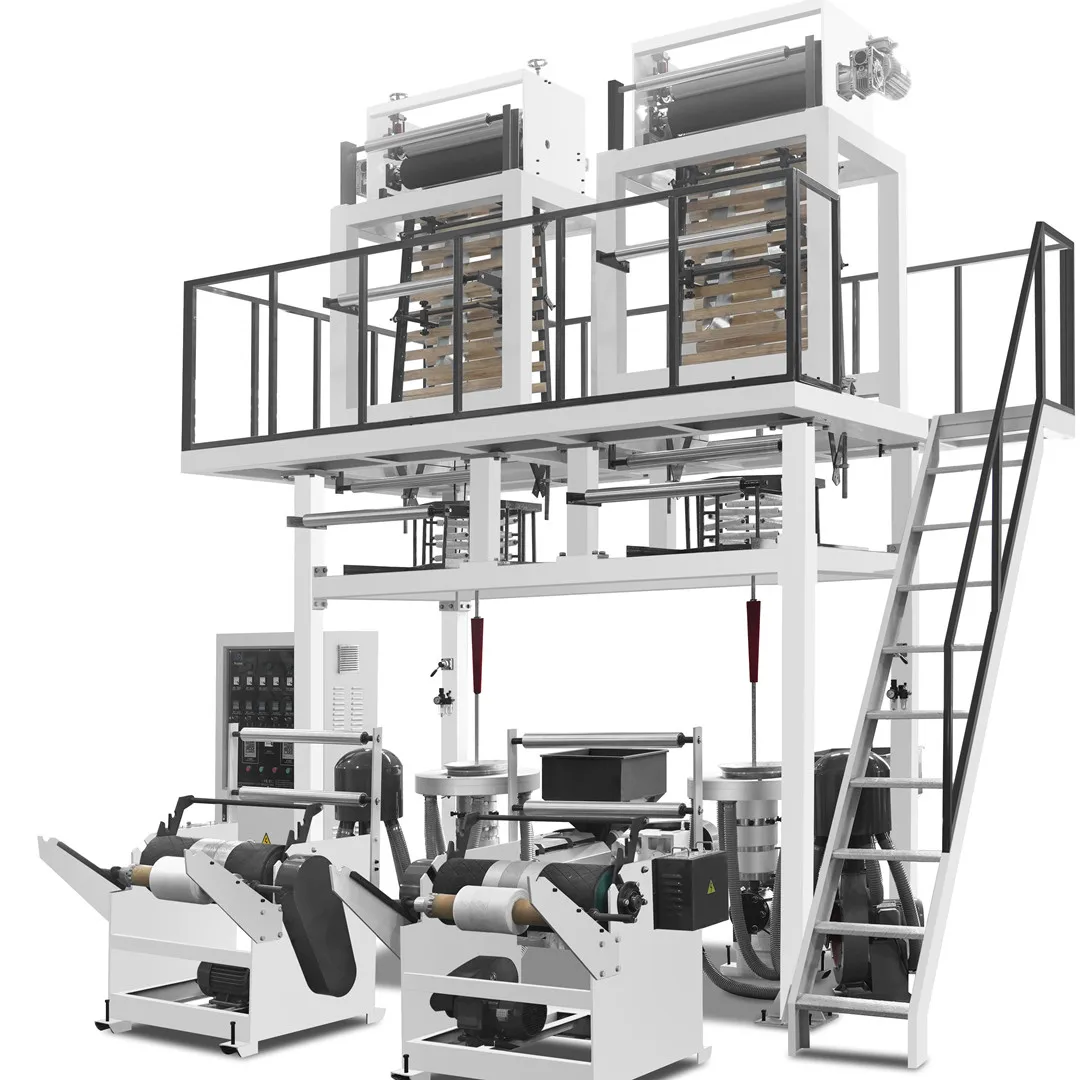

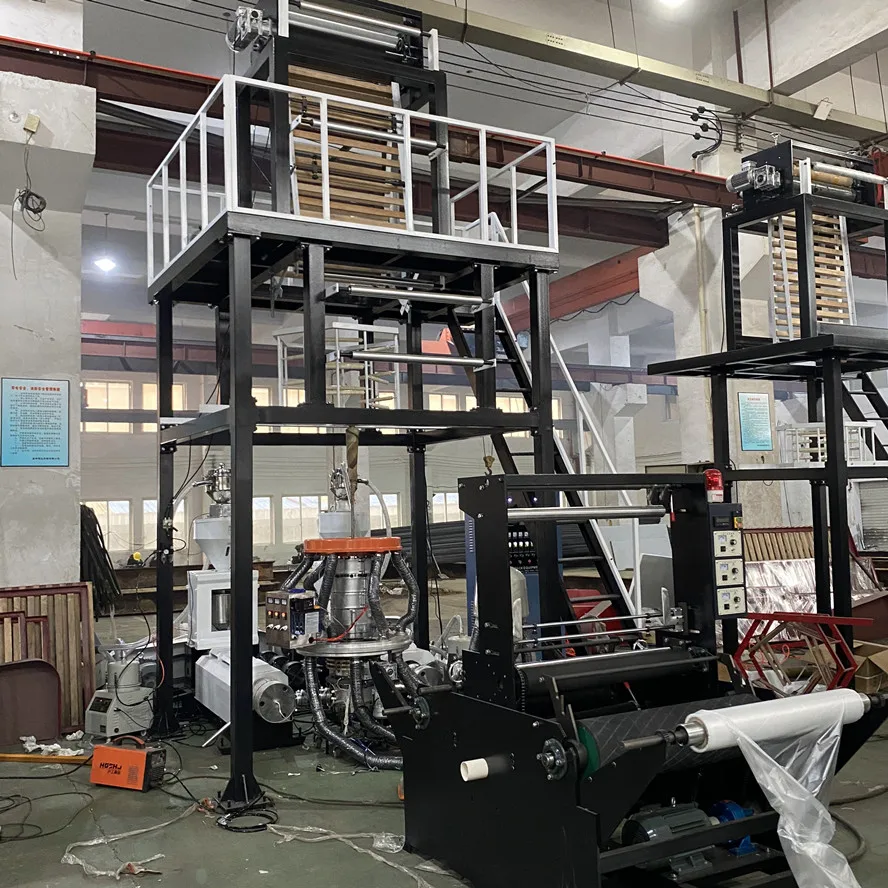

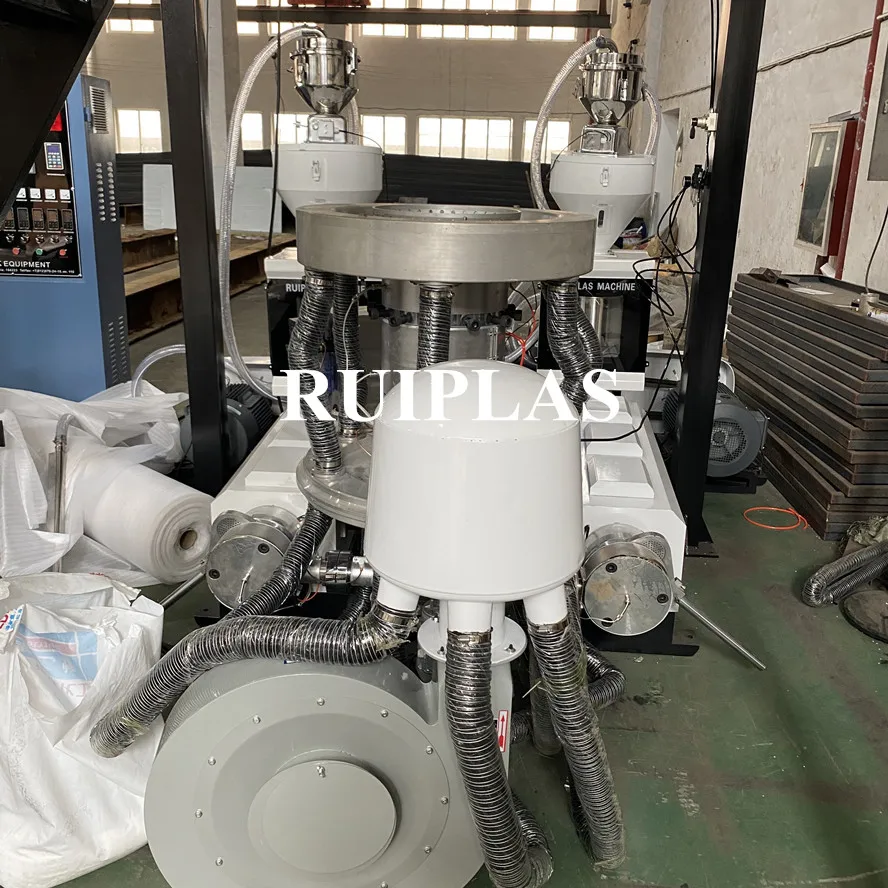

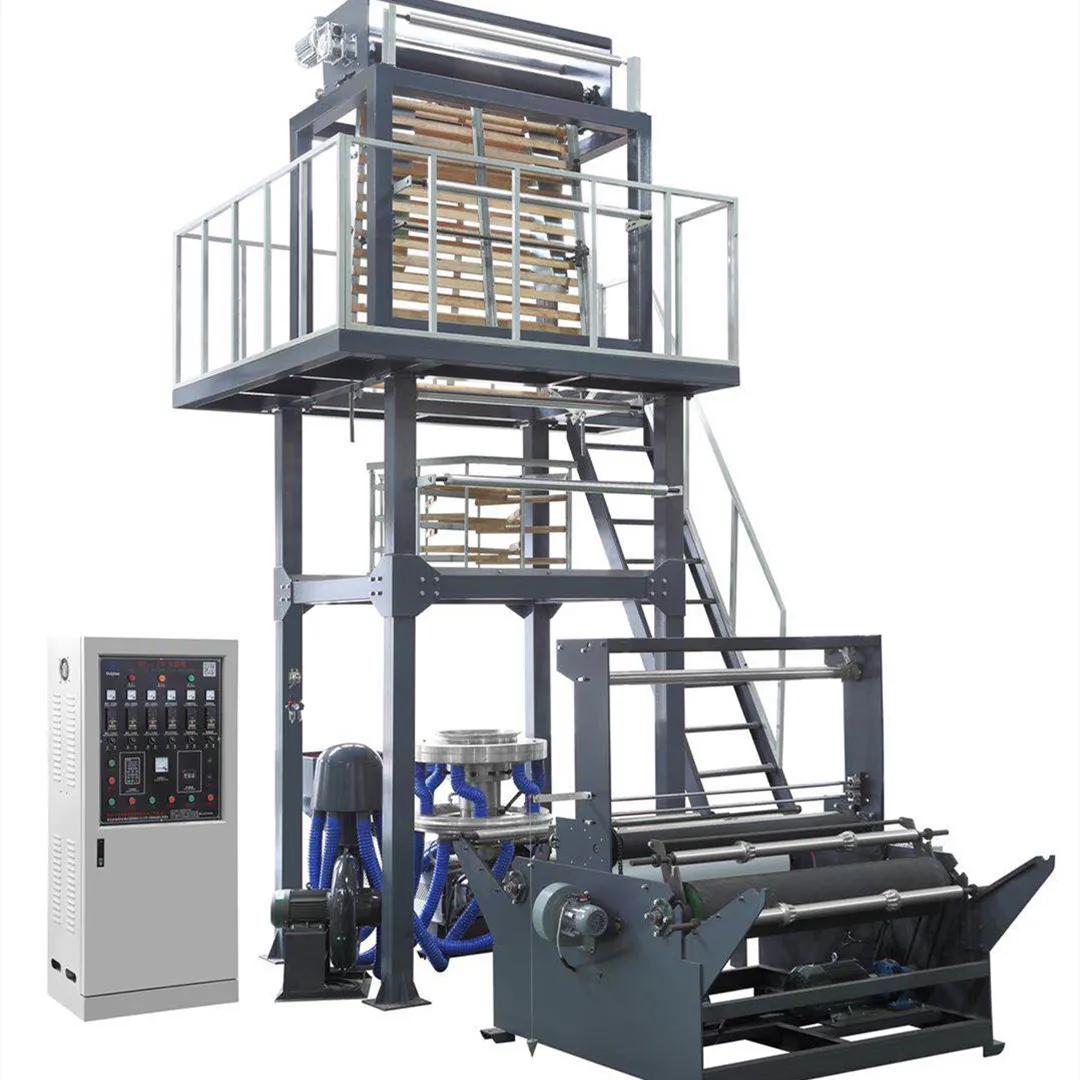

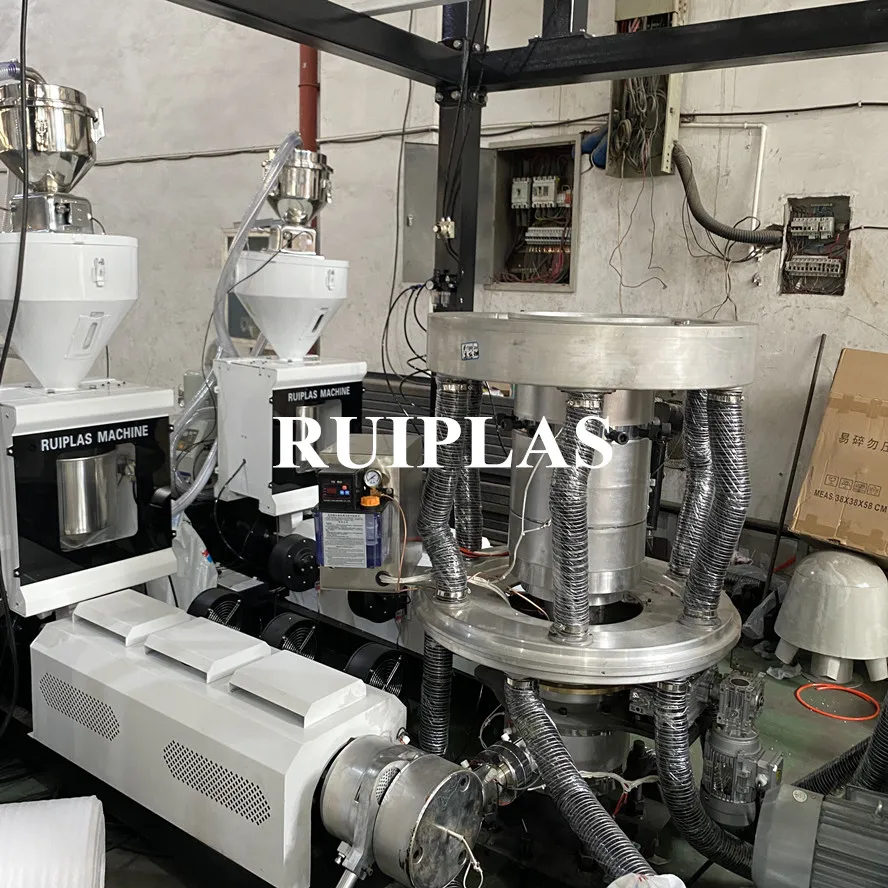

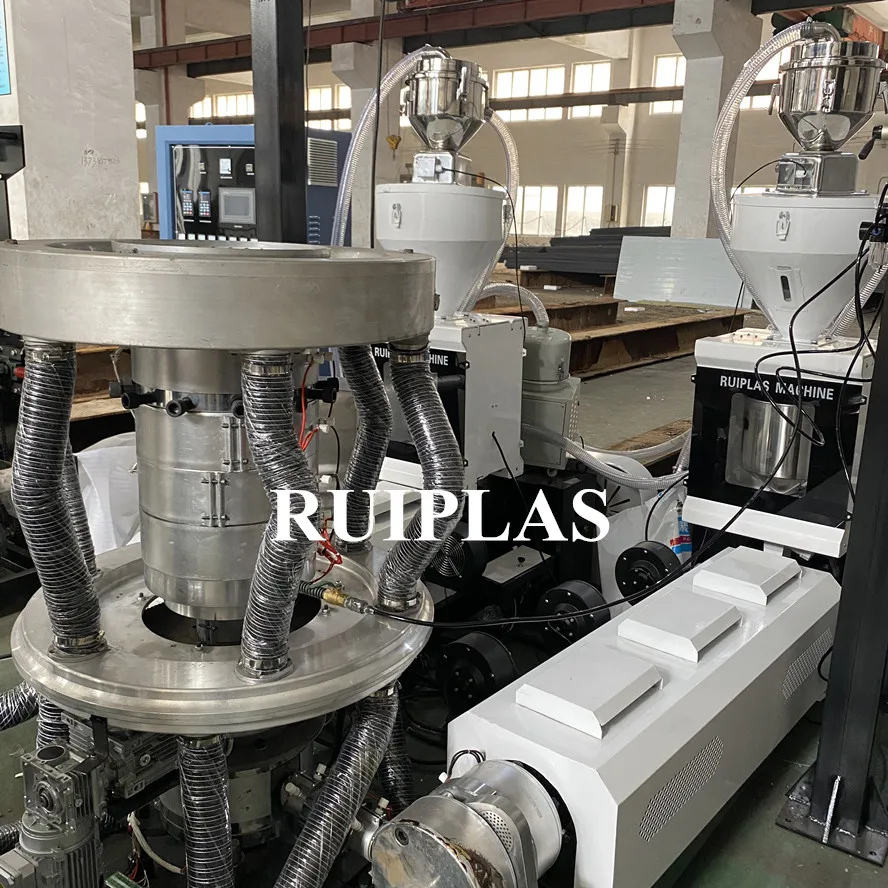

Hot sale three layer ABA Plastic Shopping Bag Extruder Machine for biodegradable bags
- Category: >>>
- Supplier: Ruian Ruipai Machinery Co. Ltd.
Share on (1850678344):
Product Overview
Description
Specification
Main technical parameters
Model | RP-ABA600 | RP-ABA800 | RP-ABA1000 | RP-ABA1200 |
Film thickness | 0.006-0.08 mm | 0.006-0.08 mm | 0.006-0.08 mm | 0.006-0.08 mm |
Film width | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm |
Roller width | 700 mm | 900 mm | 1100 mm | 1300 mm |
Max. capacity | 110kg/hr | 120kg/hr | 150kg/hr | 170kg/hr |
Screw diameter | A:45mm B:45mm | A:50mm B:50mm | A:55mm B:55mm | A:55mm B:55mm |
L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Main motor | A15+B15 | A15+B15 | A18.5+B18.5 | A22+B18.5 |
Gearbox | 146+146 | 173+173 | 173+173 | 180+173 |
Die head size | HD:60 LD:100 | HD:80 LD:180 | HD:120 LD:220 | HD:150 LD:250 |
Take up speed | 100m/min | 100m/min | 100m/min | 100m/min |
Take up motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
Winder motor | 6N.M | 10N.M | 10N.M | 16N.M |
Machine size | 4000*2600*5000mm | 4500*3000*5500mm | 5000*3400*6000mm | 5800*3800*6500mm |
Weight | 3200kg | 3800kg | 4500kg | 5000kg |
