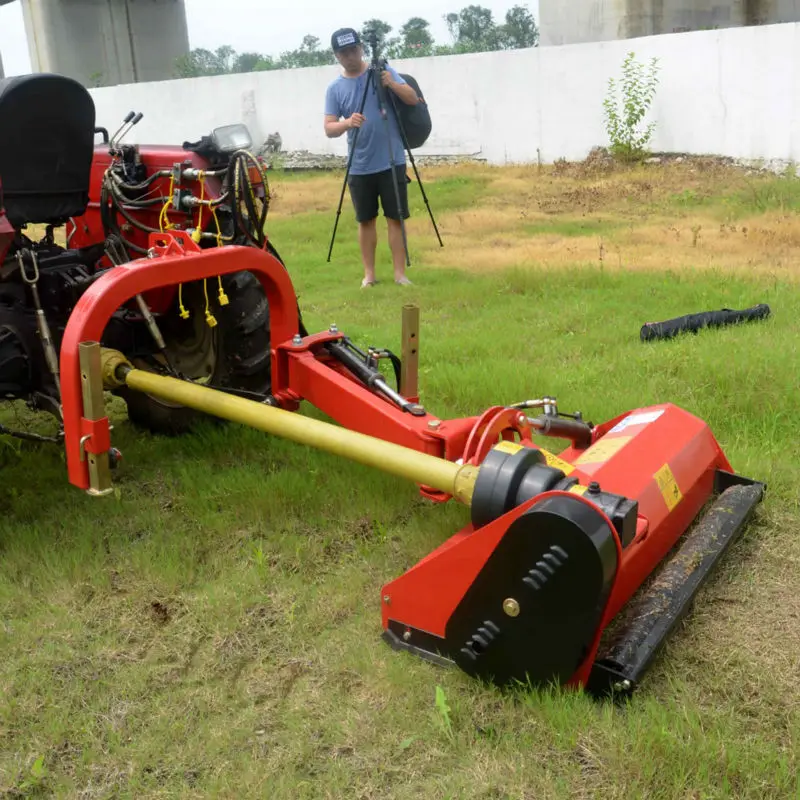

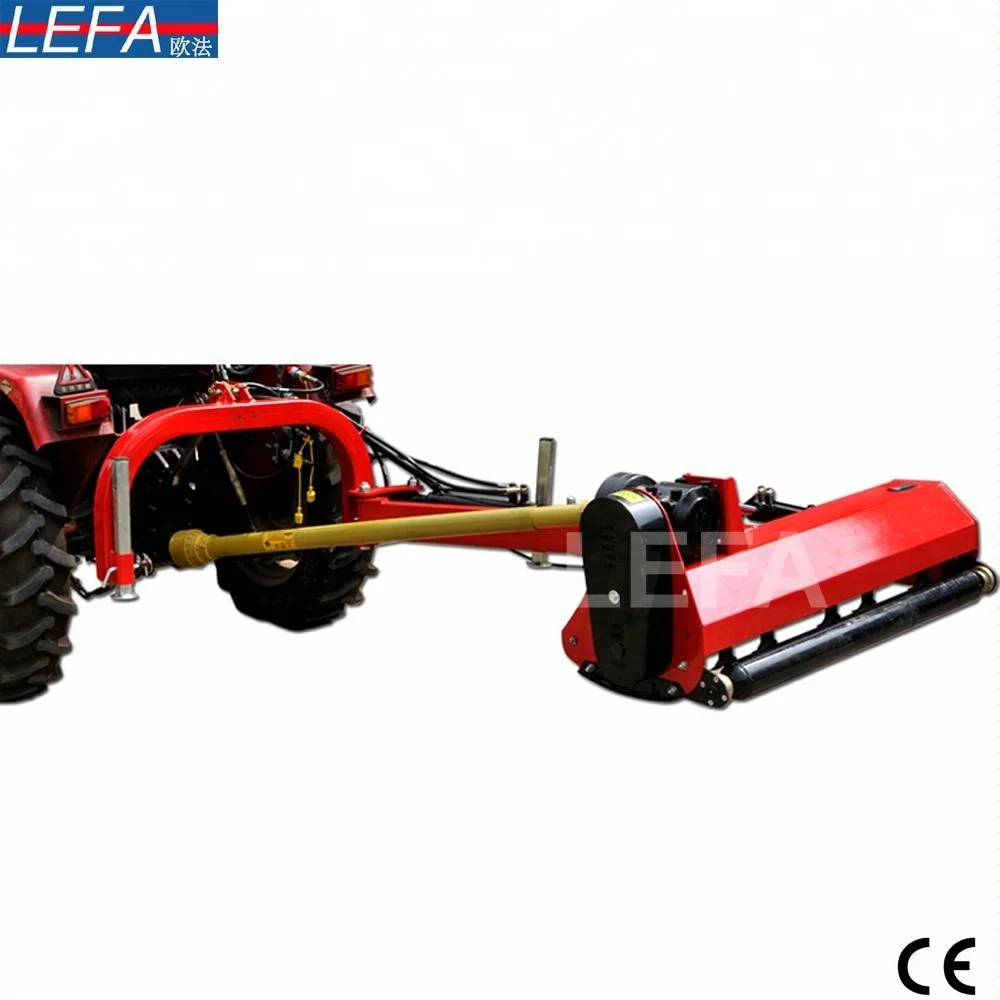

CE Approved Agricultural Hydraulic Tractor verge Flail Mower With Side Shift

Share on (1850698523):


Price:$899.00 - $1,300.00

Quantity:


Product Overview

Description

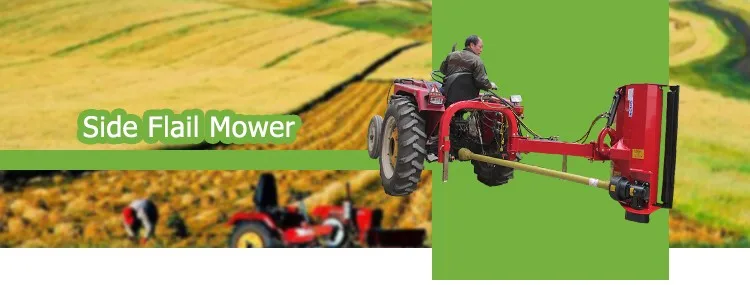

 Light-side-mower






Product Description


 Specification:





  1. 3 point U shape linkage

  2. Graphite casting iron gearbox

  3. Tractor power required: 18-30hp

  4. Can cut slope, bush grass.



Product Attribute



  1. This series verge flail mowers designed for small tractors, power required in 18-30HP. They are used for the flat land grass, the weed in the slope and bush side trimming.

  2. The machine has passed the dynamic balance testing. It ensures the blades stability in high speed running and less noise. We test every machine before delivery.

  3. With double Y shape blades, higher cutting efficiency.

  4. The mower roller two ends are with bearing. It makes sure the flexibility of rotating and prevents hard abrasion.

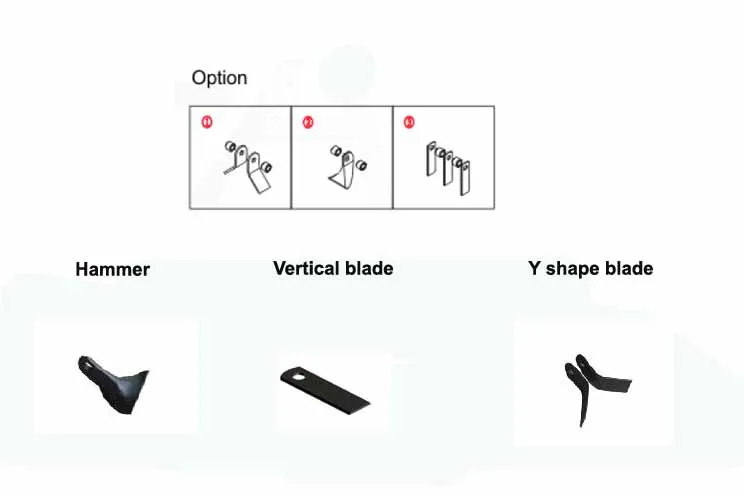

  5. 3 kinds of blades choices.


(1) Y shape blade (2) Hammer (3) Straight blade



  1. It can be turned in sideways. Vertical and horizontal sides.

  2. With belt tension pulley device

  3. With Hydraulic system.





5

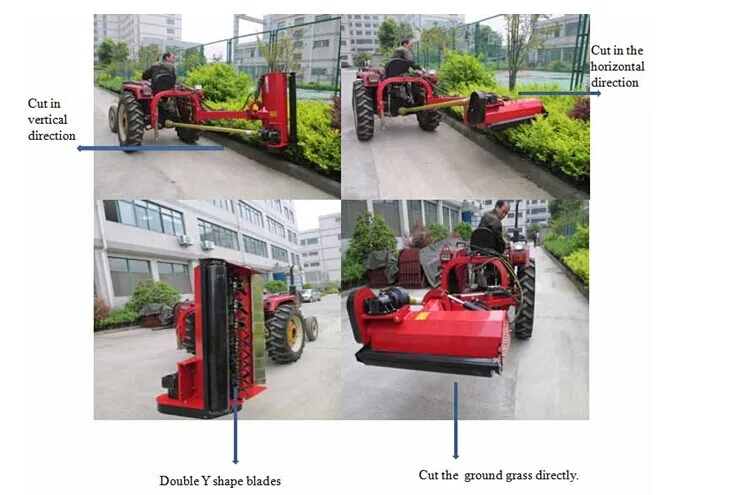

Product Display

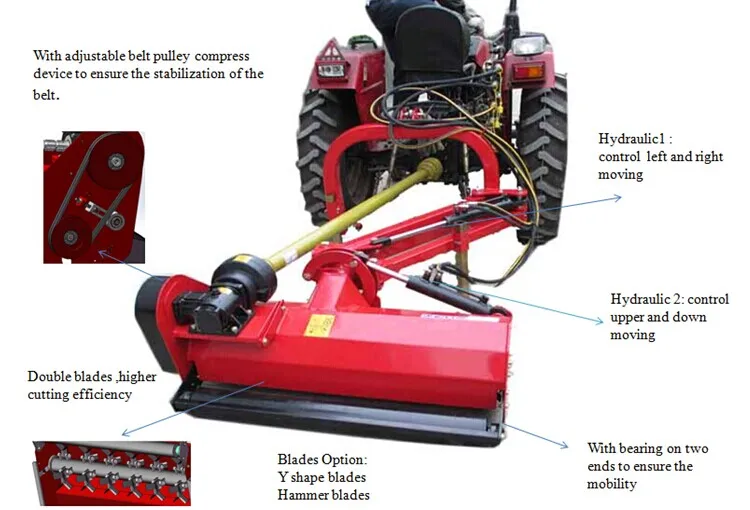

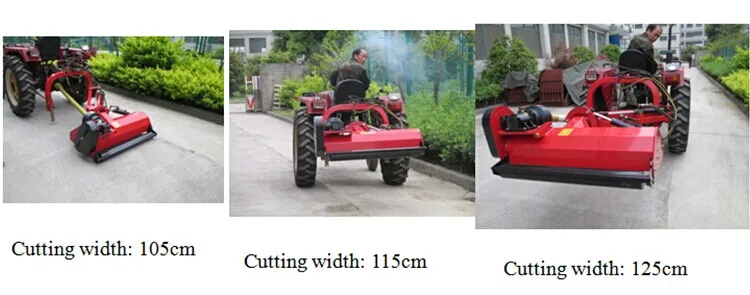

EFDL displayEFDL2EFDL detailEFDL 3.jpg copy


 2





Specifications






















































Model



EFDL-105



EFDL-115



EFDL-125



Structure Dimension(mm)



1365×1355×836



1365×1355×836



1365×1355×836



Weight(Kg)



210Kg



225Kg



240Kg



Cutting Width



1050mm



1150mm



1250mm



 PTO Input Speed



540r/min



540r/min



540r/min



Number of blades



72



78



78



Angle



Left 45°and  right 90°



Left 45°and  right 90°



Left 45°and  right 90°



Power Required(Min/Max)



18-25HP



20-25HP



20-30HP








Video Showing its Perfect work


15









Company Information







 12

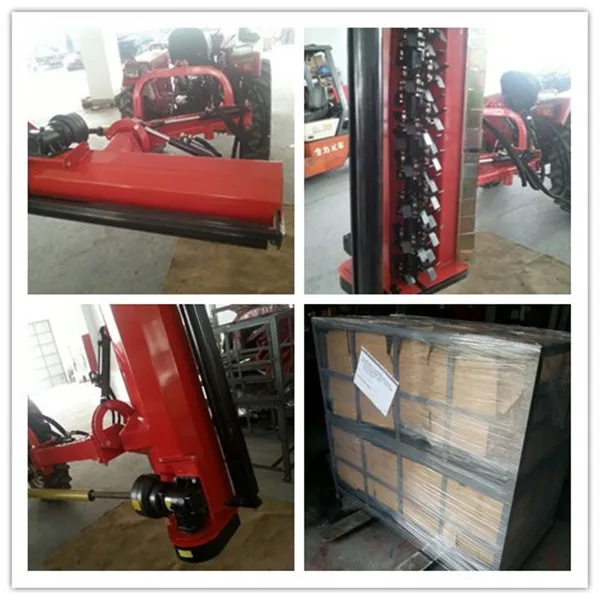

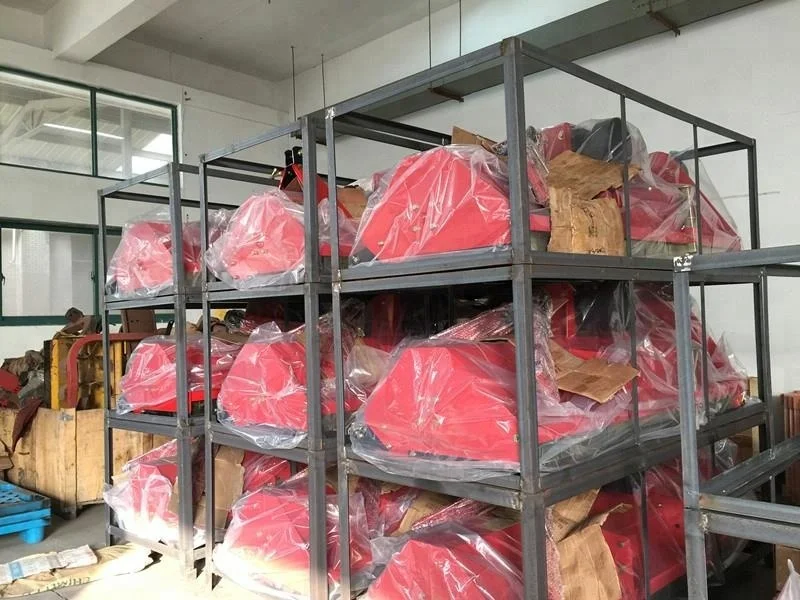

Packaging & Shipping
