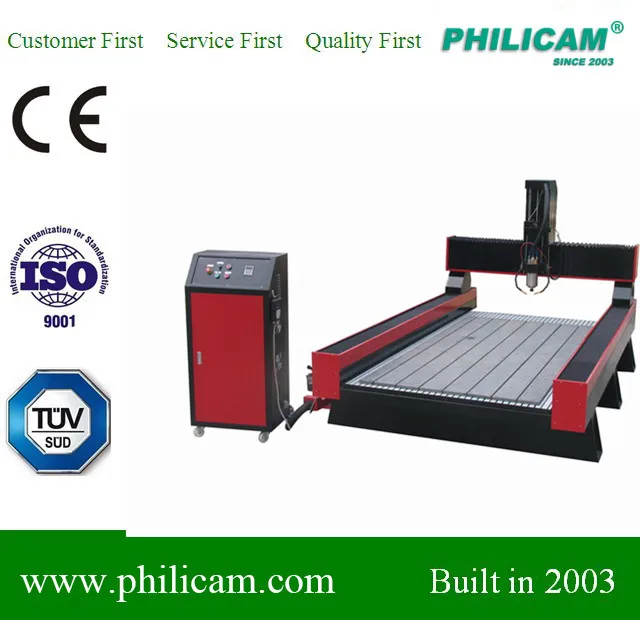

granite stone cutting and polishing machine

Application of granite stone cutting and polishing machine
Stone working: engraving various granite, bluestone, marble, gritstone, soapstone and etc.
Furniture decoration
Musical Instruments industry
Wooden crafts industry
Large area plank plane sculpture, solid wood furniture,
annatto furniture, real wood art mural, density board paint-free door,
Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.
Feature of granite stone cutting and polishing machine
1.The frames is welded by thick-walled rectangular steel and tempered at high temperature.
2.No deformation, high rigidity, with over 3 tons of load-bearing frame.
3.Taiwan imported rails and sliders--HIWIN, high precision, low noise, durable.
4.Transmission parts are imported rack with high precision and speed.
5.The machine cable and electrical adopts international famous brand, which makes the machine works in steady and high efficient condition.
6.Unique domestic water circulation system, energy saving and environment protection.
7.Newest design of triaxial enclosed totally, dustproof, waterproof.
Parameters of granite stone cutting and polishing machine
|
Model |
FLDM1325 |
|
Table size |
1440*3100mm |
|
X,Y,Z transmission |
X,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission |
|
Guide rail |
Taiwan Hiwin 30 liner guide rail |
|
Spindle |
4.5Kw air-cooling spindle |
|
Spindle power |
6.0Kw optional |
|
Inverter |
Taiwan Delta inverter |
|
Spindle rotating speed |
0-24000rpm/min |
|
Drive system |
Leadshine motor and drivers |
|
Working speed |
35m/min |
|
Voltage |
220V/380V/50Hz/60Hz |
|
Operating system |
Weihong NK105 DSP system |
|
Command |
G Code |
|
Software |
Ucancam software, Artcam software, Option |
|
Interface |
USB offline |
|
Packing size |
3200*2200*1750mm |
|
Working area |
1300*2500mm |
|
Weight |
2000kg |
Samples of granite stone cutting and polishing machine

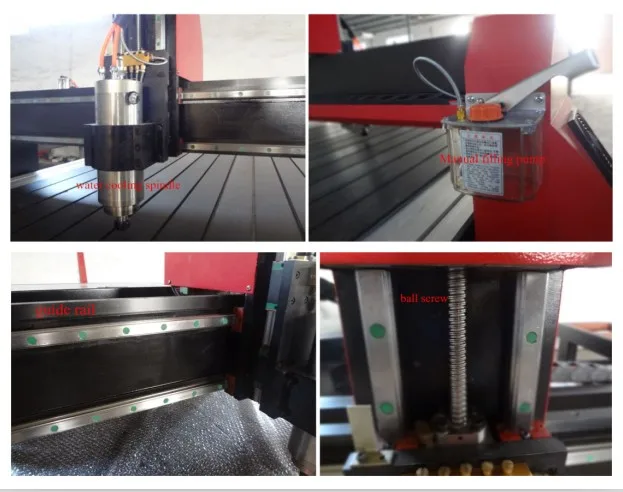

Machine parts of granite stone cutting and polishing machine

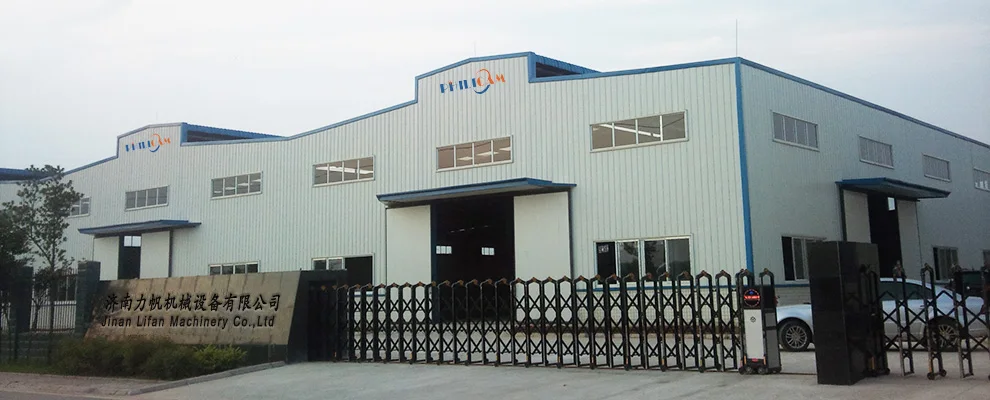

Our factory

our after sale service
