Устройство блокировки вала

Product Overview

Description

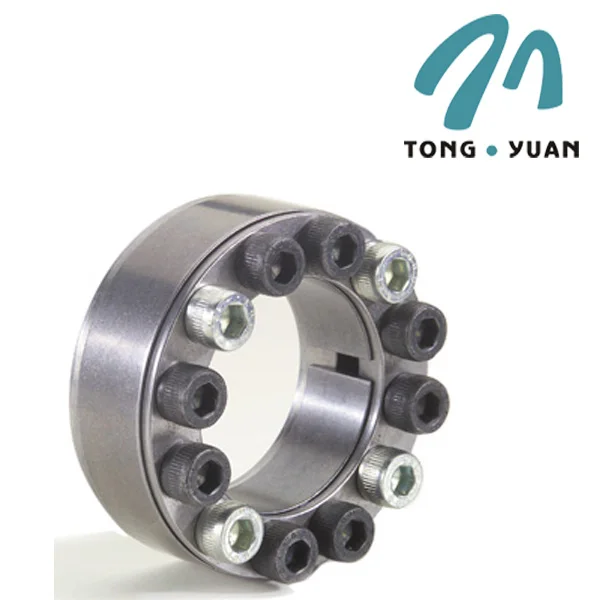

 Shaft Locking Device



Product Features:

• Provide high strength connection between components and shafts


• Keyless


• Transmit very high axial and torque loads


• Easy to install


• Will not damage shafts or components









Lock Devices provide a keyless, extreme high strength connection between components and round shafts. They feature a smooth, non-marring bore which contracts securely onto a shaft while expanding the OD tightly into the I.D. of a hub. Fully adjustable, they are balanced to minimize vibration at high speeds, and prevent backlash damage caused by heavy loads.









Cross Reference
Part No.	TLK	RCK	KTR
TY-1	300	50	150
TY-2	200	40	100
TY-3	450
TY-4	400
TY-5	500	95
TY-6	622		620
TY-7	132	13	203
TY-8	133	16
TY-9	134	15
TY-10	130	70
TY-11	131	71
TY-12	110	80	250
TY-13	603	19
TY-14	350	105	105
TY-15	250		125
TY-16	250L	55













Tongyuan supplies pulleys(sheaves), roller chain sprockets, shaft collars and couplings, weld on hubs, taper bushings and other power transmission parts.Their products meet the standards of the ISO, DIN, ANSI, AGMA, SAE and JIS for quality assurance.
