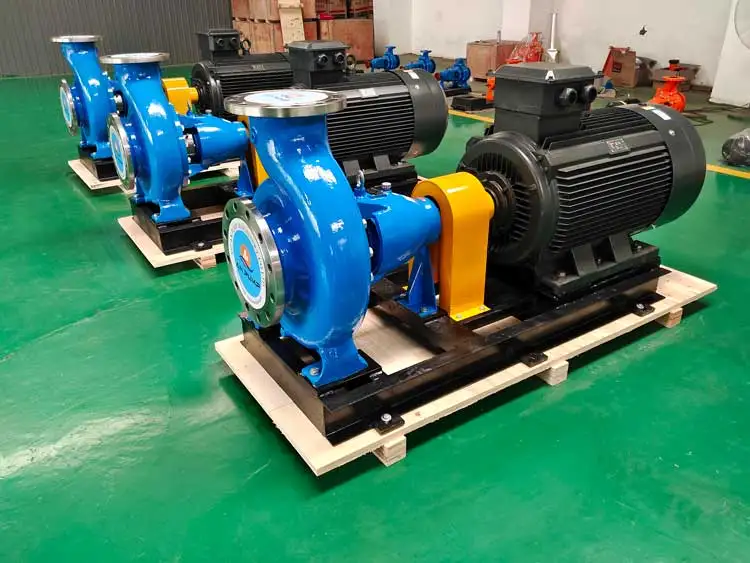

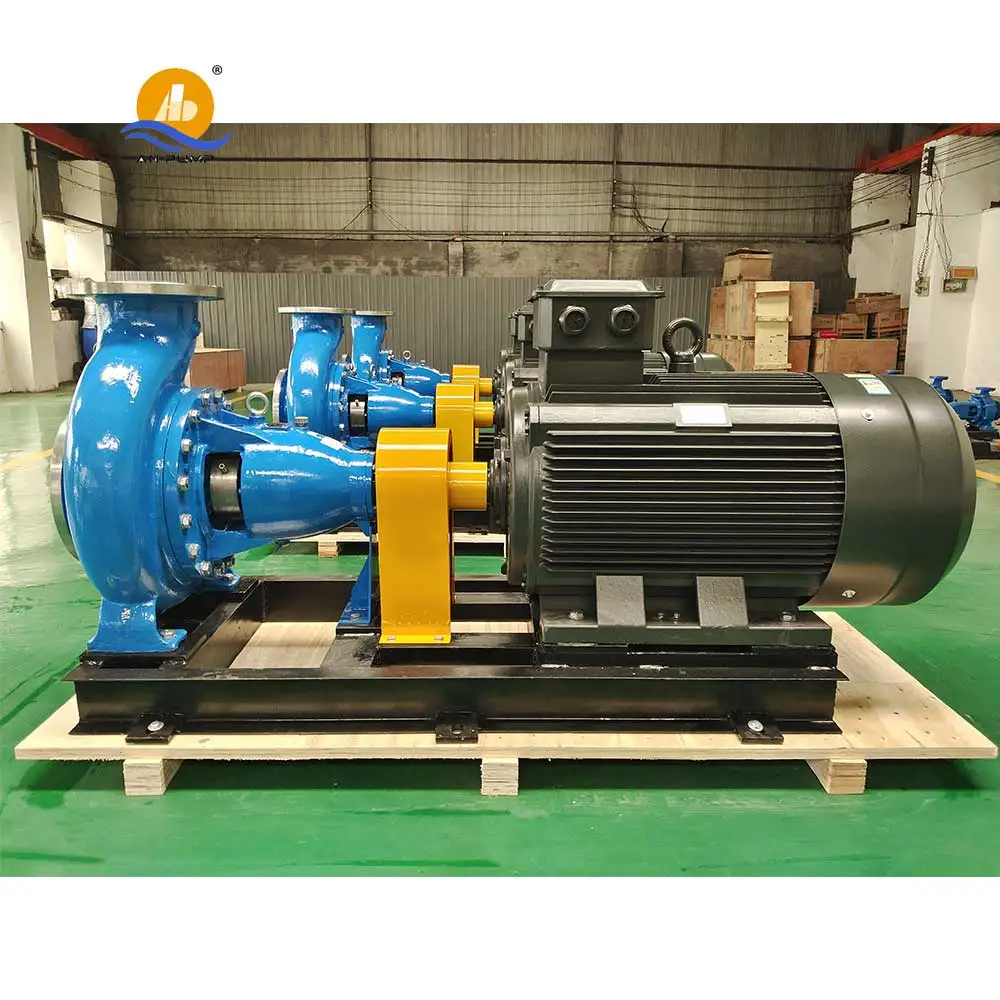

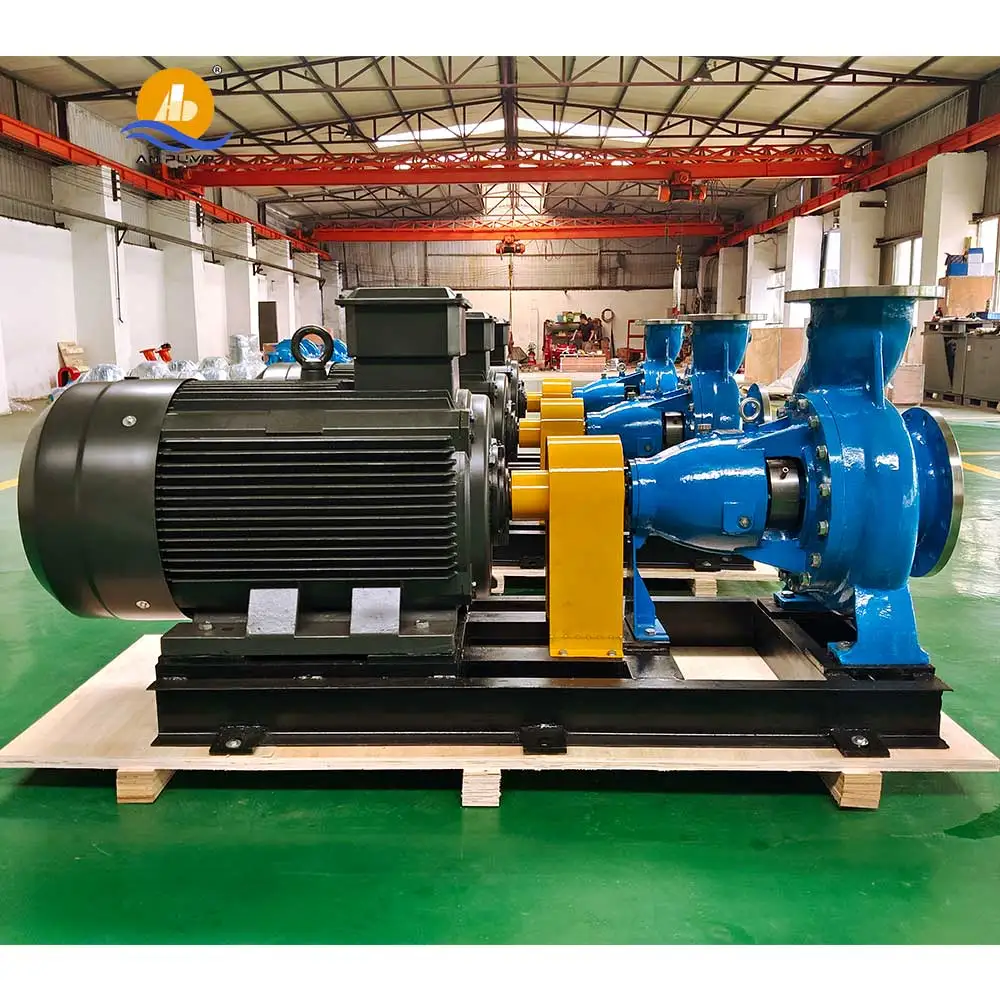

End suction centrifugal back pull out design corrosion resistant pump

Product Overview

Description

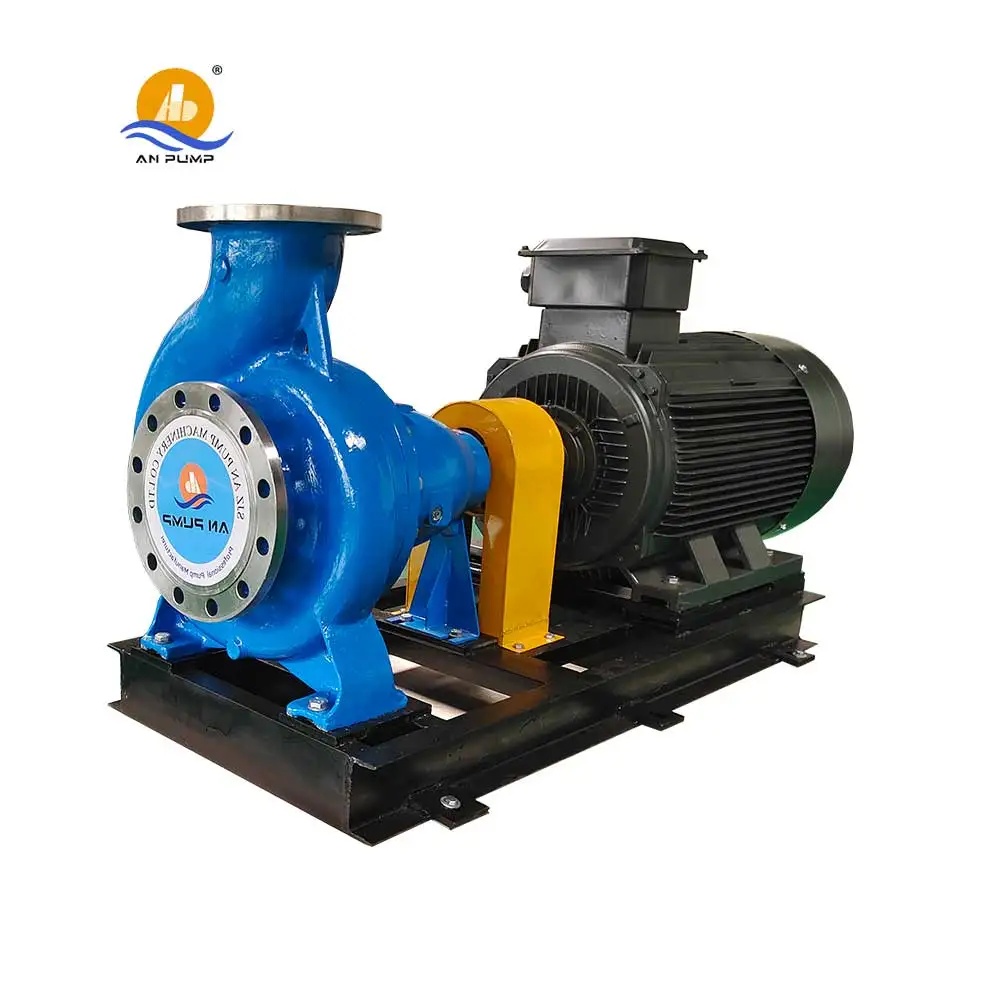

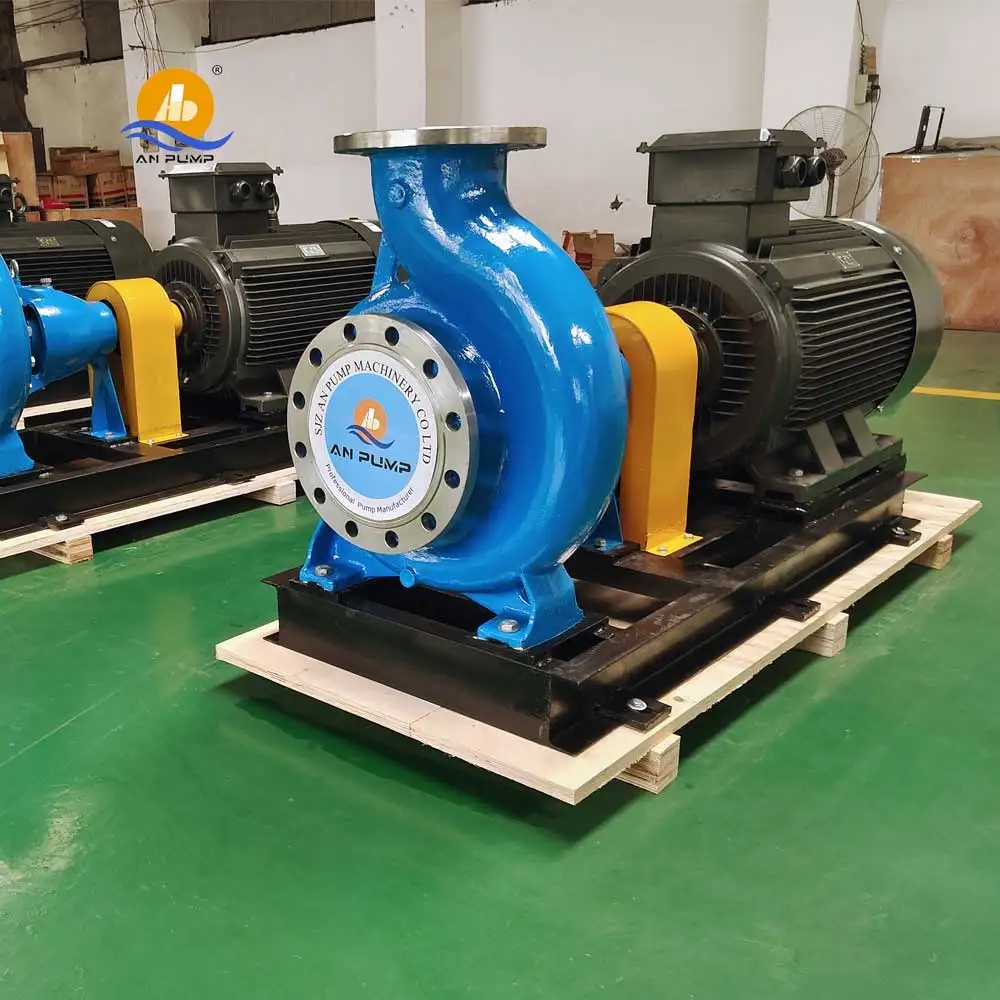

End suction centrifugal back pull-out design corrosion-resistant pump





QI series single stage single suction centrifugal water pumps (end suction pump) comply with ISO2858 international standard.

Easy installation and move, open back structure makes it easy to take out the rotor.

Discharge on top center, pump body supported by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load.

No overload design, make sure performance operate stably.

Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance.

Packing seal and mechanical seal are available.

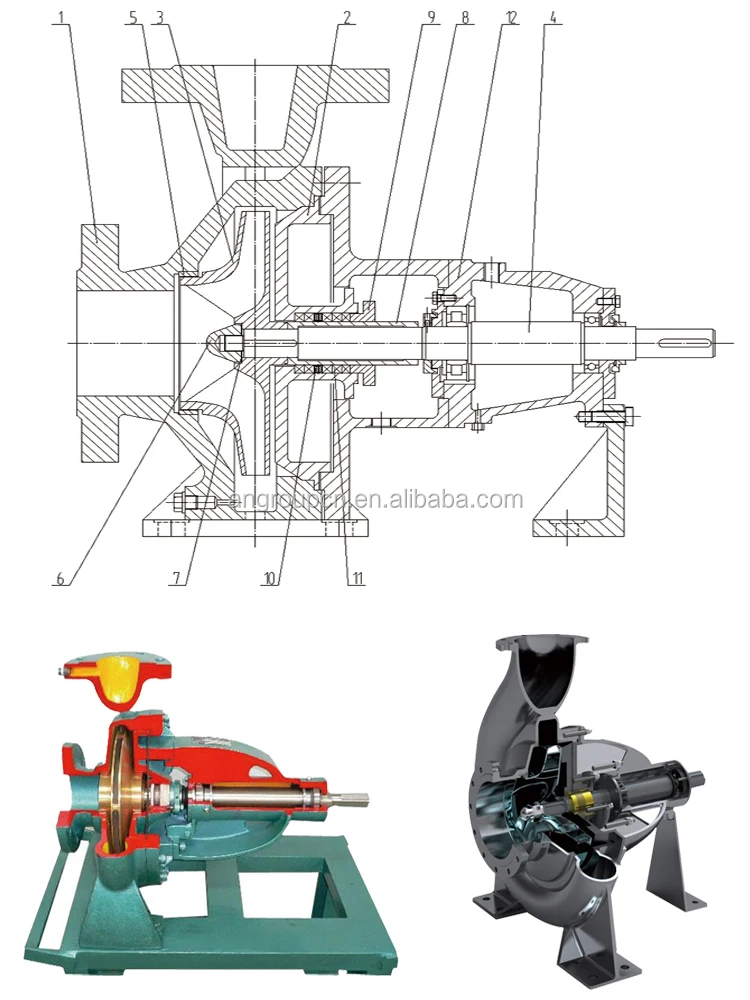

Construction

1.casing 2.casing cover 3. impeller 4 shaft 5 wear ring 6 impeller nut

7 break gasket 8 shaft sleeve 9 gland 10 water seal ring 11 packing 12 bearing bracket

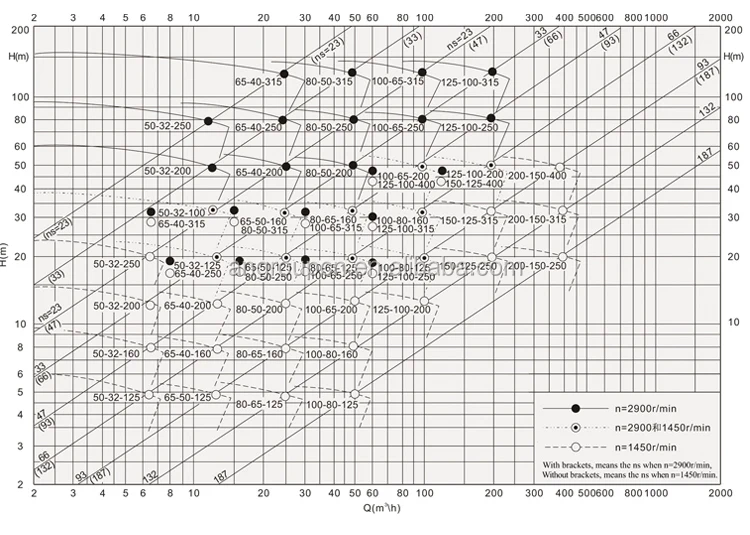

Performance Chart

Type	Flow	Head	Power
	(m3/h)	(m)	(KW)
QI50	3.4-15	3.7-68.8	0.55-11
QI65	6.8-30	3.7-126.8	0.55-30
QI80	13.6-60	3.6-128	0.55-45
QI100	27.3-120	3.4-115.5	1.5-75
QI125	56-240	8.5-132.5	2.2-110
QI150	99-240	12.4-57.5	15-55
QI200	197.7-460	14.8-55.8	30-90
QI 250	320-760	22.6-52	75-132
QI 300	530-1200	21.9-38	90-132
