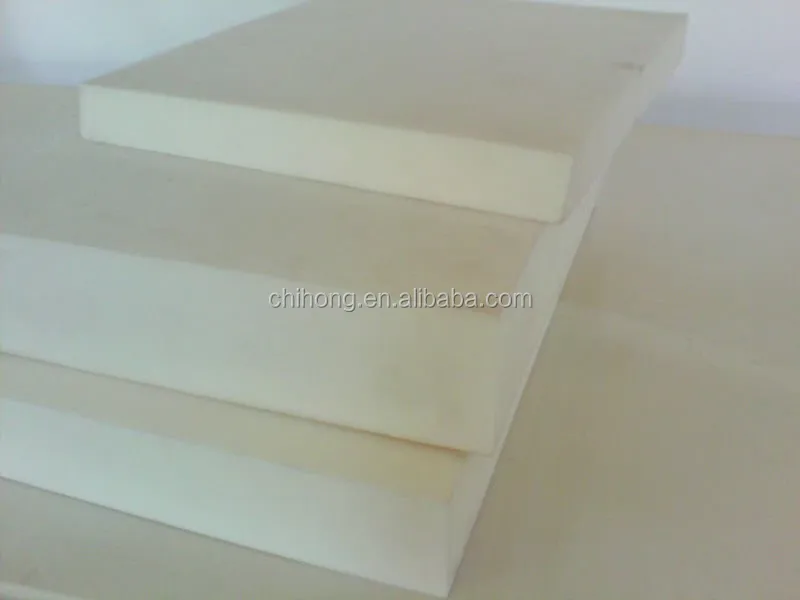

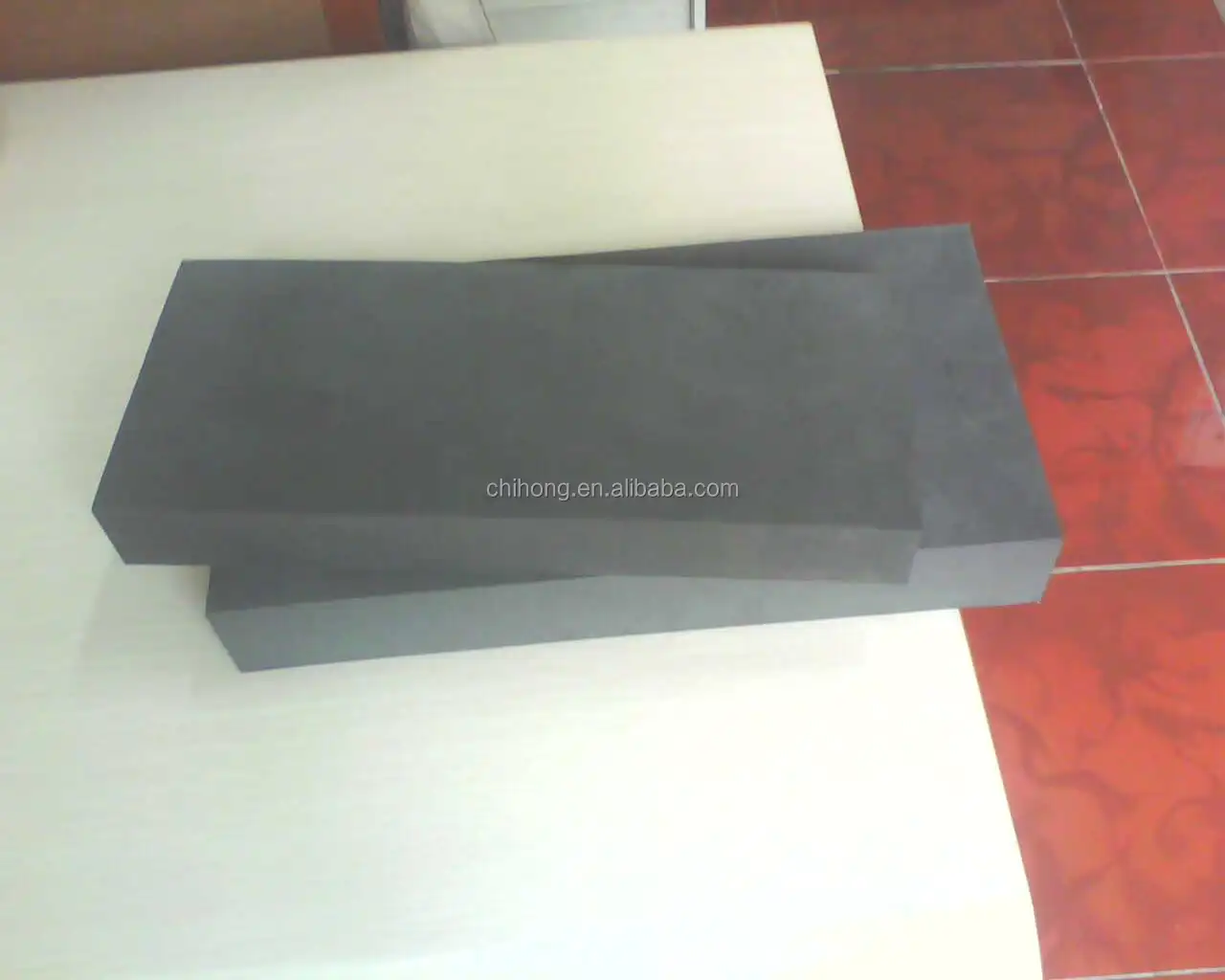

Pe foam PE45 blocks

Product Overview

Description

Products name and specification

CROSSLINKED CLOSED CELL PE FOAM our types L-2000  (PE45)

Density:45kg/m3

Color: black ,white

Regular sizes: 2000x1000  four sides trimmed

Block Thickness; 90mm    skin removed



Charactors:

-not soft and not rigid  mid hardness

-closed cell crosslinked structure

-non water absorbant

-good insulation

-good buffering

-sound proof

-temperature _40 +80 centigrade

-good buoyancy

-anti-aging



APPLICATIONS:

-packaging

-Sports

-floating material

-Carton or box inserts for tools

-insulation material

-automobile, electronices, refrigertator

-joint filler foam for constructions

-steel and aluminum attachment



Further cutting

1. 1.    Normal cut, cut to smaller sizes
2. 2.    laminate to more thicker sheet
3. 3.    die cut   , mold cuts, CNC cut
4. 4.    special shaped making, say cylinder, slots, drills
5. 5.    back with glue or self adhensives
6. 6.    laminate to more thicker sheet





Physical Characteristic Data Report

Item	unit	L-2000white	L-2000Gray3	L-2000b3 fire retardant
Density	kg/m3	45.5	46.8	56.3
Hardness	Shore C	30-36	30-36	31-37
Enlongation Ratio	%	153	170	107
Tensile Strenth	Mpa	0.35	0.3	0.27
Water Absorption	%	0.8	0.71	0.085
Compression25%	Mpa	0.073	0.068	0.068
Compression set 25% 72h 23℃	%	5	4.9	7.4
Oxigen index	%			25







catergories: chemically crosslinked PE foam, 2nd stage foaming, high foaming,  looks like EVA foam,

perfect materail for heat insulation,package, floating.
