Product Overview

Description


Product Description

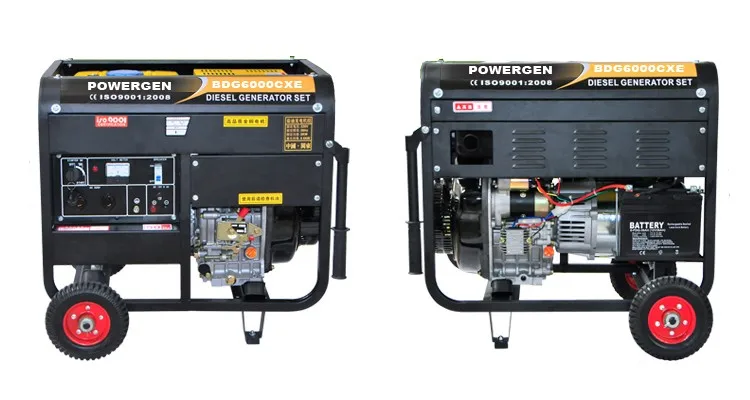

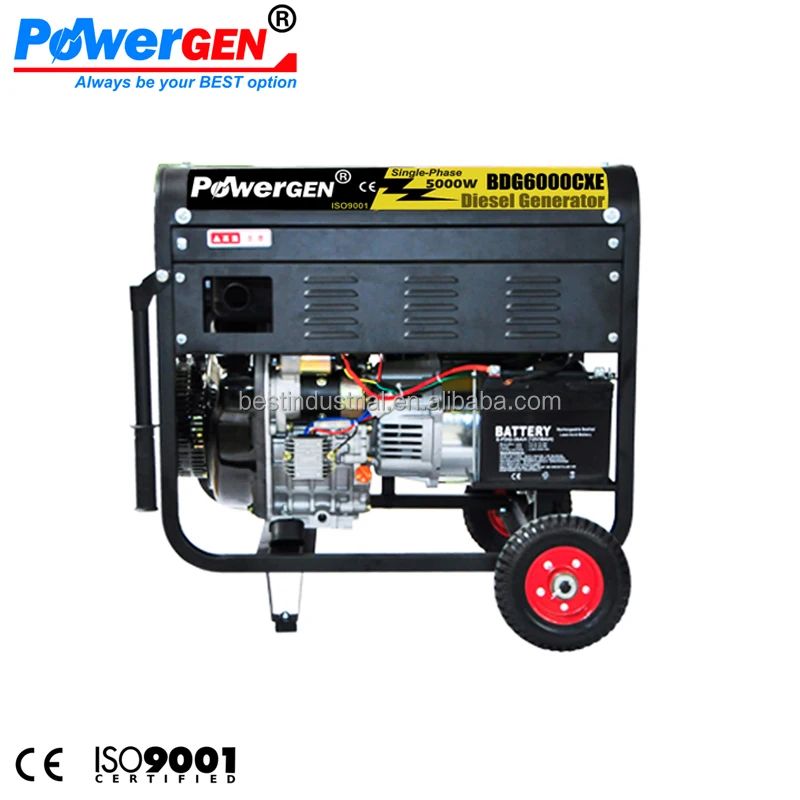

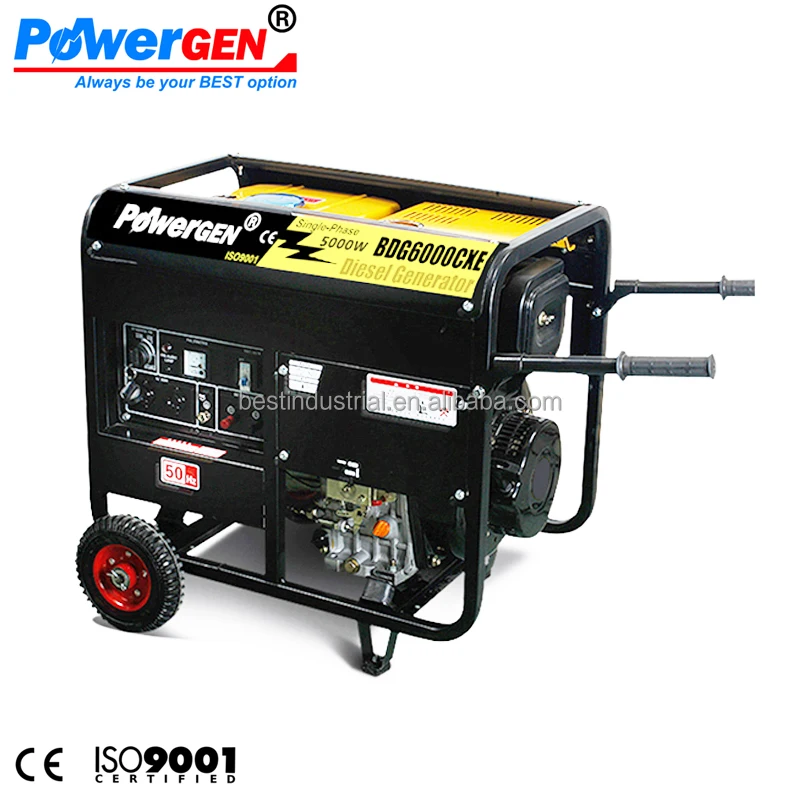

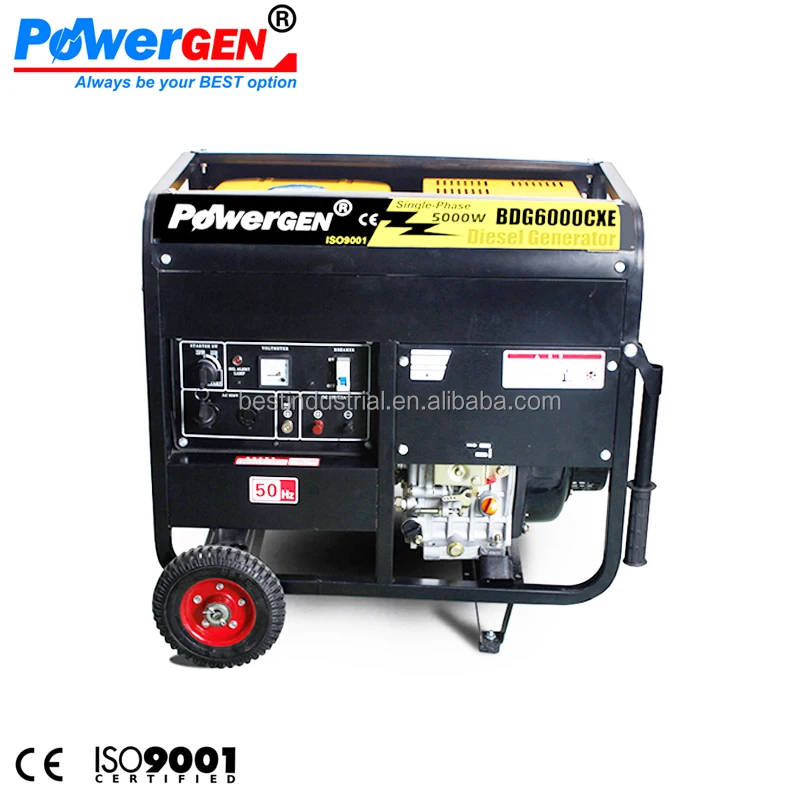

The silent diesel generator 5KW @50Hz, 5.5KW@60Hz model BDG6000CXE is usually used at construction and engineerng areas and places such as houses, shops without connection to a power grid, or work as emergency power-supply if the grid fails.

Specifications
\t
SPECIFICATIONS OF SILENT TYPE DIESEL GENERATOR 5KW
\t
MODEL NO.:
\t
BDG6000CXE
\t
Frequency
\t
Hz
\t
50
\t
60
\t
Voltage
\t
V
\t
110/220/230//240
\t
110/115/120/240
\t
Alternator type
\t
\t
Single phase, 2-pole, Self-excited, Brush with AVR,  Insulation class F
\t
Rated Output
\t
KW
\t
5.0
\t
5.5
\t
Max. Output
\t
KW
\t
5.5
\t
6.0
\t
DC Output
\t
V/Amp
\t
12/8.3
\t
Control Panel
\t
\t
Key starter, Volt meter, Current meter, Hour meter, Circuit breaker, Outlets
\t
Engine Type
\t
\t
Diesel, Air-cooled, Single cylinder, 4-stroke, 418cc
\t
Engine Model
\t
\t
BD186FAE
\t
Engine Power
\t
HP
\t
10
\t
Bore x Stroke
\t
mm
\t
86 x 72
\t
Engine Speed
\t
RPM
\t
3000
\t
3600
\t
Fuel Tank Capacity
\t
L
\t
15
\t
Fuel Consumption
\t
L/Hr.
\t
1.90 @ full load
\t
2.20@ full load
\t
Cranking Battery
\t
\t
Sealed Maintenance-free Lead acid Battery 12V 30AH
\t
Noise Level @7M
\t
dBA
\t
70
\t
Packing Dimensions
\t
LxWxH
\t
740 x 500 x 670
\t
N.W./ G.W
\t
Kgs
\t
102/105
Features

Control Panel (with Electric Starter)

(Socket type can be made as per requirements)

- Electric/Key Starter
- Voltage Meter, Working hours meter
- Circuit Breaker
- Low oil pressure alarm
- Socket:  2x220V etc. (customized available)
- DC output: DC12V 8.3A

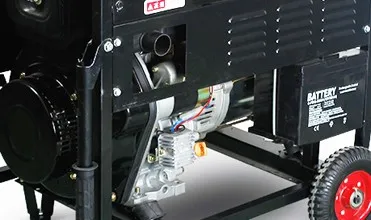

Diesel Engine with Battery

Engine Model: BD186FAE

Brand: POWERGEN

Power: 10HP

Type: Air-cooled, Single Cylinder, 4-stroke, 418cc

Start method: Electric start or Recoil Start

Battery: 12V36AH

Battery charger: equipped inside the generator

Full Copper Durable Alternator

Model: PG-6
Brand: POWERGEN
Power: 6KW

Type: Brush, with AVR, Self-excited

Full 100% copper coil, robust alternator can withstand a long time of coninuous working.

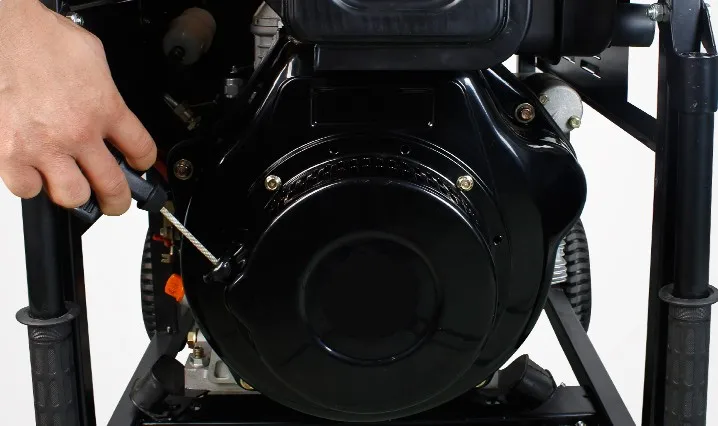

Recoil Starter

- Easy to pull and start

- Start the generaor by recoil starter while battery is failed

- Use the recoil star option while electric starter is not available.

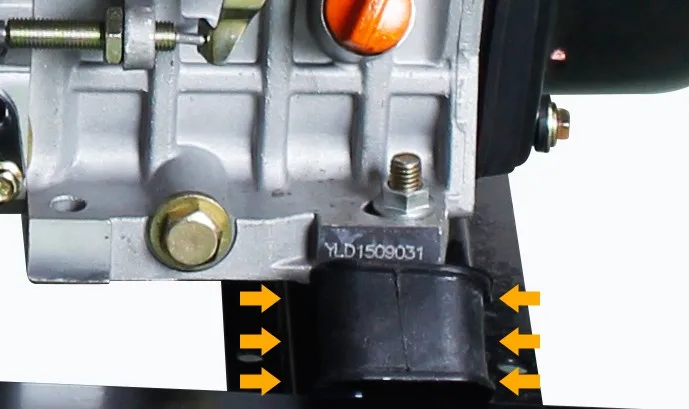

Shock Pad

- Shock pad made of better rubber material.

- Good Anti-vibration capability

- Lowering noise level while the generator is running

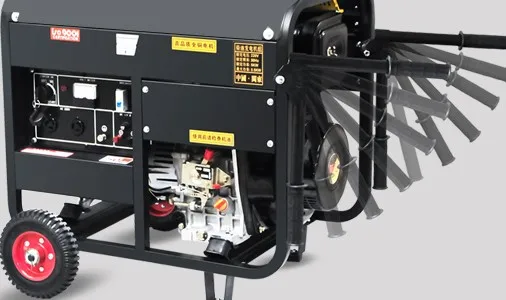

Foldable Handles & Wheels

- Foldable handles for easier carrying and moving.

- The wheels are durable and made to withstand a variety of conditions that generators endure, such as bumping road etc.

Optional

ATS (Auto Transfer Switch)

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Digital LCD Panel

All the parameters of the generator such as Volt., KW and Hz will be shown on the LCD.

Remote Start/Off Controller

With a remote controller, you can start or turn off the generator within a distance of 100meters.

Assembly Line
Packaging
\t
Packaging
\t
Size (mm)
\t
740 (L) * 500 (W) * 670 (H)
\t
Gross Weight (Kgs)
\t
110
\t



Packaging Details
\t

1) Inner Packaging: Polybag

2) Outer Packaging: Thick Carton with
small wooden pallet at the bottom.

3) Wrapping tape
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
