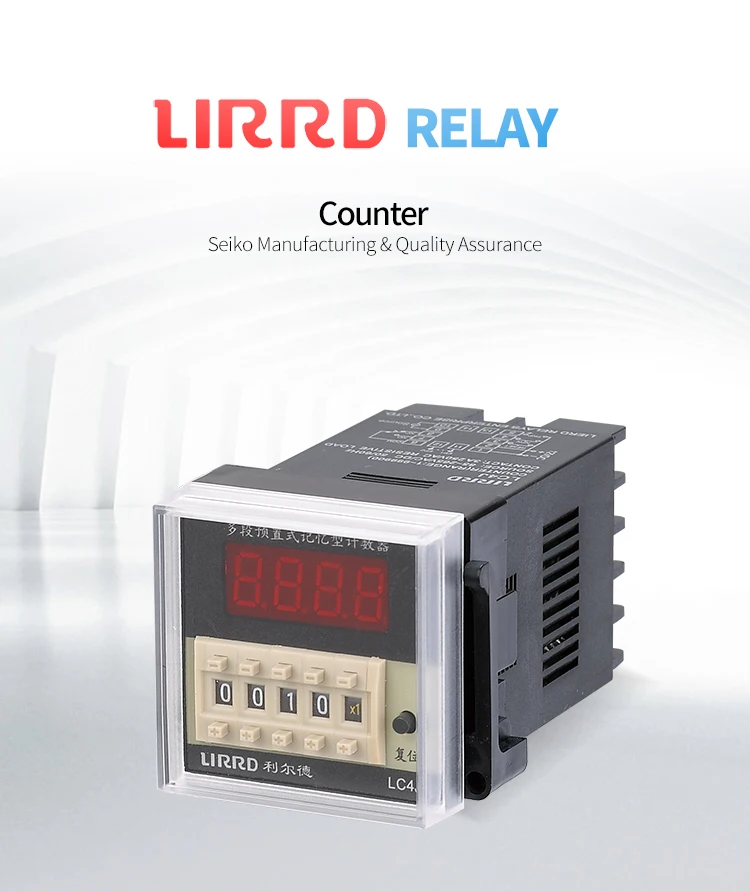

LIRRD high precision LC4J multi channel preset digital electronic counter
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (1854222781):
Product Overview
Description
Application
General Specifications
| Class | Multiplex Type Preset Counter | |
| Type | LC4J | |
| Rated Working Power | 85~265VAC/DC input free, outher working voltage upon request | |
| Counting Multiplying Factor | ×1, ×10, ×100, ×1, ×10, ×100,( 1 denotes to count and plus 1 for 1 input signal, 10 denotes to count and plus 1 for 10 input signal, 100 denotes to count and plus 1 for 100 input signal, × denotes posifive mode × denotes in verse mode) | |
| Counting Range | 1-999900, 4 bits dial code preset, 1 bit counting multiplying factor set | |
| Counting Speed | ≤60cps | |
| Counting Signal Input | Choose any in the two signal input modes: NPN knot signal(emitter connects to common terminal) and contact signal. NPN and contact short circuit(ON) impedance less than 3kΩ,open circuit (OFF) impedance exceed 200kΩ. Signal photoelectric coupling is isolated. | |
| Display Mode | 4 bits digital tube with high bright displays counting value in real time, charater height is 0.36 inch. | |
| Relay Capacity | Impedance load: Max 5A/250VAC or 5A/28VDC | |
| Battery Backup | For Optional | |
| Reset Mode | Power keying reset, base terminal reset, power on reset(Using the battery backup function, the counting value at time of power cut and action state of relay ercovers after power on). Reset signal not less than 0.02Sec. | |
| Power Output | Max DC12V, 20mA, not suitable to use as power | |
| Service Life | Mechanical life: 5*106 times, electric life: 1*106 times | |
| Operating Environment | Ambient Temperature: -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH | |
| Noisy Immunity | AC2kV(between operating power terminals) or DC ± 500V, time accumulator works normally under sisturbance of 1uS impulse width | |
| Weight | About 121g | |
| Installation Mode | Panel built-in type, adopts the connection of connecting terminal mode | |

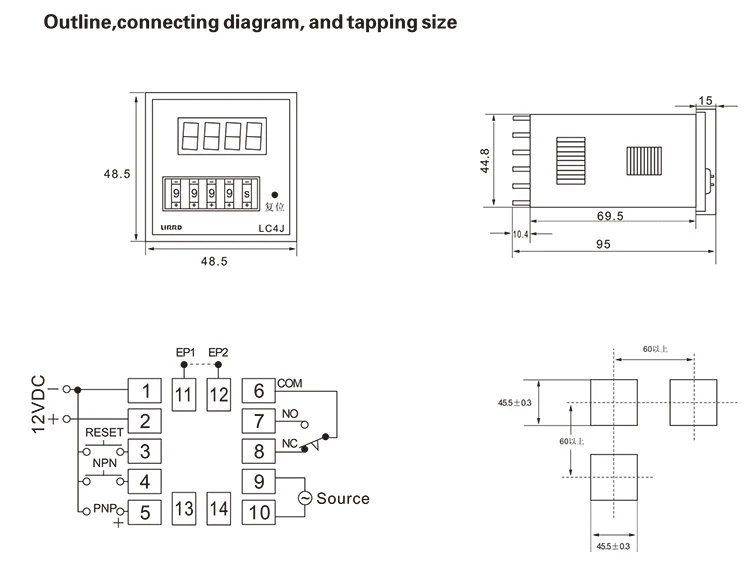

Installation Dimensions And Connecting Diagram
