Monorail hoist crane 1ton 2ton 3ton 5ton 8ton 10ton 15ton 16ton 20ton 25ton single girder EOT crane:

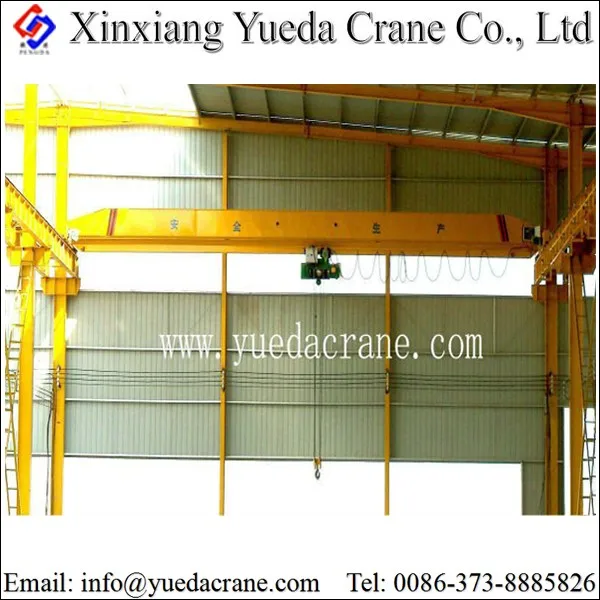

1. LD model single girder EOT crane (bridge crane) is single beam type overhead crane with monorail hoist.

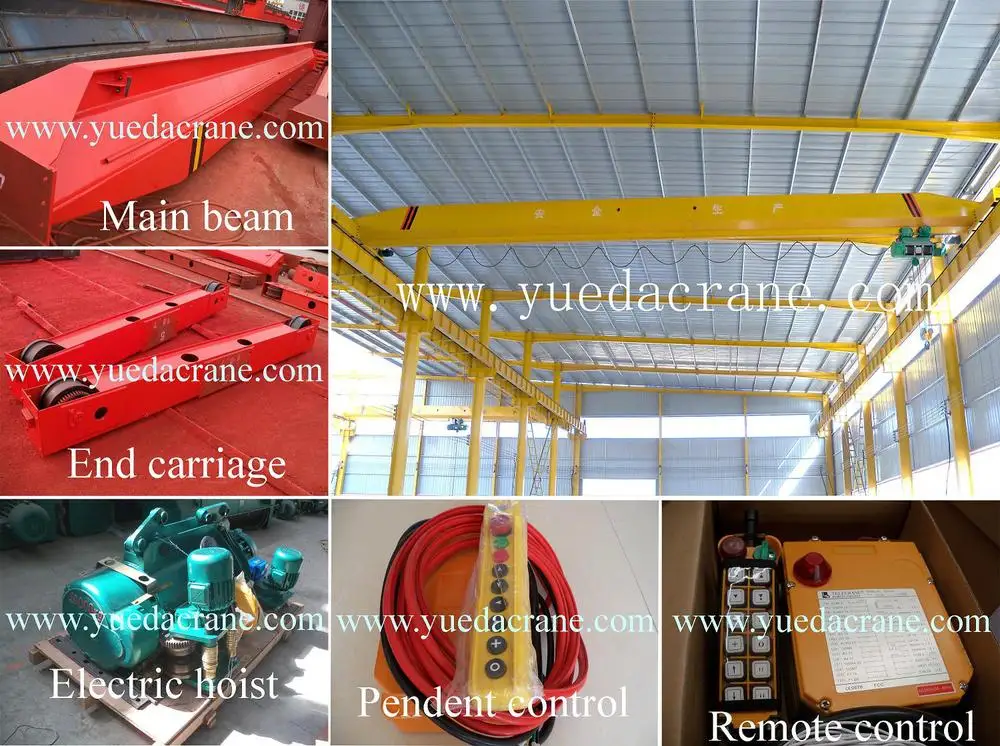

2. This overhead crane (EOT crane) is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel plate.



3. This overhead crane (EOT crane) is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set.



4. This overhead crane is medium duty class overhead crane, the capacity from 1ton to 30 tons. The span from 7.5m to31.5m, the working grade is A3-A4. Working temperature within -25 to +42 centigrade.

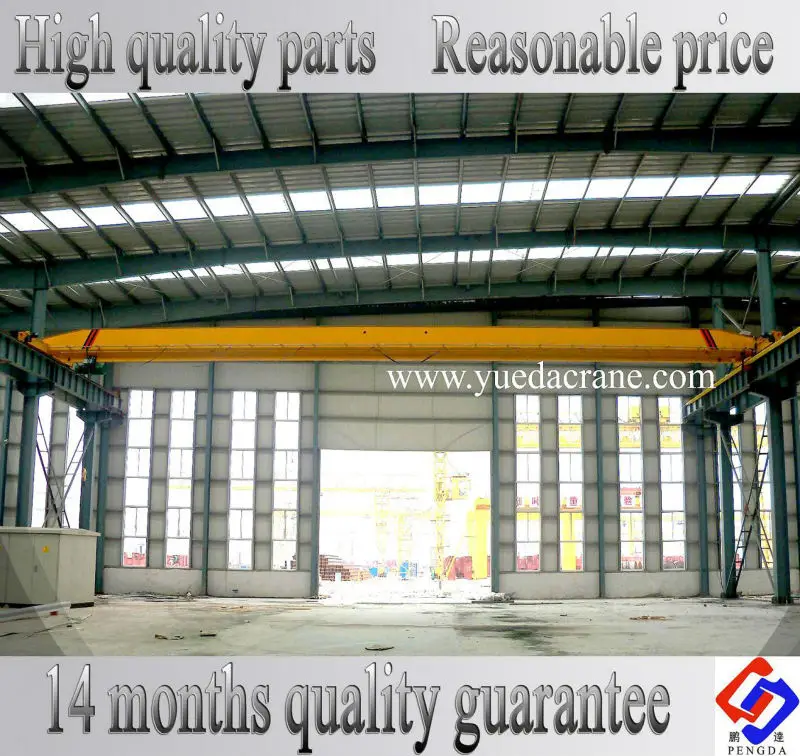

5. This overhead crane (EOT crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment..



 The general technical details of single girder EOT crane:

Capacity (t)	1, 2, 3, 5, 10(8)						16, 20, 25, 30
Span (m)	7.5~31.5
Crane travelling mechanism	Travelling speed (m/min)		20	30	45	60	20	30	45	60
	Speed ratio		58.78	39.38	26.36	19.37	58.78	39.38	26.36	19.37
	Motor	Model	ZDY21-4			ZDR100-4	ZDY122-4	ZDY123-4	ZDRII2L1-4
		Power	2x0.8kw			2x1.5kw	2x1.5kw	2x2.2kw	2x2.1kw
		Turning speed (r/min)	1380				1380
Lifting mechanism (electric hoist) & Cross travelling mechanism	Hoist model		CD1/MD1				CD1/MD1/HC/HM
	Lifting speed (m/min)		8, 8/0.8; 7, 7/0.7				3.5, 3.5/0.35
	Lifting height (m)		6, 9, 12, 18, 24, 30				9, 12, 18, 24, 30
	Travelling speed (m/min)		10, 20, 30				10, 20, 30
	Motor		Cone Squirrel-cage				Cone Squirrel-cage
Duty Class			A3-A4
Power source			380V 50HZ 3 phase (or according to your standard)
Wheel diameter			φ270mm				φ370mm, φ400mm
Width of rail top			37~70mm				37~70mm













































 Ø Upward and downward limit switch for hook

 Ø Low-voltage protection function

 Ø Phase sequence protection function

 Ø Overload protection

 Ø Emergency stop protection

 Ø Hook with latch

 Ø Rubber buffers

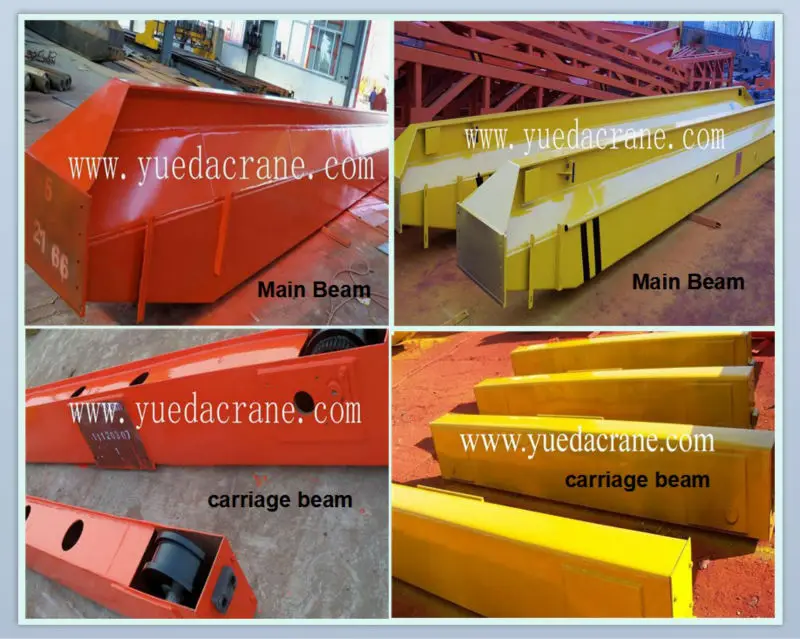

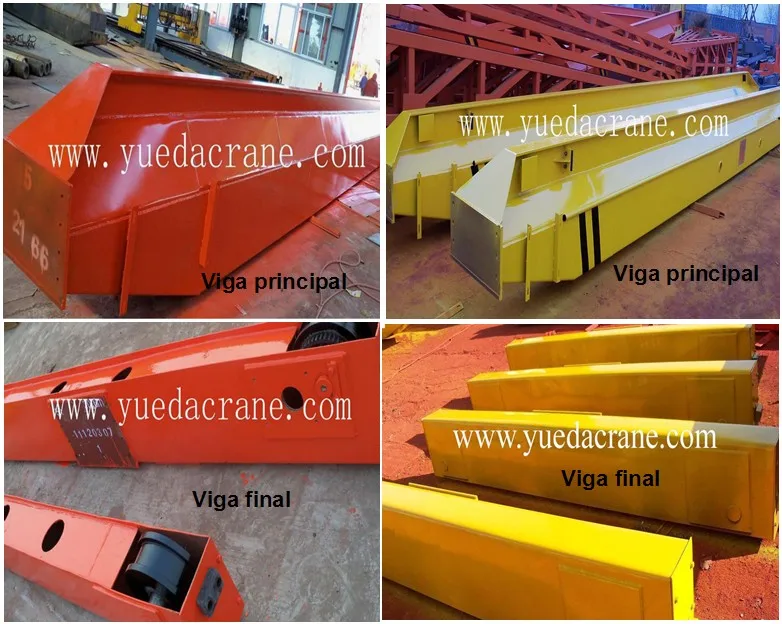

6. The box frame main beam of single girder EOT crane,  the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding:

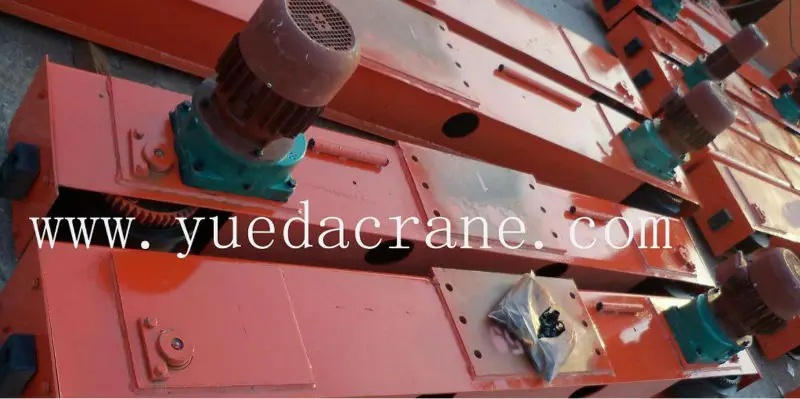

7. The end carriages of single girder EOT crane, the crane wheels are finished heat treatment for long life, the noise of motors & speed reducers are very small:

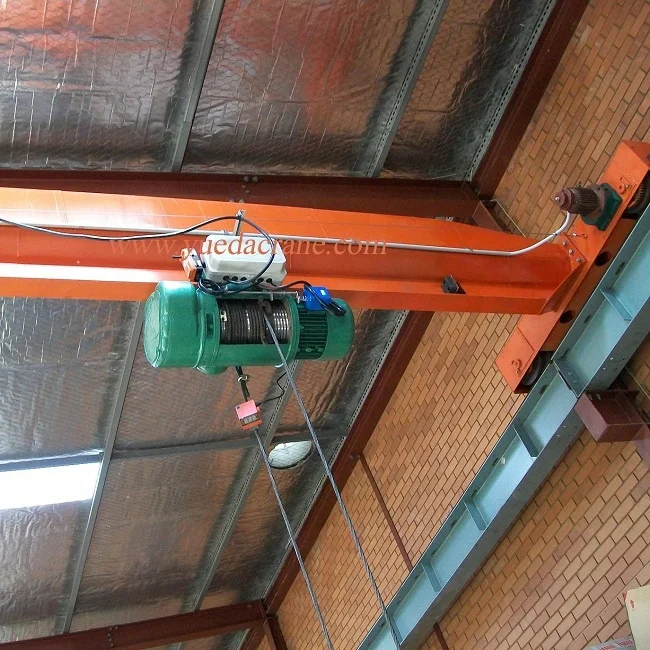

8. The lifting mechanism(electric hoist) of  single girder EOT crane, the gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability:





9. The main upward/downward limit switch & second upward limit switch of hoist:

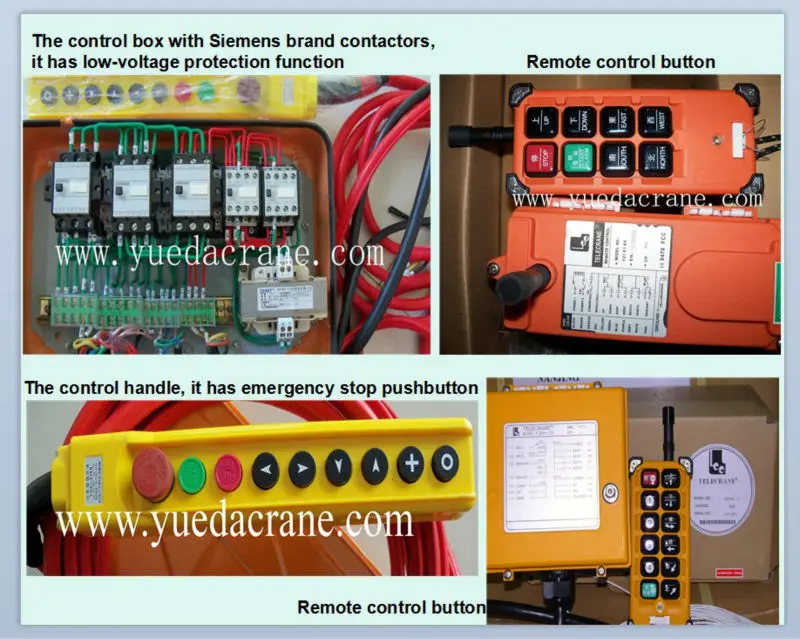

10. The electrical control box & control handle, the electrical contactors are Siemens brand, the control handle has on/off & emergency stop buttons:









 11. The packing, transport & loading of single girder EOT crane:

















After-sale seivice

 u 14 months warranty from the date of B/L



 u One year quick-wear parts for free



 u Professional technicians provide installation, commissioning services.



 u Technical advisory for any time.





Welcome to select Single Girder EOT Crane, and visit our factory. Our professinal engineers and technicians will serve you with all technical support.
