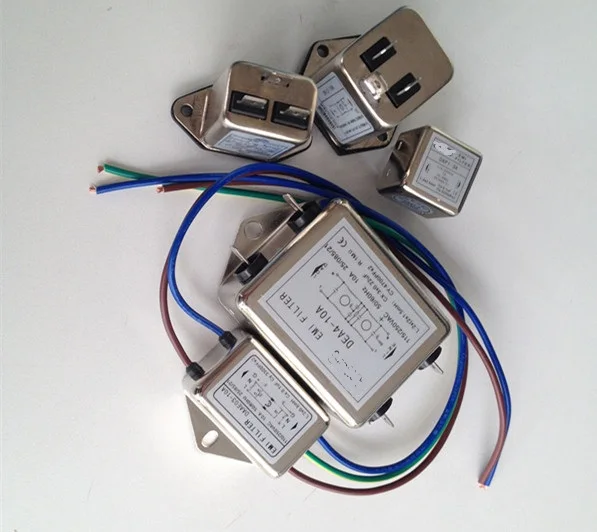

Single phase noise filter double phase line filter electrical noise filter

Categories: filter

Adjust the frequency difference: 0.5 (MHz)

Temperature frequency offset: (0.5 MHz)

Total frequency offset: 1 (MHz)

Load capacity: 220 (pF)

Load resonant resistance: 0.68 M (Ω)

Reference temperature: 25/85 (°C)

Insertion loss: 60 (dB)

Stop-band attenuation: 55 (dB)

Input impedance: 1 Ω (k)

Output impedance: 1 Ω (k)
