HUAHONG Top Quality Small mobile Jaw stone Crusher

Product Overview

Description

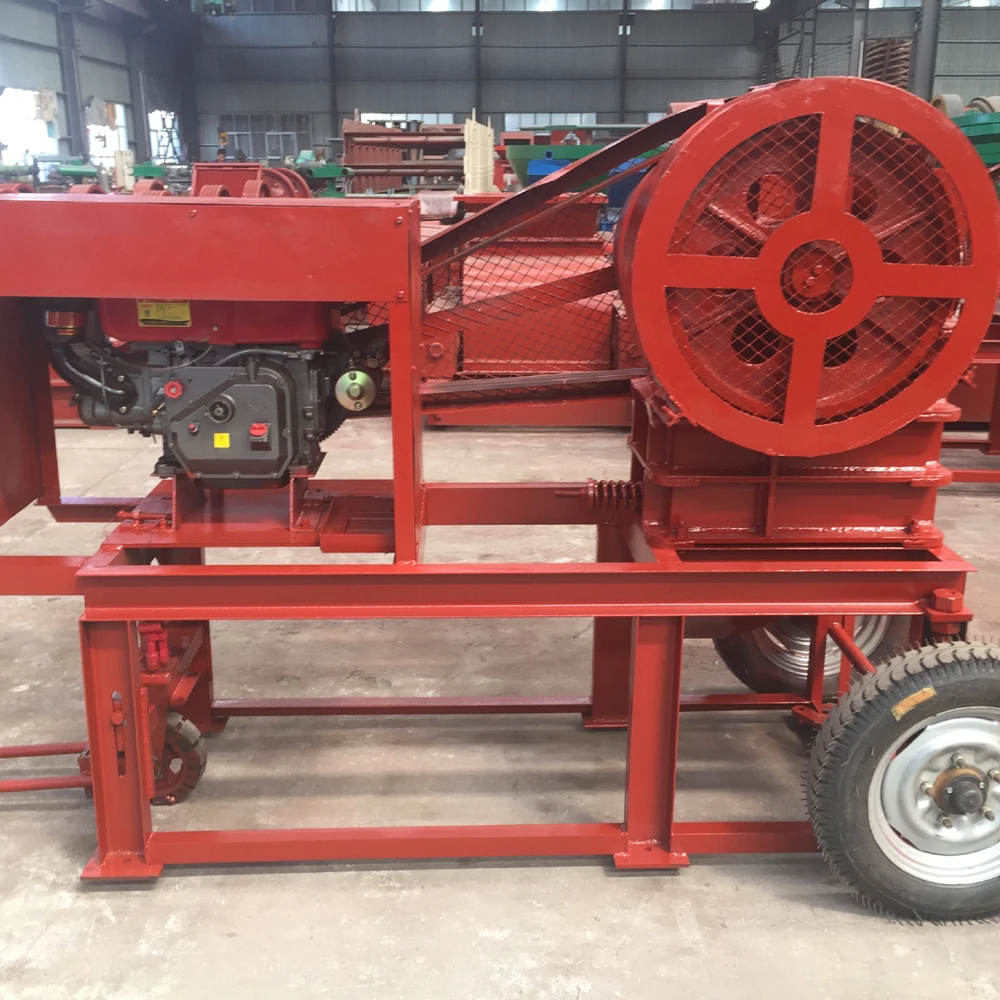

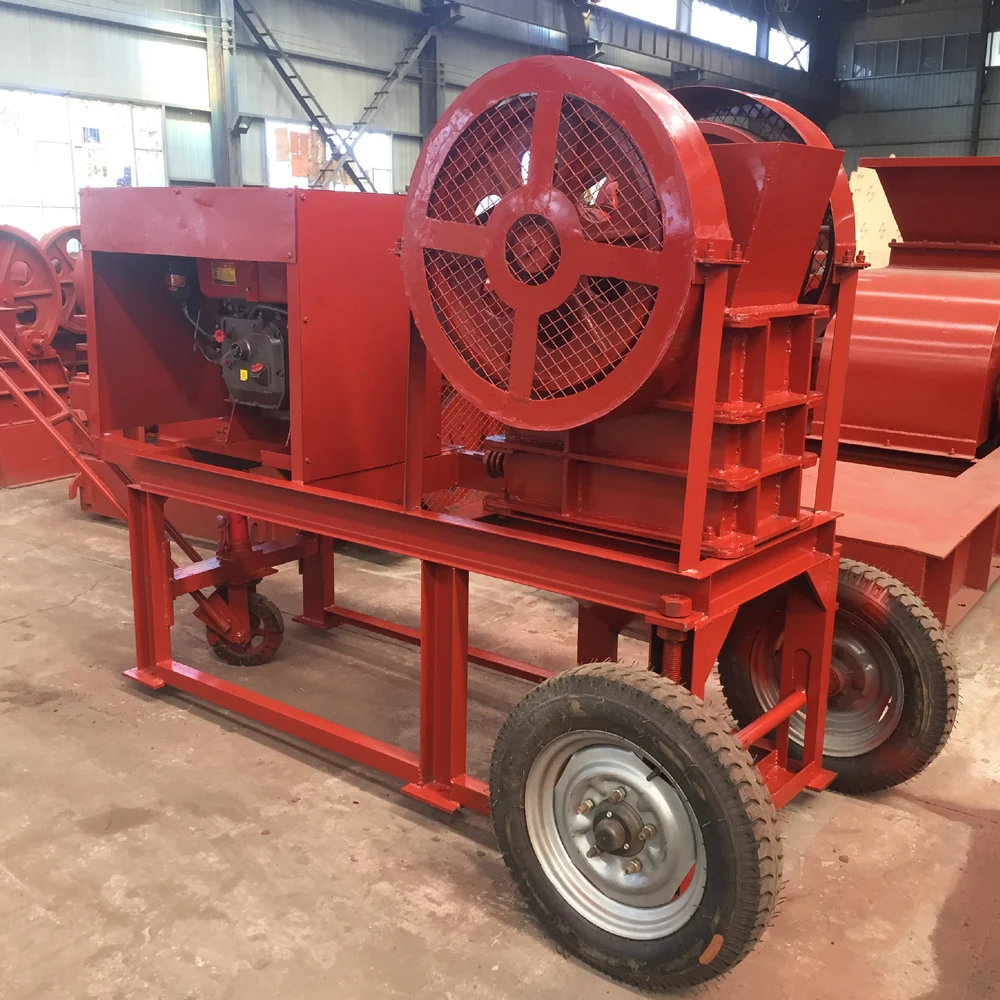

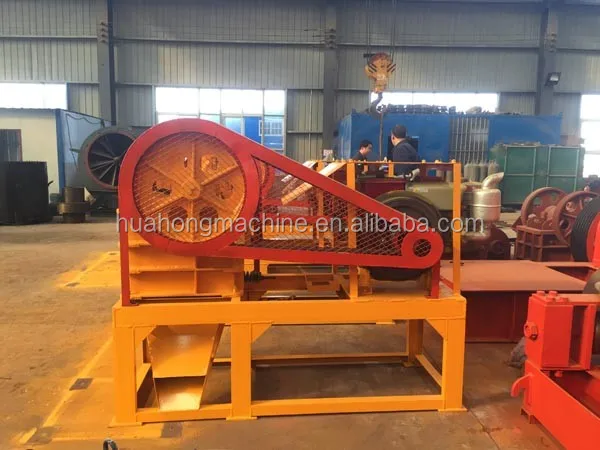

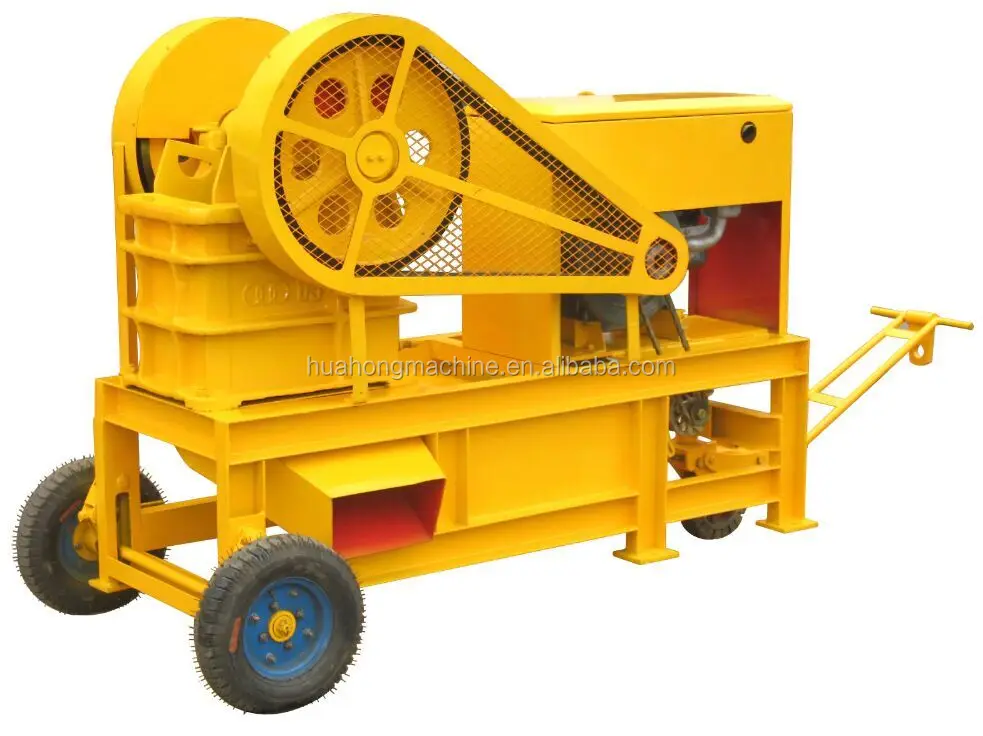

2020 Top Quality mobile Jaw Crusher with diesel engine

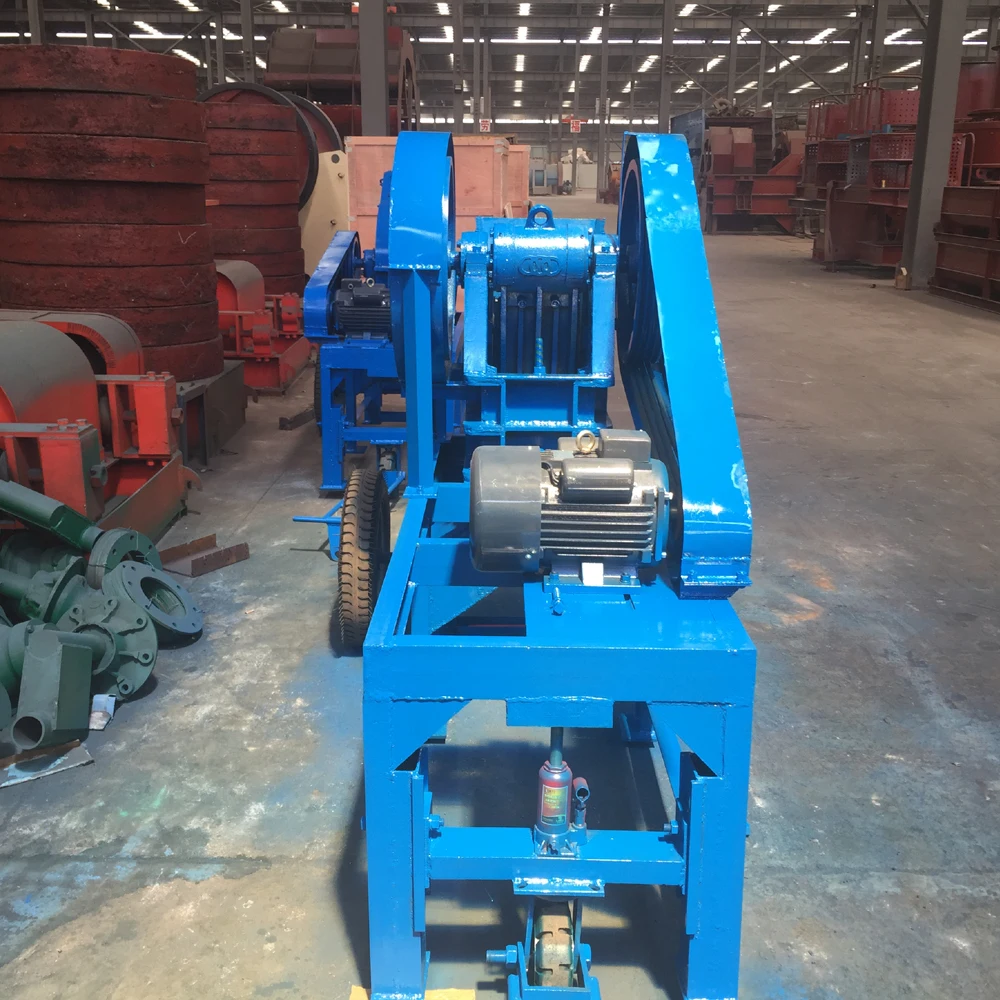

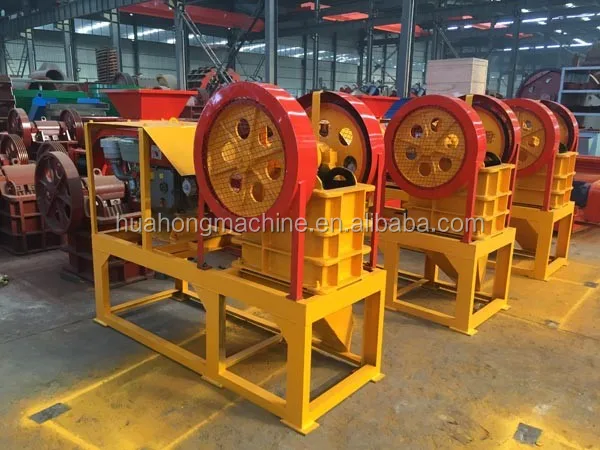

  Small Jaw crusher with leg

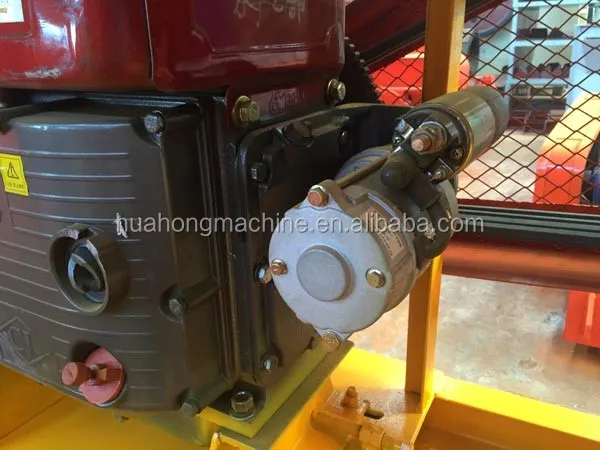

Electric start

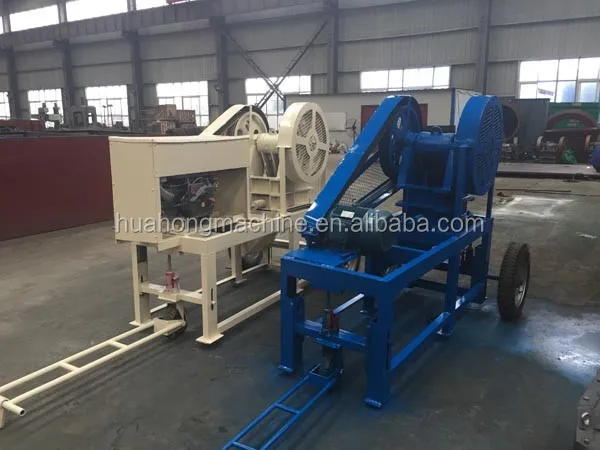

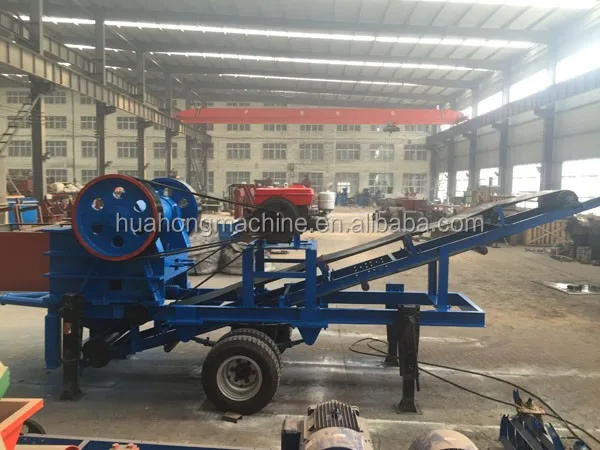

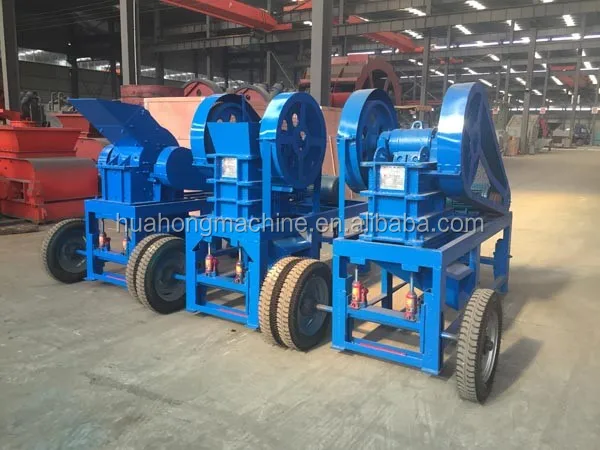

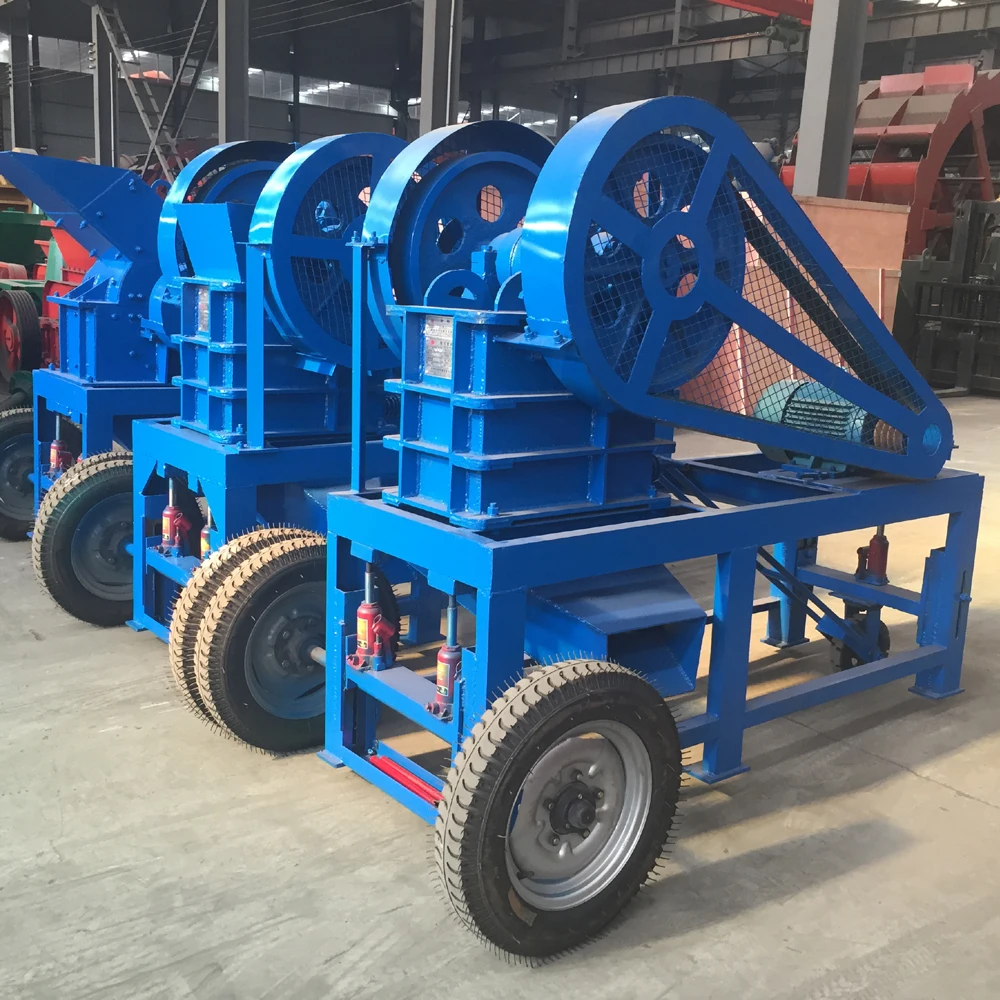

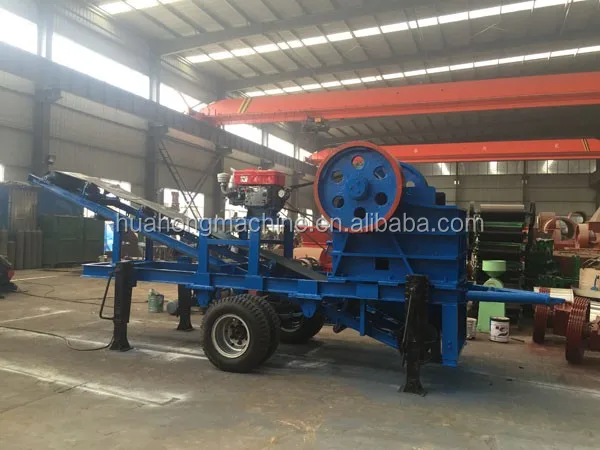

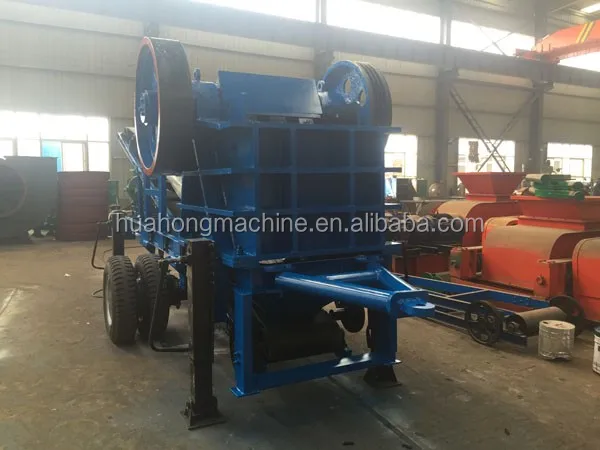

Cheap mobile crusher station

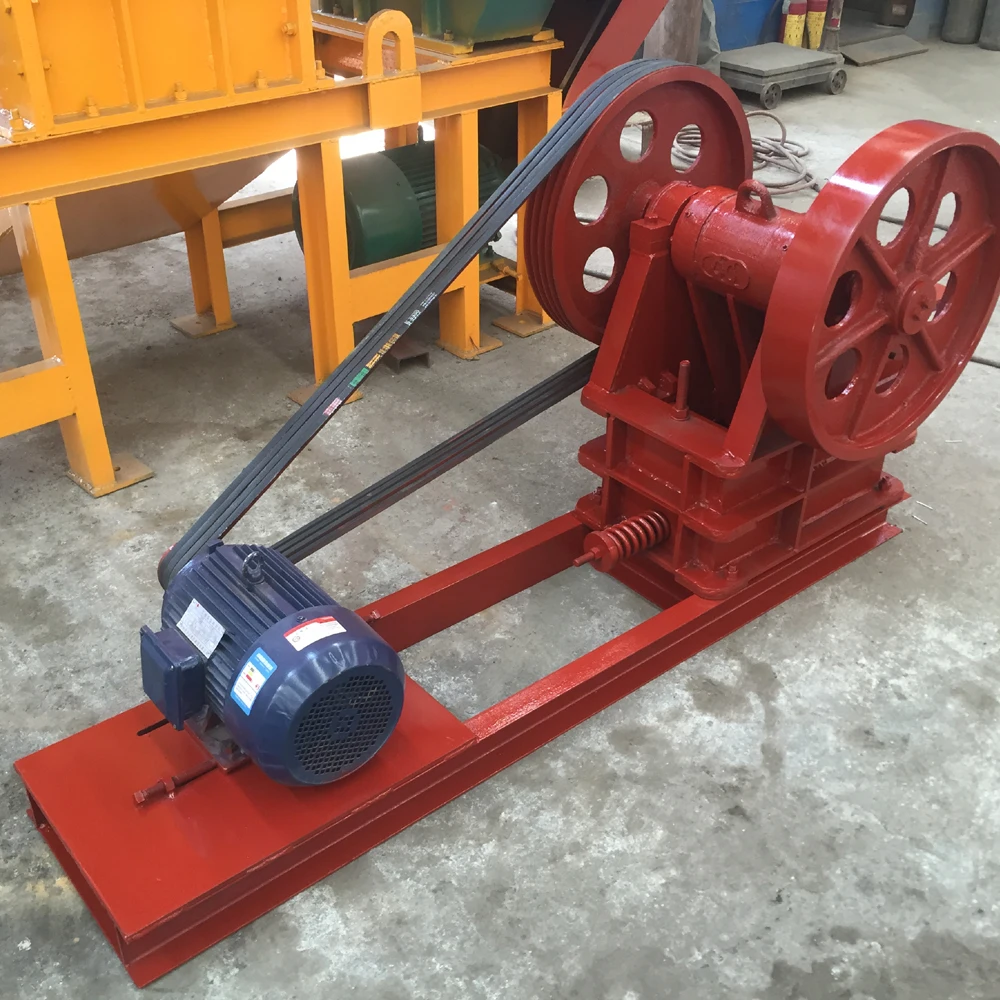

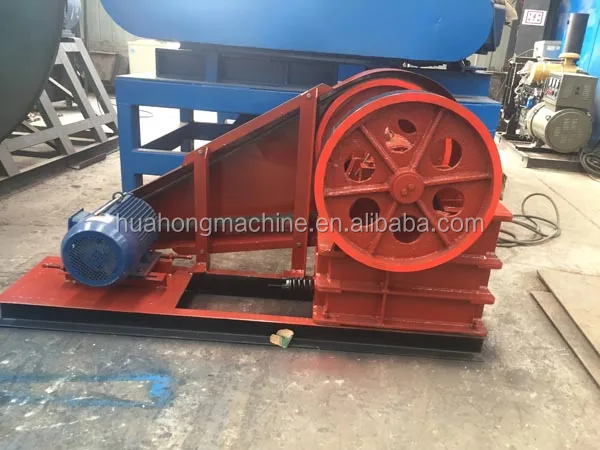

  small Jaw crusher with motor

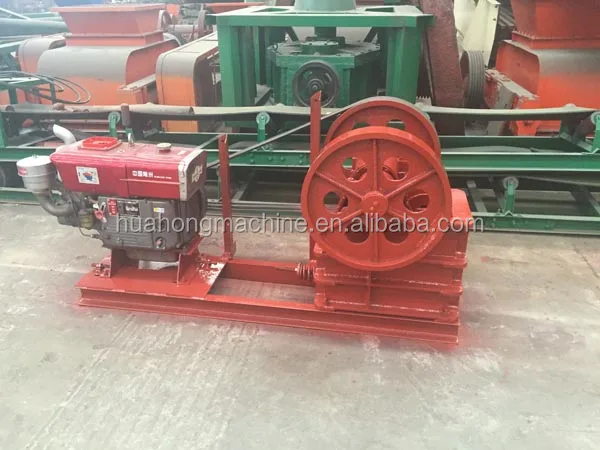

Small Jaw crusher with diesel engine







mobile jaw crusher Application

1. Small jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore,quartz, granite,limestone,slags, construction materials, marble, etc
2.The maximum compression strength of materials to be crushed is 320MPA.
3.PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.



 jaw crusher Advantages

1. Reliable quality can be guaranteed for many years without repair.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio,even particle size,low noise
5. Strong adaptability to materials,wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed





Benefits

1.The bearings adopt complete steel structure.
The whole cast steel housing can fully coordinate with the rack. Meanwhile, it greatly enhances the radial intensity of the bearings.
2.The applications of finite element analysis technology can greatly strengthen the efficiency of crushing process.
3. It is more convenient to adjust the discharging mouth.
The adjusting device is equipped with wedge block, while our devices are simpler and safer than the old-fashioned ones.



mobile Jaw Crusher Technical data:(Only for reference,we also have smaller jaw crusher)



Model	Feed opening size (mm)	Max feed size(mm)	Adjustable range (mm)	Capacity (t/h)	Eccentric shaft rotary speed (r/min)	Motor power (kw)	Total weight (t)	Overall dimensions (L*W*H)(mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	90-110	29	2660×2430×2800
PE-800×1060	800×1060	640	160-220	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-300	400-800	180	160	100.9	4200×3300×3500
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600

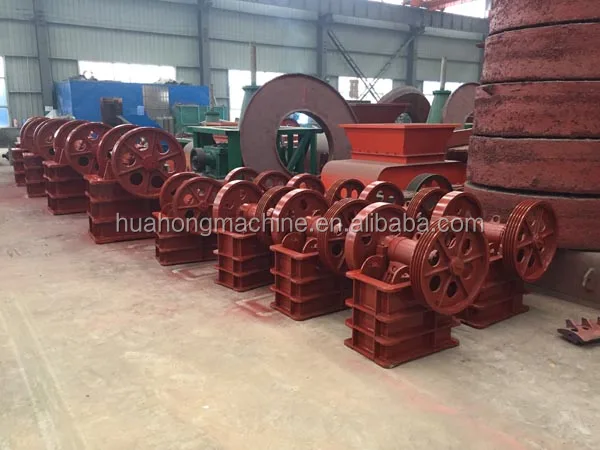

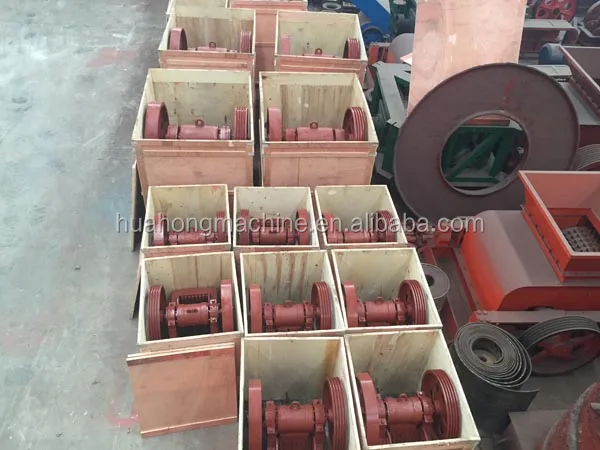

          60 sets mini jaw stone crusher delivered to US

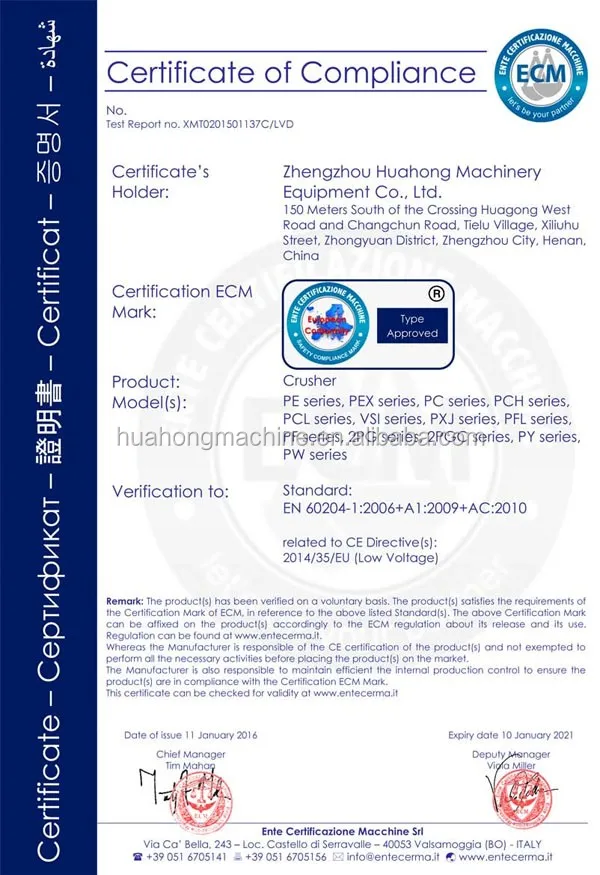

CE
