qtj10 15 automatic concrete block making machine, machine pour brique bloc

Product Overview

Description

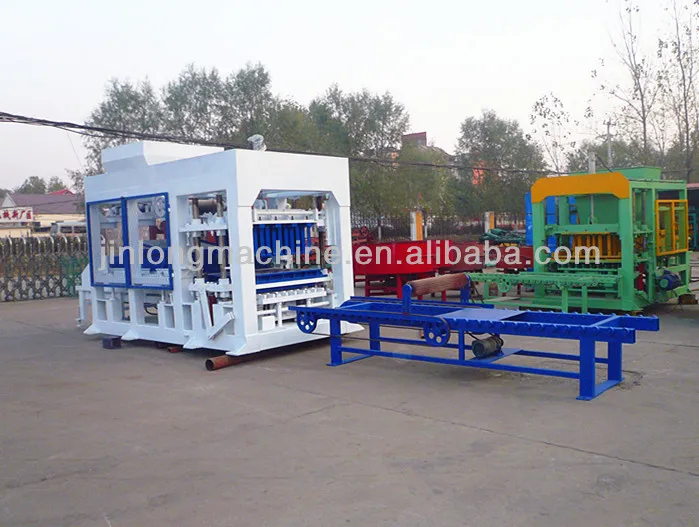

qtj10-15 concrete block making machine







type	fully automatic
voltage	220v/380v with three phases
power	54kw
every moulding time	15-18seconds
weight	15ton
pallet size	1050×880x30mm for bamboo pallet
overall size	5300*2060*2860mm
required workers	5-8 workers
required aera	4000-5000m2 for total plant





Production capacity



block kind and size	moulding time	pcs/mould	pcs/hour
hollow390*190*190mm/400*200*200mm	16seconds	10pcs	2400pcs
hollow 390*240*190mm/400*250*200mm	16 seconds	8pcs	1920pcs
solid 240*115*53mm	15 seconds	54pcs	12960pcs



This is automatic concrete block making machine,high production capacity,so it is very suitable for buliding a big block factory.



1. Siemens plc control,quality is very good.



2. Heat teratment on main parts,make sure their long lifetime.



3. Save labor and low loss.

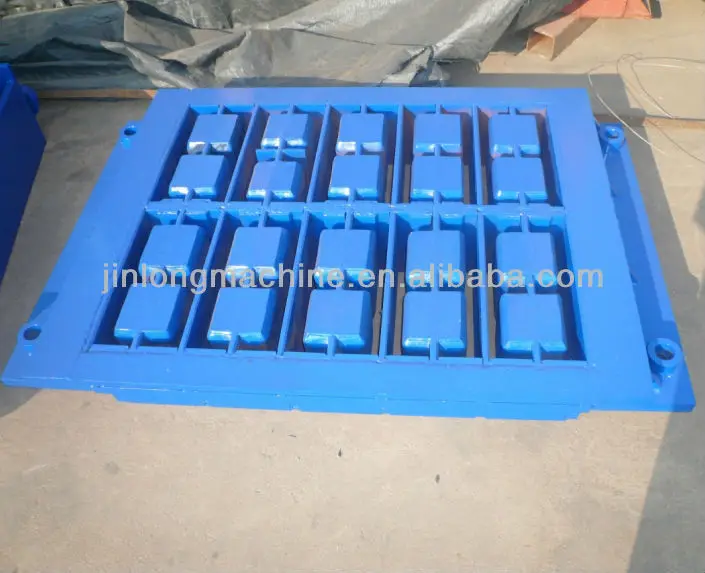

                                                                                                       moulds

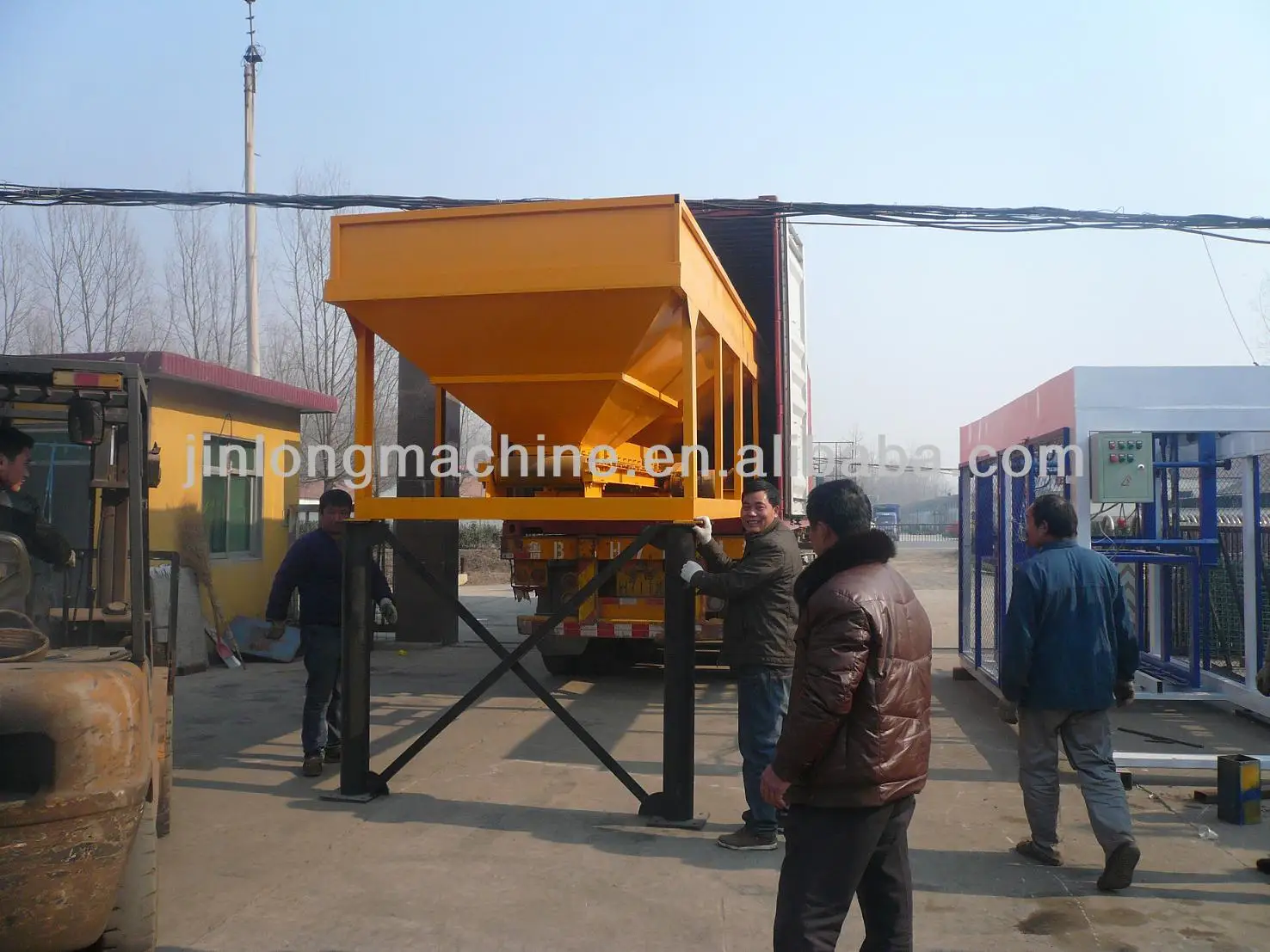

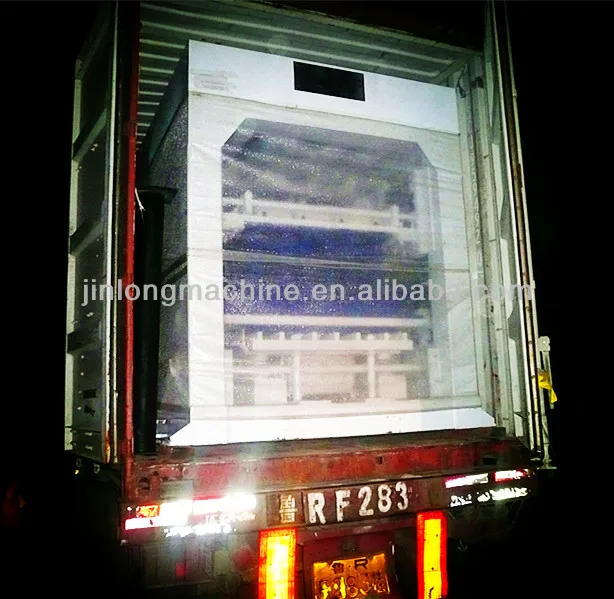

Nude in 1x40' cube high container,and shipped by good shipping companines,such as CMA,MSK and so on.The following is our deliverying picures.











A.By buyer's request,we can send our engineers to install machine and train workers.

B.If some spare parts are broken in one year,we can change new parts for free.

C.Supply technical guidance in lifetime.





We're a professional manufacturer of brick and block making machine for many years,our spare parts are from



Siemens from Germany,Detal and Northman from Taiwan,and wehave rich experience on this aera, so we can



give you good quality with lower prices.Welcome to contact with us,thank you.
