milk pasteurizer 300L batch pasteurizer

Product Overview

Description

300L batch pasteurizer operated by Nature gas

1. gas heating pasteurizer

2. batch pasteurizer in 300L capacity





Product requested: stainless steel pasteurizer

Request in detail: pasteurizer heated by gas,

used to pasteurizer milk to 85degree C and then cooling to 40degree C

300L capacity without heat preservation

The cooling system may be water and the heating may be propane gas

Heat milk to 180F and then cool to 100F

gas heating pasteurizer specificaton

Specification of the above gas heating pasteurizer

Capacity	300L
Working Pressure	0.09 MPa
Test Pressure	0.15 MPa
Stirring Speed	36 r/minor customized
Agitator type	Anchor type with scraper
Motor power	0.55kw
Heating Area	1.6 m²
Material in/outlet	Φ32
Heating method	Gas heating
Gas burner position	Bottom of the reactor
Temperature gauge	0°C to 150 °C
Working temperature	≤100 °C
Temperature control	Automatic control
Overall Dimension	Φ*00×*000



batch pasteurizer 300L pasteurizer fresh milk

According to the request listed above, you can choose a simple reactor which heated by propane gas and cold by water. This reactor will be made of stainless equipped with double wall; inner wall will be contact to your milk directly. Outer wall and inner wall will make up a gap.



Before you turn on the gas, you put clean water to the gas first and then turn on your gas and start to heating. Gas will boil the water in the gap and the heat from the boiling water will send to the milk in the reactor.

usage of batch pasteurizer: used to pasteurize fresh milk, fruit juice, fruit pulp, fruit puree, fruit paste

When milk temp arrived at the right temperature range you need, you can stop the gas and access cooling water to the gap and allowed the water run freely through the gap.

Close the water until the temperature gauge shows the right temp you need.

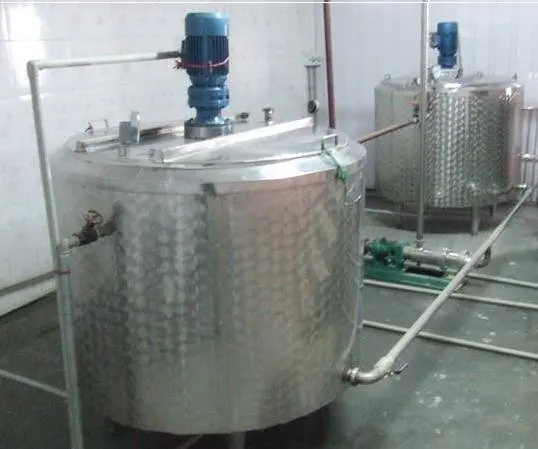

Picture of the mentioned gas hating batch pasteurizer
