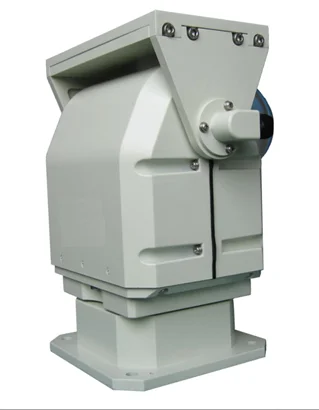

outdoor Heavy duty pan tilt head

Product Overview

Description









Intelligence high speed pan tilt MG-2515 FOR CCTV camera

Model	MG-2515
Rotation speed	Pan 0.1°~45°/S;Tilt0.1°~15°/S;
Range	Pan 0~360°;Tilt +60°~-20°;
Preset position	200
Preset position precision	±0.1°
Lens preset position	Support
Control lens speed	Zoom, focus speed adjustable
automatic cruise	6 cruises,each cruise can set 10 cruise points
Auto scan	1
Protocol	Pelco-D,Pelco-P baud rate optical, set by code switch
Baud rate	2400/4800/9600/19200 bps,set by code switch
Communication interface	RS422/RS485 optical
OSD menu	support
Pan tilt heater	support
Voltage	AC24V±20%,50/60Hz;DC28V±20%
Power	80W
Work temperature	-30°C~+55°C,90%±3%,no condensation(optical-40°C~+65°C)
Storage temperature	-40°C~+65°C
Load weight	15Kg
Load style	Top/side
IP grade	IP66
MTBF	≥5000h
MTTR	≤30min
Machine weight	11.5Kg
Size	265mm×180mm×315mm(L×W×H)

Workshop

quality control

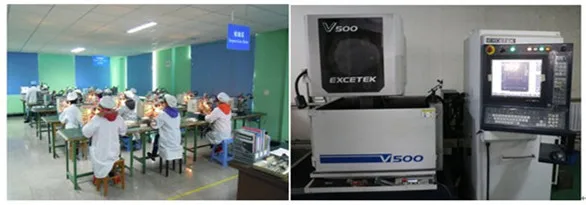

QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation
