screw terminal block 2.5mm

Product Overview

Description



terminal block screw
→Specification←
Rated current	10A	Wire range	24-12AWG 2.5MM2
Insulator Resistance	5000MΩ/1000V	Contact Resistance	20 MΩ
Temperature range:	-40°C to +105°C	Max.Soldering	+250°C for 5 sec.
Torque:	0.4Nm(3.6lb.in)	Strip length	6-7mm
→Material←
Housing	PA66, UL94V-0	Pin header	Brass,Tin Plated
Wire guard	Phosphor Bronze Ni plated or stainless steel	Screws	M2.5 steel Zinc plated
→Package←	Inner Packing:PVC bag or Plastic plate,Outside Packing: Standard export carton





Pitch: 2.54mm,3.5mm,3.81mm,3.96mm,5.0mm,5.08mm,7.5mm,7.62mm, 8.25mm, 8.5mm, 9.5mm, 10mm, 11mm, 13mm etc

Material
Screws: M2.5 steel Zinc plated
Wire guard: Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 24-12AWG 2.5MM2

Mechanical
Temp. Range: -40~ +105
MAX Soldering: +250, for 5 Sec.
Torque: 0.4Nm(3.6lb.in)
Strip length: 6-7mm



terminal block



Advantage
1.All kinds of products 100% tested before delivery..
2.Well-equipped testing facilities and strong technical force.
3. Prompt delivery and competitive price and quality.
4. Used in the most of home appliances,computer,PCB,LCD,TV.
5.Our factory has nearly ten years manufacturing experience.







  We provide many kinds connectors, such as pin header ,female header, box header, ejector header, ic socket, d-sub connectors ,sockets,switches, cables etc,and promise all products are ROHS with high quality, if you have any need or question,please don't hesitate to contact us.















Factory  Photo:

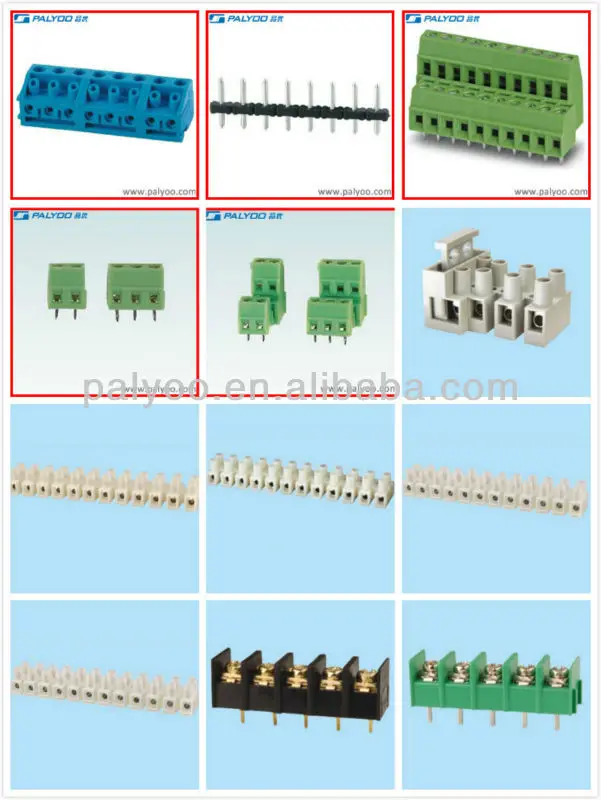

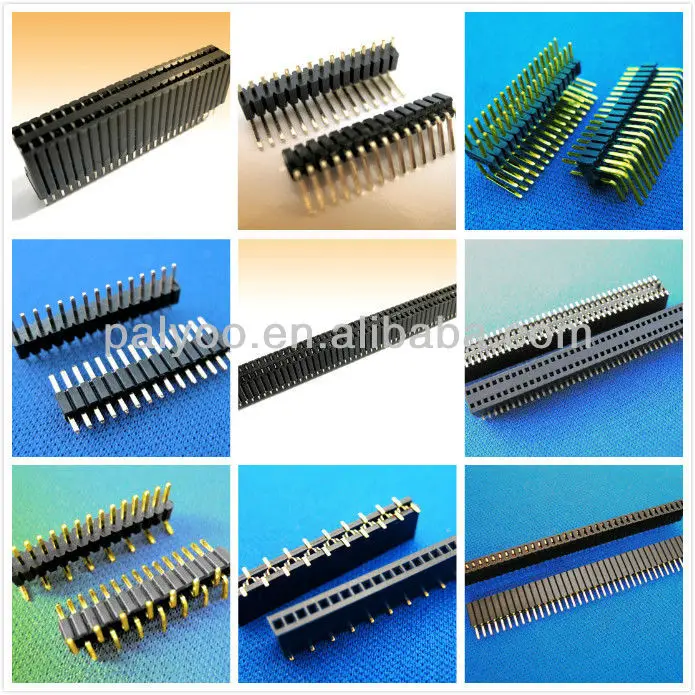

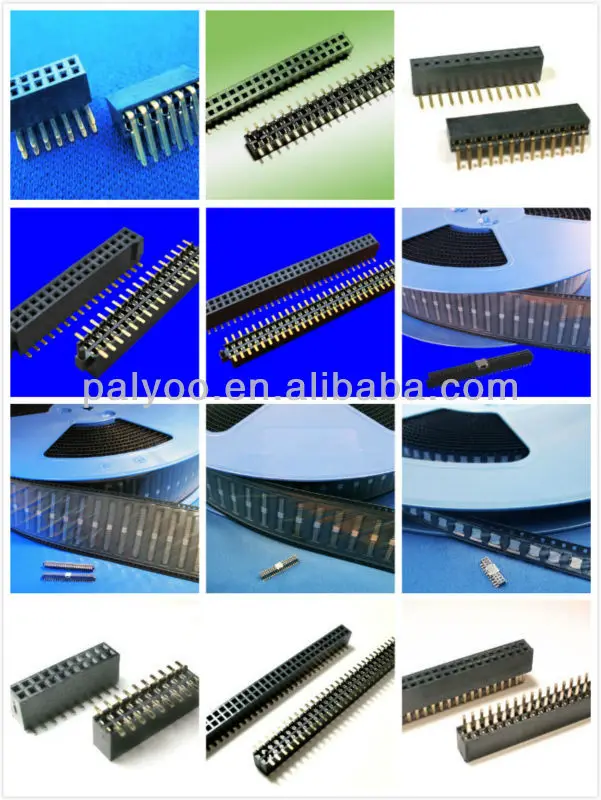

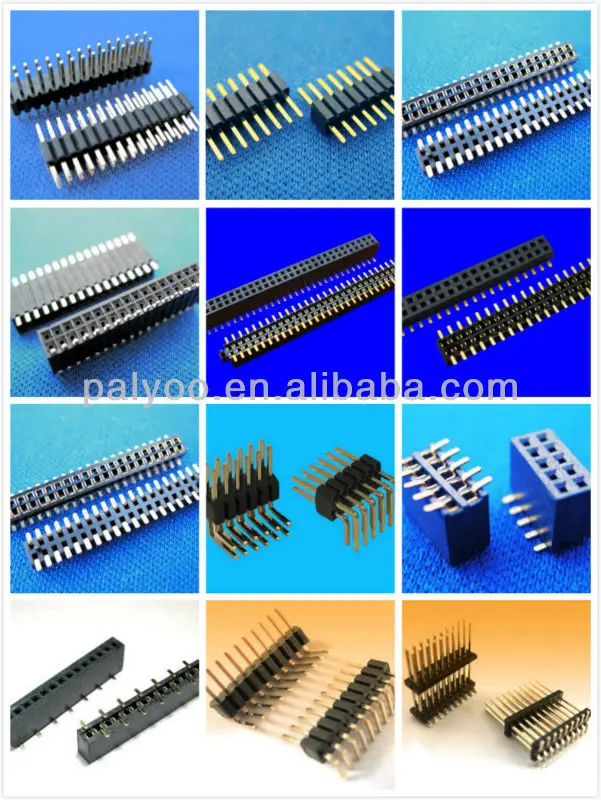

Connectors Products photo:
