Hot sales MOB series of MOB30,MOB40,MOB50,MOB63,MOB80,MOB100,MOB125,MOB160,MOB200,MOB250 light duty hydraulic cylinder

Product Overview

Description

Hot sales MOB series of MOB30,MOB40,MOB50,MOB63,MOB80,MOB100,MOB125,MOB160,MOB200,MOB250 light duty hydraulic cylinder

1. Pull lever type, and double-acting piston
2. Pressure range:0.3Mpa-7Mpa

3. Bore size: 30-250mm, and max. stroke: 5000mm

4. Mounting type: FA(Flange), ,CA(rear earrings),LB(F & R foot stool) etc

5. The piston rod is treated with rolling and hardening in advance, followed by chrome plated and

accurate grinding. Which gurantee of good antirust and wear wear-resisting

6. Advance structure for seal kit. Can work normally even if lackness of oil supply.

7. Low start pressure and long service life

8. Can customize, as per customer's drawing or sample

9. The front end cover is fitted with oiless bearing, and low COF

10. Very competitive price

11. 1 year of warranty

12. Short delivery time





Technical Specifications:





Specification



Bore(mm)		30	40	50	63	80	100	125
Max. stroke(mm)		1200		2000			3000
Light Type	Rated pressure	70 kgf/cm²
	Pressure-resistant	140 kgf/cm²
Min. starting pressure		3 kgf/cm²
Operating temperature range(℃)		-10~+80(Ambient temperature and oil temperature)
Medium		Hydraulic oil

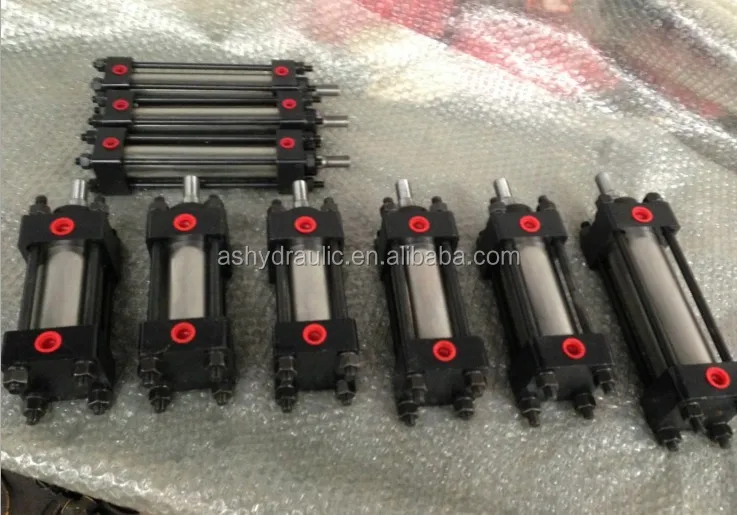

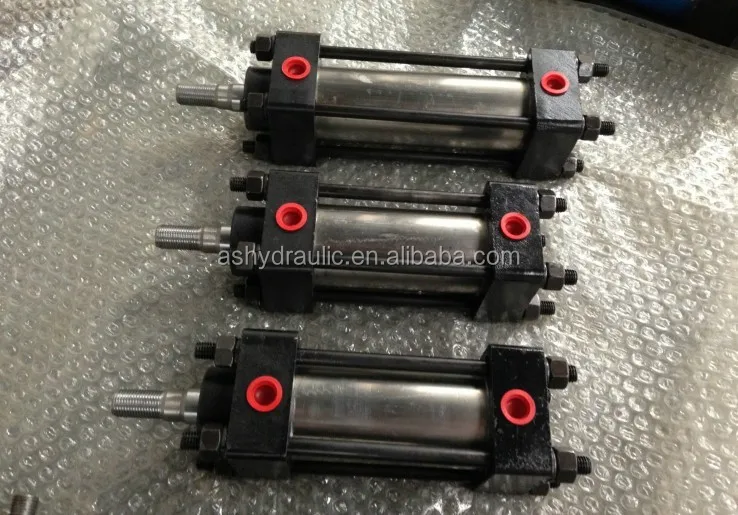

Real photos bought by our manufacturer and distributor from Uzbekistan:
