Product Overview
Description
Products Description
I. Product Overview

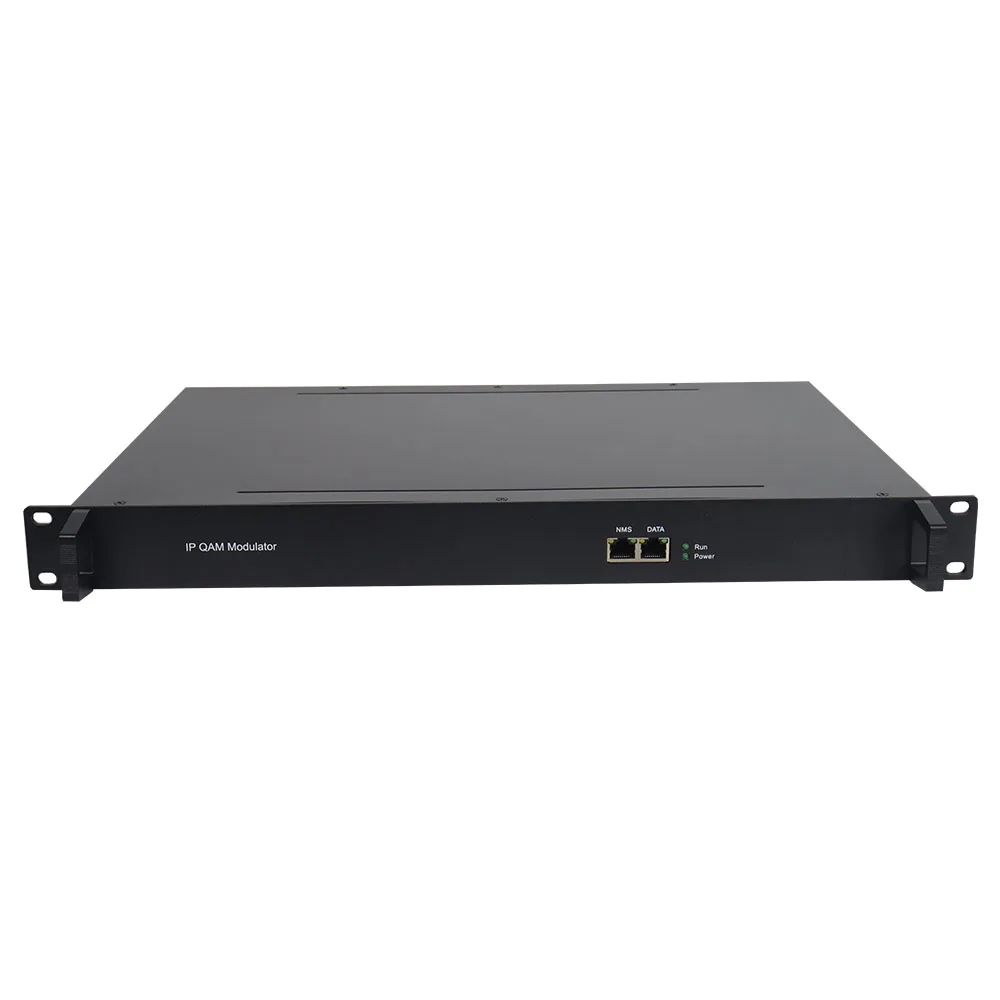

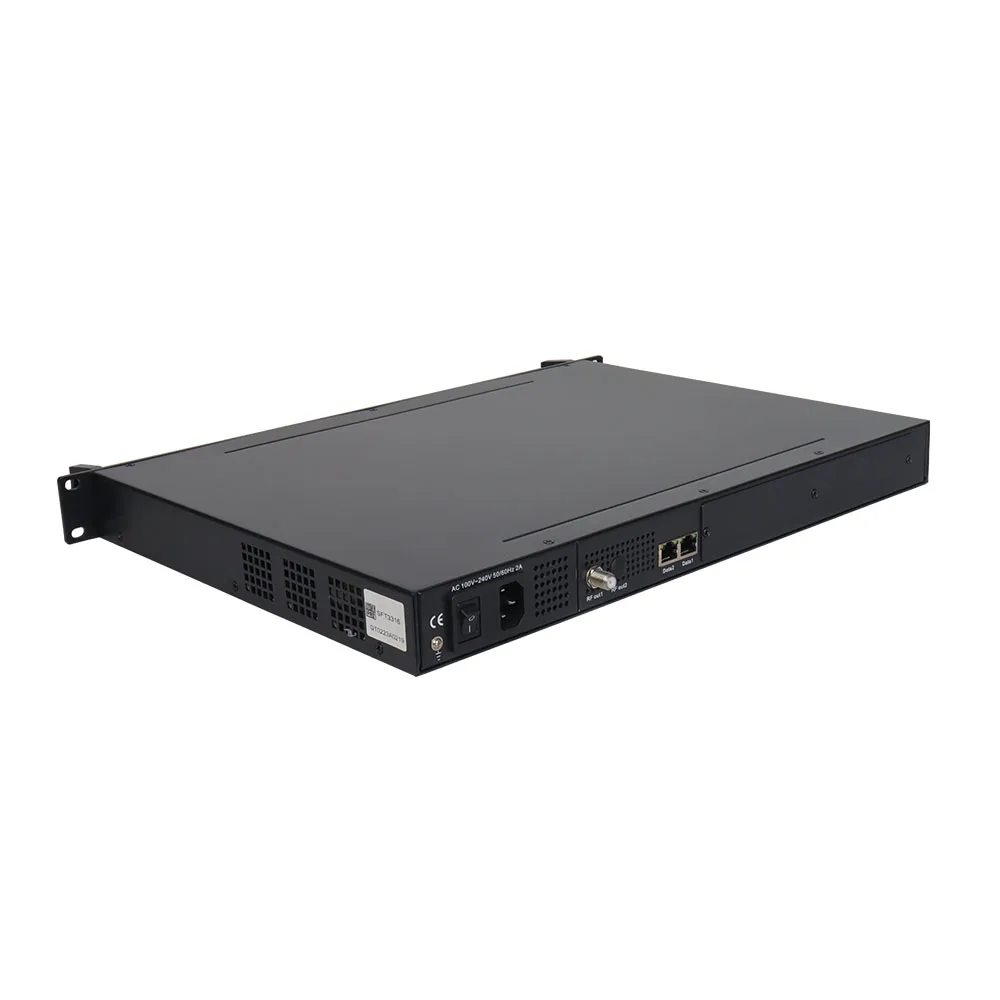

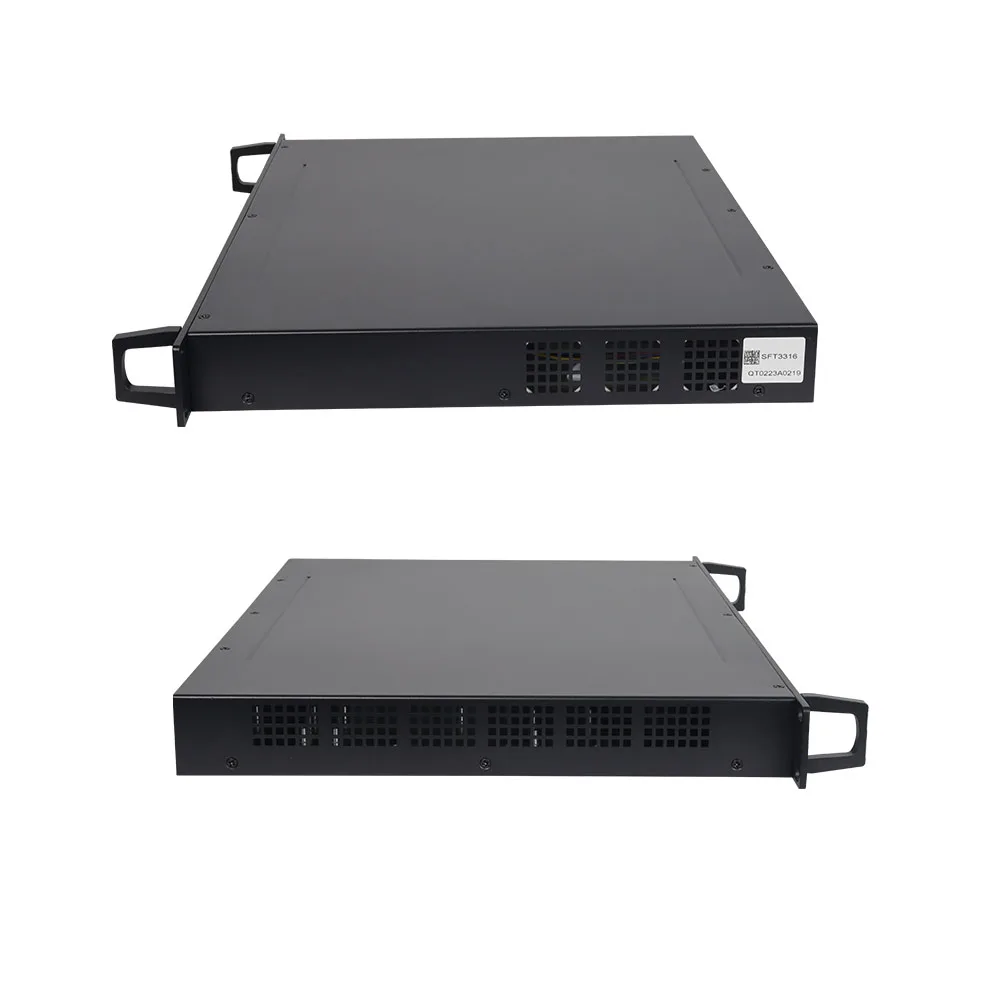

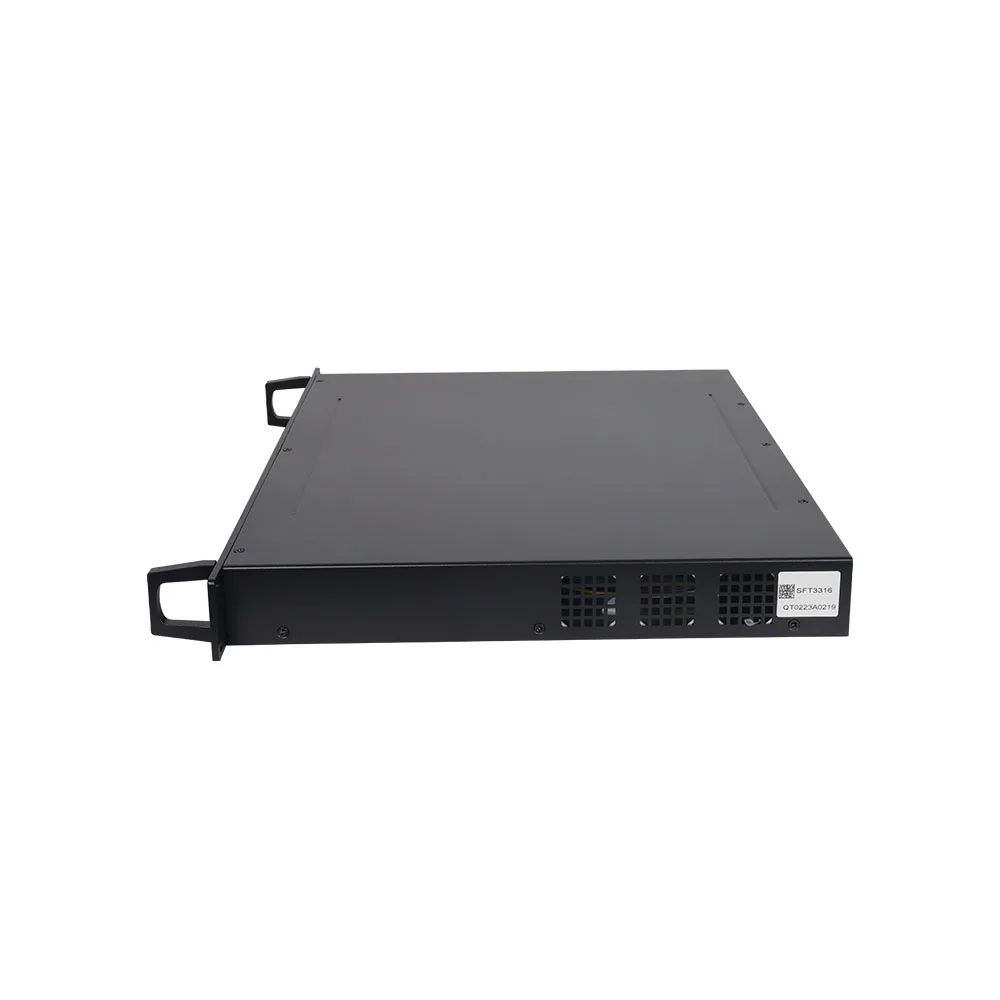

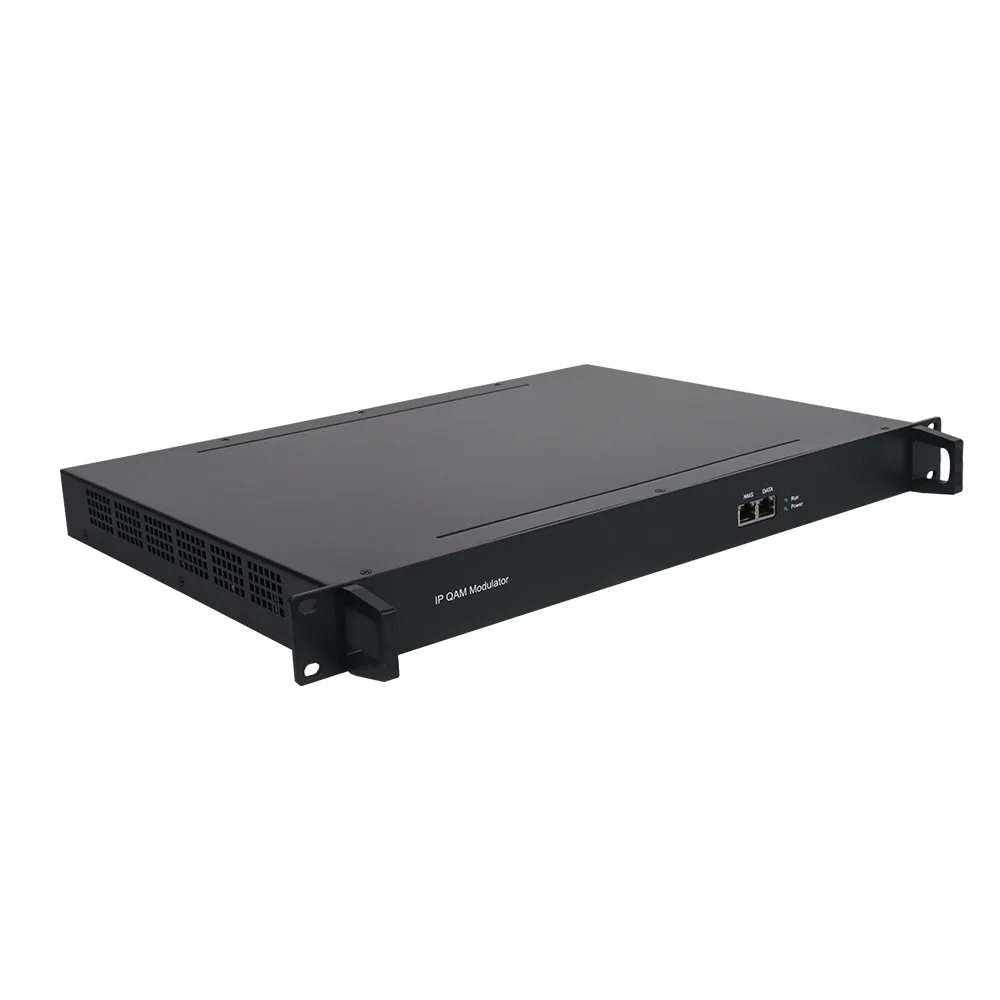

SFT3316 16 in 1 IP QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device. It has 16 multiplexing channels,16 scrambling channels, and 16 QAM (DVB-C) modulating channels, and supports a maximum of 512 IP input through the 3 GE ports and16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized by a high integrated level, high performance, and low cost. This is very adaptable to newly generation CATV broadcasting system.
II. Features

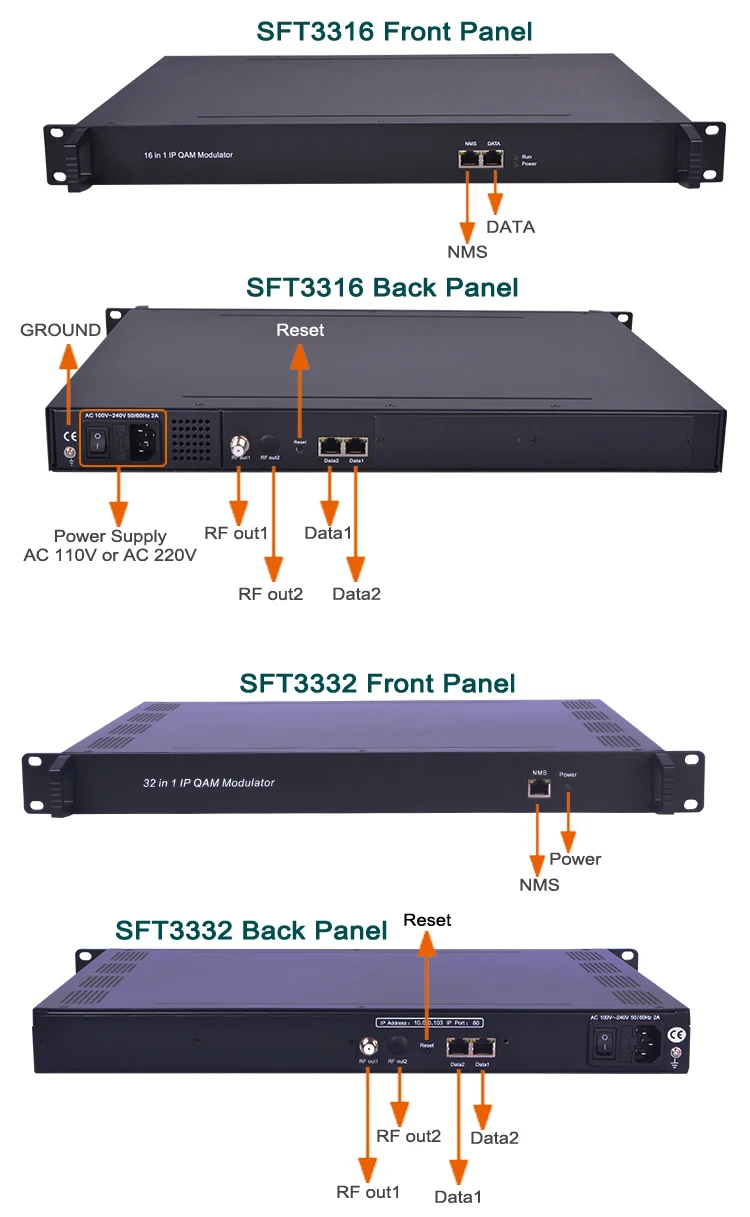

* 3 GE ports (max 512 IP in):
The Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out
The data port (located on the front panel), max 128 IP in
* Max 840Mbps for each GE input
* Support accurate PCR adjusting
* Support CA filtering, PID remapping and PSI/SI editing
* Supports up to 180 PIDS remapping per channel
* Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Support RS (204,188) encoding
* Support Web-based Network management
The Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out
The data port (located on the front panel), max 128 IP in
* Max 840Mbps for each GE input
* Support accurate PCR adjusting
* Support CA filtering, PID remapping and PSI/SI editing
* Supports up to 180 PIDS remapping per channel
* Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Support RS (204,188) encoding
* Support Web-based Network management
Details Images
Product Paramenters
Input | Input | Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP | |||||
Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | ||||||
Transmission Rate | Max 840Mbps for each GE input | ||||||
Mux | Input Channel | 512 | |||||
Output Channel | 16/32 | ||||||
Max PIDs | 180 per channel | ||||||
Functions | PID remapping(auto/manually optional) | ||||||
PCR accurate adjusting | |||||||
PSI/SI table automatically generating | |||||||
Scrambling Parameters | Max simulscrypt CA | 4 | |||||
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||||||
Connection | Local/remote connection | ||||||
Modulation Parameters | DVB-C Modulator Sectioon | J.83A | Constellation : 16/32/64/128/256QAM | ||||
Bandwidth :8M | |||||||
J.83B | Constellation : 64QAM/ 256QAM | ||||||
Bandwidth :6M | |||||||
QAM Channel | 16 non-adjacent carrier | ||||||
Modulation Standard | EN300 429/ITU-T J.83A/B(DVB-C) | ||||||
Symbol Rate | 5.0~7.0Msps, 1ksps stepping | ||||||
FEC | RS (204, 188) | ||||||
RF Output | Interface | 1 F typed output port for 16 carriers, 75Ω impedance | |||||
RF Range | 50~960MHz, 1kHz stepping | ||||||
Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping | ||||||
MER | ≥ 40dB | ||||||
TS output | 16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports | ||||||
System | Network management software (NMS) supporting | ||||||

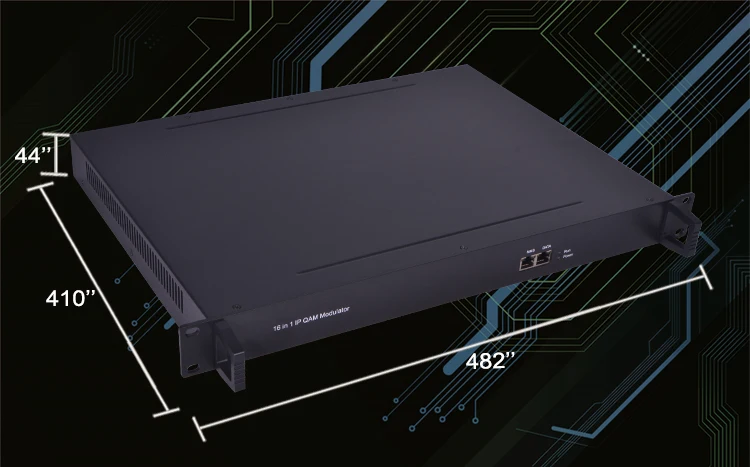

General | Demission | 420mm×440mm×44.5mm (WxLxH) | |||||
Temperature | 0~45℃(operation), -20~80℃(storage) | ||||||
Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||||||
