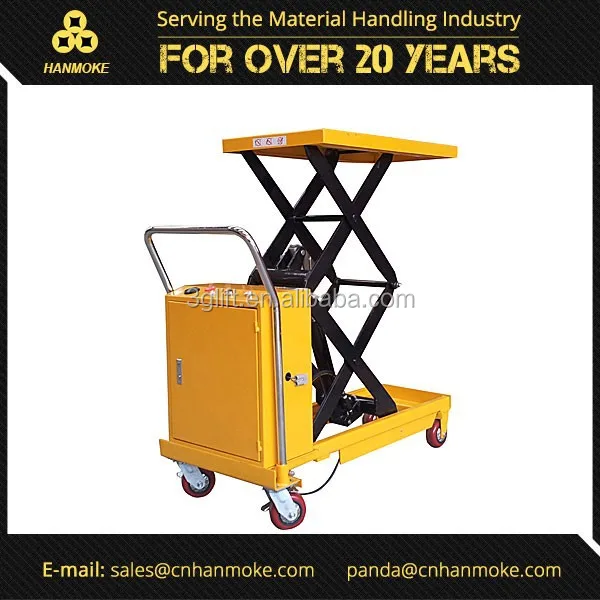

Small Scissor Lift Mechanism

Product Overview

Description

Product Details

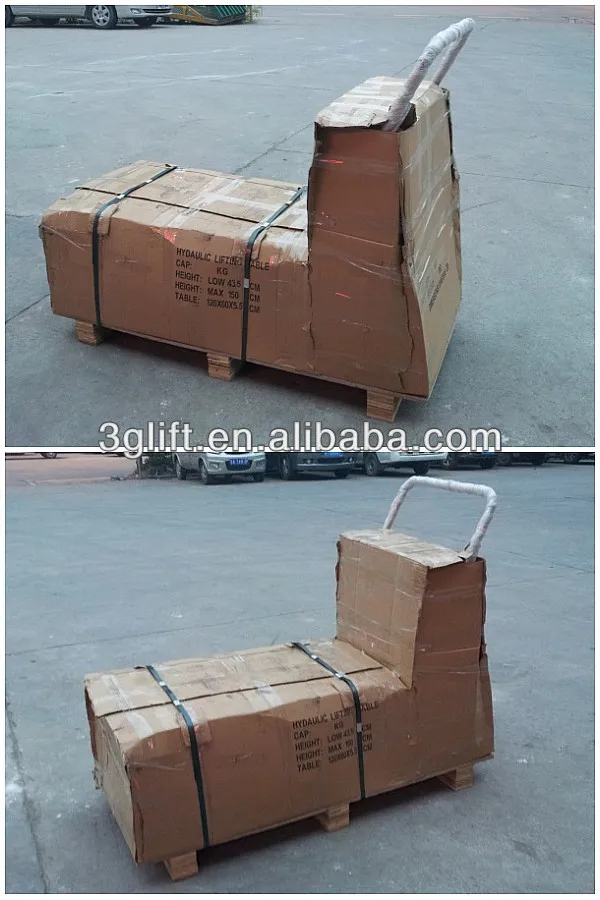

Packing Details



Technical data and Dimensions

Item#	549
Measurements	Metric	US
Raised height	1300 mm	51.2 in
Lowered height	350 mm	13.8 in
Tabletop thickness	50 mm	2 in
Wheel dimensions	Φ125 mm	Φ5 in
Packing Size(L/W/H)	1240/540/450 mm	48.8/21.3/17.7 in
Productivity
Load capacity	350 kg	770 lbs
Platform Size(LxW)	905 x 500 mm	35.6 x 19.7 in
Lifting speed	55 mm/sec	2.2 in/sec
Power
Power Source	DC 12 V (one 12 V 65Ah battery)
Battery charger	AC 220 V / 50 Hz
Weight
Net weight(with battery)	141 kg	310 lbs



Features & Benefits

Small scissor lift mechanism provides ergonomic support in lifting, palletizing, loading and unloading applications.

Raise and lower cart with a 12V DC motor that includes a battery.

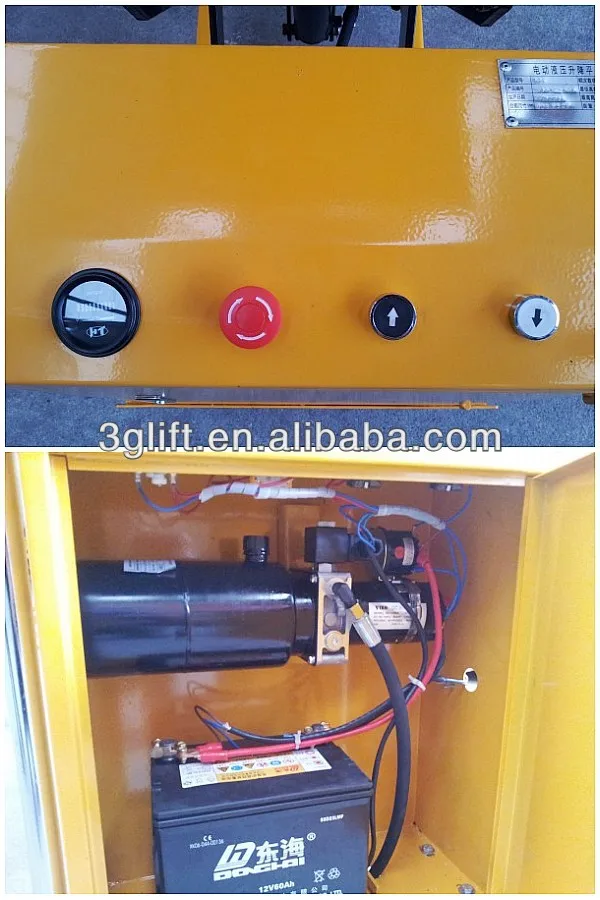

Push buttons to raise and lower lift are located on the power unit.



• Powered by a 12V DC motor.
• Materials can be easily loaded onto cart from table, lowered to safe transporting height, and raised to unload  at destination.
• Double scissor lift provides additional lifting height.
• Hand control for convenient raising and lowering of platform.

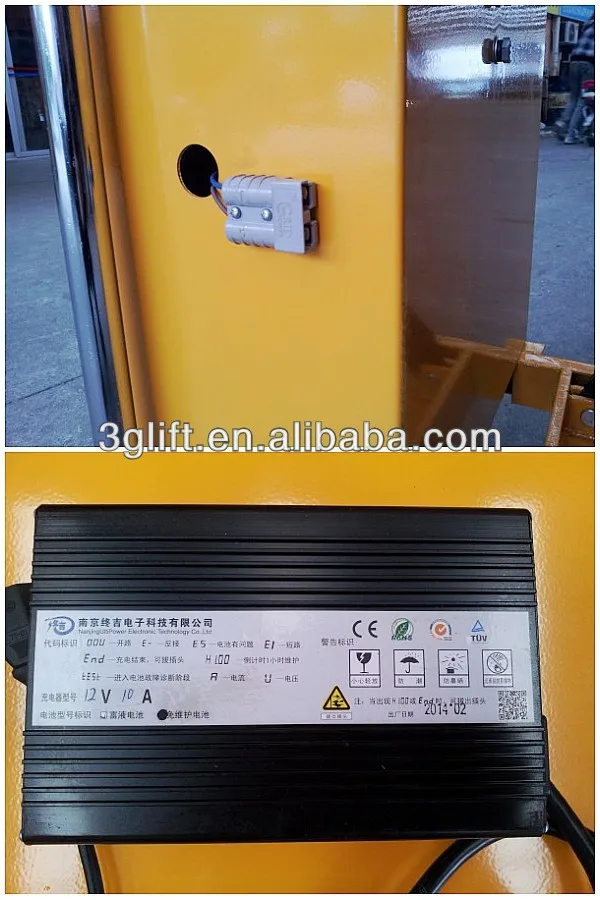

• Includes battery and on-board battery charger.
• Move easily on 4 polyurethane casters, 2 swivel with brakes and 2 rigid.
• Steel construction with durable powder-coat paint finish.
