Textile Finishing Stenter Machine

PengLong Machinery Co.,Ltd

Product Specification

name

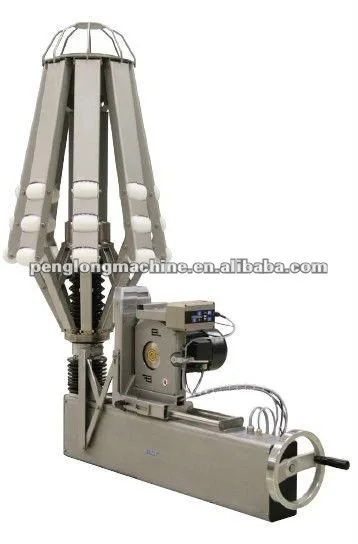

PL-H rope opener

Working Width

2000mm~3000mm(customized)

speed

10~80m/min(inverter control)

Type of detwisting

Automatically via reducing motor

Centering device

Photoelectrically and pneumatically

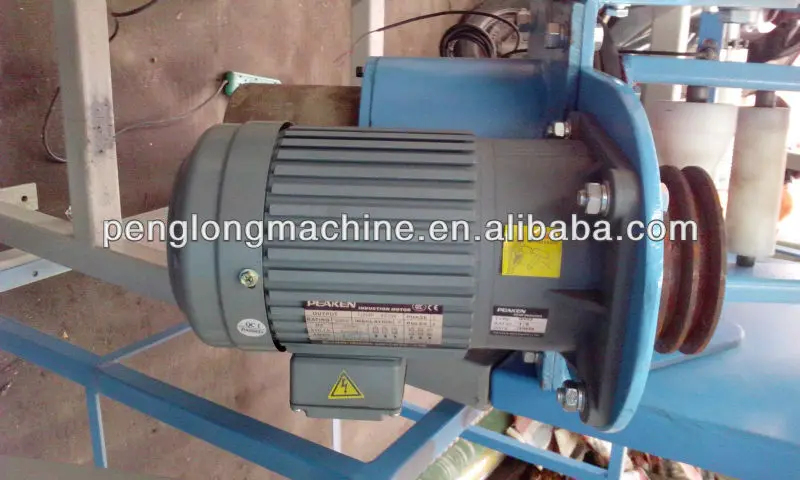

Reducing motor0.25kwx2sets

motor of spreading

0.55kwx2sets

Motor of main transmission

Maiin reducing motor 2.2kwx1set motor for plaiting 1.5kwx1set

Roller of main transmission

220mmx3

dimensions

2680mm(l)x2800mm(w)x6800(h)

Usage

This machine is suitable for detwisting and slitting knitting, woven, tricot and weft knitted fabric after dyeing and dehydration

1

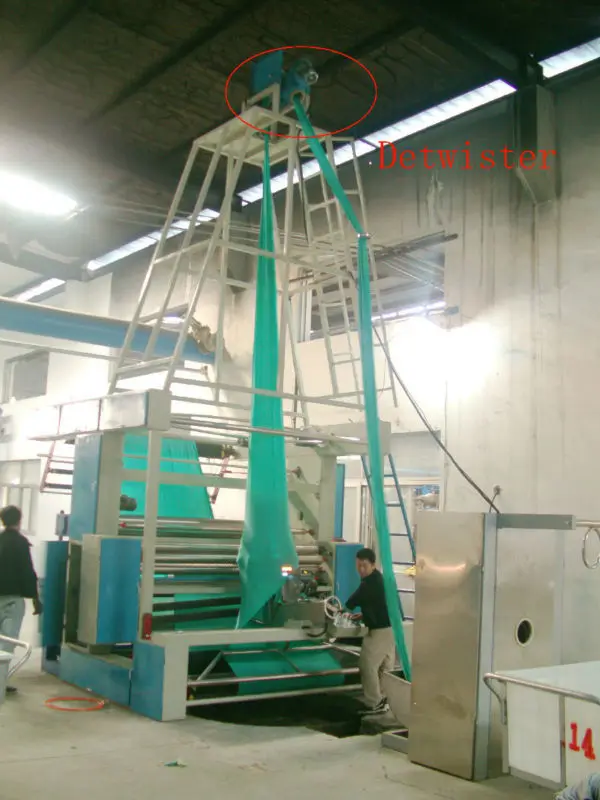

New type detwister can be applicable to various fabrics ,including ultrathin and silky fabrics too

2

Equipped with photoelectric auto.centering device to preserve fabrics position

3

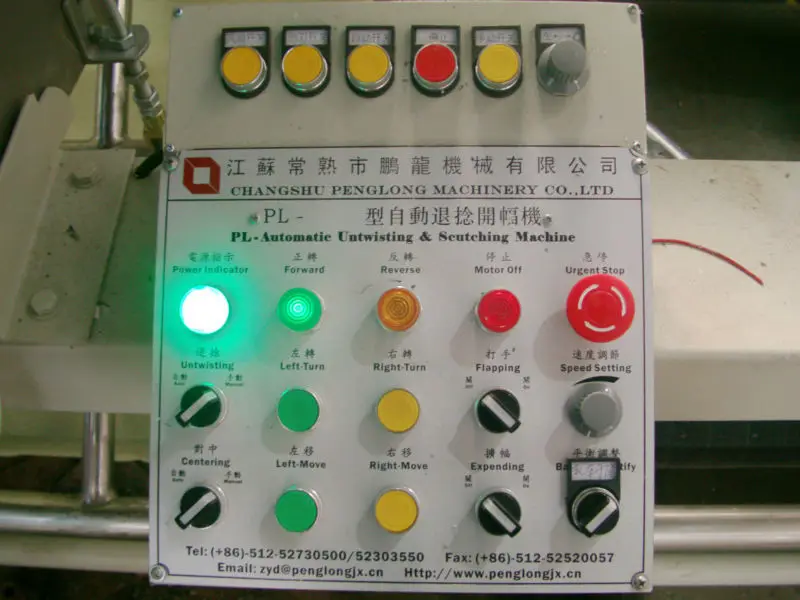

Speed of main motor is adjustable via inverter, forward and reverse running

4

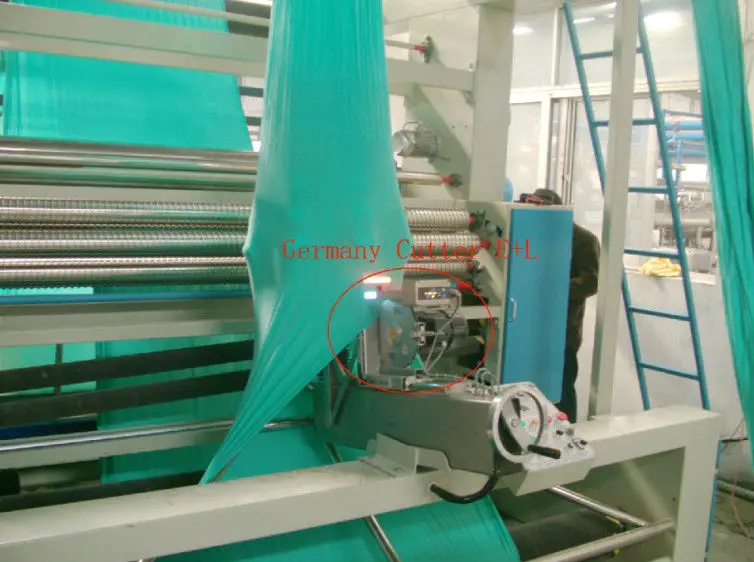

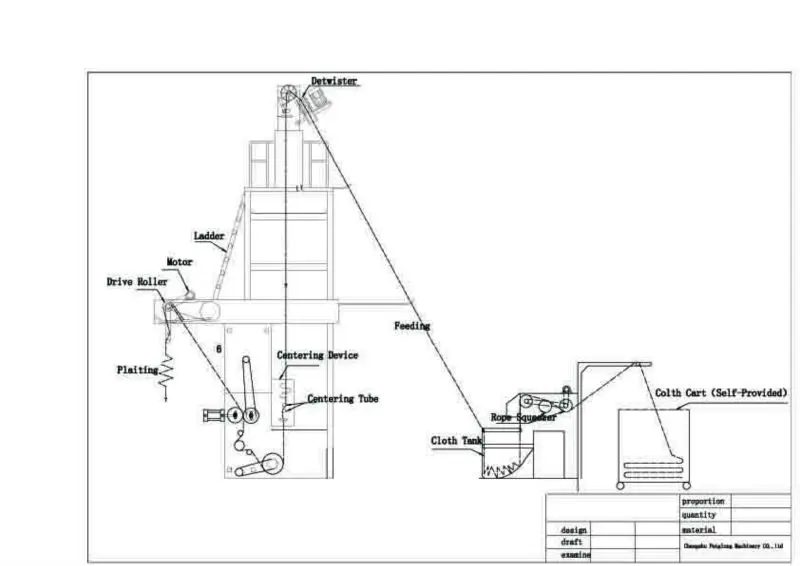

Full set assembly including turn table ,rope squeezer,slitting head,centering device,open width padder and plaiter is available

5

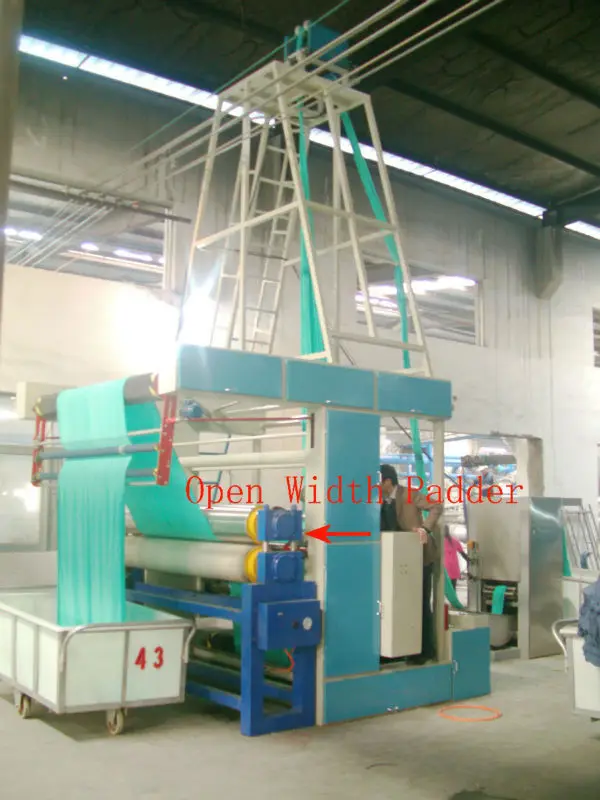

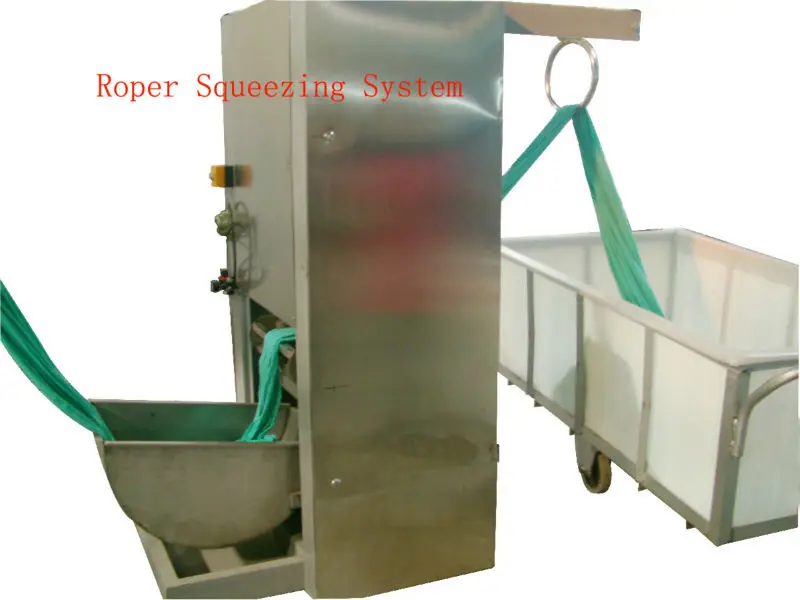

Roper squeezer and open width  padder are optional
