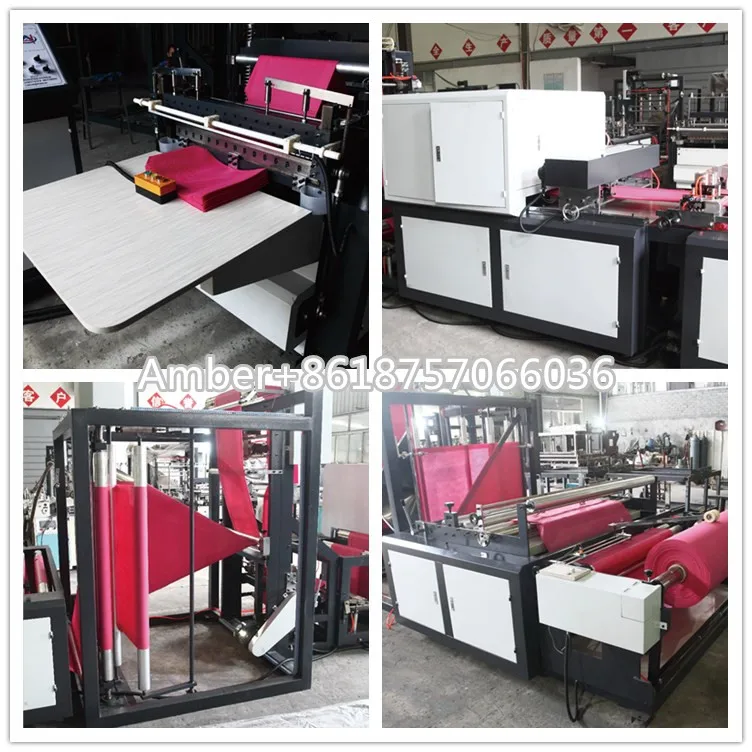

Taiwan Ultrasonic tshirt bag making machine for making non woven bags

Product Overview

Description





Name:Taiwan Ultrasonic tshirt bag making machin for making non woven bags

HBL-C 700/800



This newest nonwoven bag making machine is improved.



Product introduction:

This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as box bag, flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.





Taiwan Ultrasonic tshirt bag making machin for making non woven bags	1. The speed is 160pcs/min, faster than old type machine.
	2. The machine is higher reliability, reduced a lot of time for installing.
	3. Machine was shortened by 1 m to save space.
	4. The appearance of machine is become more artistic.
	5.Our engineer can speak English



















Features:

1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.

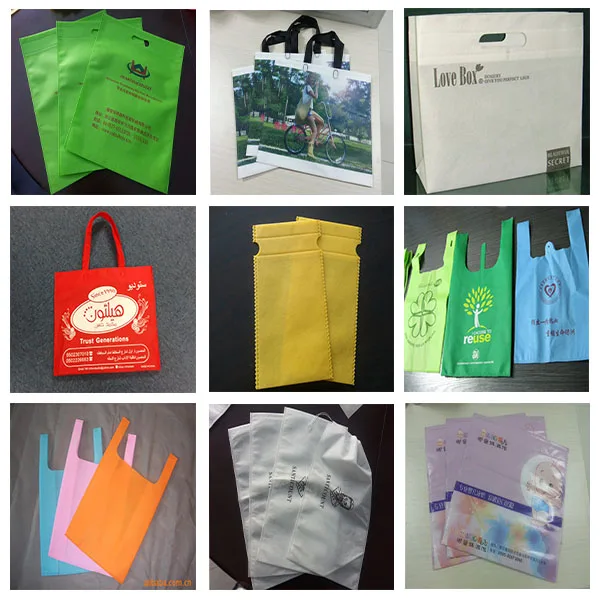

This machine is suitable for non-woven fabric material. It can make following bags:

1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Flat Bag with Bottom Folding (stand up bag)

4. Box Bag





Main Technical Parameter



Type	HBL-C700	HBL-C800
Production Speed	20-160pcs/min	20-160pcs/min
Bag Width	100-800mm	100-800mm
Bag Length	200-580mm	200-680mm
Bag-Making Thickness	18-80g	18-80
Power Supply	380V/220V	380V/220V
Total Power	12-18KW	12-18KW
Overall Dimension (L*W*H)	9.6m*2m*2.1m	9.6m*2.2m*2.3m
