portable car axle truck weighing pads

Product Overview

Description

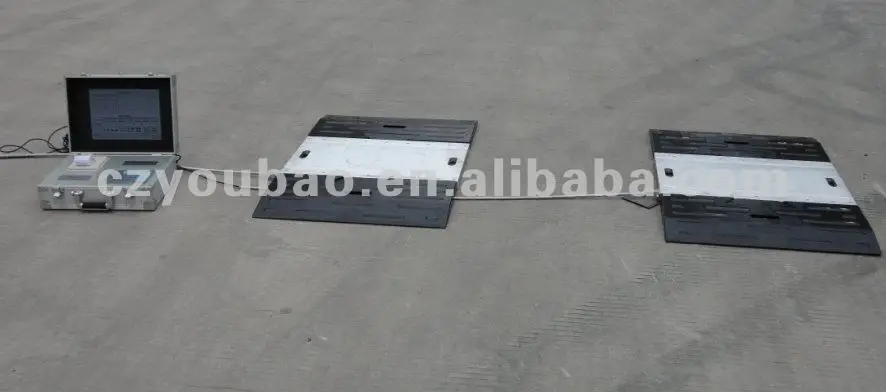

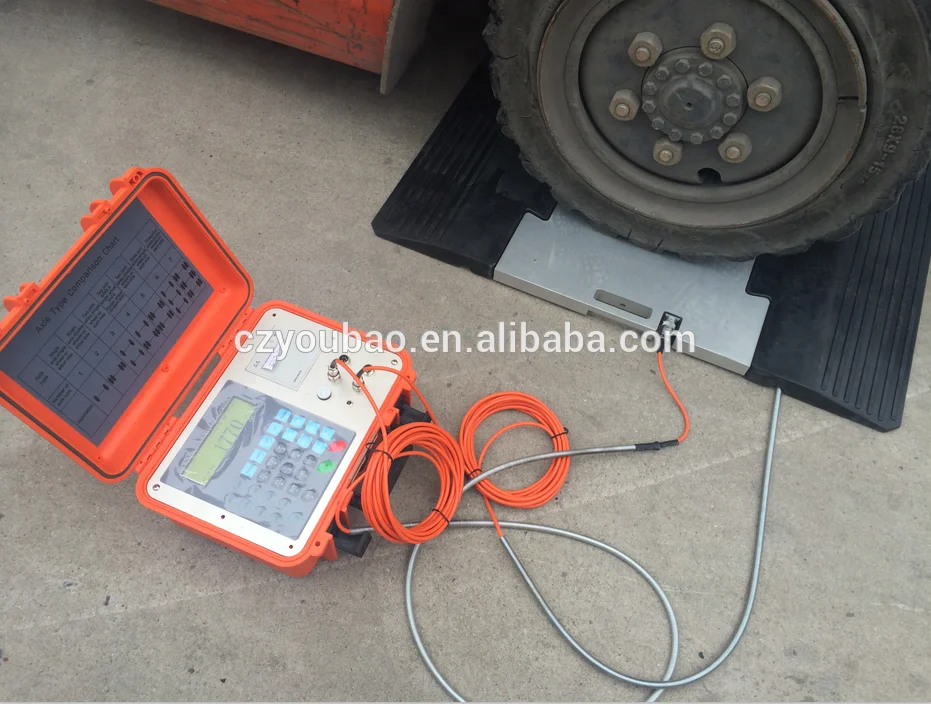

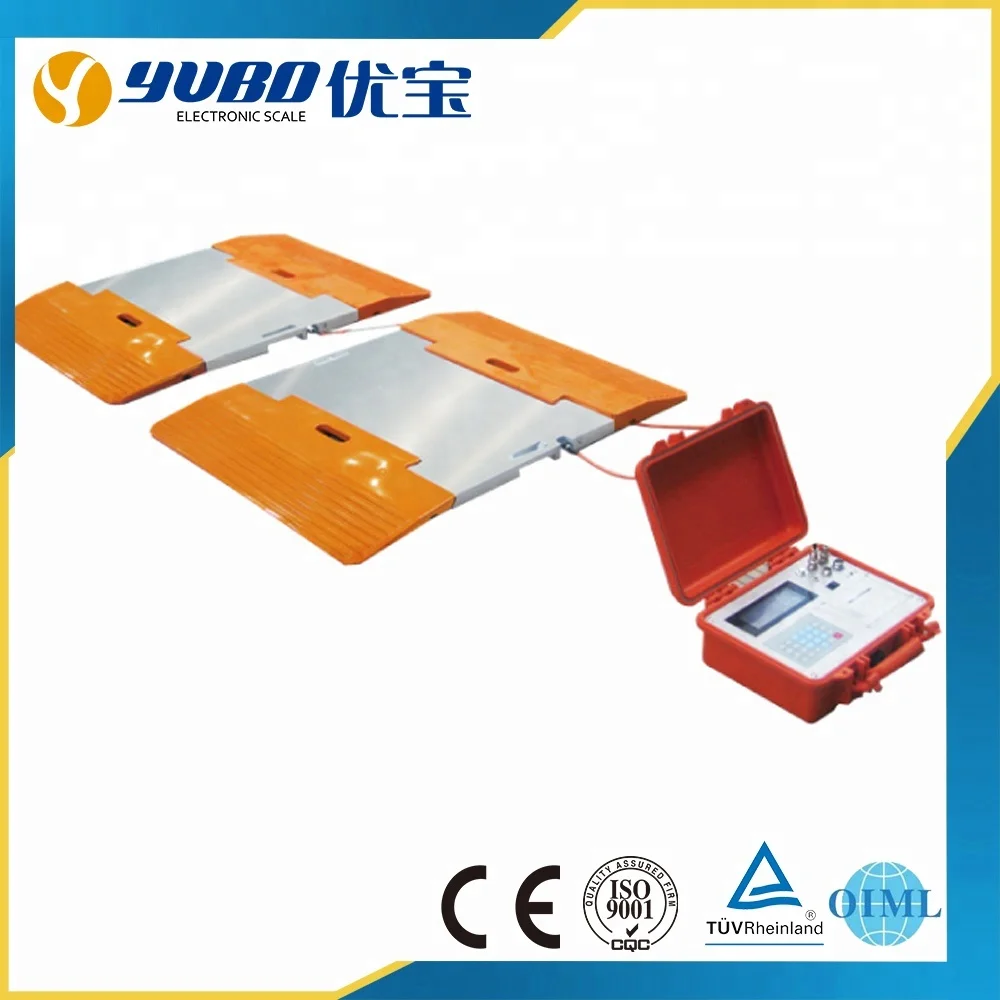

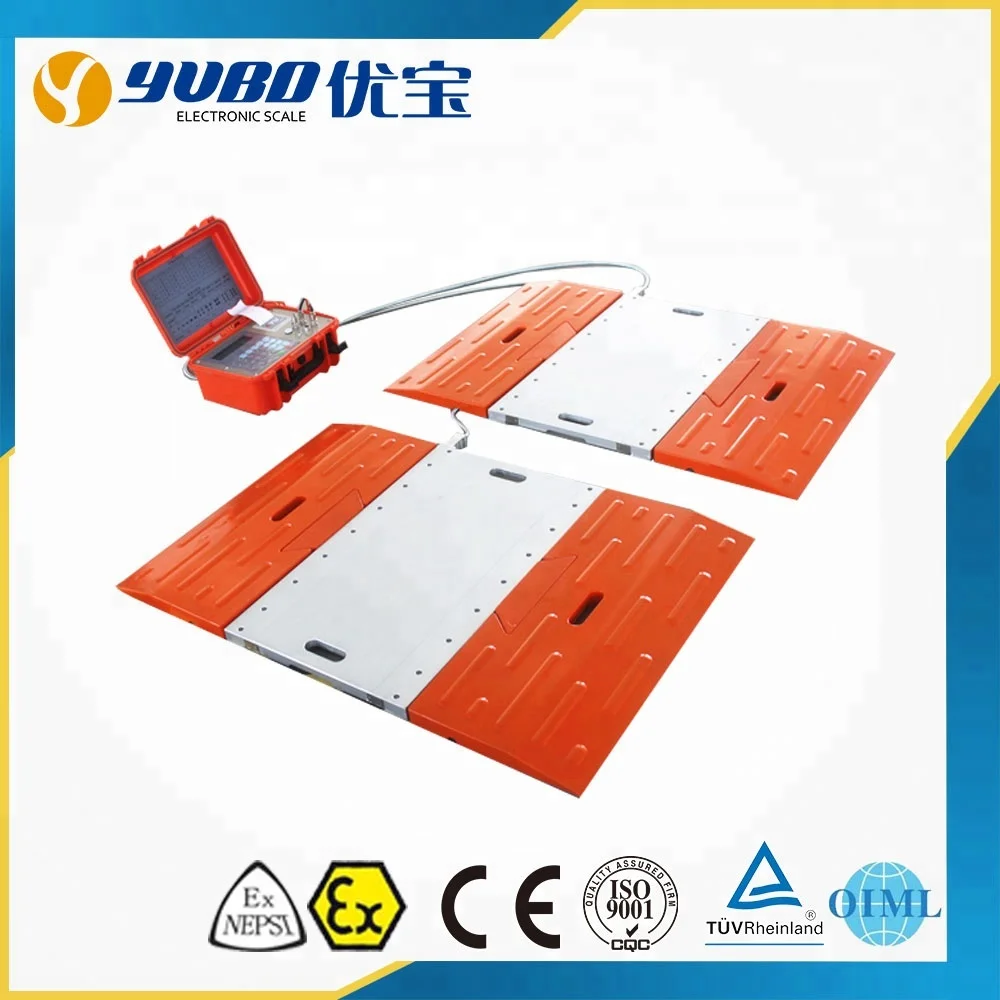

Portable wheel & axle weighing pad scales



Features

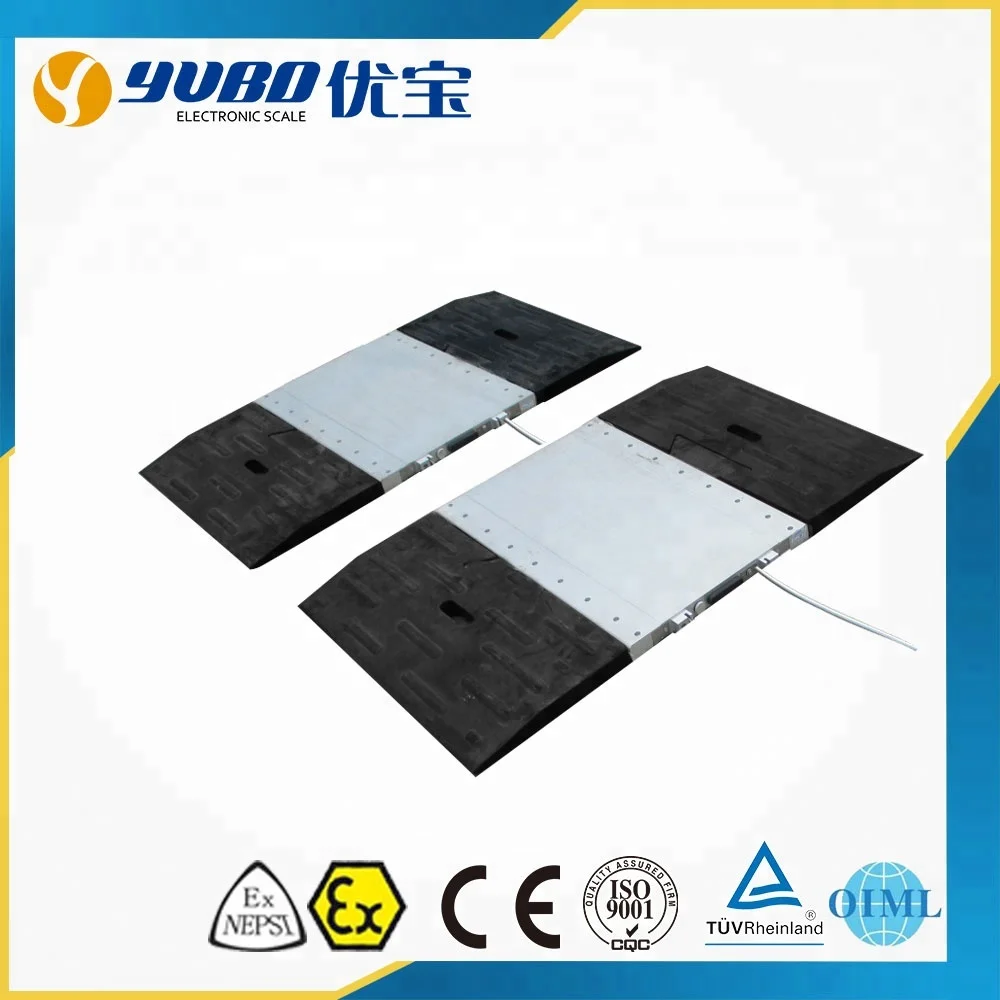

1. Strain gage or multiple load cells are inside weigh pad, an integrated and ultra-slim structure, easy for move, with light weight less than 25kg.
2. With special protection treatment, suitable for harsh environment.
3. patented designed slope can lower force impact from vehicle wheels.





Application

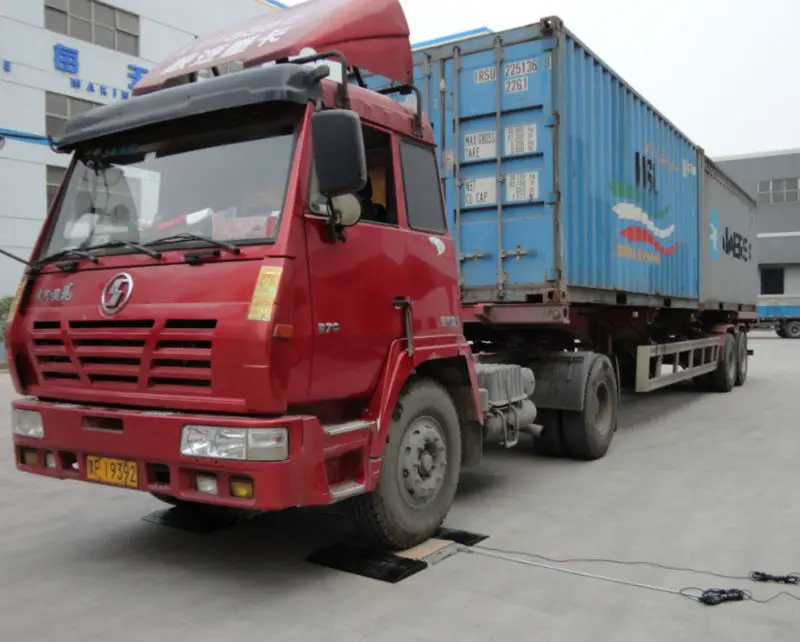

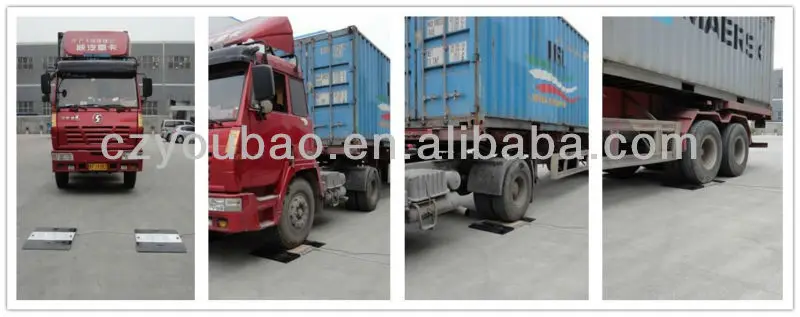

1. weighing and load control of loading truck in road transportation, construction, agriculture, forestry, and dustbin disposal.
2. weighing of loading truck by executive enforcement units.
3. test weight and center of gravity of aero-plane.
4. weighing automobile wheel and axle load distribution in automobile production line.
5. stability test of special automobile, such as fork-lift truck, crane.









 Specification



1. Axle weighing range: 0~40t.

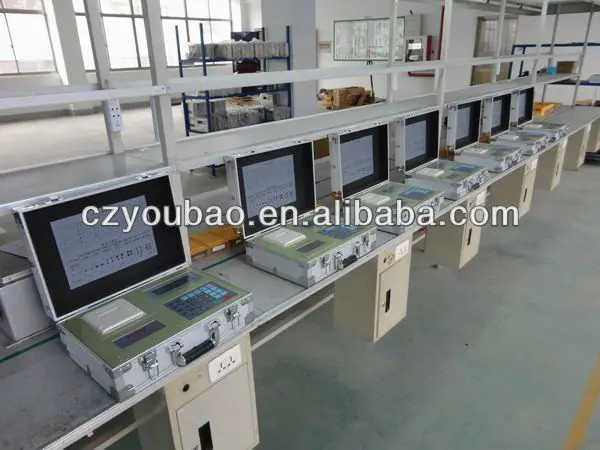

2. LCD or LED display:
       Axle weight display: 0~99995kg.
       Total weight display:0~999995kg.
       Display unit height: 13mm
3. Accuracy:
       Static: ≤20%F.S ±0.3%F.S
                  >20%F.S ±0.5%F.S
       Dynamic: ≤20%F.S ±1%F.S
                       >20%F.S ±3%F.S
4. Vehicle velocity: 3~5km/h
5. Use temperature: -10~60°C
6. Relative humidity: <90%

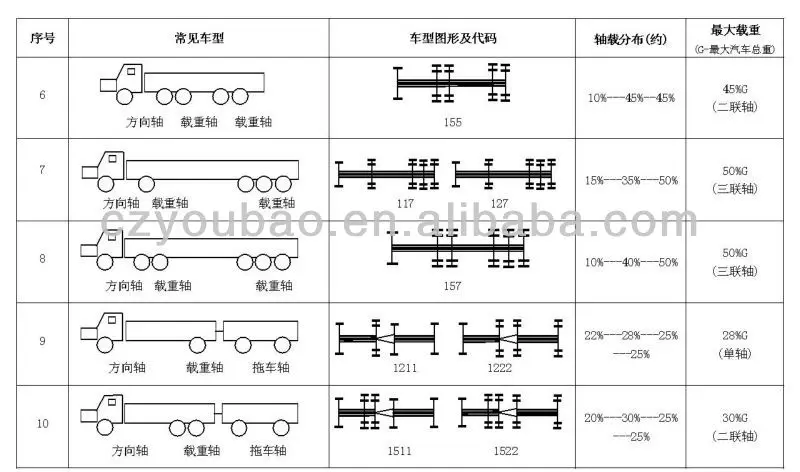

 Different axle types of truck can be choosed:











Packing details





1. Firstly  alloy box package

2. Then papar carton protection





YUBO Company profle:



1. YUBO  factory is 15000 square meters,  with strong engineers teams who have more than 10 years rich experiences on weighing scales.

2.   Each year, as a professional manufactuer, YUBO always attends Interweighing exhibition.







 Pls feel free to contact with me
