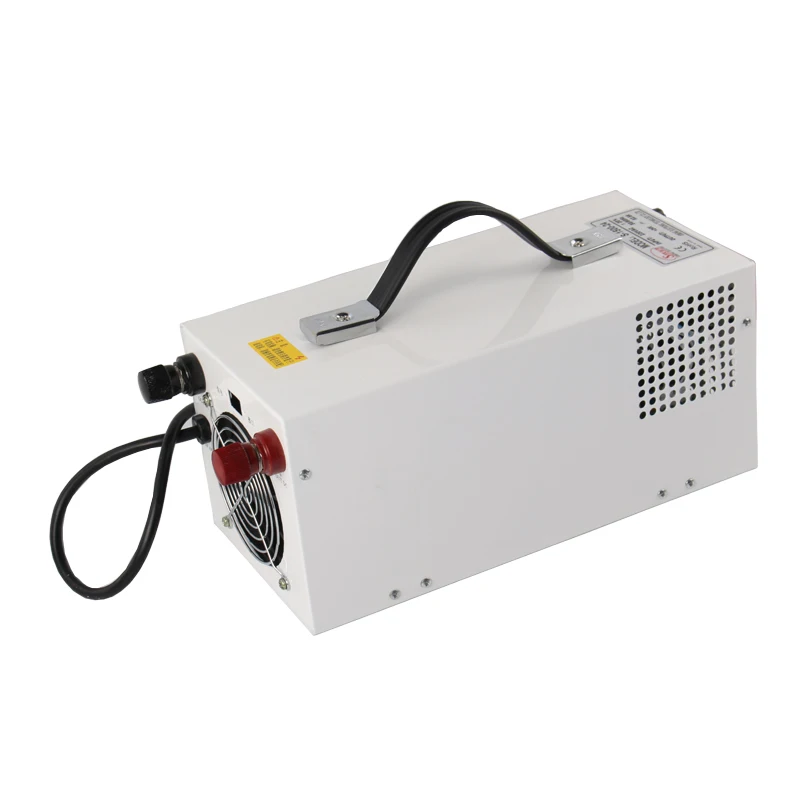

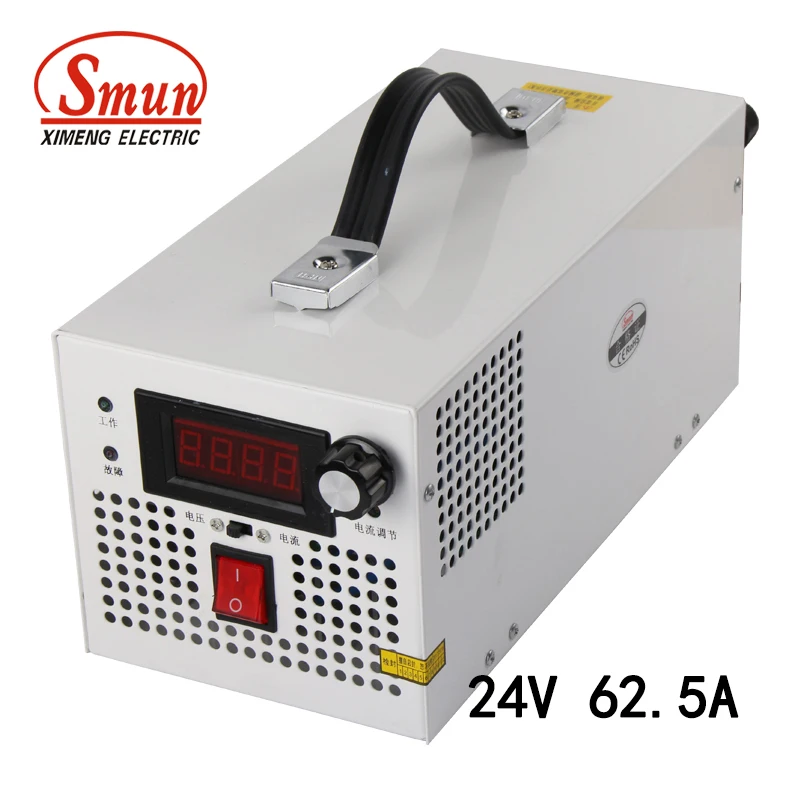

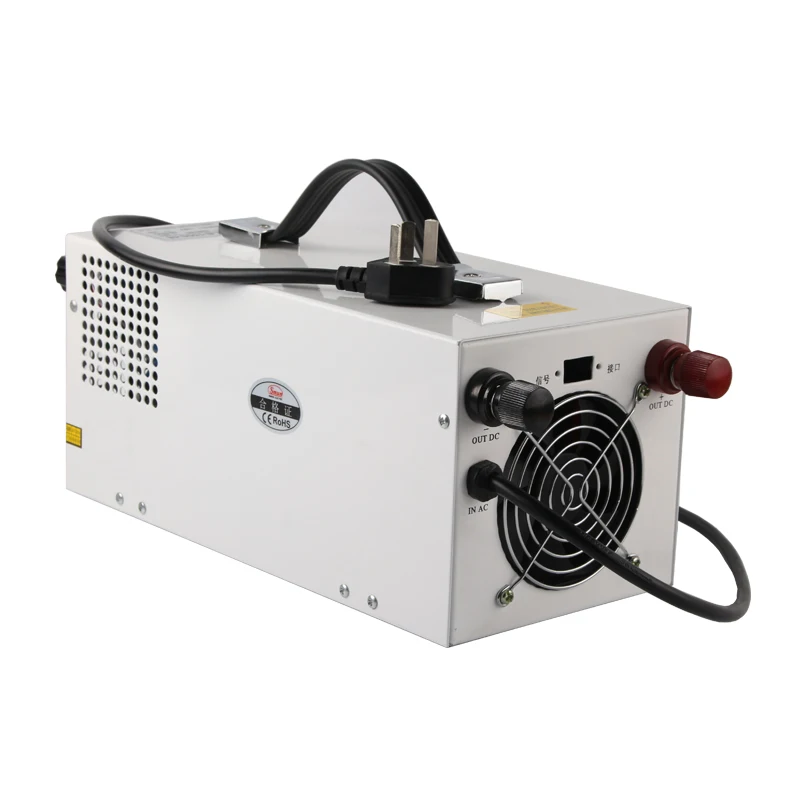

SMUN S 1500 24 200 240VAC Input 1500W 0 24VDC 0 62.5A Adjustable Output Power Supply
- Category: >>>
- Supplier: Zhejiang Ximeng Electronic Technology Co. Ltd.
Share on (1858696131):
Product Overview
Description
High Power 1500W 24VDC Output Power Supply S-1500-24
Welcome
Instruction
Features
· 1. AC input voltage range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Built-in cooling DC fan
· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on
· 7. 100% full load burn-in test
· 8. 2 years warranty
Product Description
| Model | S-1500-12 | S-1500-15 | S-1500-24 | S-1500-48 | |
| Output | DC output Voltage | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 125A | 100A | 62A | 32A | |
| Related Power | 1500w | 1500w | 1500w | 1500w | |
| Wave&Noise | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | |
| Set up,rise,hold up time | 1000ms 50ms 20ms | ||||
| Input | Voltage Range | 170-264VAC 47-63HZ 120-370VDC | |||
| Input Current | 8A/230VAC | ||||
| Efficiency | 83% | 84% | 85% | 87% | |
| AC inrush current | Cold start current 50A /230VAC | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Protection | Overload | Related output power 105-150% start overload protection | |||
| Protection type: cutoff output, recovery after restart power | |||||
| Over voltage | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V | |
| Hiccup mode,recovers automatically after fault condition | |||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min | |||
| I/P-FG:1.5KVAC 1min | |||||
| O/P-FG:0.5KVAC 1min | |||||
| Standard | Safety standard | Fit UL1012 | |||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||
| Size | size | L295*W145*H155mm | |||
| Package | 6.4kg, 4pcs/25kg | ||||
Inner Structure
Certifications
Our Services
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
