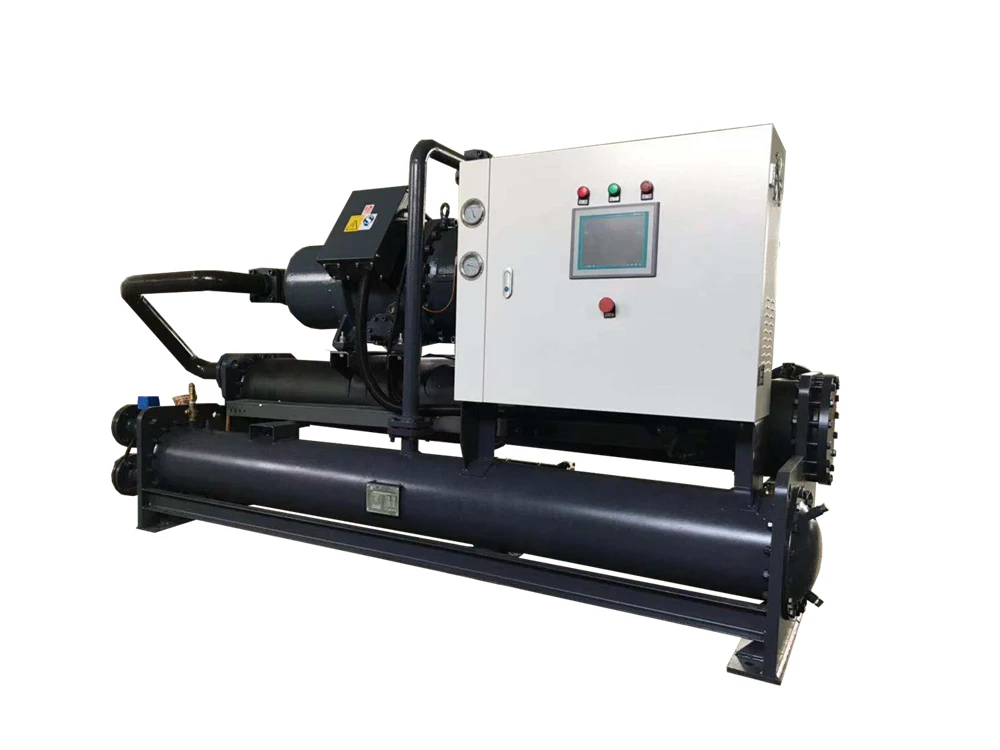

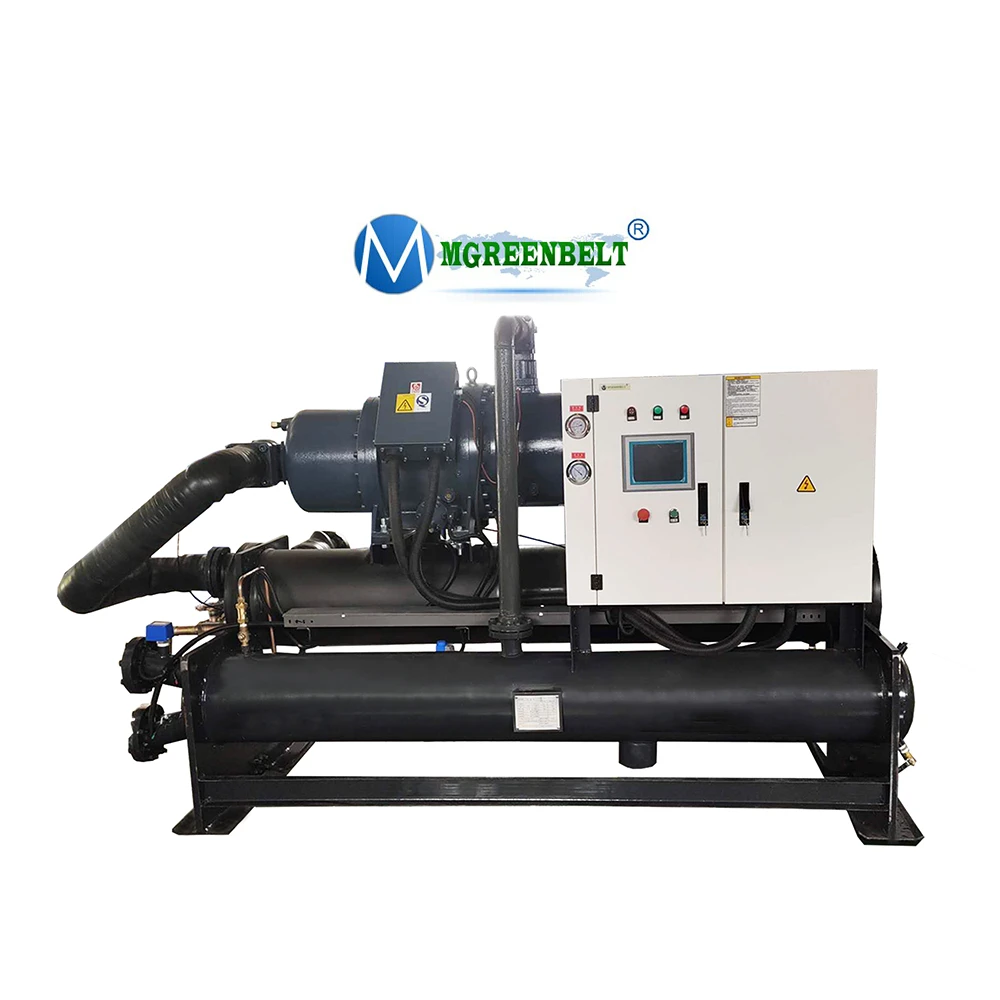

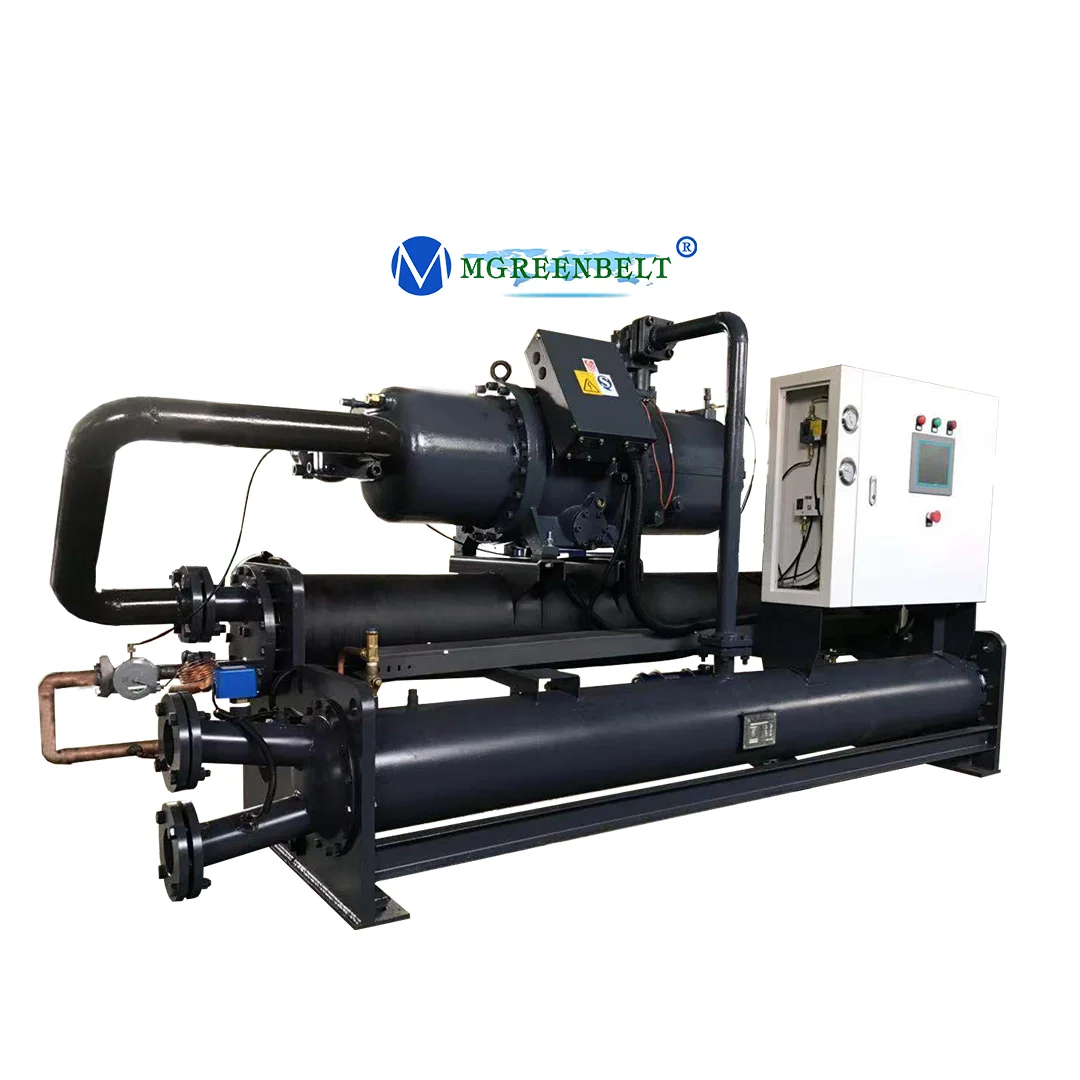

Industrial Water Cooled Plumbed in Water Cooler
- Category: >>>
- Supplier: Shandong Mgreenbelt Machinery Co. Ltd.
Share on (1858945554):
Product Overview
Description

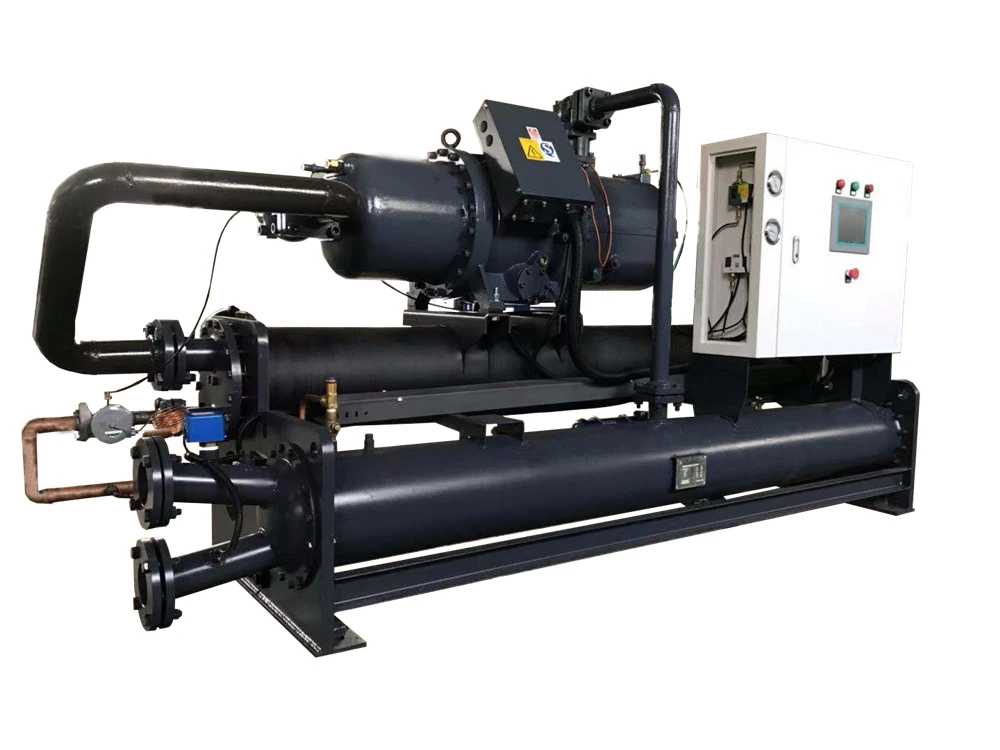

Industrial Water Cooled Plumbed in Water Cooler
Product Description
* Cooling capacity: 120kW
* Refrigerant: R134a/R407c/R410a/R22
* Voltage: 220/380/415/460V
* Chilled water flow: 20.7m3/h
* Compressor brand: Hanbell/Bitzer
Parameters of water cooled industrial screw chiller
Model | MG-120WS | ||
Nominal cooling capacity | Kcal/h | 103,500 | |
KW | 120.4 | ||
Running current | A | 40.9 | |
Input power | kw | 24.3 | |
Chilled fluid flow | M3/h | 20.7 | |
Cooling water flow | M3/h | 24.9 | |
Power supply | 3PH-220/380/415/460V-50/60HZ | ||
Refrigeration oil | Type |
| HBR-A01 |
Charge | L | 7 | |
Refrigerant | Type |
| R22/R134a/407c |
Charge | Kg | 18 | |
Type of control |
| Thermostatic expansion valve | |
Compressor | Type |
| Semi-hermetic screw type |
Quantity |
| 1set | |
start-up mode |
| Y-Δ | |
power | Kw | 24.3 | |
Capacity control | % | 0,33,66,100 or 0,25,50,100 | |
Evaporator | type |
| Shell and tube |
Inlet and outlet pipe diameter | inch | PT2-1/2" | |
Condenser | Type |
| Shell and tube |
Inlet and outlet pipe diameter | inch | PT2-1/2" | |
Dimension | Length | mm | 2250*800*1450mm |
Net weight | Kg | 980 | |
Working principle of industrial water cooling chiller

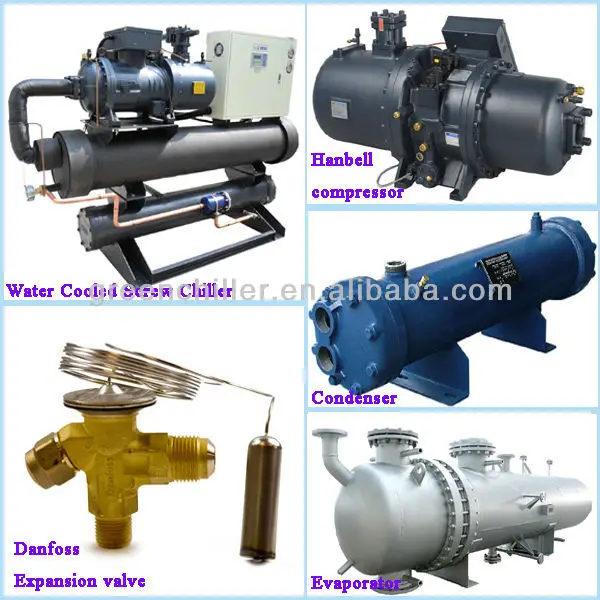

Main parts of water cooled screw chiller
Air cooled screw water chiller
Applications of water chiller
Packaging & Shipping
Our Services
Company Information
