Product Overview

Description

LH model double girder bridge crane 20ton 25ton 30ton 32ton 35ton 40ton 45ton 50ton



5ton to 50ton LH Model Double Girder Bridge Crane :

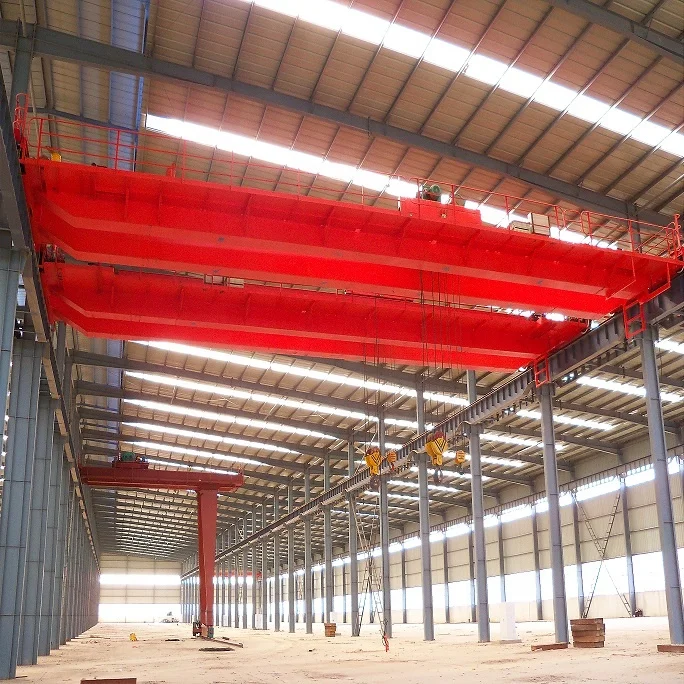

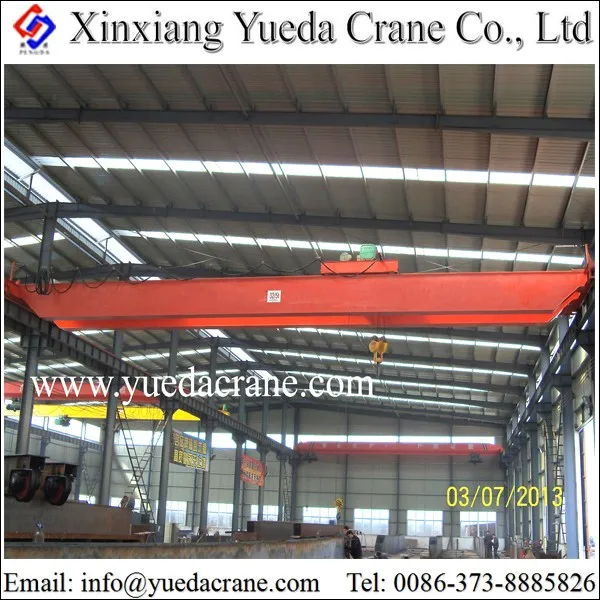

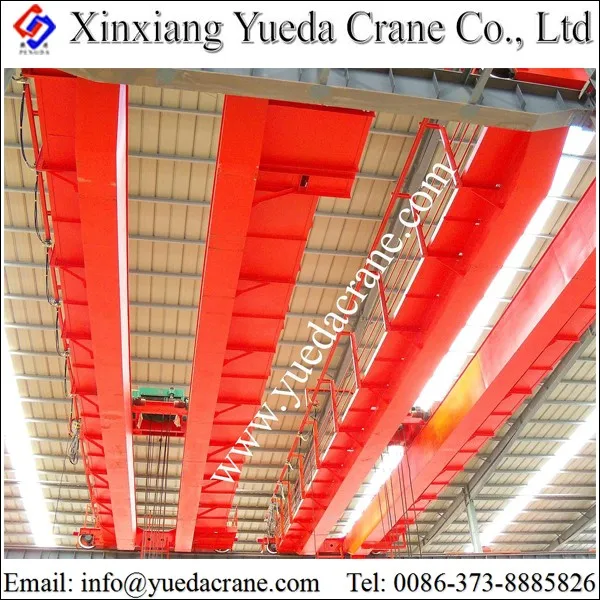

1. LH model double girder bridge crane (double girder overhead crane) is traveling on fixed support frame;



2. The crane beams adopts box-type welding frame, and it used together with CD/MD or HC/HM model wire rope electric hoist as a complete set;



3. It is an mid-duty class bridge crane, the working grade is A3~A4, the working environment temperature is -25 ~ +42 centigradethe



4. The rated capacity from 5 tons to 50 tons, the span is 7.5-31.5m.

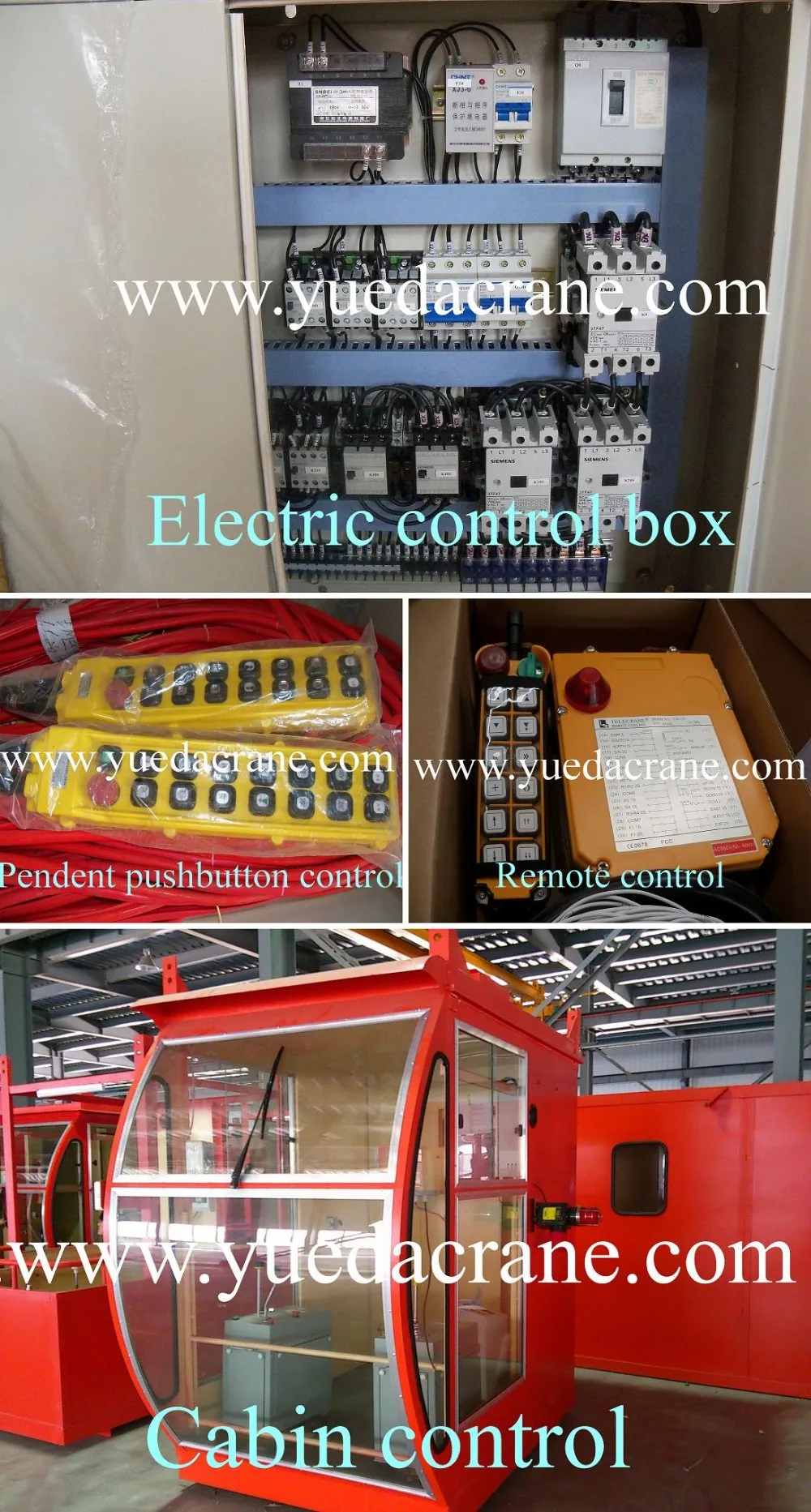

5. The control modes are cabin control, pendant pushbuttons control or remote control for choice.

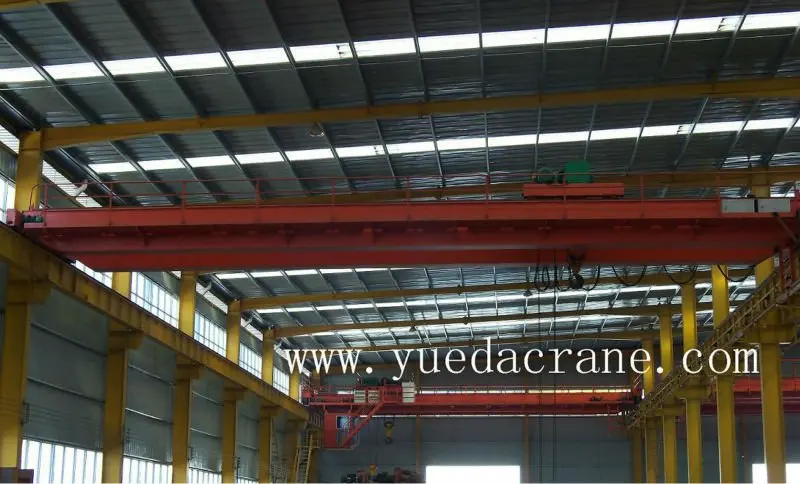

6. This EOT crane(overhead crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.







5ton to 50ton Overhead Crane LH Model Double Girder EOT Crane
Span(rail to rail center)	7.5m~35m
Lifting height	6m, 9m, 12m or other height
Capacity	5t	10t	15t, 16t	20t, 25t	30t, 32t	40t, 50t
Lifting speed(m/min)	8, 8/0.8	7/0.7	3.5, 3.5/0.35	4, 4/0.4	3, 3/0.3	2, 2/0.2
Cross travelling speed(m/min)	10, 20	10, 20	10, 20	10, 20	10, 20	10, 20
Long travelling speed(m/min)	20, 30	20, 30	20, 30	20, 30	20, 30	20, 30
Duty Class	A3/A4
Power source	380V, 50HZ, 3 phase (or other standard)
Working temperature	-20~40°C
Control model	Pendant pushbutton control, cabin control or remote control

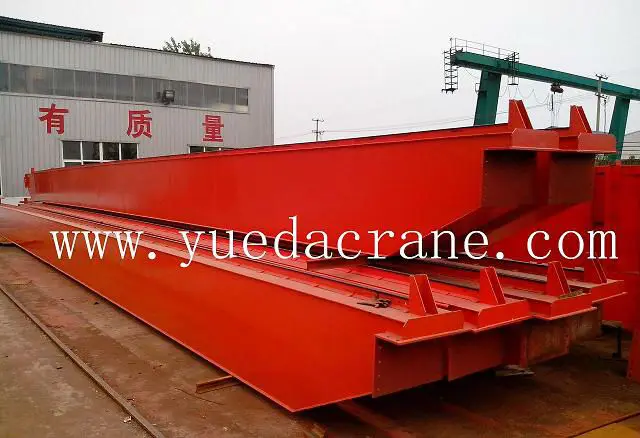

1. The crane beams are box frame, it is made by Q235 steel plates, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding:

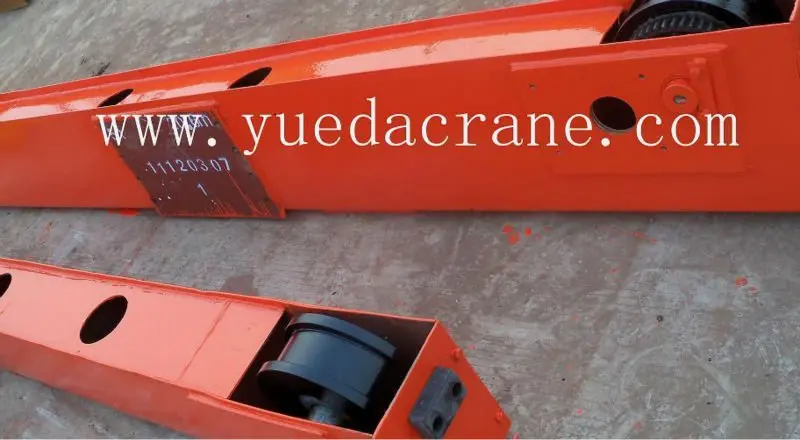

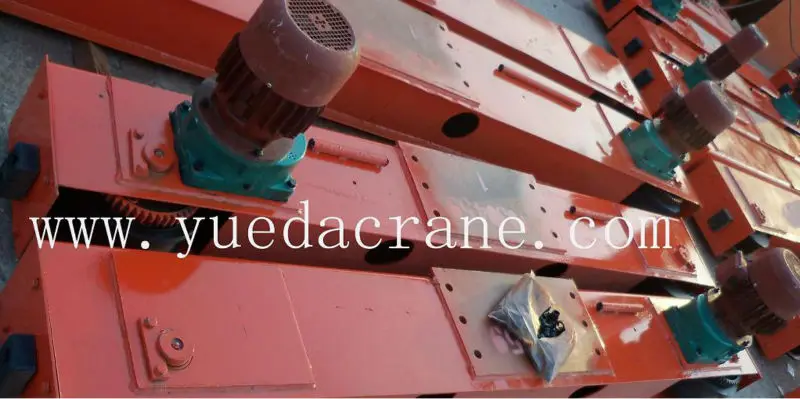

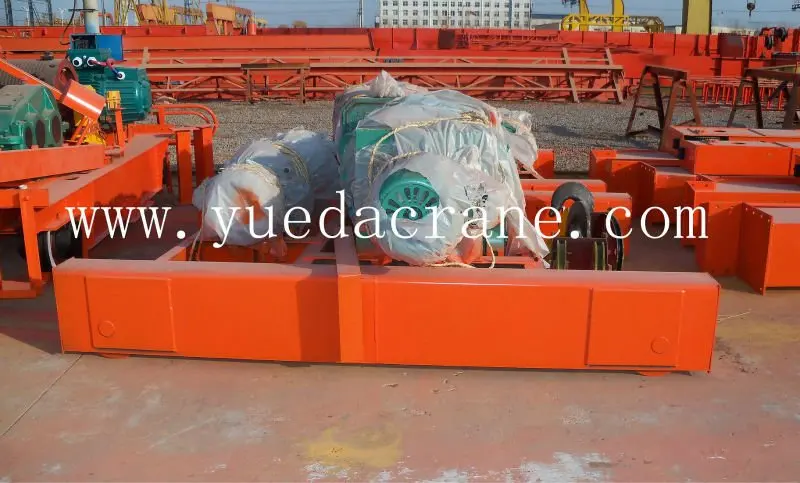

2. The end carriages of double girder overhead crane(EOT crane), the crane wheels are finished heat treatment for long life, the noise of motors & speed reducers are very small.

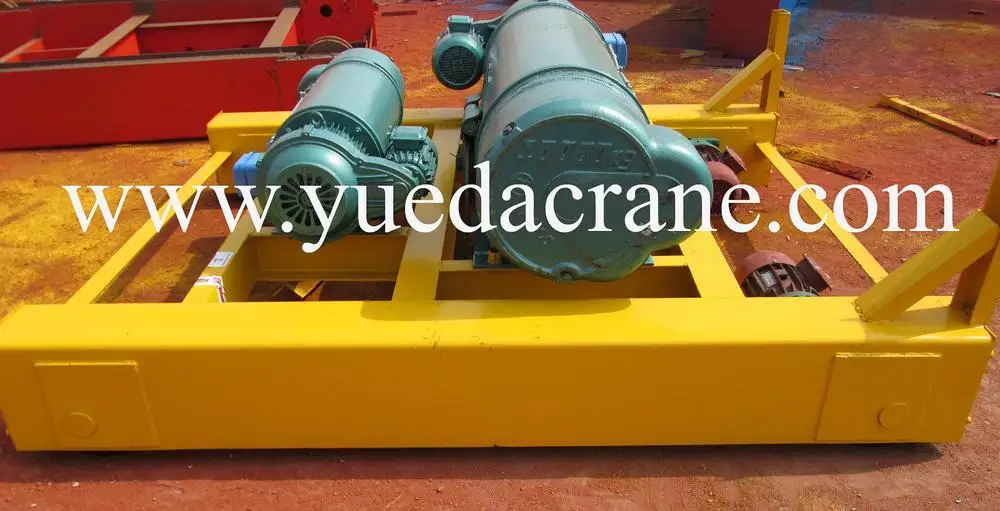

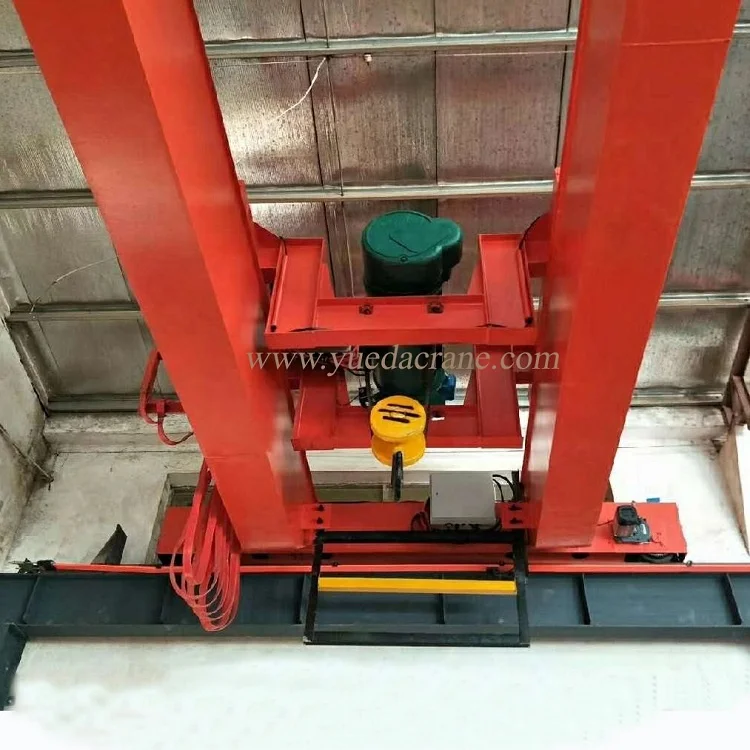

3. The lifting mechanism of EOT crane, the lifting unit is wire rope electric hoist, the gear boxes have hardened and ground helical gears for high efficiency, quite operation and high reliability:





4. The electrical control box with Siemens brand contactors:













5. The packing and loading of EOT crane:

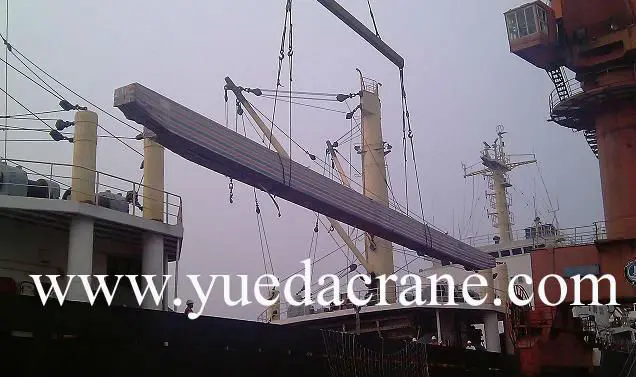

 * Shipment by bulk ship:

 * Shipment by containers:
