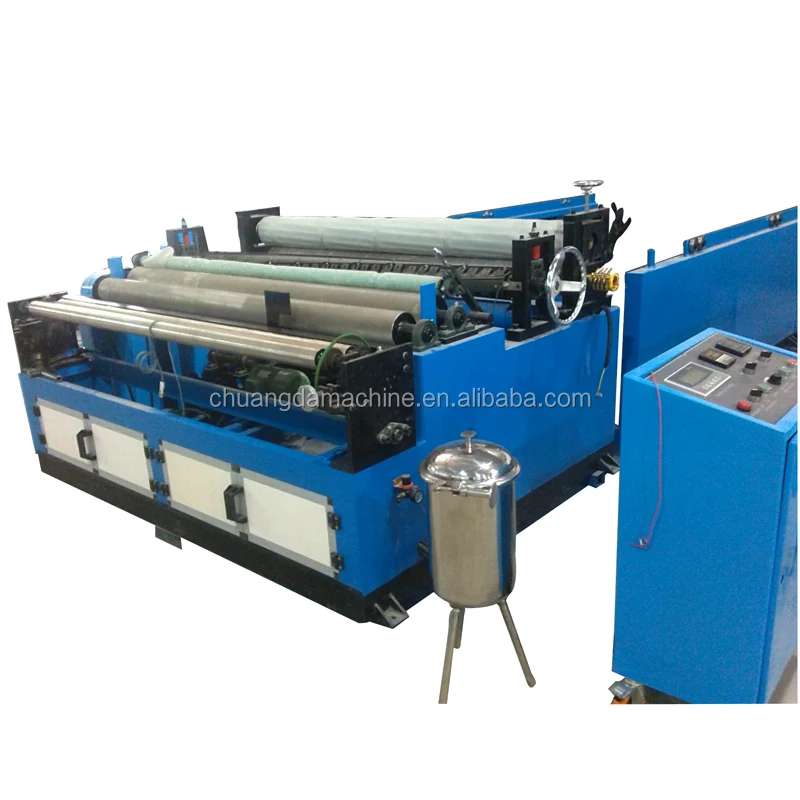

J:CDH 1575 B Semi automatic toilet roll paper machine

Product Overview

Description



CDH-1575B Semi-automatic Toilet  Roll Machine

1.Main Technical Parameter

Electric power	3.0 KW (380V,50HZ)
Cuter power	2.2 KW (380V,50HZ)
Rewinding speed	80-100 meters/min
Max diameter	1100mm,width size max 1750mm
Machine size	5100×2400×1500mm(L×W×H)
Weight  of machine	about 1500-2000kg



2.Function and Feature



Unwind with tension to suit different classes of raw paper.



Adopt screw turing knife to cut,Strong knife-blade and easy turning. Without voice and shake.



Controlled with electric counter to ensure weight of production.



The all steel roller rolling the pattern,the grain mark is Obvious.may select the rubber roller or the wool roller,the Serivce life is reliable.



Use special saw belt to keep section in good order.the saw belt is easy to repair and grind.

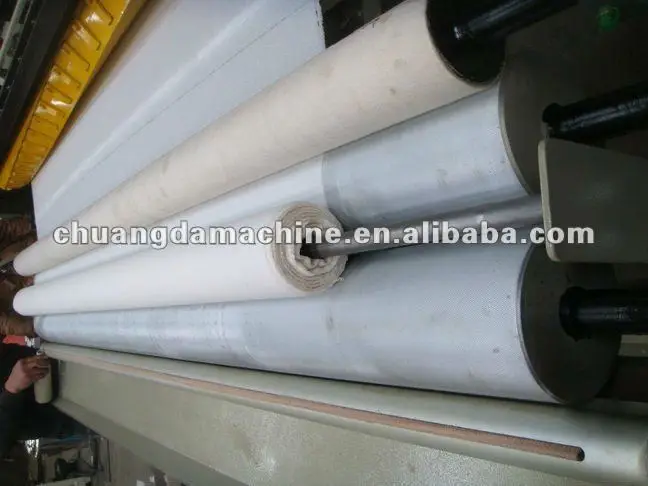

3.The details pictures of machine:



Export Details



1. Delivery time: 45 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)



2. Load port: Xiamen port in Fujian Province



3. Packing: In standard export wooden cases



4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).



5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.



6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.



7. Our company also provides the related  raw material with good price and good quality
