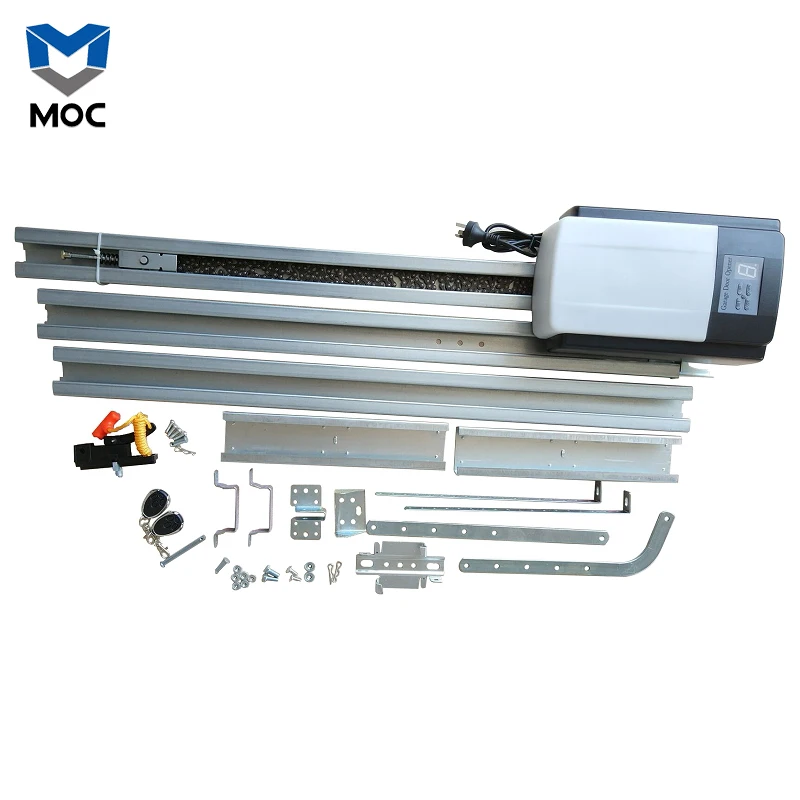

New design cheap chain drive garage door opener

Share on:

Price in USD:Details


Product Overview


 New design cheap  chain drive garage door opener

Garage door opener  Description



opener 600N

opener 800N

opener 1000N

Rated door area

≤9.0 sqm

≤12.0 sqm

≤15.0 sqm

Rated lifting force

≤60 kgs

≤80 kgs

≤100 kgs


Steel / Aluminum

Steel / Aluminum

Steel / Aluminum


Chain / Belt

Chain / Belt

Chain / Belt


24V / 100W

24V / 120W

24V / 140W

Input voltage

110V – 270V

110V – 270V

110V – 270V


24V / 14pcs LED bulbs


105°C Temperature detect switch

Radio frequency

433.92 MHz or other on request

Coding format

Rolling code (7.38x1019 combinations)

Standard transmitter


Code storage capacity

20 different codes

Working temperature

-40°C - +50°C

Safety protection

Soft start & Soft stop, photo beam as optional, flash light as optional

1. PTC Fuse inside the transformer, to protect the overload of the transformer.

2. O/S/C button on the display board. Make adjustment, maintenance and emergent opening or closing easier.

3. Copper worm gear inside the motor. With higher impact-resistance strength.

4. Multiple highlight LED, makes the lighting effect even better.

5. Multifunctional external terminal, can connect to various external device, like: photo beam(optional), wall switch(optional), and so on.

6. LED displayer, easy to adjust.

7. Use rolling code transmitter, with billions of codes, won’t be coincident code or pirated code.

8. Soft start, soft stop. Minimize start-up load on garage door opener and garage door. With strong power and low noise.

9. During operation, the opener makes real-time detection of resistance to ensure precise positioning.

10. With Auto-close function, the time is adjustable.

11. Self locking function. When power off, can lock the door by hand after disengaging the clutch.

12. With strong lifting force.

13. Safety reverse function. The door will reverse to full open when it is overload during closing. The safety reverse force is adjustable. Can use photo beam(optional) to make safety protection.

14. Backup battery interface available in case of power failure or low voltage.

15. Original opening & closing force self-learning.

16. Low-voltage protection. The process will not perform any action of opening and closing when voltage is too low. The door panel and controller won’t be damaged.

17. Metal chassis.

18. Opener rail type: steel rail with chain, steel rail with belt, steel sectional rail with chain, steel sectional rail with belt, aluminum rail, aluminum sectional rail.





Garage door opener Packaging & Shipping


One unit in one small carton, then four small cartons in one big carton.

For LCL shipment, will put the big cartons on pallets or into wooden boxes.

For full container shipment, will load by big cartons(4 units in a big carton).

For a 20'ft container: 800units.

For a 40'ft high container: 1700units.




Our Advantage


1. Strong Technical Force:

MOC owns strong technical develop team. Have over than 10 years’ developing & marketing experience in Access Control System. MOC products suit for any residential and industrial use. All the door openers are developed combining different clients’ requirement, so it is a real product that suitable for your market.

2. Quality Assurance

Strictly inspection follow the international standard. All the inspection and production person can only take up their quarters after on-the-job training regularly.

3. Industry Knowledge

We are so familiar with the international & domestic Access Control market that we know different requirements by different market. Our professional ability will be your strong support!



We offer 5 years warranty for the garage door opener.



Product Description

Company Information


Packaging & Shipping


           For LCL Container:  Neutral Carton ,Pallet or Wooden case

           For 20’FT Container : 1300 Sets

           For 40’FT Container : 2600 Sets

Delivery Detail : 15-30 days after advance payment
