Solar PV crimping tool set for Crimping/Cutting/Stripping tools with connector Toolkit 01

No.

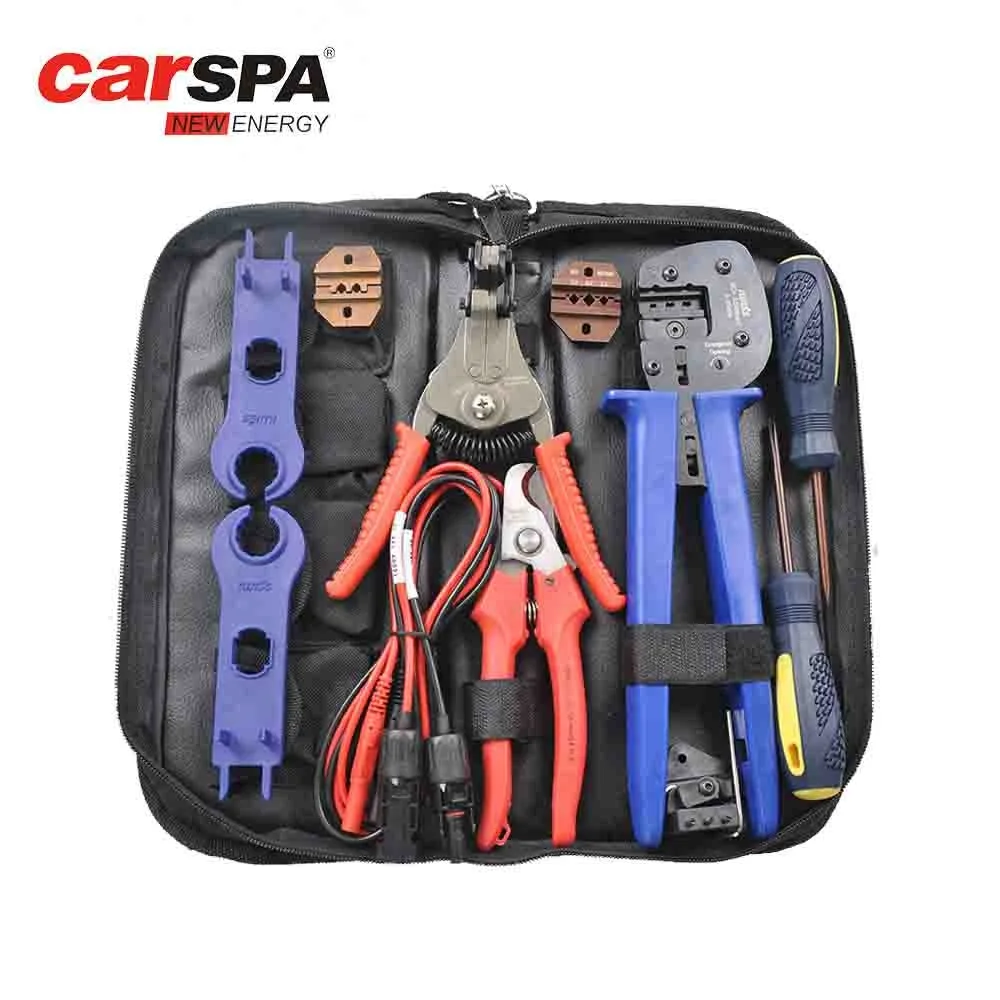

Solar PV Tool Kits

Include tools

1

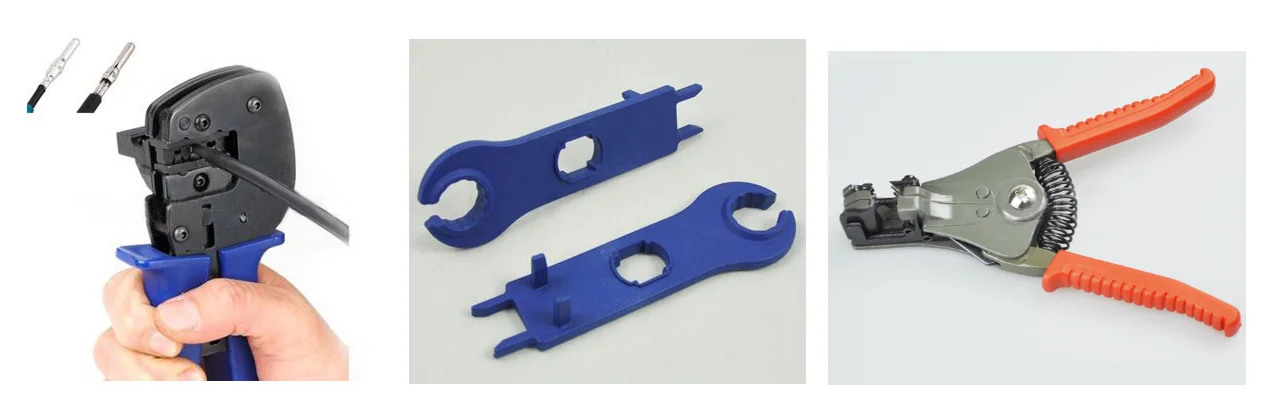

A-2546B solar cable crimper(With MC4 Solar Dies Set)

Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10)
Length:270mm, Weight:0.74Kg

2

Locater

Use with A-2546B Solar Cable Crimper

3

Hex wrench

Use for Installing MC4 Dies/MC3 Dies/Tyco Dies

4

LA-2546B solar cable stripper

Universal solar cable stripper, for
2.5/4/6m2 (AWG 14/12/10) solar cable Length:180mm, Weight:0.32Kg

5

WX-206 solar cable cutter

For Soft cable/Wood sticks/Dowel rods/Animal Nail/Rope/Cord and many other materials
cable: 24mm²(3/8”) flexible

Material: stainless steel blade and TPR handles

Length:165mm, Weight:0.12Kg

6

MC3 solar Dies Set

A Pair of Dies for MC3 solar connector
(Multi-Contact) & 2.5/4/6mm2
(AWG 14/12/10) solar cable.

7

Solar connecter spanner

2 Pcs Open-end spanner and unlocking
tool (MC4 and MC4 PLUS)

8

Straight Screwdriver

screwdriver 5x75mm(Dia.*Length)

Material of Head: S2 Steel

9

Cross screwdriver

screwdriver 6x100mm(Dia.*Length)

Material of Head: S2 Steel

10

Bag

Carrying Oxford Zipper Bag: 310×140×65(mm)
