1L Four Stations Semiautomatic Plastic Pasteur Pipette Dropper Making Machine

Product Overview

Description

Main Features:

1,Four stations,double die-heads,single layer,65mm screw,11kw motor,PE/PP etc.;

2,Power supply:380VAC,50HZ (depending on clients' country);

3,Output: 50ml --- around 2,500 bottles per hour;

                  500ml --- around 1,000 bottles per hour;

                  1L --- around 500 bottles per hour;

4,Specialiizing in following industries:

         plastic bottles, chiristmas balls, tool cases, test dropper

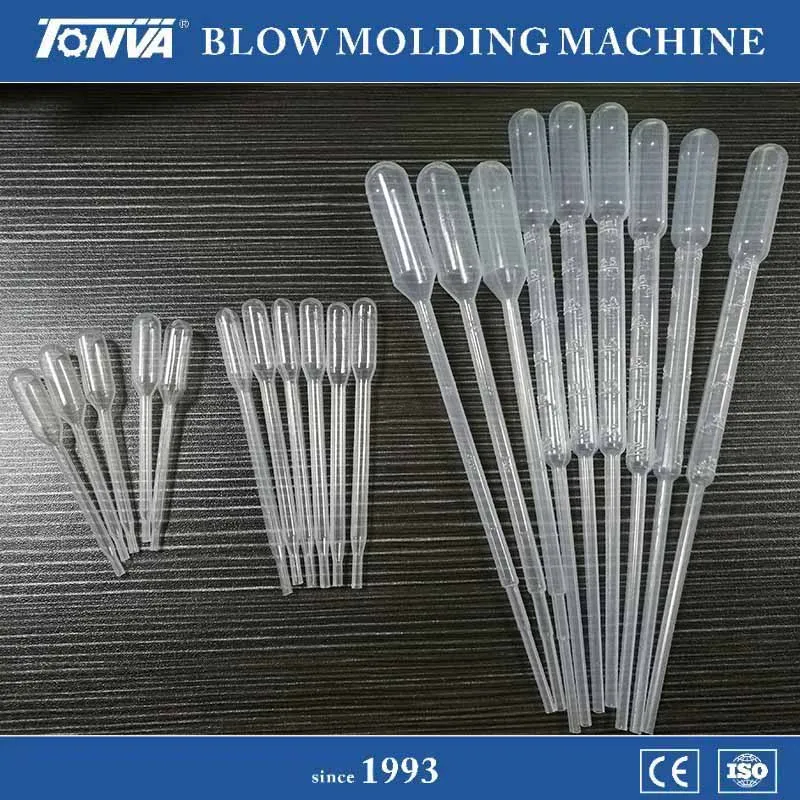

Products Display:







1,Four Stations: National initative of four stations plastic blowing technology, adopting ball bearing liner guide, it works durable and stable;

2,Bottom Blowing national bottom plastic blowing technology, to ensure the same size of inner diameter of neck for long-term operation;

3,Photoelectric Control: adopting photoelectric control technology, to ensure the same length of parison and effciently improve the usage of raw material;

4,Two Separated Control System: it can produce two different features and sizes of products at the same time.

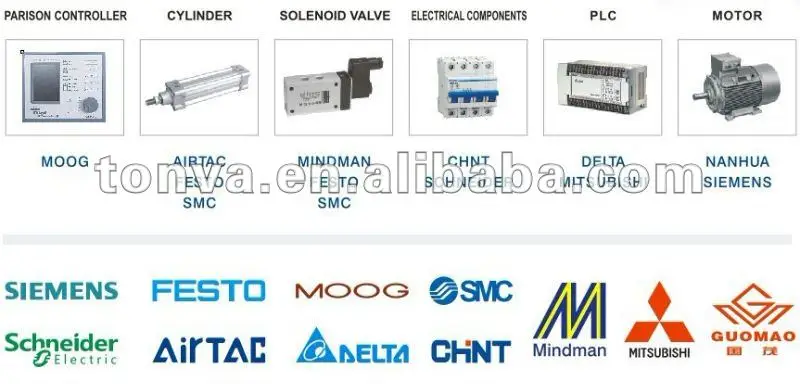

Standard Accessories:





Technical Parameters:

Item	Unit	TVF-1L
Raw Material	-	PE/PP/PS/EVA...
Diameter of Screw	mm	65
L/D of Screw	-	25:1
Extrusion Power	kw	11
Heating Power	kw	11
Heating Zones	piece	6
Plasticizing Capacity	kg	60
Number of Moulds	piece	4
Mould Thickness	mm	80-145
Open Stroke	mm	130
Mould Length	mm	100-450
Max. Clamping Force	kn	18
Number of Molding Heads	piece	2
Pressure of Air Source	mpa	0.6
Air Consumption	m³/min	0.6
Water Consumption	m³/h	1.4
Weight	t	2.5
Dimension	m	3.3×1×1.8





Product Certification:







Our Clients:





TONVA also takes responsibility to have debugging overseas,and clients abroad please send invitation to engineer of TONVA in advance,provides the engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Traning:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.



3,Warranty Period:

The warranty period for TONVA machine is one year with a life-long maintenance.Other stipulated warranty could be made if clients require special quality guarantee.

Note:Above information is only for reference,the product can be customized based on different requirements.
