Ultrasonic And High Pressure Cleaning Machine For Eco Solvent Print Head

Share on (1861472944):


Price:$320.00 - $328.00

Quantity:


Product Overview

Description





Product Description

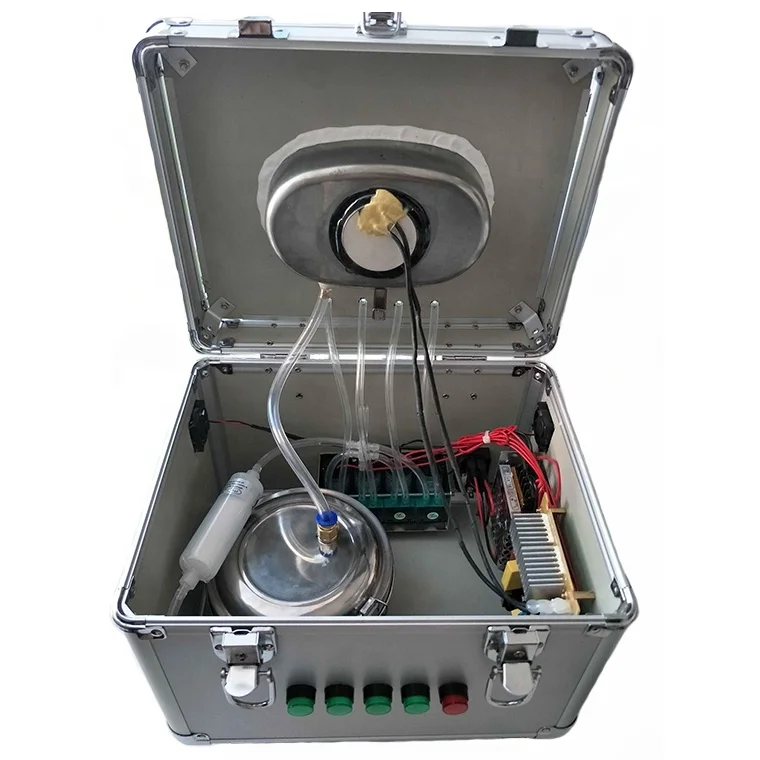

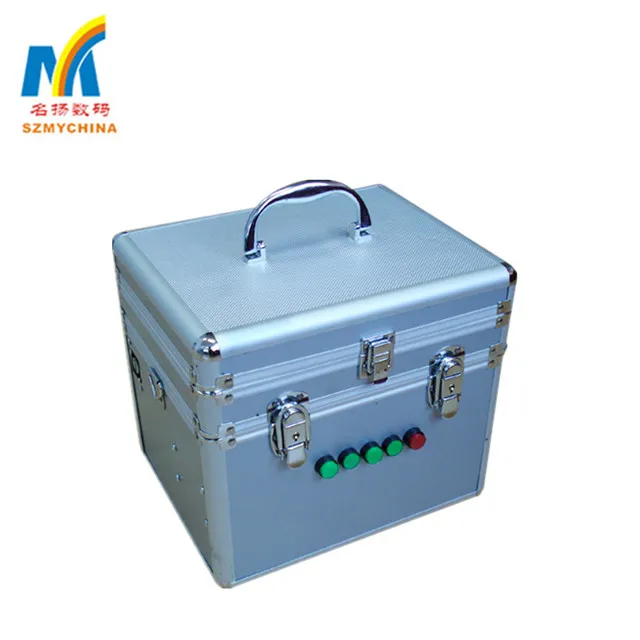

Ultrasonic & High Pressure Print Head Cleaning Machine

- It has both the pressure cleaning and ultrasonic cleaning functions.
- It's suitable for many kinds of eco solvent print heads, such as XAAR, SPECTRA, KONIKA, SEIKO and so on.
- It can be adjustable the print head shelf to suit for different kind of print head.
- It can protract the life of print head much longer, and decrease the waste for print head clog, save printing cost.




Specification


Model
MY-VCM 01
Power
45W
Voltage
110V / 220V
Ultrasonic Frequency
40 KHz
Application
For XAAR, KONICA, SEIKO, HP and other printheads
MOQ
1 Set
Warranty Period
One Year
Weight
5.8kg
Package
Carton box with foam




Why use our ultrasonic & high pressure print head cleaner?

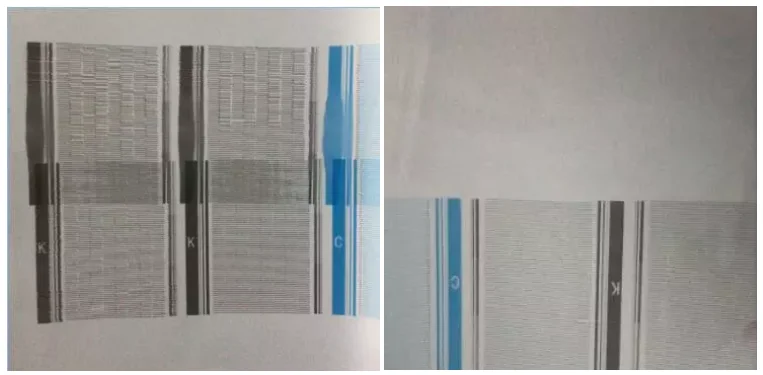

Before Cleaning
After Cleaning


- Regular cleaning of the print head can effectively extend the service life of the print head.
- If you have been engaged in the printing business for a long time or your print head is blocked (the ink has not completely dried up), it is recommended that you equip a professional print head cleaning machine. It is safer and more effective than manual cleaning, and will not damage the print head due to incorrect cleaning.





Free Spare Parts :

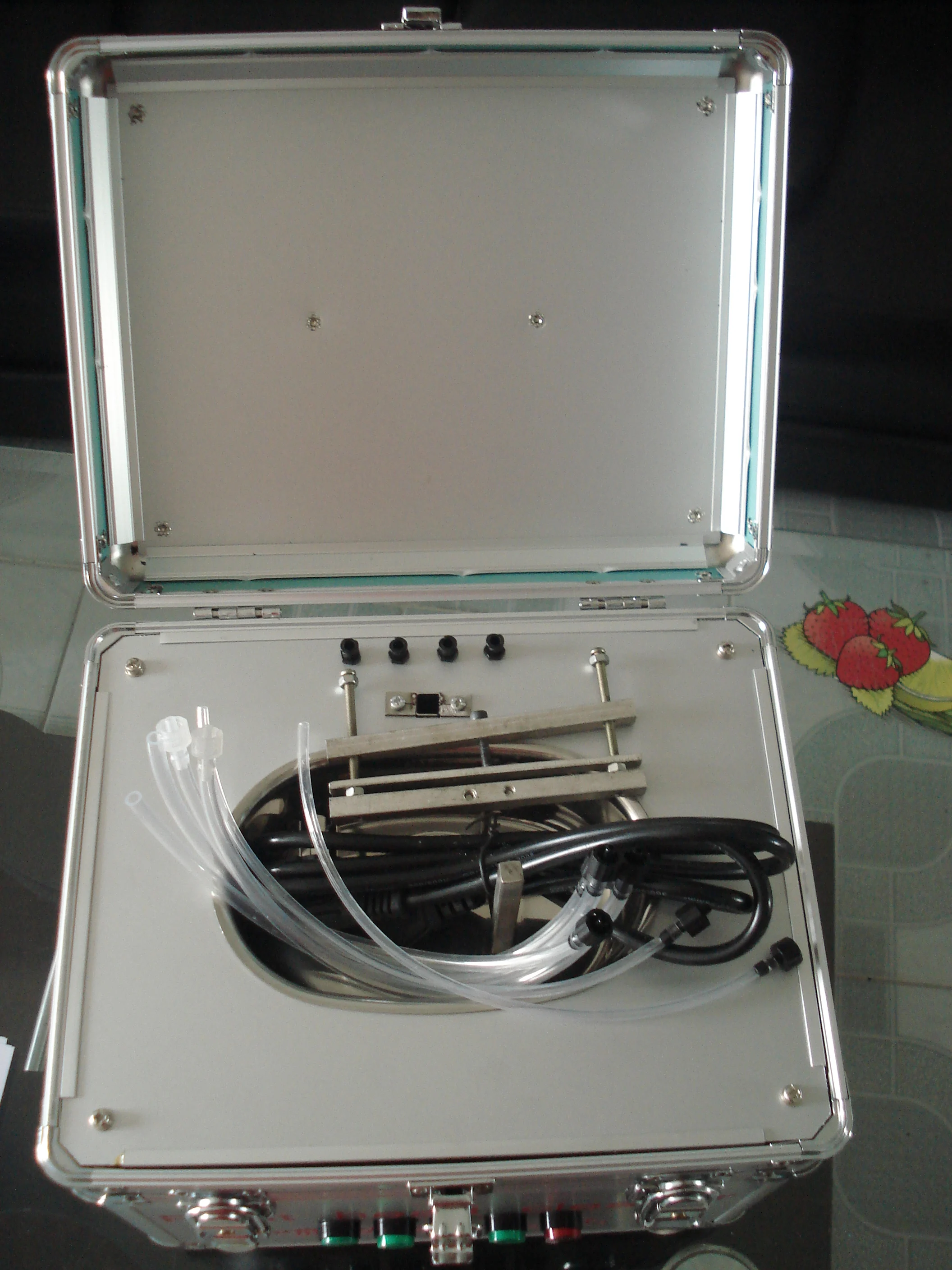

-  Print head bracket

-  4 Hose




How to work?


Step 1:
* Open the bottom lid of the machine and the lid of cleaning fluid tank.
Step 2:
* Pour cleaning fluid into the cleaning fluid tank.. The minimum should be over the water outlet port of the tank.


Step 3:
* Cover the cleaning fluid tank lid .and then the bottom lid of the machine.
Step 4:
* Open the top lid and put on nozzle holder.


Step 5:
* To connect the inlet of print head to the flushing pipe.
Step 6:

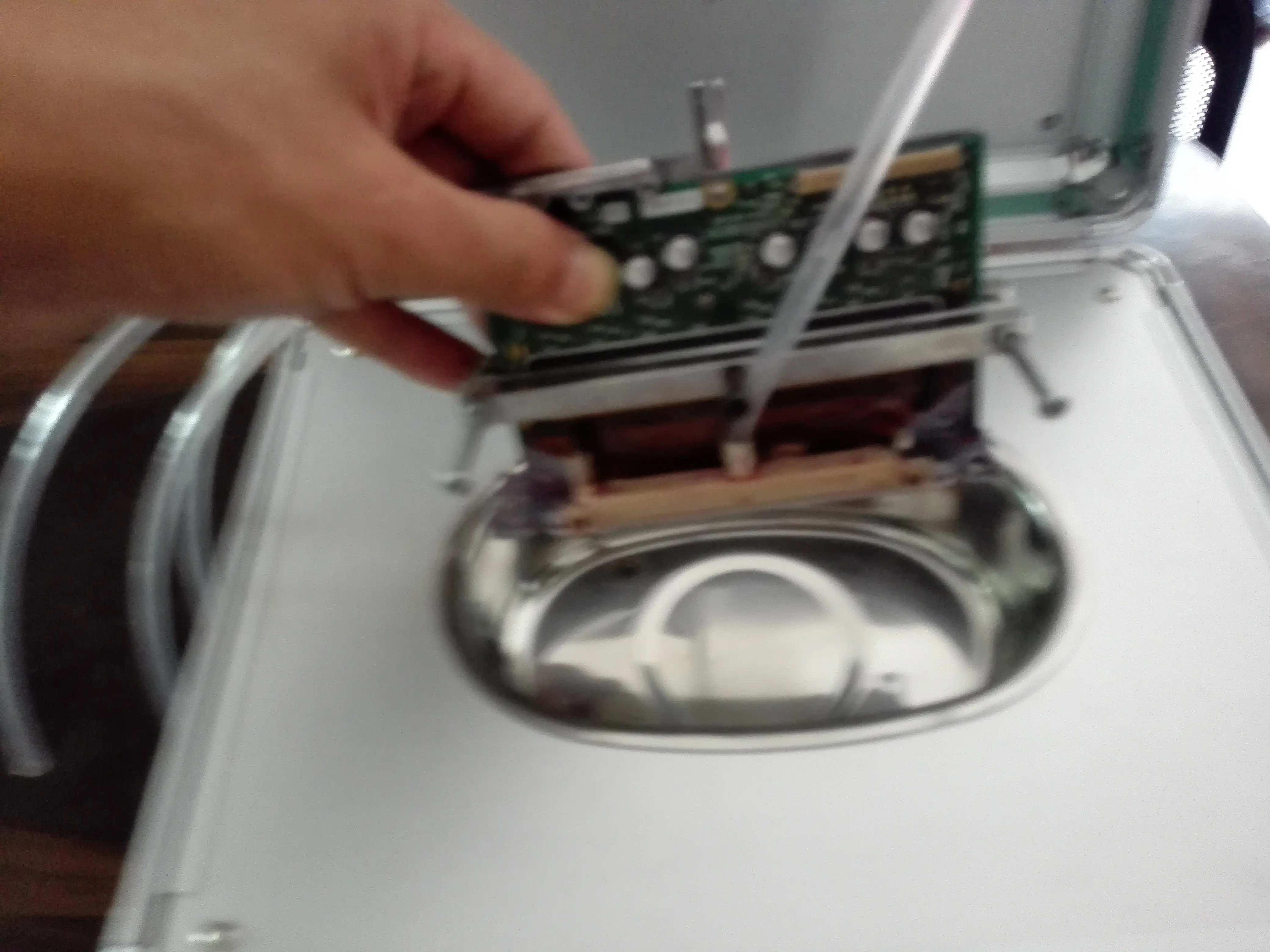

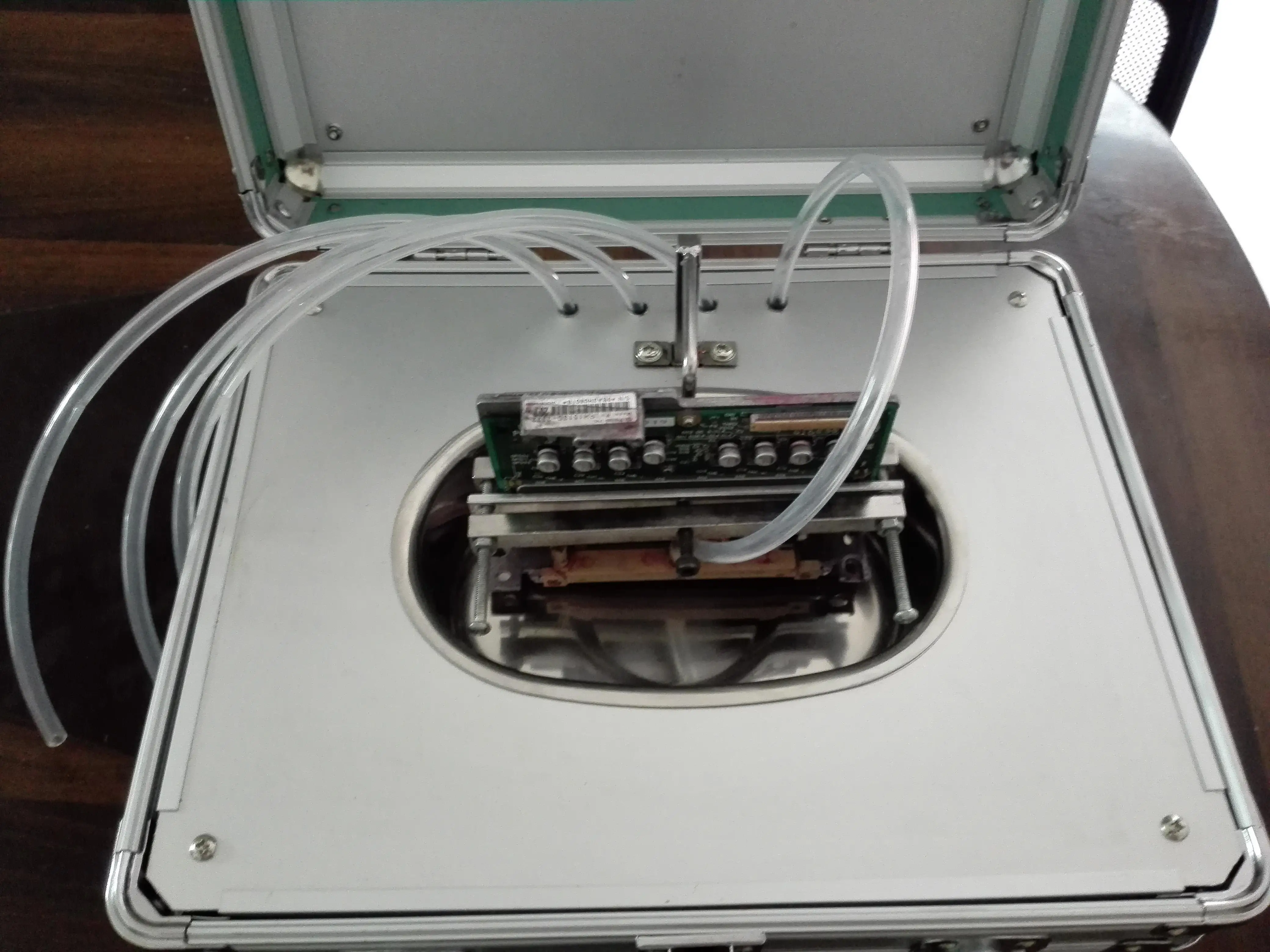

* To insert the print head into nozzle holder.


Step 7:
* The inserted print head.
Title goes here.
* Pour cleaning fluid into the cleaning tank ,to close to the water outlet port.


Step 9:
* After closing the ultrasonic nozzle can be picked up observation head cleaning effect.
Step 10:

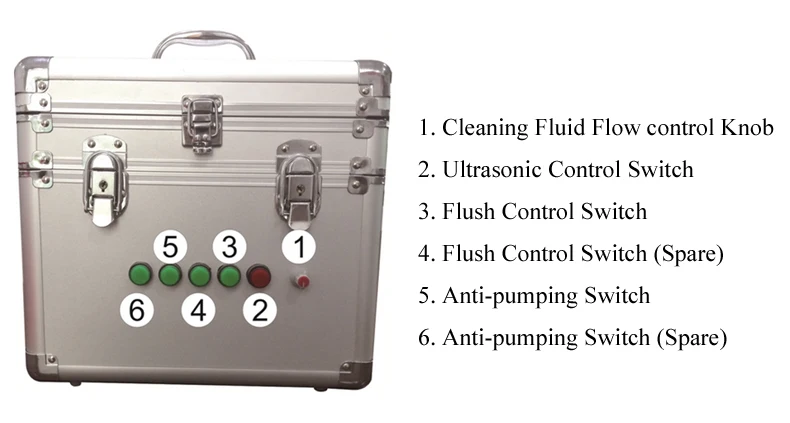

* Press the nozzle and pipe connected to the corresponding green button to let the cleaning fluid circulating rinse nozzle.


Step 11:
* It has both the pressure cleaning and ultrasonic cleaning functions. It's suitable for many kinds of eco solvent print heads, such as XAAR, SPECTRA, KONIKA, SEIKO and so on. It can be adjustable the print head shelf to suit for different kind of print head. It can protract the life of print head much longer, and decrease the waste for print head clog, save printing cost.
Step 12:
* Repeated cleaning for several times.and Cleaning the print head again after changing the cleaning fluid . Until the cleaning fluid which jet from the nozzle is neat and clean. Then re-install it on the printer after cleaning up the print head.


Company Profile














Recommend Products




FAQ


Q: What's the MOQ?
A: The MOQ is one set.

Q: What kind of cleaning solvent should I use? Do you provide it?
A: You should use the special cleaning solvent for the print head that matches your ink. Due to logistics factors, we currently do not provide solvents.

Q: How long is your warranty period?
A: We provide one year warranty period and good after-sale service for all of our goods.

Q: Can it cleaning inkjet print head?
A: We have cleaning equipment specially used for inkjet printers, which is more professional and convenient.

Q: How can I pay?
A: Our company accept : T/T, Western Union, Alibaba Trade Assurance Order and PayPal.


Contact Us


* If any questions or demands about our ultrasonic and high pressure eco solvent printheads cleaner machine, please feel free to contact me.
