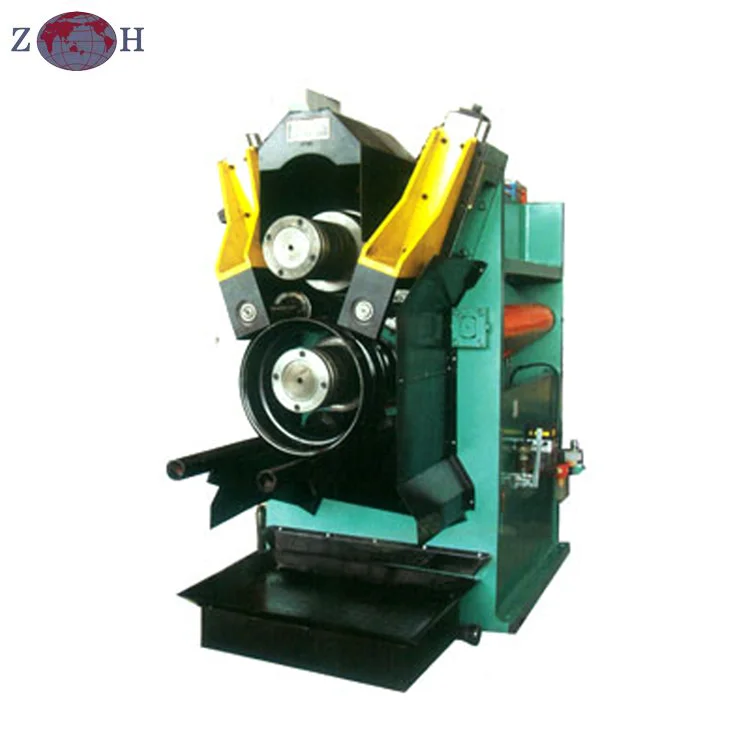

Tubeless wheel roll forming machine China
Description of Tubeless wheel roll forming machine China
This machine is specially designed for rolling steel wheel rims.
This machine is hydraulic driven, stable working.
This machine is PLC control, touch screen operation, simple and convenient.
The main spindle is made of special forged alloy, high fatigue strength.
The main spindle can be 3D adjusted, i.e., up & down, front & back, and incline, controlled by PLC.
Hydraulic tank is equipped with cooling system suitable for hot ambient condition.
Main technical data of Tubeless wheel roll forming machine China
Suitable rim diameter | 17.5 ~ 24” |
Suitable rim width | 7.5~20” |
Main shafts diameter | 200mm |
Main shafts length | 450mm |
Main forming roller quantity | 2 |
Guiding roller quantity | 4 |
Side guiding shaft diameter | φ90 mm |
Side guiding stroke | 200mm |
Main shaft speed | 50~450 rpm |
Main shafts adjustable tilt angle | 0 ~ 1.5 º |
Lower main shaft axial adjustable distance | ± 2 mm |
Lower main shaft raising force | 30000kgf |
Lower main shaft speed | 100mm/s |
Main shafts torque | 4050N·M |
Hydraulic pump motor power | 121kW |
Lubricating method | motorized centralized lubricating |
Machine dimension | 2000 x 2600 x 2400mm |
Machine weight | 18000kg |
Main configuration of Tubeless wheel roll forming machine China
PLC | Omron from Japan |
Touch screen | Delta from Taiwan |
Buttons | Schneider |
Electric control cabinet | assembling electric box |
Sensor | imported from Japan |
Lubricating pump | BIJUR dry oil pump from USA |
We, Nantong Zhenhuan Trade Co., Ltd., are specialized in different kind of machines for more than 10 years. We can provide you not only good quality machine but also good after-sale services.
Kindly please contact us to get more services and more information of Tubeless wheel roll forming machine China
