High Speed Automatic Spiral Cardboard Paper Tube Paper Core Making Machine CFJG 50
- Category: Paper Production Machinery >>>
- Supplier: Wenzhou,Chuangfeng,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
CFJG-50 Large size tube & core making machine is suitable for packing cores; textile cores and other industrial paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
-- Technical Parameters
Technical Parameter | Control System | ||
Paper Layer | 3-24 Layers | PLC | Xinjie |
Inner Diameter | 50-250mm | Man-machine Interface | Touch Screen (Xinjie) |
Wall Thickness | 1-15mm | Inverter | 18.5KW Delta (Taiwan) |
Winding Speed | 1-25 meters/min | Execute Components | CHNT |
Winding Nose | Four noses two belts | Signal Components | Hugong |
Shaft Fixing Way | Flange | Pneumatic Components | Jingwei |
Cutting System | Single Circular Blade | Electric Components | CHNT |
Gluing Way | Single / Double (can be chose) | Configuration | |
Length fixing | Infrared | Paper Reel Stand | 24 Layers Integral Type |
Operator | 2-3 persons | Gluing System | 24 Layers Spraying Type |
Speed Control | By Inverter | Inner Paper Shelf | 1 Set |
Power Supply | 380V/3Phase/50Hz (can be customized) |
| |
Discharging Shelf | 1 Set | ||
Size | Belt | 4 Pieces | |
Mainframe | 4600*1950*1900mm | Mandrel Shaft | 2 Pieces |
Working Space | 15000*8000mm | Belt Adjusting | Manual |
Weight | 4500kgs | Paper Reel Stand & Gluing Shelf Adjusting | Manual |
Driving System | |||
Main Motor | 15KW Wannan | Automatically Gluing | Gluing Pump |
Motor Rotating Speed | 1400r/min | Lubricating Oil for Paper Tape | Automatically Supply |
Nose Rotating Speed | 48r/min | ||
Nose Output Strength | 3000N.m | Enclosed Spare Parts | |
Reduction Box | WPO155 | Extra Blades | 3 Pieces |
Gear Box | WPO155 | Useful Tool | 1 Set |
Driving Chain | 16A*2 |
|
|
Paper Tube Winding Part (four winding heads double belts; Parameters can be set on the operating panel)
Inline Cutting System (Cutting length from 800mm to 5000mm)

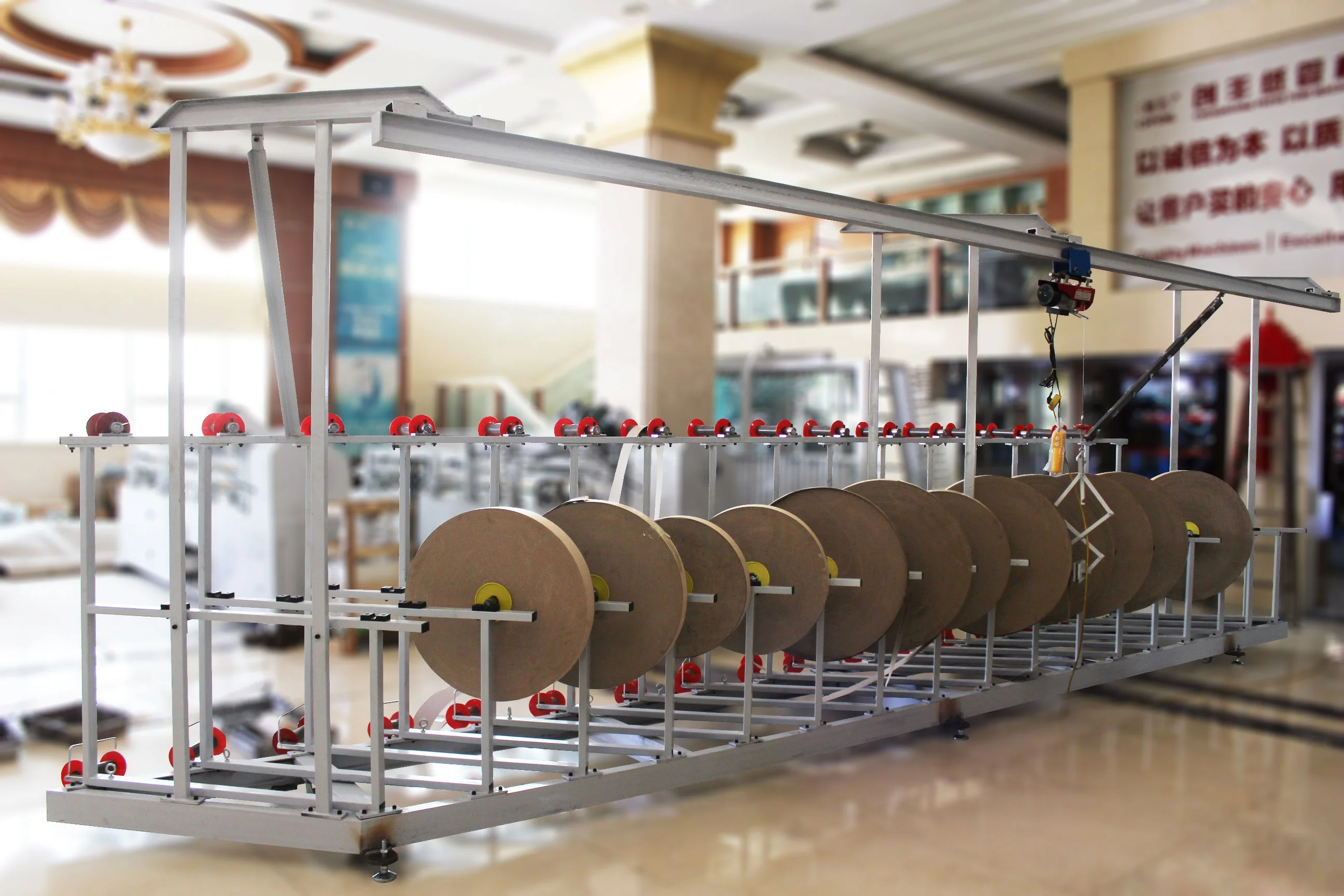

24 Layers Integral Paper Reel Stand with hoist motor lifting device
24 Layers Spraying Gluing Unit (automatically gluing)

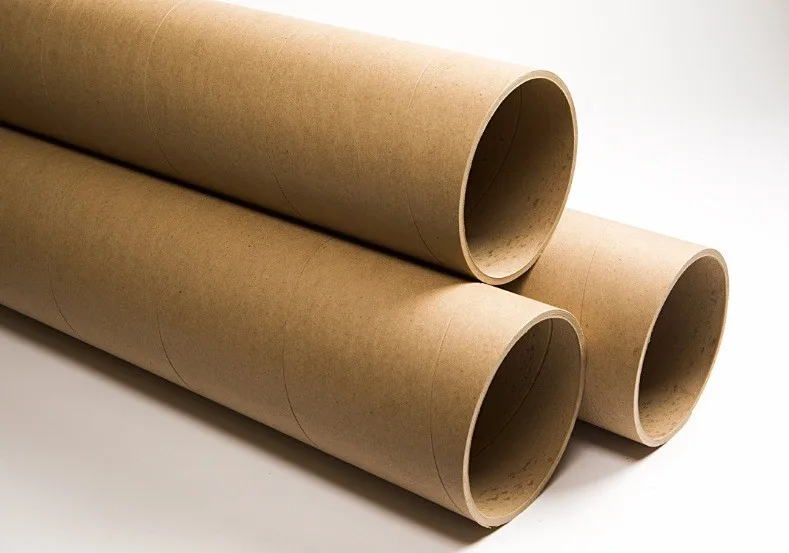

Finished Paper Tubes
