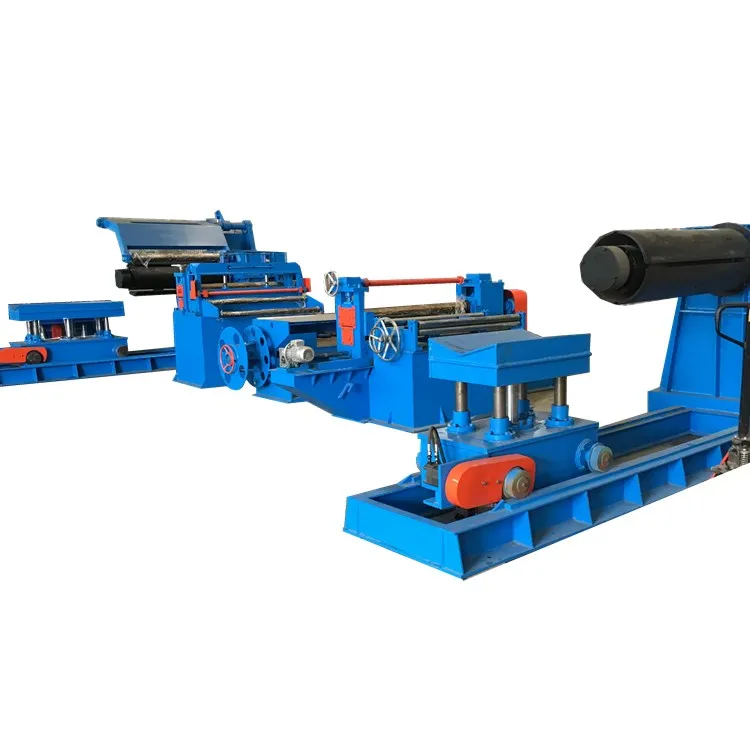

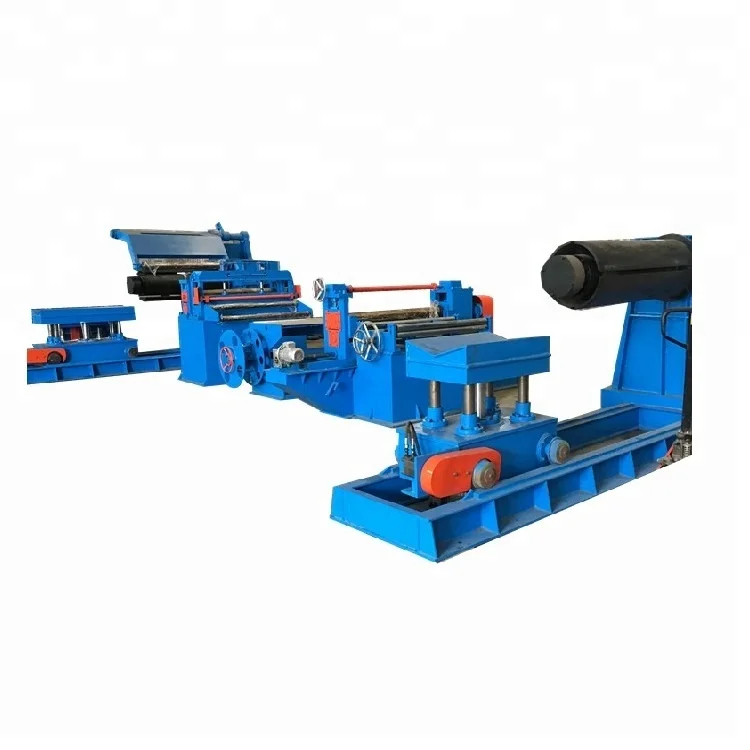

mini slitting machine Steel sheet slitter for slitting line
- Category: Coil Slitting Machine >>>
- Supplier: Wuxi Bangzhou Machinery Manufacturing Co. Ltd.
Share on (1861944407):
Product Overview
Description
Products Description

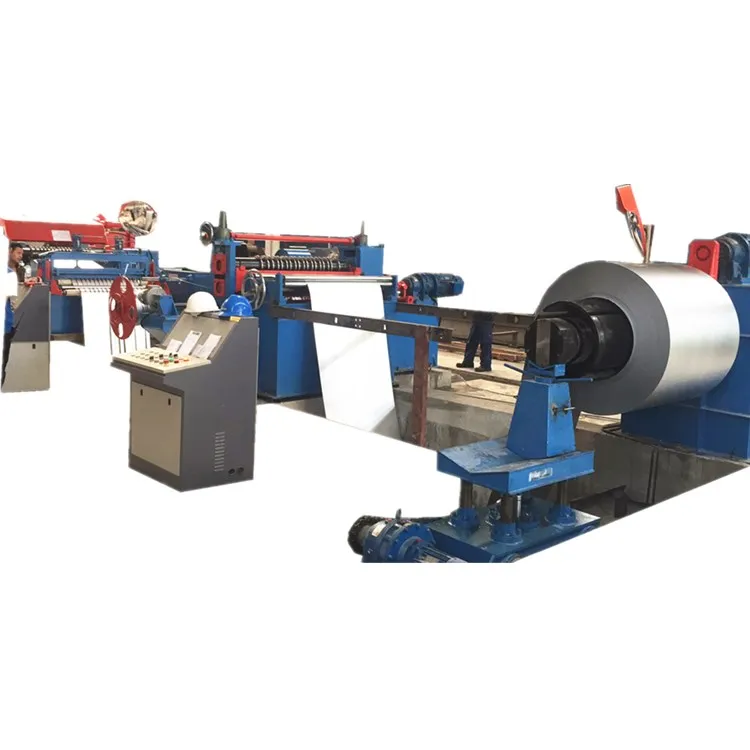

Steel sheet slitter for slitting line
Steel sheet slitter for slitting line is a complete line to slit the big steel coil into strips and then rewinding by frequency converting control , it can slit various size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc..
Steel sheet slitter for slitting line
It is a line which can be disigned on-ground .
And it is composed as coil car, decoiler, slitter, scrap winder, tension stand , recoiler and exit coil car. The speed is about 40m/min
Product Paramenters
Standard specifications of simple hydraulic slitting line(if other size,can be customlized)
Model | Thickness(mm) | Width(mm) | No. of slitting | Tolerance(±mm/m) | Speed(m/min) | Weight(T) |
ZJX-1.5X650 | 0.2-1.5 | 100-650 | 5-15 | ±0.05 | 0-40 | 5 |
ZJX-1.5X1250 | 0.2-1.5 | 500-1250 | 5-15 | ±0.05 | 0-40 | 5、10 |
ZJX-2X1250 | 0.2-2 | 500-1250 | 5-15 | ±0.05 | 0-40 | 5、10 |
ZJX-3X1250 | 0.3-3 | 500-1250 | 5-15 | ±0.05 | 0-40 | 10 |
ZJX-3X1600 | 0.3-3 | 500-1600 | 5-15 | ±0.05 | 0-30 | 10、15 |
ZJX-4X1250 | 0.5-4 | 500-1250 | 5-15 | ±0.1 | 0-30 | 10 |
ZJX-4X1600 | 0.5-4 | 500-1600 | 5-15 | ±0.1 | 0-30 | 10、15、20 |
Standard specifications of automatic slitting line(if other size,can be customlized)
Model | Thickness(mm) | Width(mm) | No. of slitting | Tolerance(±mm/m) | Speed(m/min) | Weight(T) |
ZJX-2X650 | 0.2-2 | 100-650 | 10-30 | ±0.05 | 0-120 | 10 |
ZJX-2X1250 | 0.2-2 | 500-1250 | 10-30 | ±0.05 | 0-120 | 10、15 |
ZJX-3X1250 | 0.3-3 | 500-1250 | 65-30 | ±0.05 | 0-120 | 10、15 |
ZJX-3X1600 | 0.3-3 | 500-1600 | 5-30 | ±0.05 | 0-120 | 15、20 |
ZJX-4X1600 | 0.5-4 | 500-1600 | 5-30 | ±0.05 | 0-100 | 20、25 |
ZJX-6X1600 | 1-6 | 500-1600 | 5-20 | ±0.1 | 0-80 | 20、25 |
ZJX-8X2000 | 3-8 | 800-2000 | 5-15 | ±0.1 | 0-40 | 25、30 |
ZJX-10X2000 | 3-10 | 800-2000 | 5-10 | ±0.1 | 0-40 | 25、30 |
ZJX-12X2000 | 4-12 | 800-2000 | 5-10 | ±0.1 | 0-30 | 25、30 |
ZJX-16X2200 | 6-16 | 800-2200 | 4-8 | ±0.1 | 0-20 | 30、35 |
Details Images

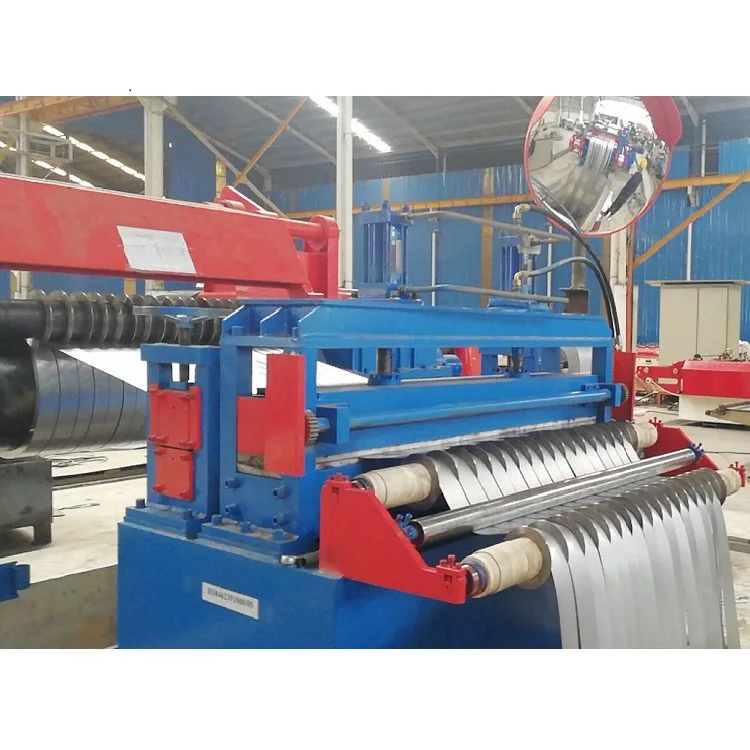

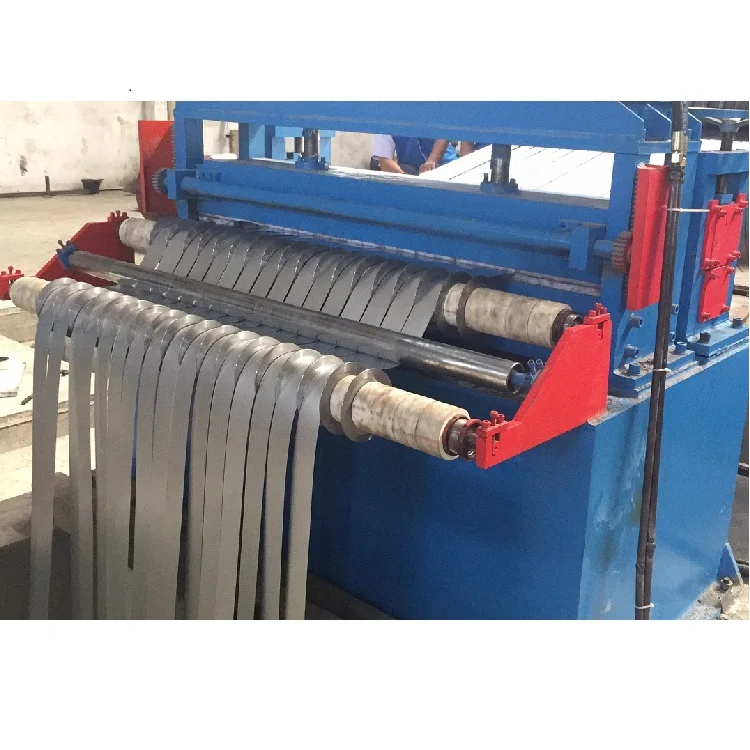

Slitter
Composed of side guide device to achieve positioning strip and stop the jumping of strip, bottom-stand, knife pivot, movable bracket
It is the important part to slit good-quality coil strips
Can slit the different size according as blade adjustment
Recoiler
Designed with Overall steel plate cantilever structure
Designed with hydraulic expand and shrink model.
Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.
Product packaging
Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.
After loading to the container,it will be fixed by lifting rope.
Company Profile
WUXI BANGZHOU MACHINERY
We are the manufacturer specialized in steel coil straightening machine, slitting line, cut to length line and flat bar straightening and chamfering machine for about15 years.
It is professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.
Certifications
Customer Photos
Our compnay will attend professional exhibition of this industry every year.
Always welcome to visit our factory.
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
FAQ
What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and humanized .
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 3-4 lines per month.
Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.
How to visit your company?
Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport.
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
What information you need to prepare the quotation?
1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
